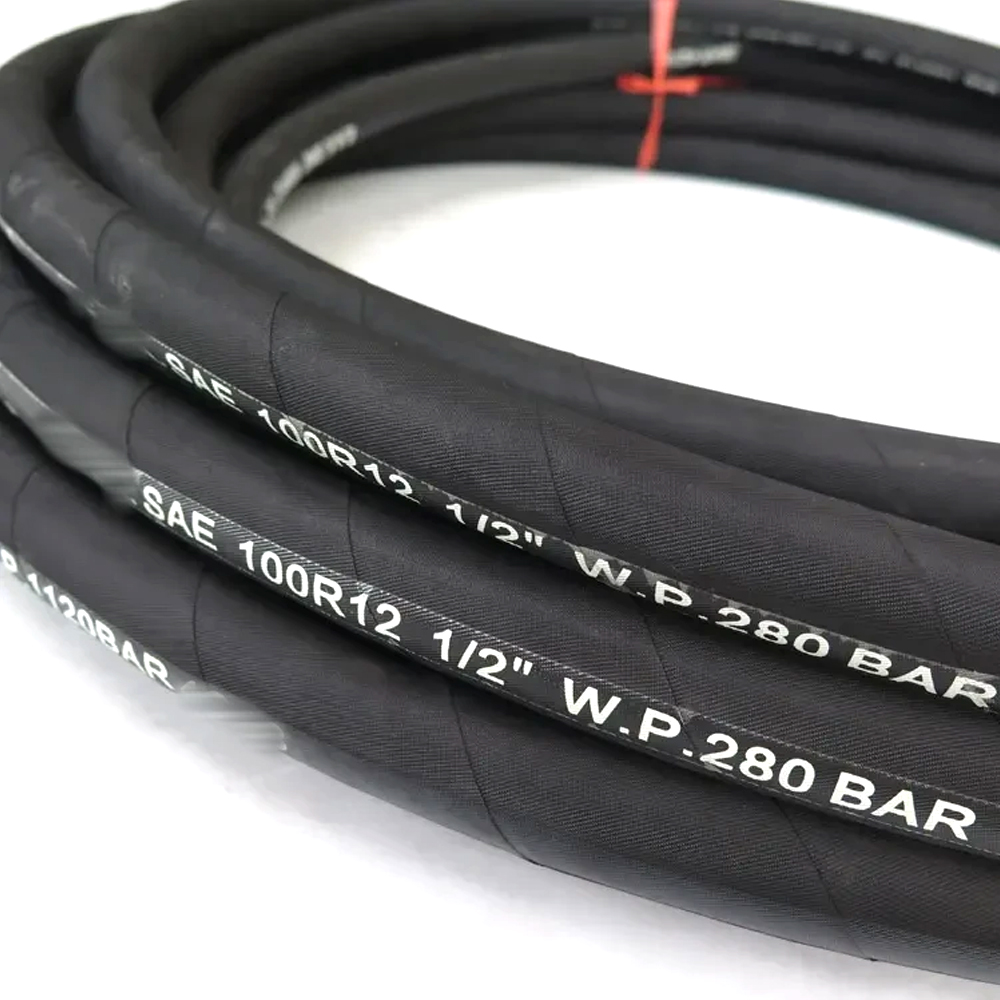

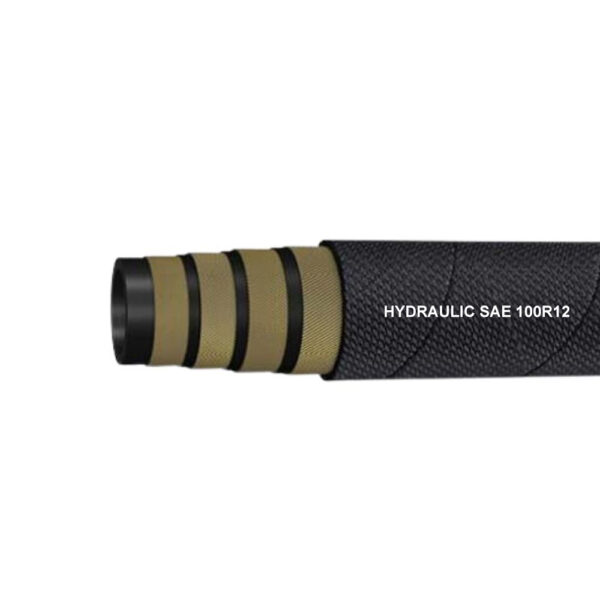

SAE 100R12 represents a series of four high-pressure hydraulic hoses (3/8″ to 2″) featuring helical wire reinforcement. Engineered for demanding industrial applications, this product line is ideal for heavy equipment including excavators, loaders, and construction machinery.
| Part No. | Dash | I.D. | O.D. | W.P | B.P | B.R | ||
| Inch | mm | mm | MPa | PSI | MPa | PSI | mm | |
| SAE100R12-06 | 3/8″ | 9.5 | 20.2 | 28 | 4060 | 112 | 16240 | 125 |
| SAE100R12-08 | 1/2″ | 12.7 | 23.5 | 28 | 4060 | 112 | 16240 | 180 |
| SAE100R12-10 | 5/8″ | 15.9 | 27.3 | 28 | 4060 | 112 | 16240 | 200 |
| SAE100R12-12 | 3/4″ | 19.1 | 31 | 28 | 4060 | 112 | 16240 | 240 |
| SAE100R12-16 | 1″ | 25.4 | 38 | 28 | 4060 | 112 | 16240 | 300 |
| SAE100R12-20 | 1.1/4″ | 31.8 | 47 | 21 | 3045 | 84 | 12180 | 420 |
| SAE100R12-24 | 1.1/2″ | 38.1 | 54 | 17.5 | 2540 | 70 | 10150 | 500 |
| SAE100R12-32 | 2″ | 50.8 | 67.5 | 17.5 | 2540 | 70 | 10150 | 640 |
