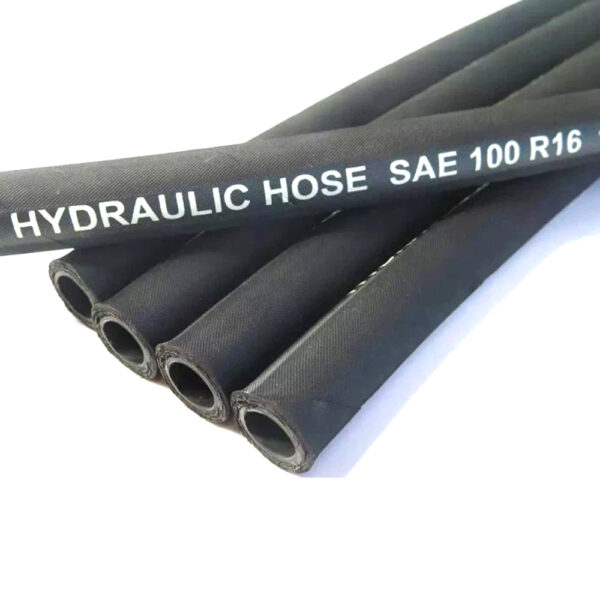

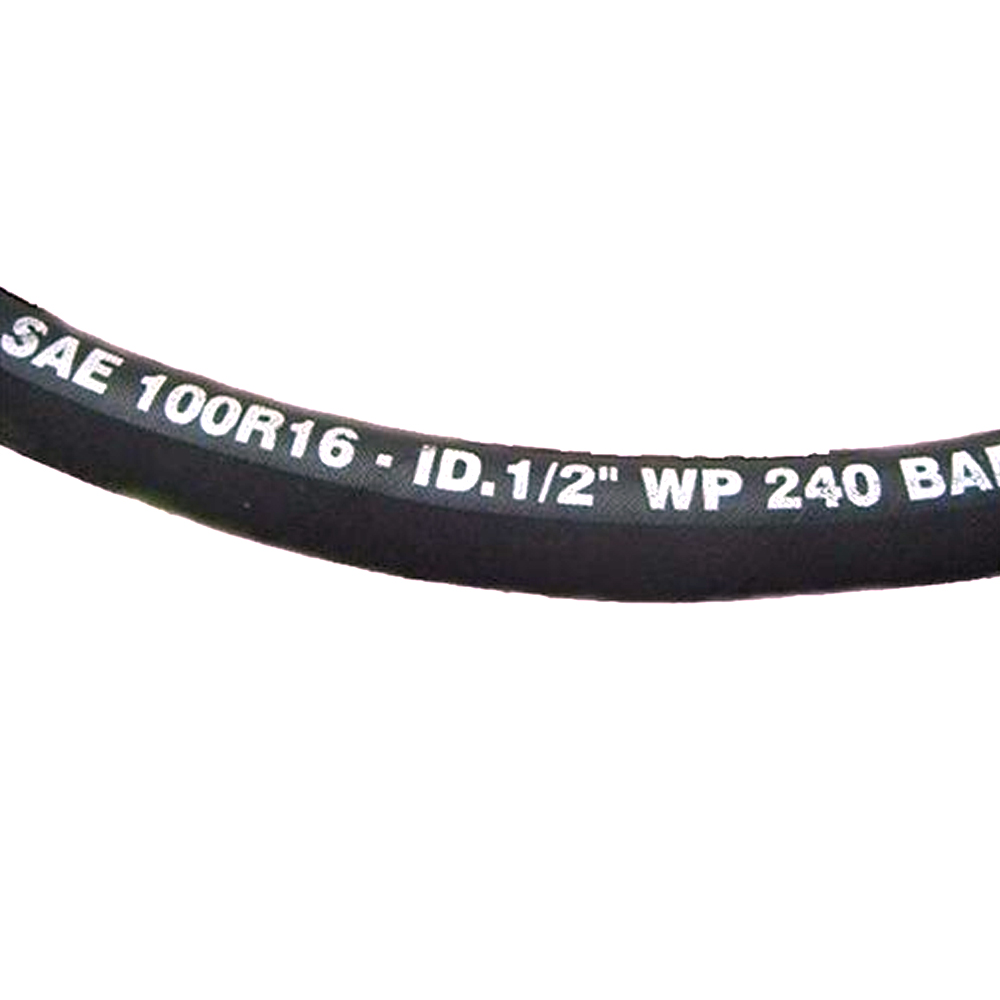

SAE 100 R16 Two Steel Wire Braided Hydraulic Hoses

Description:

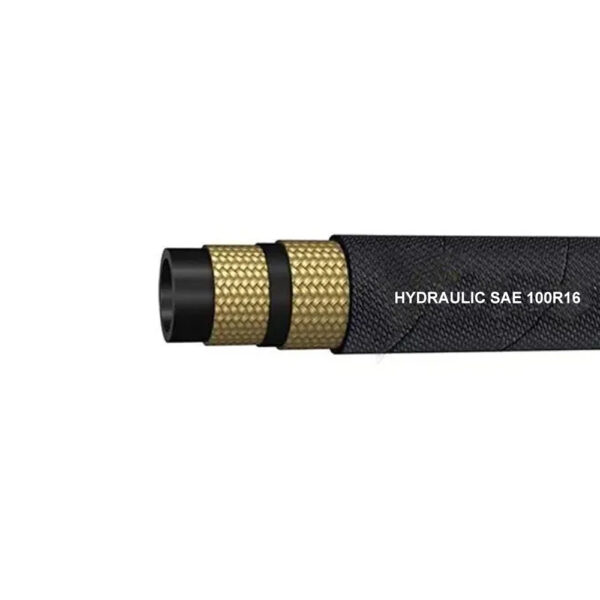

Tube: black high-strength synthetic rubber.

Reinforcement: 2 layers of high tensile braided steel wire.

Cover: high quality synthetic rubber.

Temperature Range: -40 °C to +100 °C. (intermittent 120 °C)

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R9
Share:
  • Description
  • Package& Shipping
Description

When hydraulic equipment requires slim yet durable hoses for confined routing, the SAE 100R16 compact hose delivers exceptional performance. Reinforced with two high-tensile steel wire braids, it matches the specifications of SAE 100R2 hoses while offering a tighter bending radius for greater flexibility in narrow spaces.

Part No. Dash I.D.  O.D. W.P B.P B.R Length Ferrule
mm Inch mm mm MPa PSI MPa PSI mm m
SAE 100R16-04 6.4 1/4″ 6.2-7.0 14.5 MAX. 225 3263 900 13050 50 50/100 00210C-04
SAE 100R16-05 7.9 5/16″ 7.7-8.5 15.7 MAX. 215 3118 860 12470 55 50/100 00210C-05
SAE 100R16-06 9.5 3/8″ 9.3-10.1 18.8 MAX. 180 2610 720 10440 65 50/100 00210C-06
SAE 100R16-08 12.7 1/2″ 12.3-13.5 22.0 MAX. 160 2320 640 9280 90 50/100 00210C-08
SAE 100R16-10 15.9 5/8″ 15.5-16.7 25.4 MAX. 130 1885 520 7540 100 50/100 00210C-10
SAE 100R16-12 19.1 3/4″ 18.6-19.8 29.0 MAX. 105 1523 420 6090 120 50/100 00210C-12
SAE 100R16-16 25.4 1″ 25.0-26.4 36.6 MAX. 87 1262 348 5046 150 50/100 00210C-16
SAE 100R16-20 31.8 1-1/4″ 31.4-33.0 44.3 MAX. 63 914 252 3654 210 40/50 00210C-20
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
