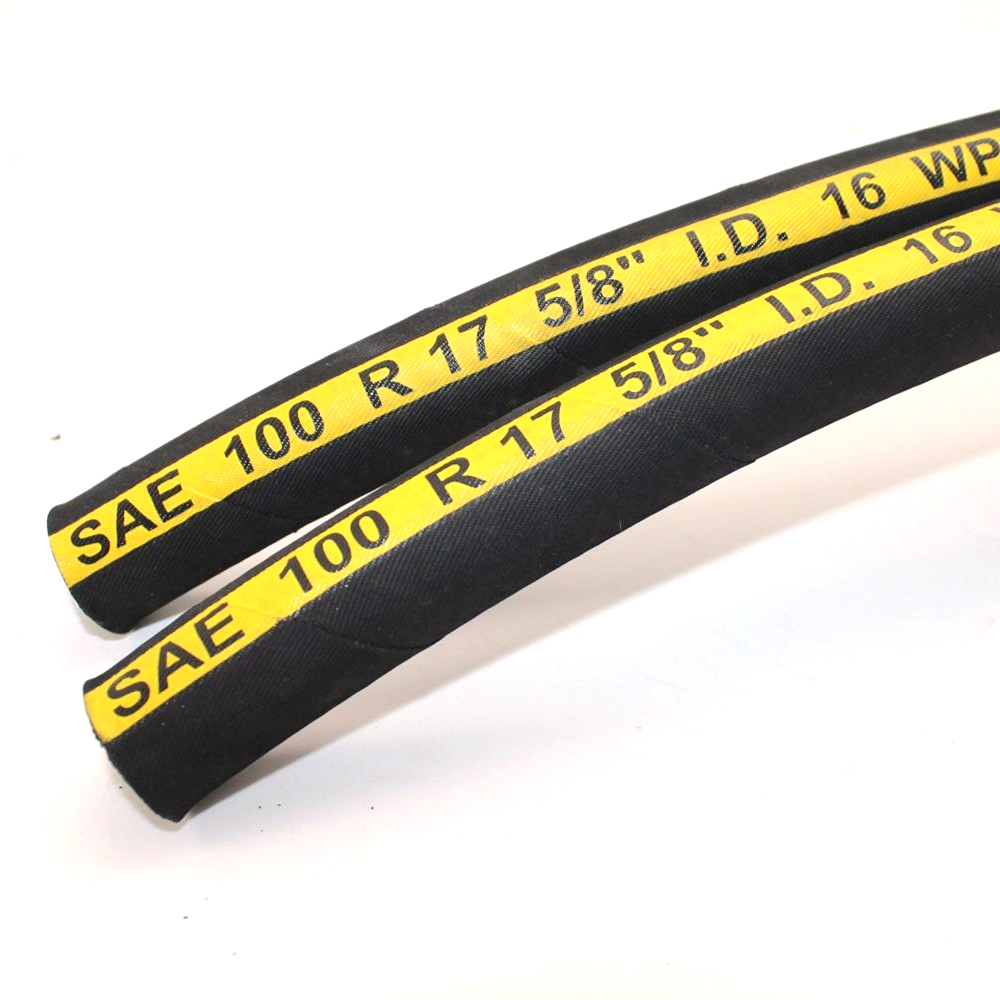

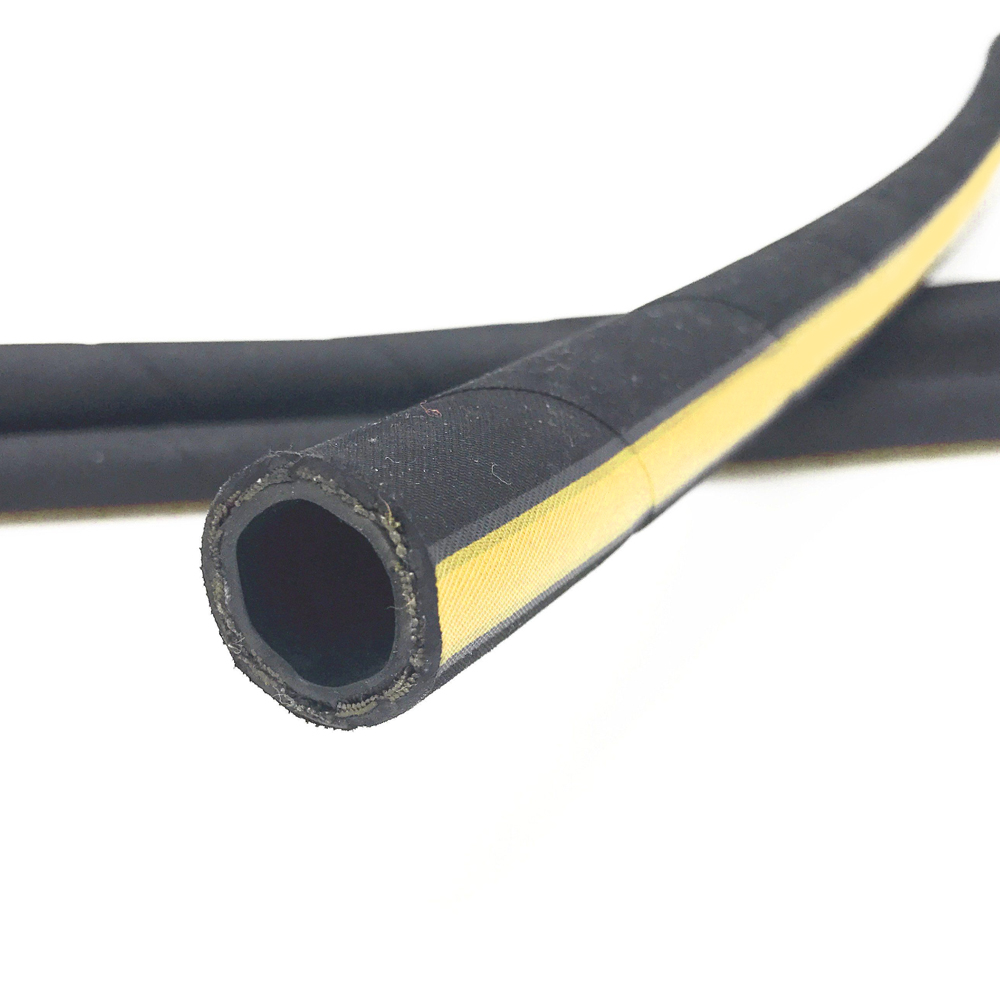

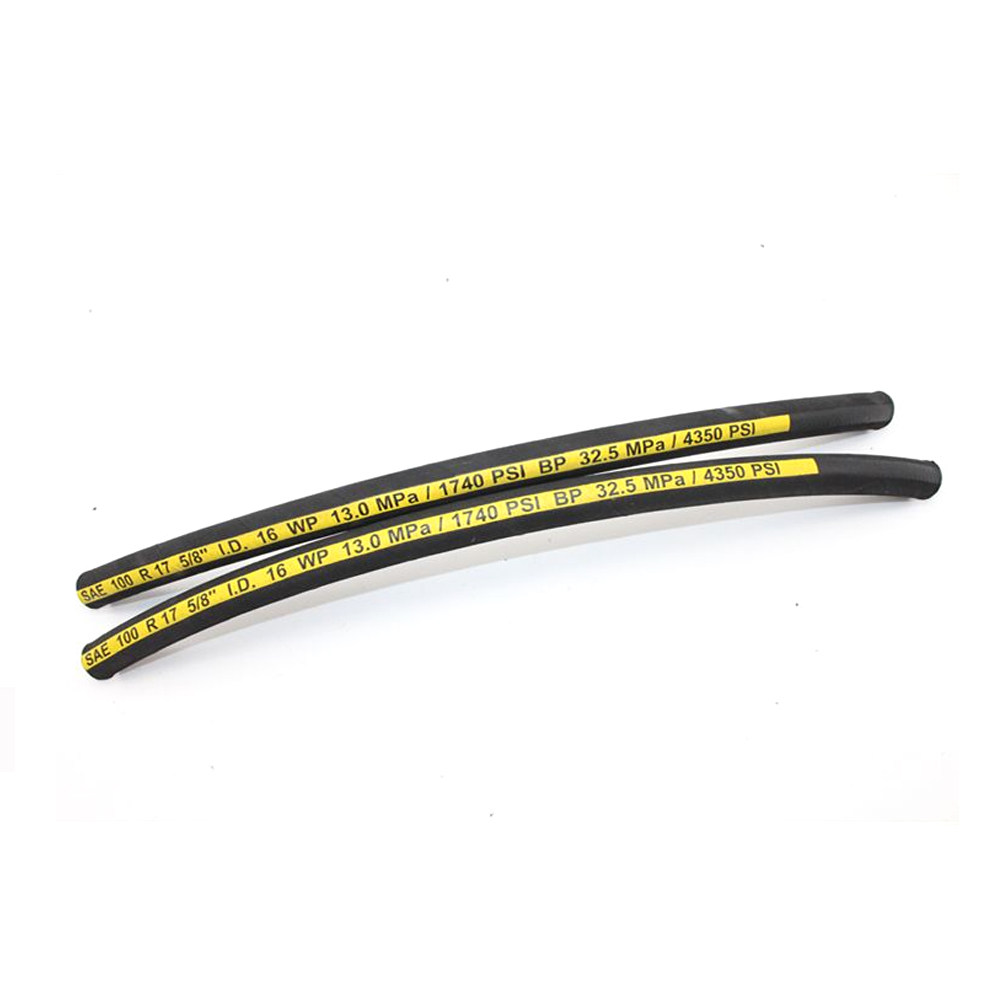

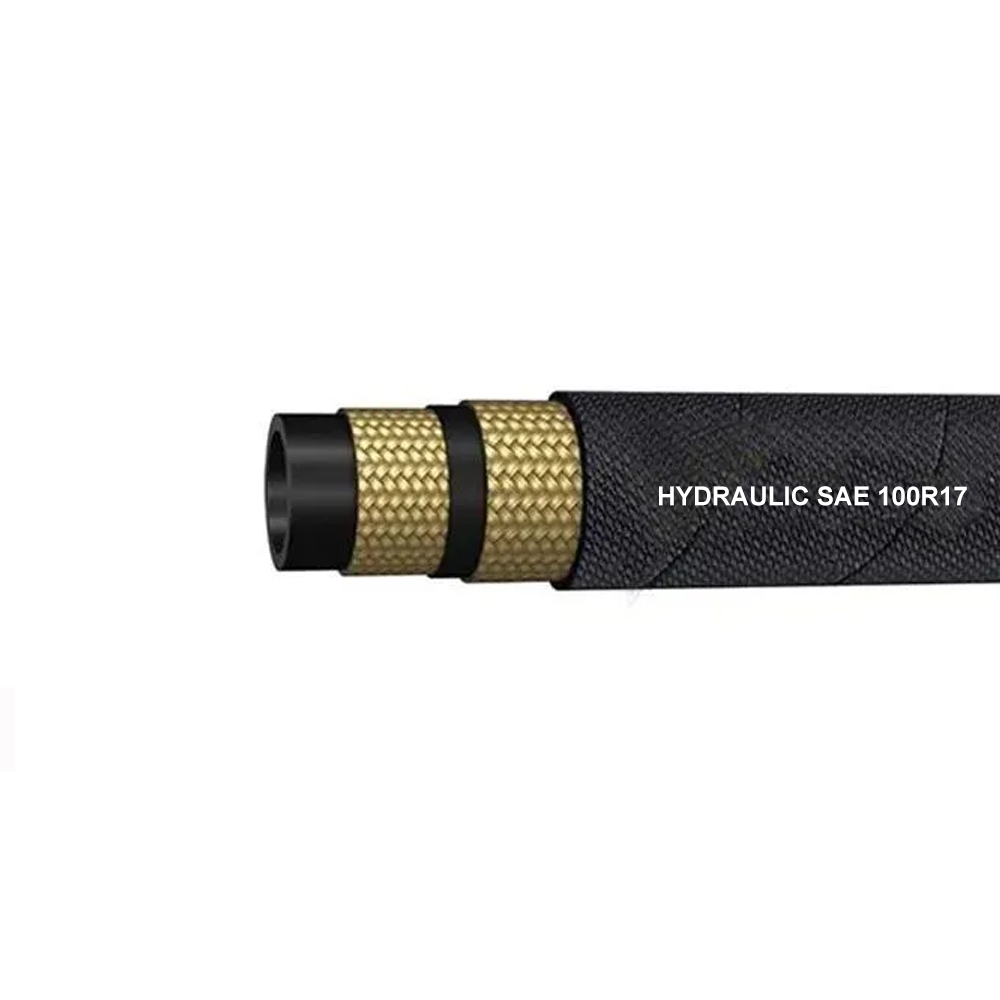

SAE 100 R17 hydraulic hose features a small bending radius and a reduced outer diameter for easy routing in tight areas. With all sizes up to 1″ I.D. rated for a maximum working pressure of 3000 PSI, this hose delivers reliable performance in demanding applications. Recommended for hydraulic systems using petroleum-based or water-based fluids, the SAE 100R17 hose is also well-suited for general industrial use. Its durable wire-reinforced construction ensures strength and flexibility, making it a versatile choice for high-pressure hydraulic operations.
| Part No. | Dash | ID | OD | W.P | B.P | B.R | Length | Ferrule | |||
| mm | Inch | mm | mm | bar | psi | bar | psi | mm | m | ||
| SAE-R17-03 | 4.8 | 3/16″ | 4.6-5.4 | 11.6MAX. | 210 | 3045 | 840 | 12180 | 45 | 50/100 | 00110-03 |
| SAE-R17-04 | 6.4 | 1/4″ | 6.2-7.0 | 12.3MAX. | 210 | 3045 | 840 | 12180 | 50 | 50/100 | 00110-04 |
| SAE-R17-05 | 7.9 | 5/16″ | 7.6-8.5 | 13.2MAX. | 210 | 3045 | 840 | 12180 | 55 | 50/100 | 00110-05 |
| SAE-R17-06 | 9.5 | 3/8″ | 9.3-10.3 | 15.0MAX. | 210 | 3045 | 840 | 12180 | 65 | 50/100 | 00110-06 |
| SAE-R17-08 | 12.7 | 1/2″ | 12.9-13.5 | 19.5MAX. | 210 | 3045 | 840 | 12180 | 90 | 50/100 | 00110-08 |
| SAE-R17-10 | 15.9 | 5/8″ | 15.5-16.7 | 22.1MAX. | 210 | 3045 | 840 | 12180 | 100 | 50/100 | 00110-10 |
| SAE-R17-12 | 19.1 | 3/4″ | 18.6-19.8 | 30.3MAX. | 210 | 3045 | 840 | 12180 | 120 | 50/100 | 00110-12 |
| SAE-R17-16 | 25.4 | 1″ | 25.0-26.4 | 38.6MAX. | 210 | 3045 | 840 | 12180 | 150 | 50/100 | 00110-16 |
