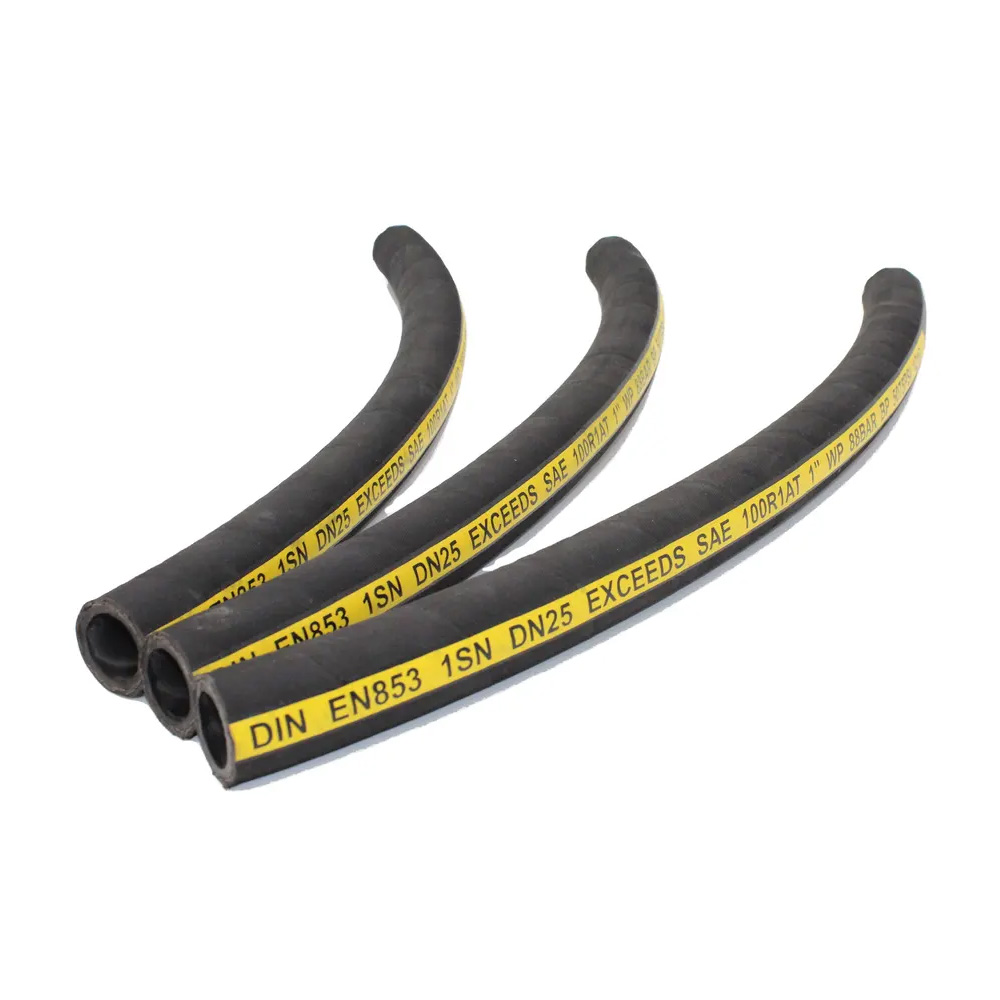

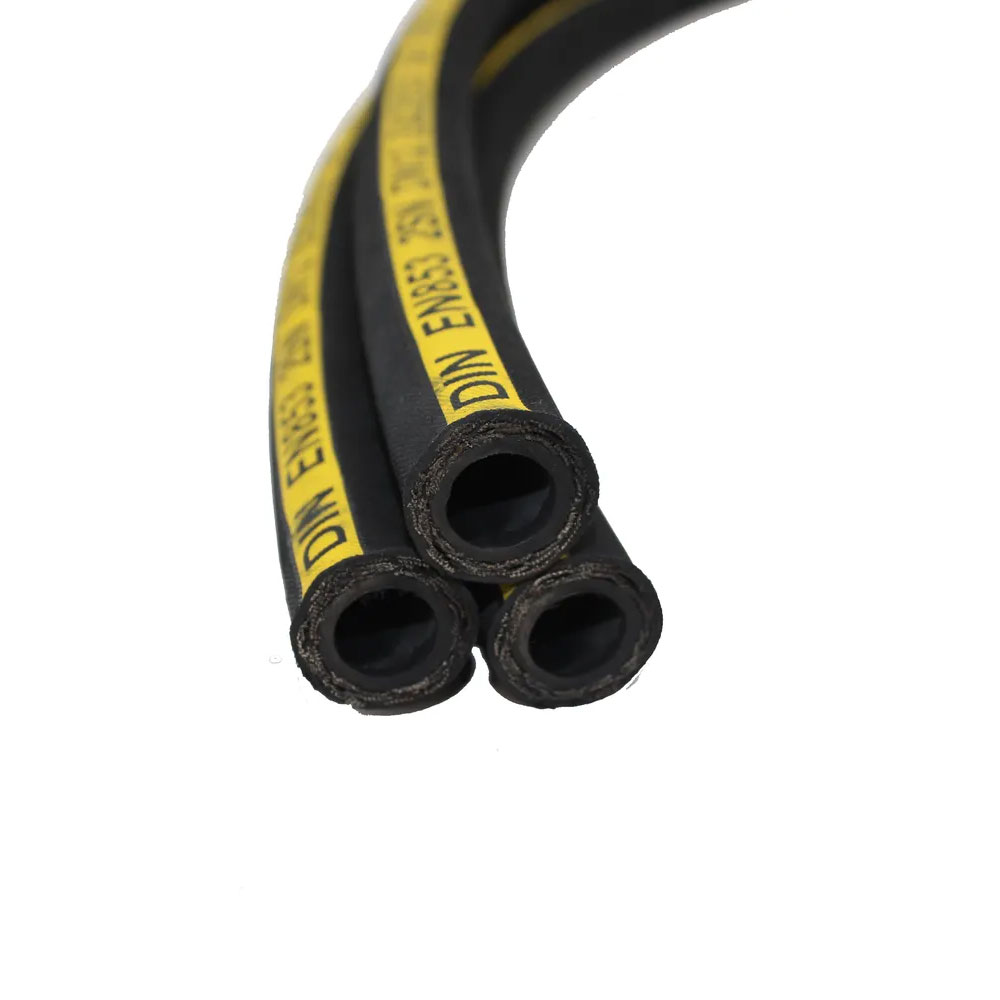

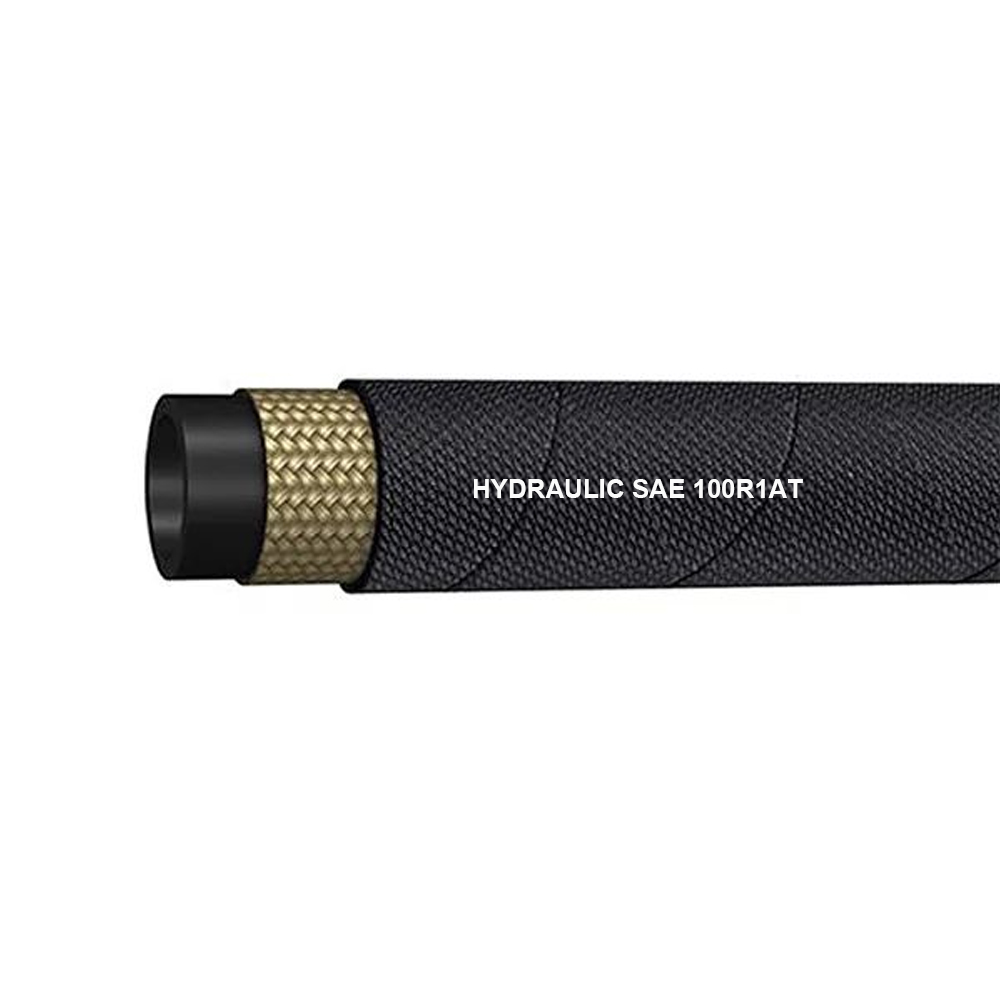

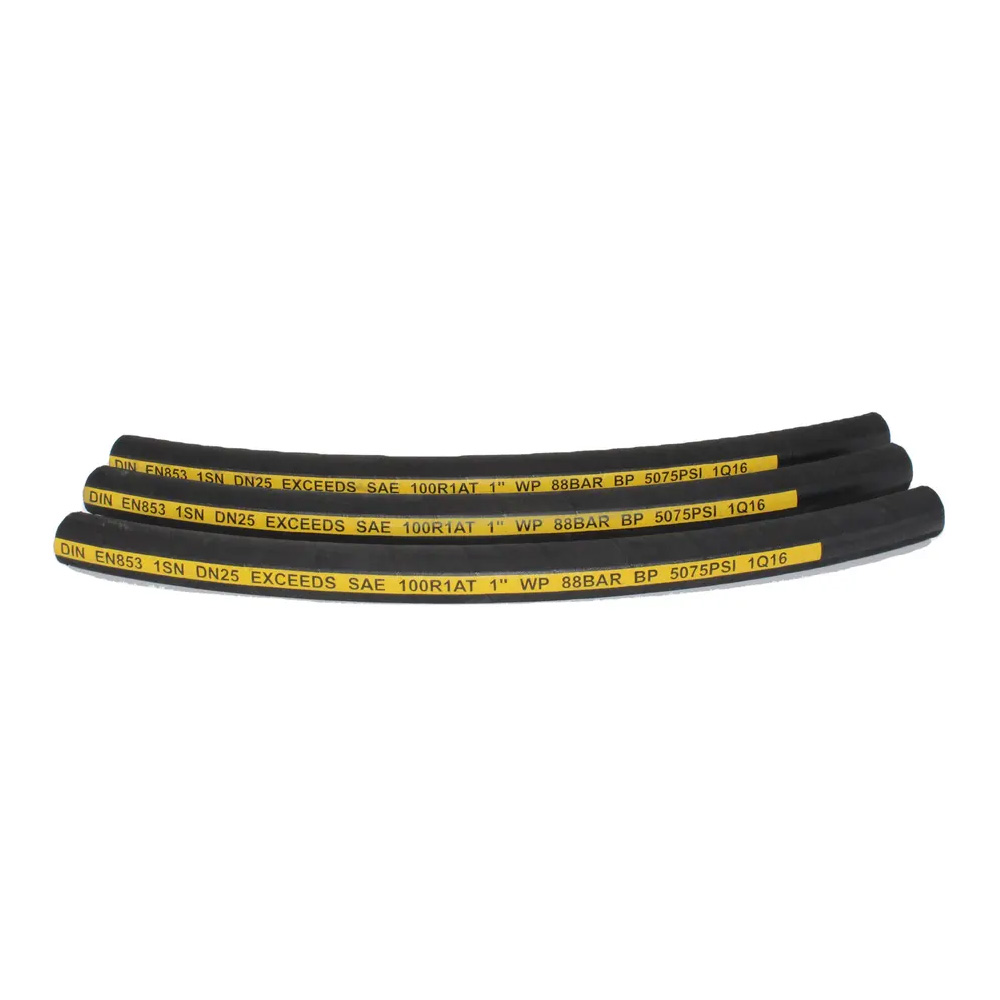

The SAE 100 R1 AT hydraulic hose is a high-pressure hydraulic solution featuring single-wire braid reinforcement. This SAE-compliant hose consists of a single layer of spirally braided steel wire over its inner tube, meeting the rigorous Society of Automotive Engineers standards for high-pressure hydraulic rubber hoses. Its construction delivers optimal pressure resistance while maintaining flexibility.
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | MIN.BURST PERS | MAX.W.P. | MIN.BEND.RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 1SN-03 | 5 | -3 | 3/16 | 4.8 | 11.8 | 82.7 | 20.7 | 89 | 00110-03A |
| 1SN-04 | 6 | -4 | 1/4 | 6.4 | 13.4 | 75.8 | 19 | 102 | 00110-04A |
| 1SN-05 | 8 | -5 | 5/16 | 7.9 | 15 | 68.9 | 17.2 | 114 | 00110-05A |
| 1SN-06 | 10 | -6 | 3/8 | 9.5 | 17.4 | 62 | 15.5 | 127 | 00110-06A |
| 1SN-08 | 12 | -8 | 1/2 | 12.7 | 20.6 | 55.2 | 13.8 | 178 | 00110-08A |
| 1SN-10 | 16 | -10 | 5/8 | 15.9 | 23.7 | 41.4 | 10.3 | 203 | 00110-10A |
| 1SN-12 | 20 | -12 | 3/4 | 19 | 27.7 | 34.5 | 8.6 | 241 | 00110-12A |
| 1SN-16 | 25 | -16 | 1 | 25.4 | 35.6 | 27.6 | 6.9 | 305 | 00110-16A |
| 1SN-20 | 32 | -20 | 1.1/4 | 31.8 | 43.5 | 17.2 | 4.3 | 419 | 00110-20A |
| 1SN-24 | 40 | -24 | 1.1/2 | 38.1 | 50.6 | 13.8 | 3.4 | 508 | 00110-24A |
| 1SN-32 | 50 | -32 | 2 | 50.8 | 64 | 10.3 | 2.6 | 635 | 00110-32A |
