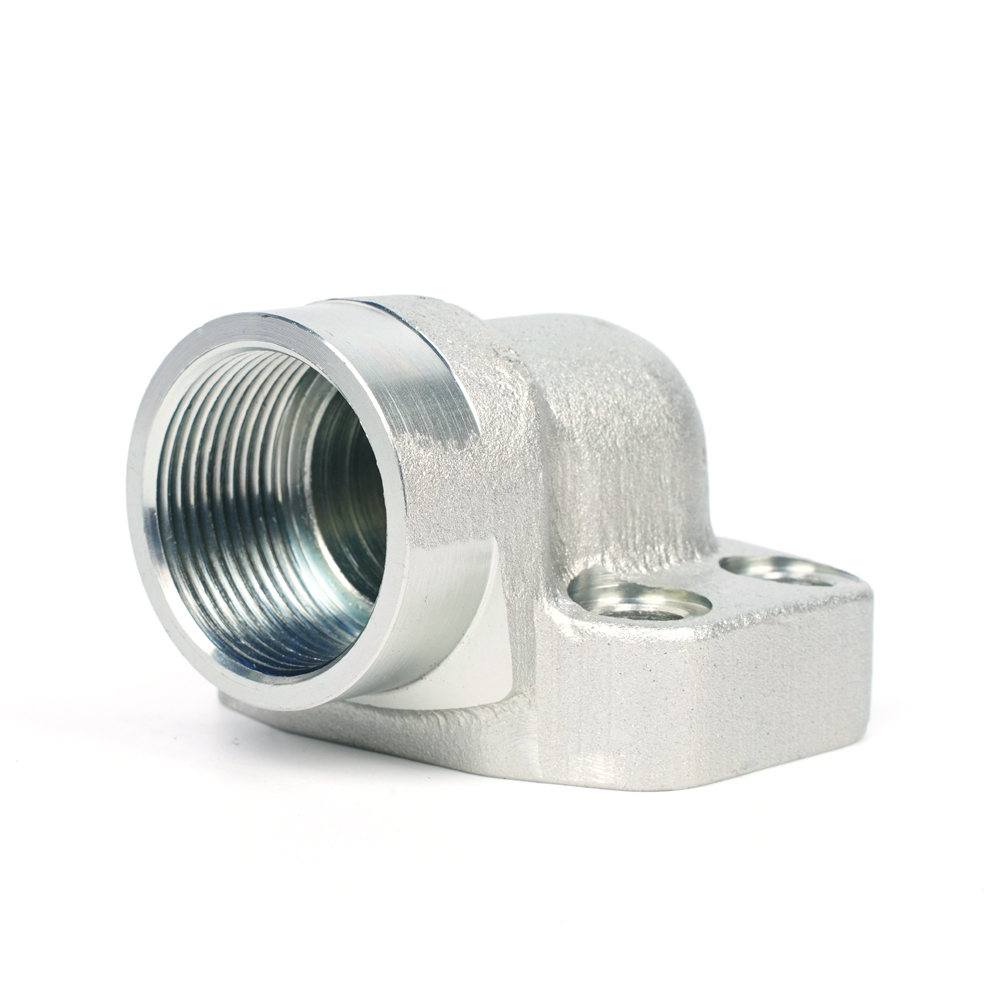

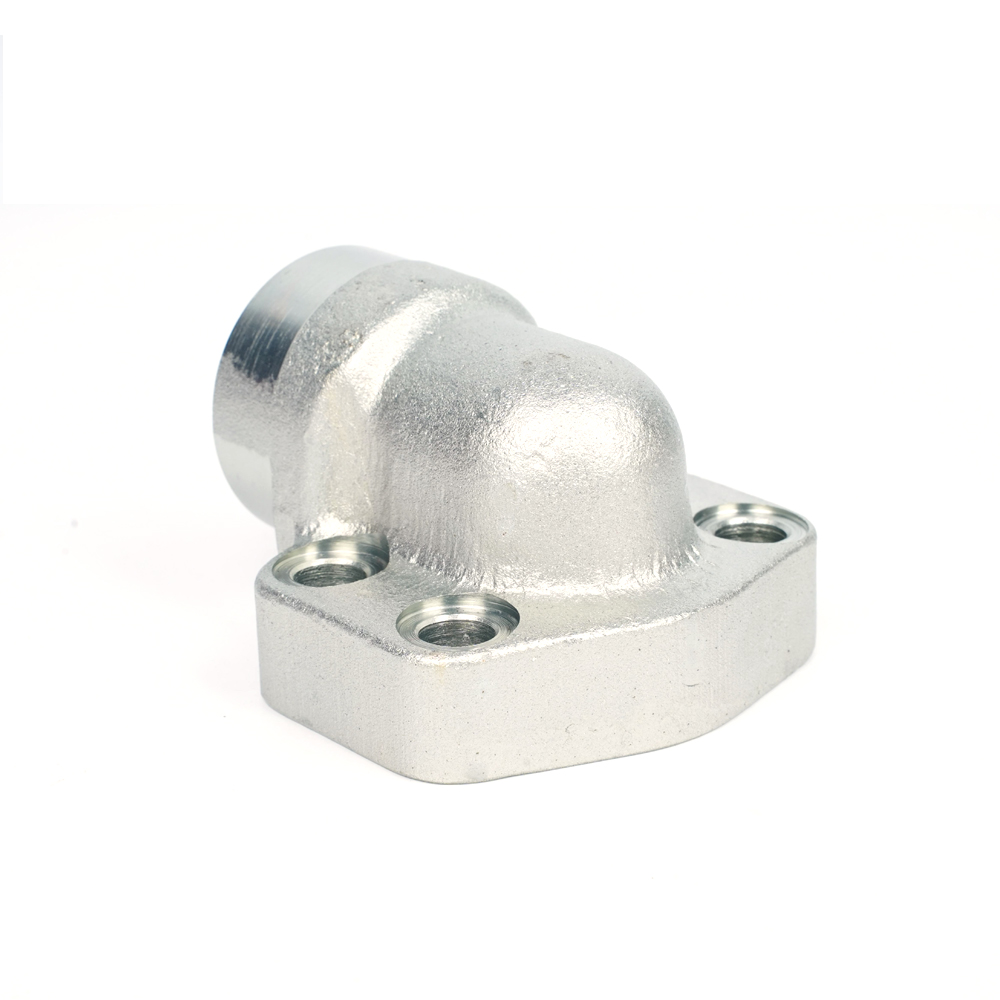

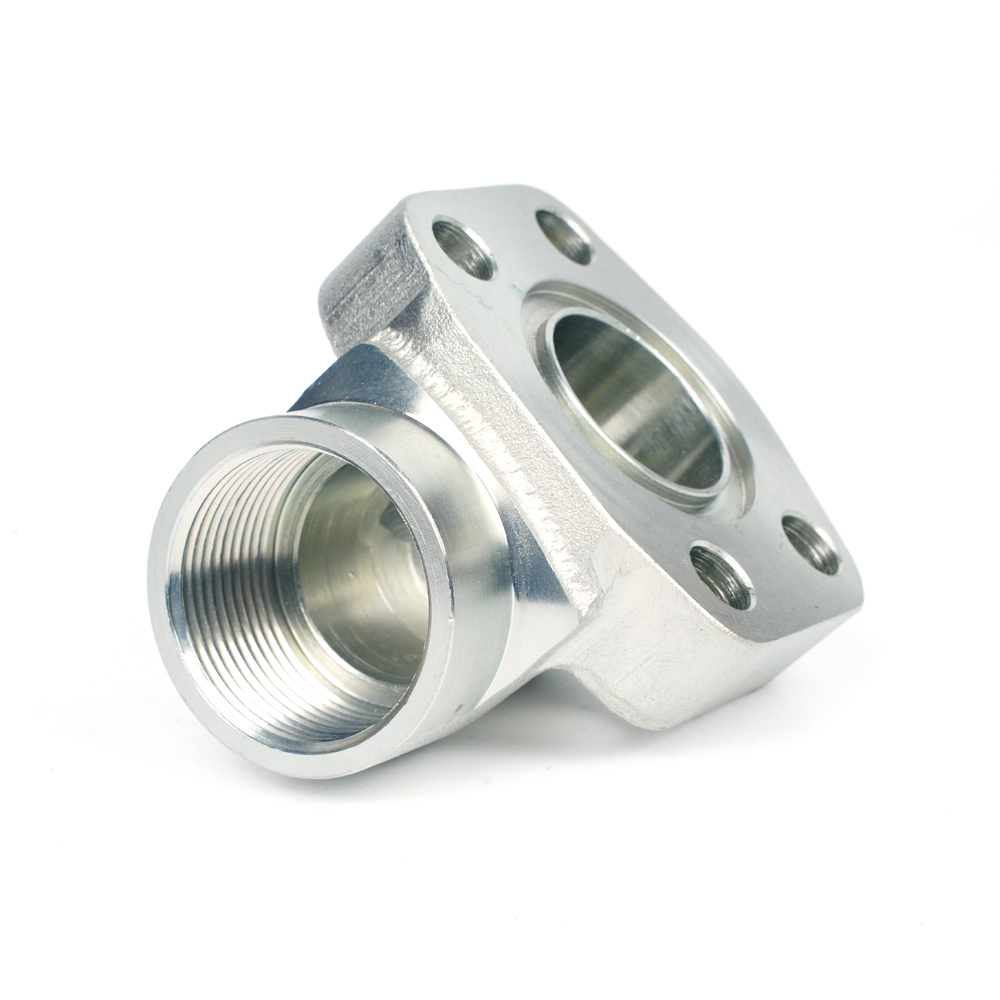

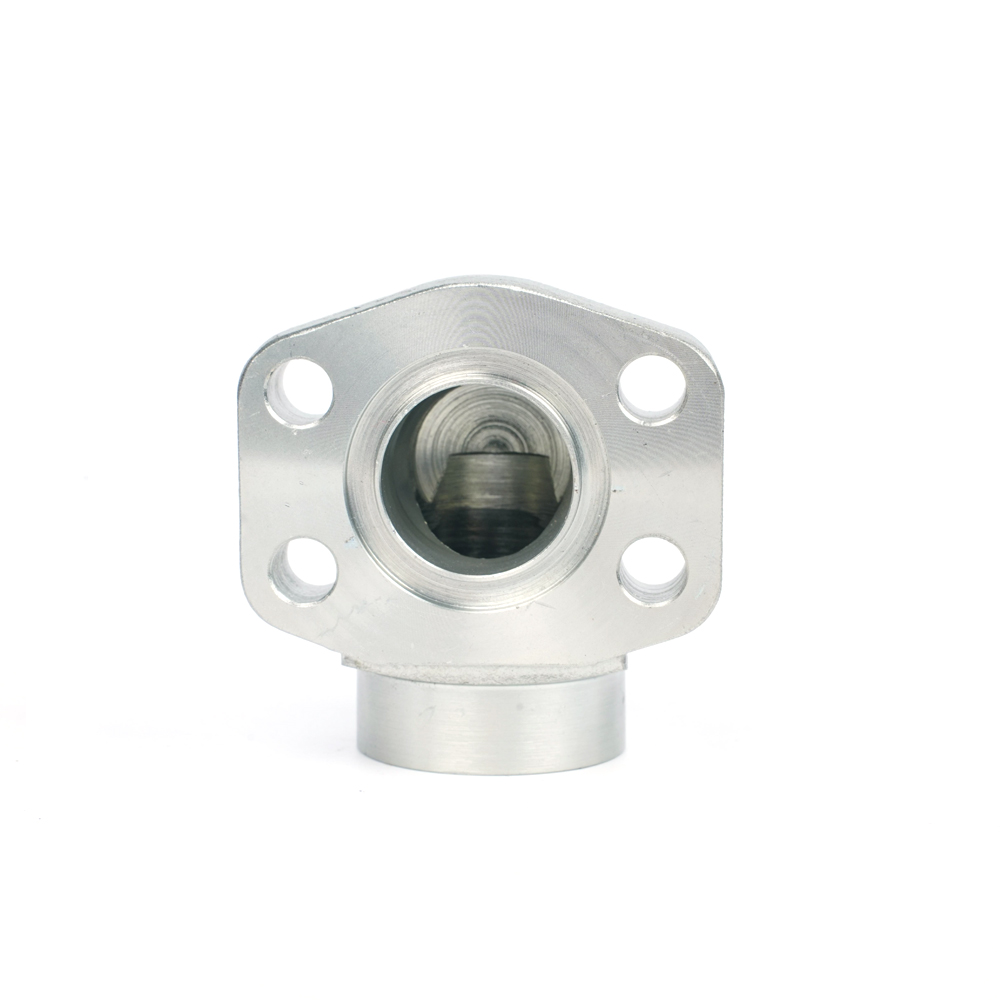

AFW-G Hydraulic BSPP SAE Flange 90° Elbow

Description:

AFW-G BSPP SAE flanges are 90° elbow hydraulic flanges that conform to SAE J518 / ISO6162 standards. They come in two series and have maximum pressures of 3000psi and 6000psi, respectively.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

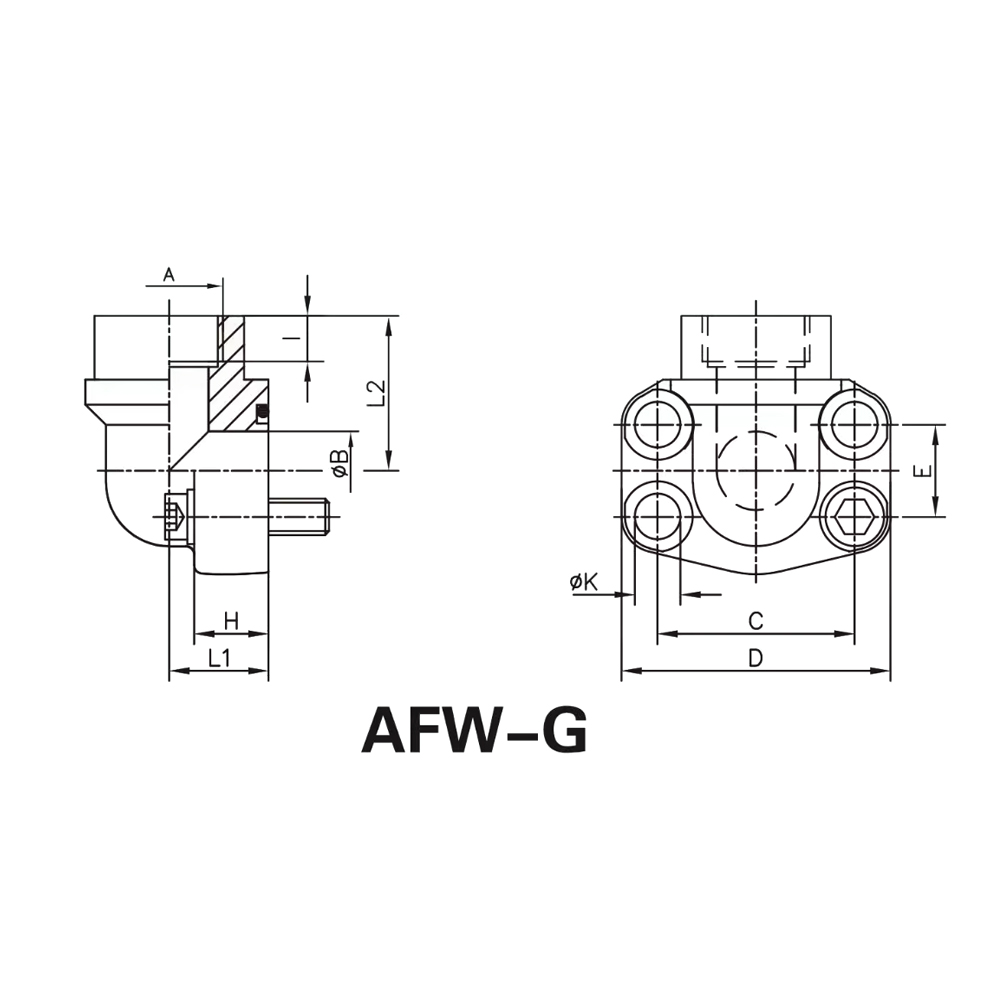

PART NO.	Size	DIMENSION										BOLT	O-Ring	W.T.	W.P
PART NO.	(inch)	A	B	C	D	E	H	I	K	L1	L2	BOLT	O-Ring	(Kg)	(kg/cm²)
3000 psi
AFW301G	1/2″	G1/2″	13	38.1	54	17.48	16	18	9	20	37	M8x30	18.66×3.53	0.33	350
AFW302G	3/4″	G3/4″	19	47.63	65	22.23	18	18	11	24	39	M10x35	25.00×3.53	0.49	350
AFW303G	1″	G1″	25	52.37	70	26.19	19	19	11	28	44	M10x35	32.92×3.53	0.66	315
AFW304G	1-1/4″	G1-1/4″	32	58.72	79	30.18	21	22	11.5	34	52	M10x40	37.70×3.53	1.5	250
AFW305G	1-1/2″	G1-1/2″	38	69.85	93	35.71	25	24	13.5	38	57	M12x45	47.22×3.53	1.65	200
AFW306G	2″	G2″	51	77.77	102	42.88	25	27	13.5	42	65	M12x45	56.75×3.53	2	200
6000 psi
AFW601G	1/2″	G1/2″	13	40.49	56	18.24	16	19	9	20	38	M8x30	18.66×3.53	0.35	400
AFW602G	3/4″	G3/4″	19	50.8	71	23.8	19	19	11	28	43	M10x35	25.00×3.53	0.75	400
AFW603G	1″	G1″	25	57.15	79	27.76	21	20	13	34	51	M12x40	32.92×3.53	1.05	400
AFW604G	1-1/4″	G1-1/4″	32	66.68	93	31.75	25	22	15	38	56	M14x45	37.70×3.53	1.45	400
AFW605G	1-1/2″	G1-1/2″	38	79.38	110	36.5	25	24	17	42	65	M16x50	47.22×3.53	2.8	400
AFW606G	2″	G2″	51	96.82	134	44.45	33	27	21	45	75	M20x65	56.75×3.53	4	400

Click to enlarge

Category: Flange Hydraulic Adapter Tags: AFW-G, 90° Elbow, SAE, Flange, Weld

Description
Package& Shipping

Description

PART NO.	Size	DIMENSION										BOLT	O-Ring	W.T.	W.P
PART NO.	(inch)	A	B	C	D	E	H	I	K	L1	L2	BOLT	O-Ring	(Kg)	(kg/cm²)
3000 psi
AFW301G	1/2″	G1/2″	13	38.1	54	17.48	16	18	9	20	37	M8x30	18.66×3.53	0.33	350
AFW302G	3/4″	G3/4″	19	47.63	65	22.23	18	18	11	24	39	M10x35	25.00×3.53	0.49	350
AFW303G	1″	G1″	25	52.37	70	26.19	19	19	11	28	44	M10x35	32.92×3.53	0.66	315
AFW304G	1-1/4″	G1-1/4″	32	58.72	79	30.18	21	22	11.5	34	52	M10x40	37.70×3.53	1.5	250
AFW305G	1-1/2″	G1-1/2″	38	69.85	93	35.71	25	24	13.5	38	57	M12x45	47.22×3.53	1.65	200
AFW306G	2″	G2″	51	77.77	102	42.88	25	27	13.5	42	65	M12x45	56.75×3.53	2	200
6000 psi
AFW601G	1/2″	G1/2″	13	40.49	56	18.24	16	19	9	20	38	M8x30	18.66×3.53	0.35	400
AFW602G	3/4″	G3/4″	19	50.8	71	23.8	19	19	11	28	43	M10x35	25.00×3.53	0.75	400
AFW603G	1″	G1″	25	57.15	79	27.76	21	20	13	34	51	M12x40	32.92×3.53	1.05	400
AFW604G	1-1/4″	G1-1/4″	32	66.68	93	31.75	25	22	15	38	56	M14x45	37.70×3.53	1.45	400
AFW605G	1-1/2″	G1-1/2″	38	79.38	110	36.5	25	24	17	42	65	M16x50	47.22×3.53	2.8	400
AFW606G	2″	G2″	51	96.82	134	44.45	33	27	21	45	75	M20x65	56.75×3.53	4	400

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
