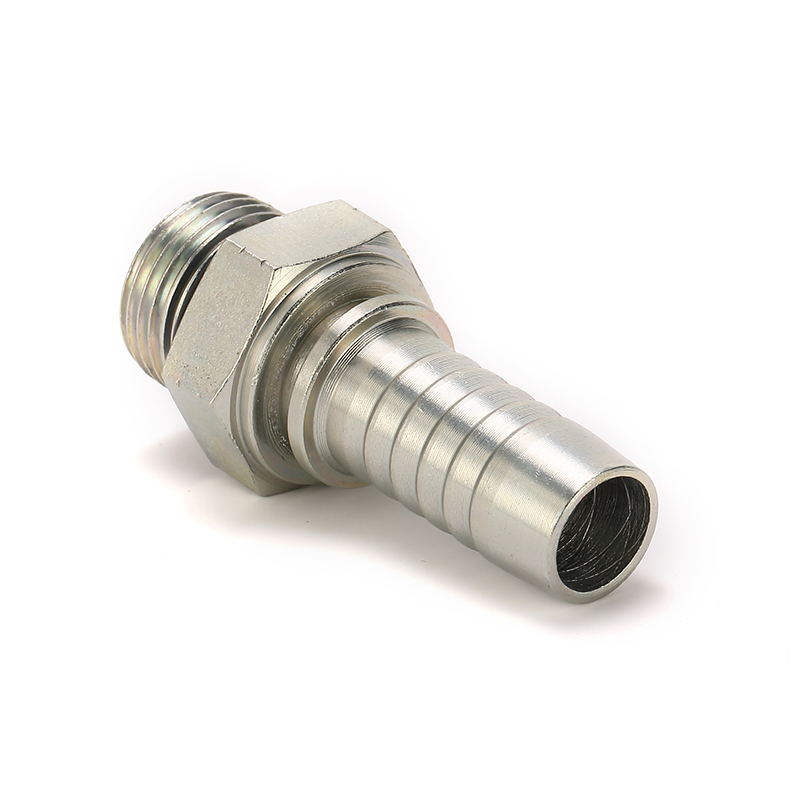

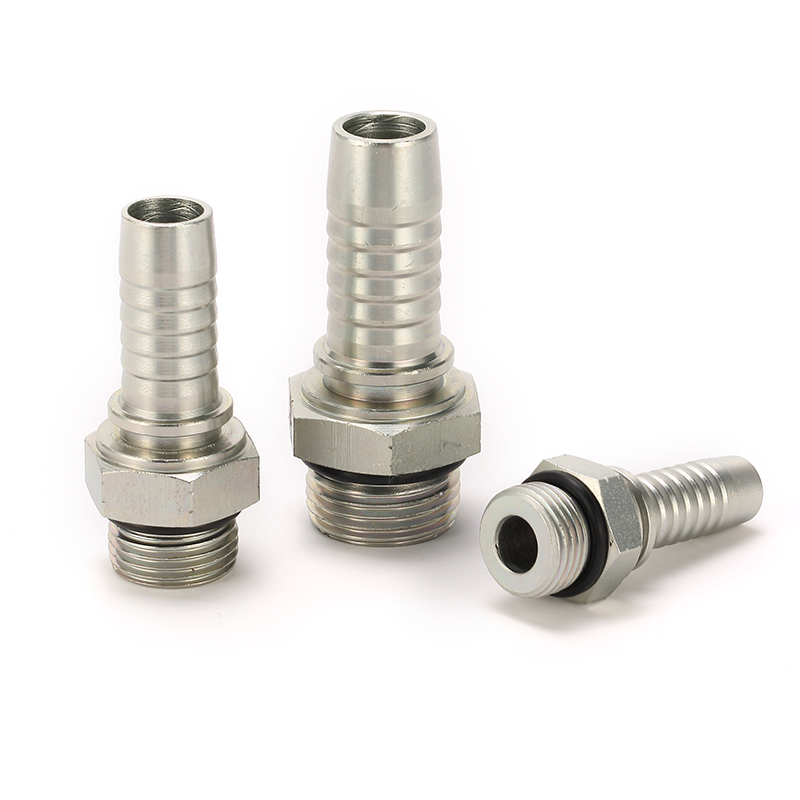

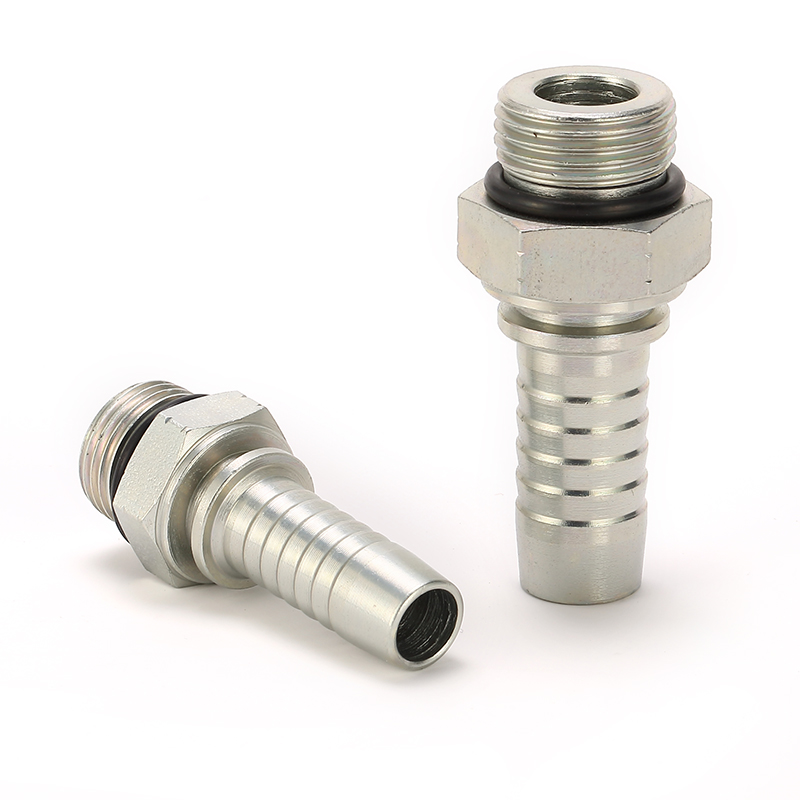

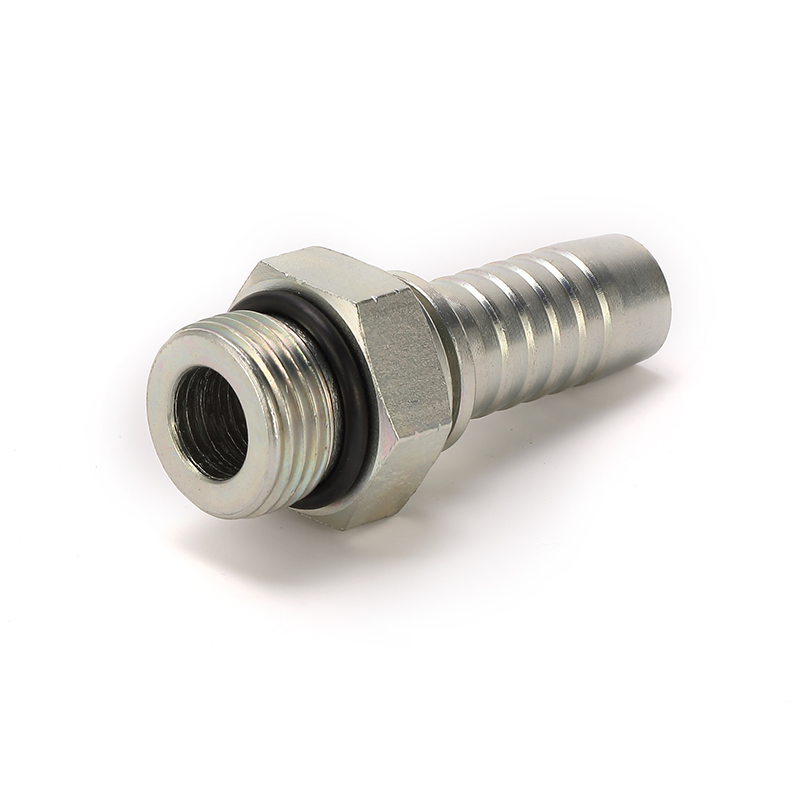

Topol Power can supply all types and sizes of ORB hydraulic fittings. All of those fittings are available in many types of materials and can be designed for high-performance and durability.

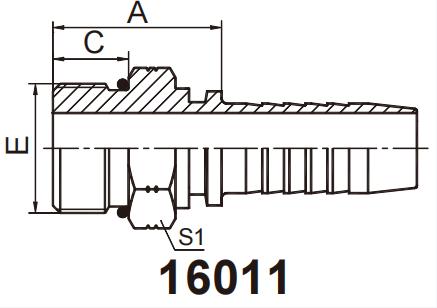

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | ORING | A | C | S1 | ||
| 16011-04-04 | 7/16″X20 | 6 | 04 | 0904 | 21.5 | 9.1 | 14 |
| 16011-05-04 | 1/2″X20 | 6 | 04 | 0905 | 21.5 | 9.1 | 17 |
| 16011-06-05 | 9/16″X18 | 8 | 05 | 0906 | 22.5 | 9.9 | 17 |
| 16011-06-06 | 9/16″X18 | 10 | 06 | 0906 | 22.5 | 9.9 | 17 |
| 16011-08-06 | 3/4″X16 | 10 | 06 | 0908 | 23.5 | 11.1 | 22 |
| 16011-08-08 | 3/4″X16 | 12 | 08 | 0908 | 24 | 11.1 | 22 |
| 16011-10-08 | 7/8″X14 | 12 | 08 | 0910 | 30 | 12.7 | 27 |
| 16011-10-10 | 7/8″X14 | 16 | 10 | 0910 | 31 | 12.7 | 27 |
| 16011-12-10 | 1.1/16″X12 | 16 | 10 | 0912 | 34 | 15.1 | 32 |
| 16011-12-12 | 1.1/16″X12 | 20 | 12 | 0912 | 34 | 15.1 | 32 |
| 16011-16-16 | 1.5/16″X12 | 25 | 16 | 0916 | 36 | 15.1 | 38 |
