BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

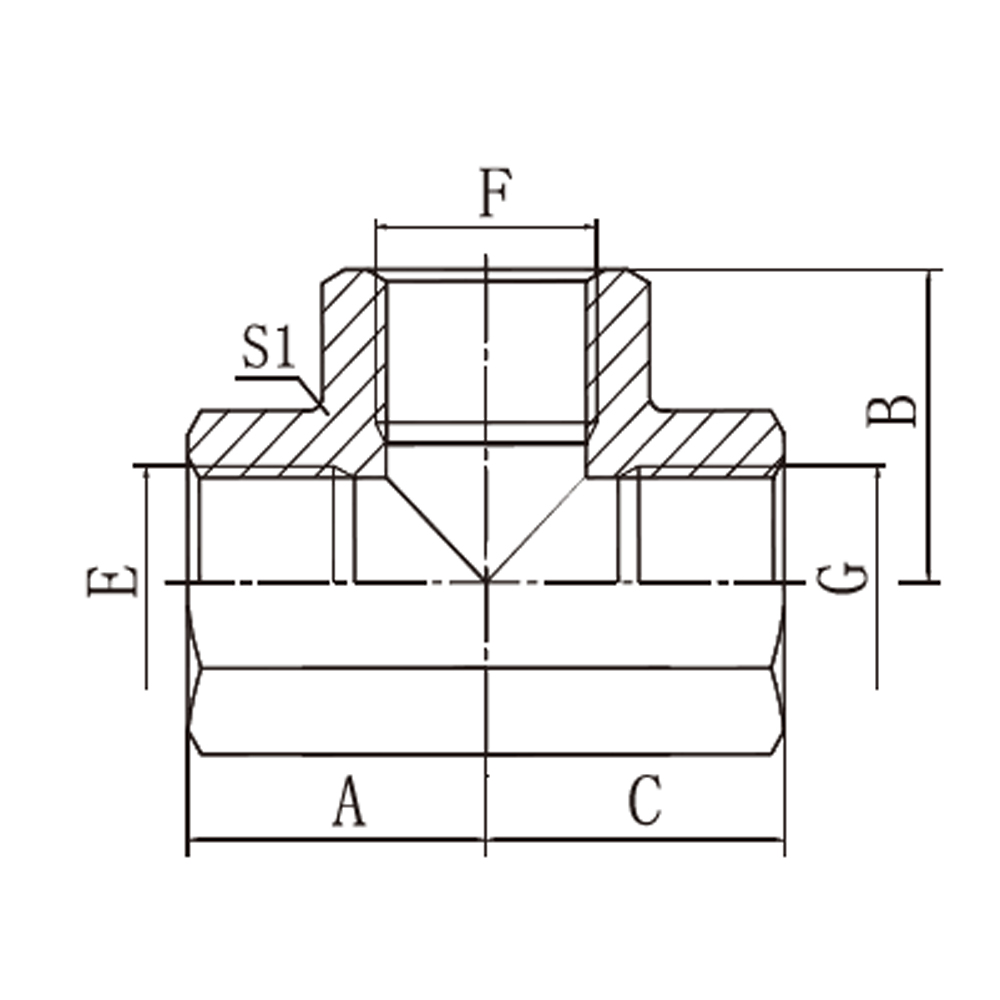

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | G | A | B | C | S1 | |
| GT-02 | Rc1/8″X28 | Rc1/8″X28 | Rc1/8″X28 | 20 | 20 | 20 | 16 |
| GT-04 | Rc1/4″X19 | Rc1/4″X19 | Rc1/4″X19 | 22.5 | 22.5 | 22.5 | 19 |
| GT-06 | Rc3/8″X19 | Rc3/8″X19 | Rc3/8″X19 | 26 | 26 | 26 | 24 |
| GT-08 | Rc1/2″X14 | Rc1/2″X14 | Rc1/2″X14 | 31 | 31 | 31 | 27 |
| GT-12 | Rc3/4″X14 | Rc3/4″X14 | Rc3/4″X14 | 34 | 34 | 34 | 33 |
| GT-16 | Rc1″X11 | Rc1″X11 | Rc1″X11 | 42 | 42 | 42 | 41 |
| GT-20 | Rc1.1/4″X11 | Rc1.1/4″X11 | Rc1.1/4″X11 | 48 | 48 | 48 | 50 |
| GT-24 | Rc1.1/2″X11 | Rc1.1/2″X11 | Rc1.1/2″X11 | 53 | 53 | 53 | 60 |
| GT-32 | Rc2″X11 | Rc2″XI1 | Rc2″X11 | 62 | 62 | 62 | 70 |
