Home Hose Assembly Hydraulic Hose SAE 100 R9 4 Wire Hydraulic Hose
SAE 100 R8 Thermoplastic Hydraulic Nylon Tube Hose
Back to products
SAE 100 R12 Four Helical Wire Reinforced Hydraulic Hoses
Click to enlarge

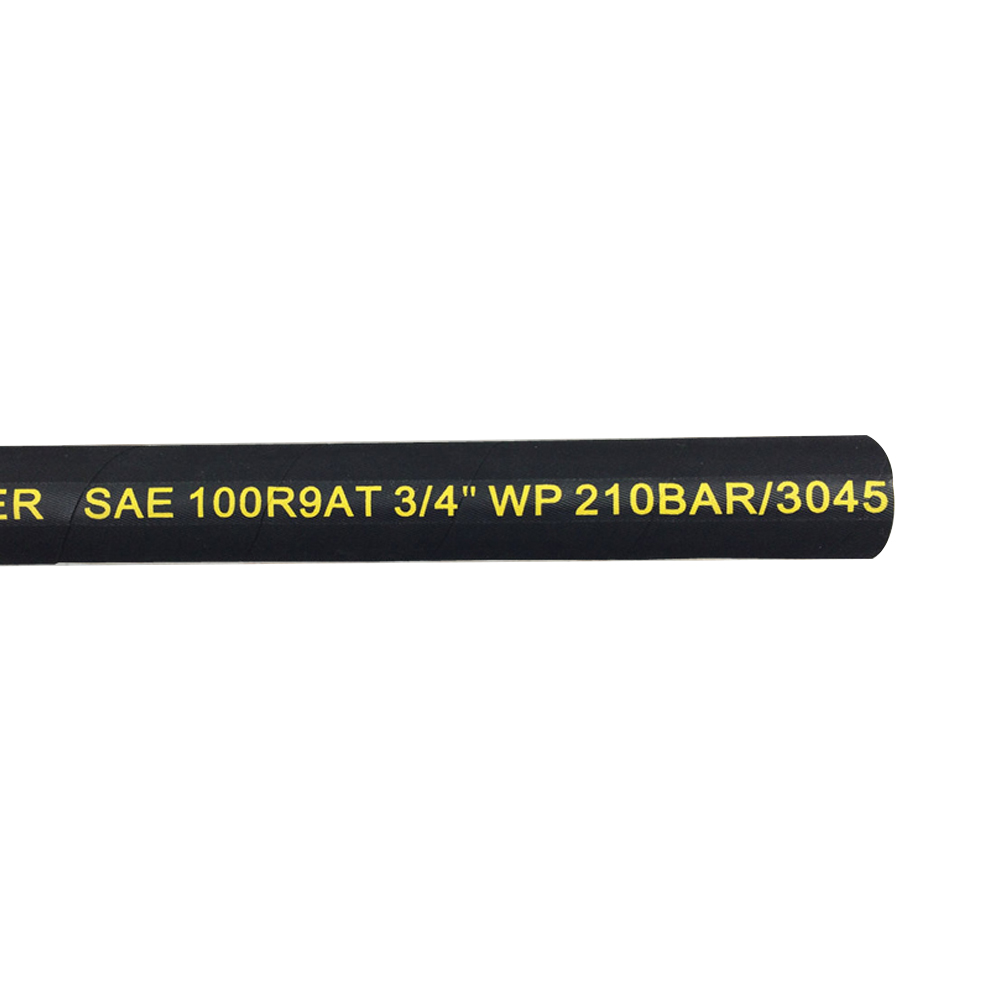

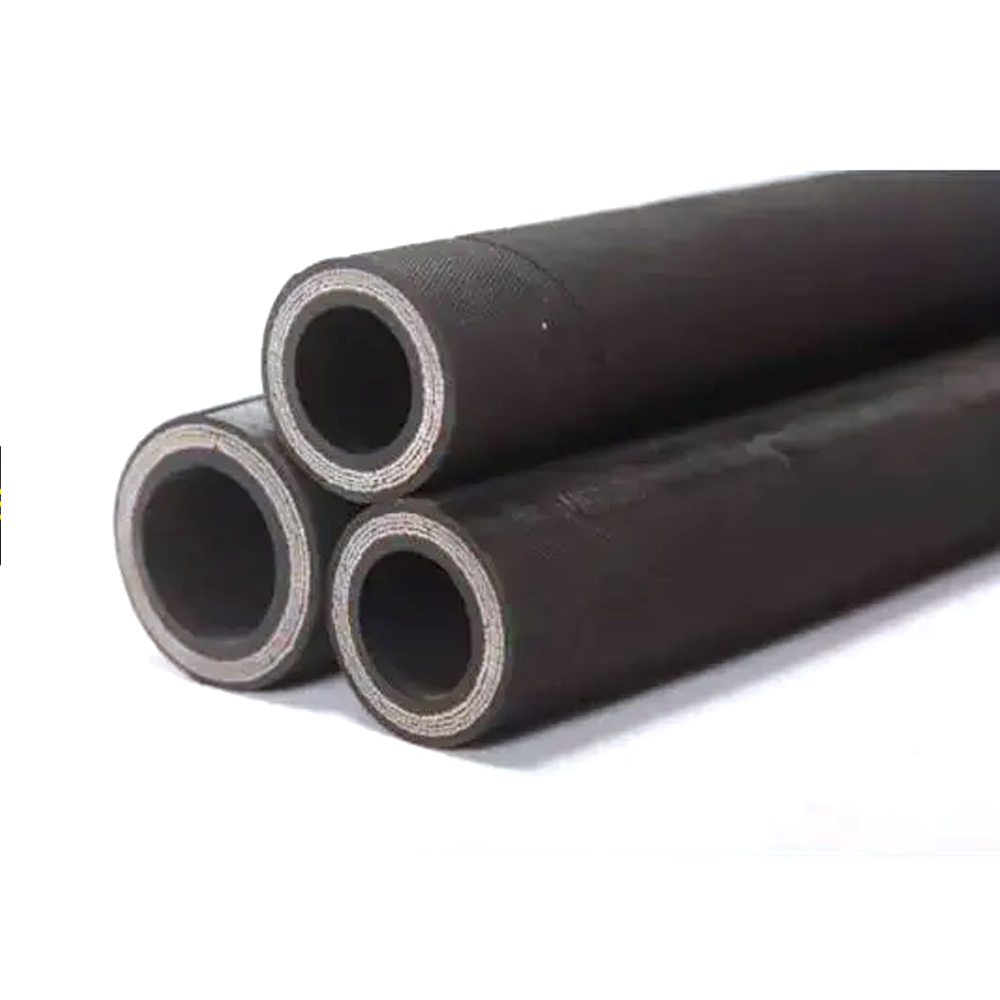

SAE 100 R9 4 Wire Hydraulic Hose

Description:

Inner Tube: Oil-resistant synthetic rubber

Reinforcement: Two high tensile textile wire braid

Outer Cover: Abrasion and weather resistant synthetic rubber

Temperature Range: -40°C to +100°C

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R9
Share:
  • Description
  • Package& Shipping
Description

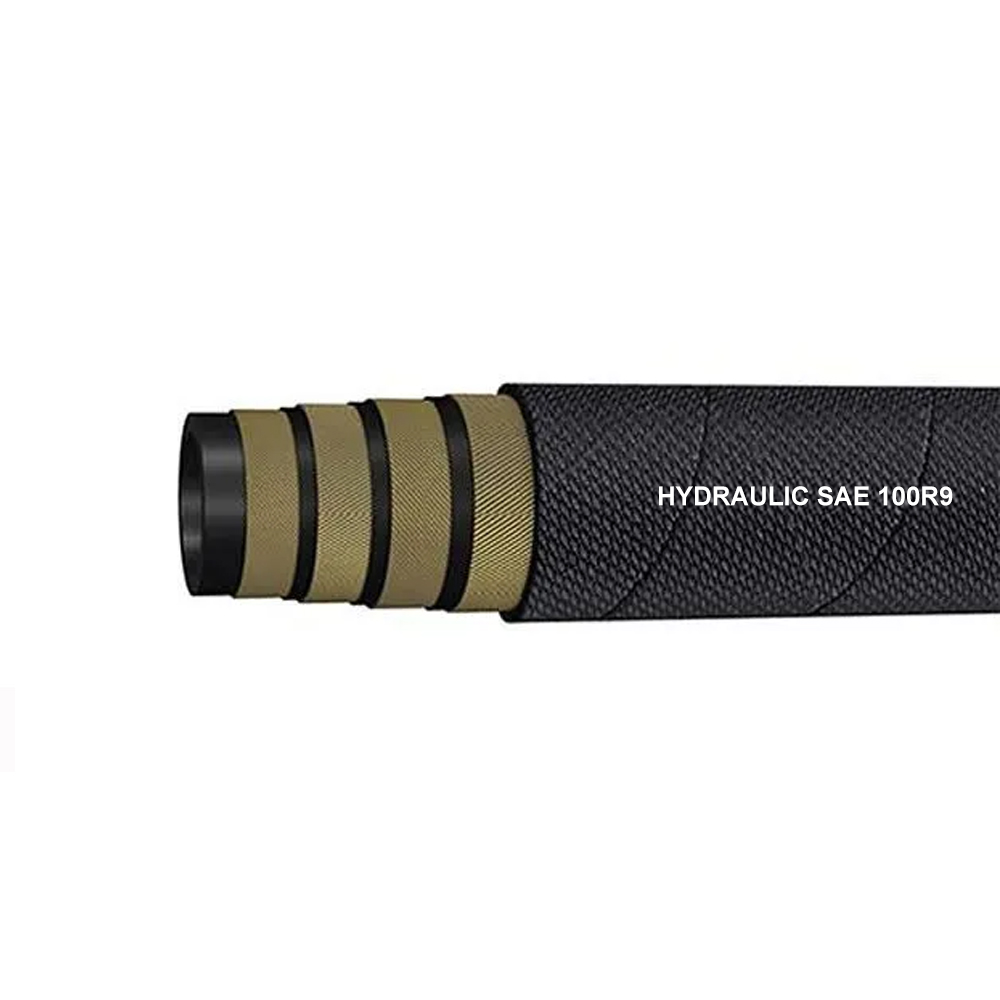

SAE 100 R9 is a high-performance steel wire-reinforced hydraulic hose engineered for demanding industrial applications. Featuring a robust construction of synthetic rubber inner tube, spiral steel wire reinforcement, and abrasion-resistant outer cover, this hose delivers exceptional pressure resistance, corrosion resistance, and durability across a wide temperature range (-40°C to +100°C). Compatible with hydraulic fluids, fuels, and lubricants, it ensures reliable operation in heavy machinery and high-pressure systems under extreme conditions.

Part No. Dash I.D. O.D. W.P B.P B.R
Inch mm mm MPa PSI MPa PSI mm
SAE100R9-04 1/4″ 6.4 18 45 6525 180 26100 150
SAE100R9-06 3/8″ 9.5 20.8 44.5 6452.5 178 25810 180
SAE100R9-08 1/2″ 12.7 24 41.5 6017.5 166 24070 230
SAE100R9-10 5/8″ 15.9 27.6 35 5075 140 20300 250
SAE100R9-12 3/4″ 19.1 31.8 35 5075 140 20300 300
SAE100R9-16 1″ 25.4 39.7 28 4060 112 16240 340
SAE100R9-20 1.1/4″ 31.8 50.8 21 3045 84 12180 460
SAE100R9-24 1.1/2″ 38.1 57.2 18.5 2682.5 74 10730 560
SAE100R9-32 2″ 50.8 69.8 16.5 2392.5 66 9570 660
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
