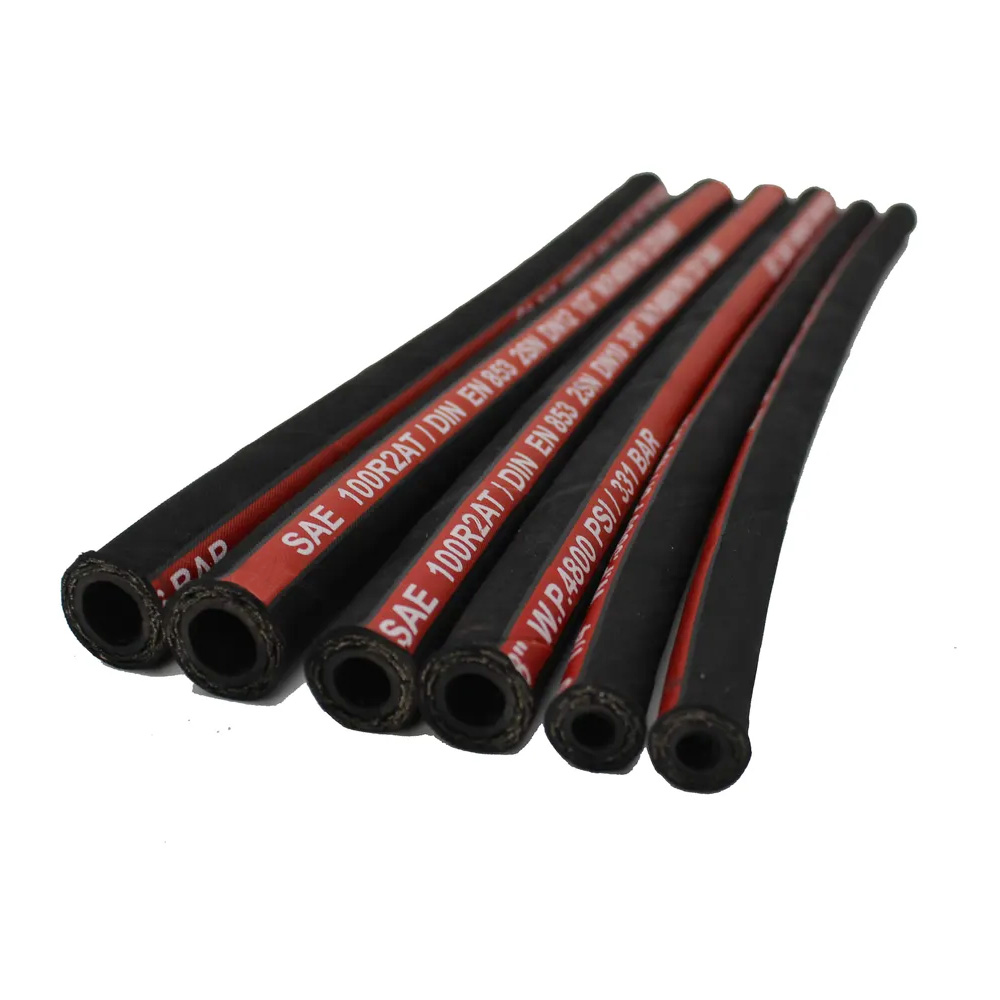

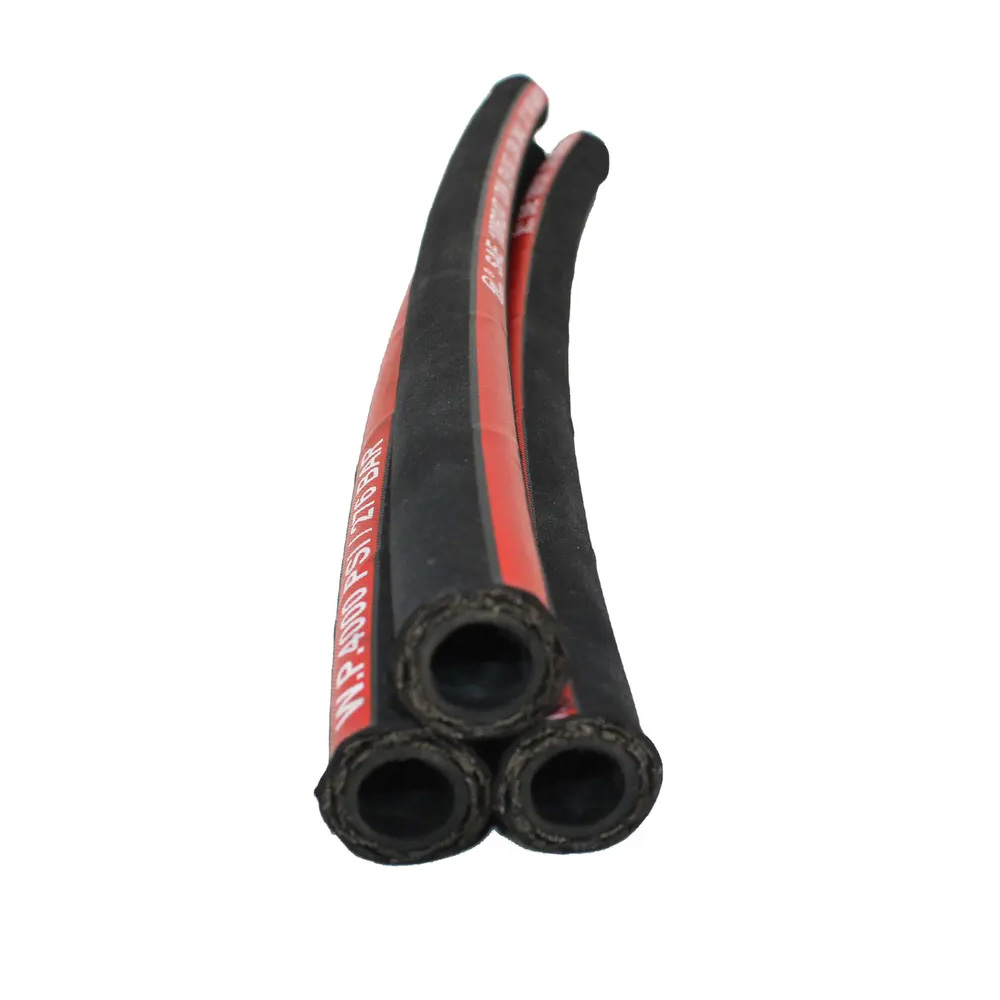

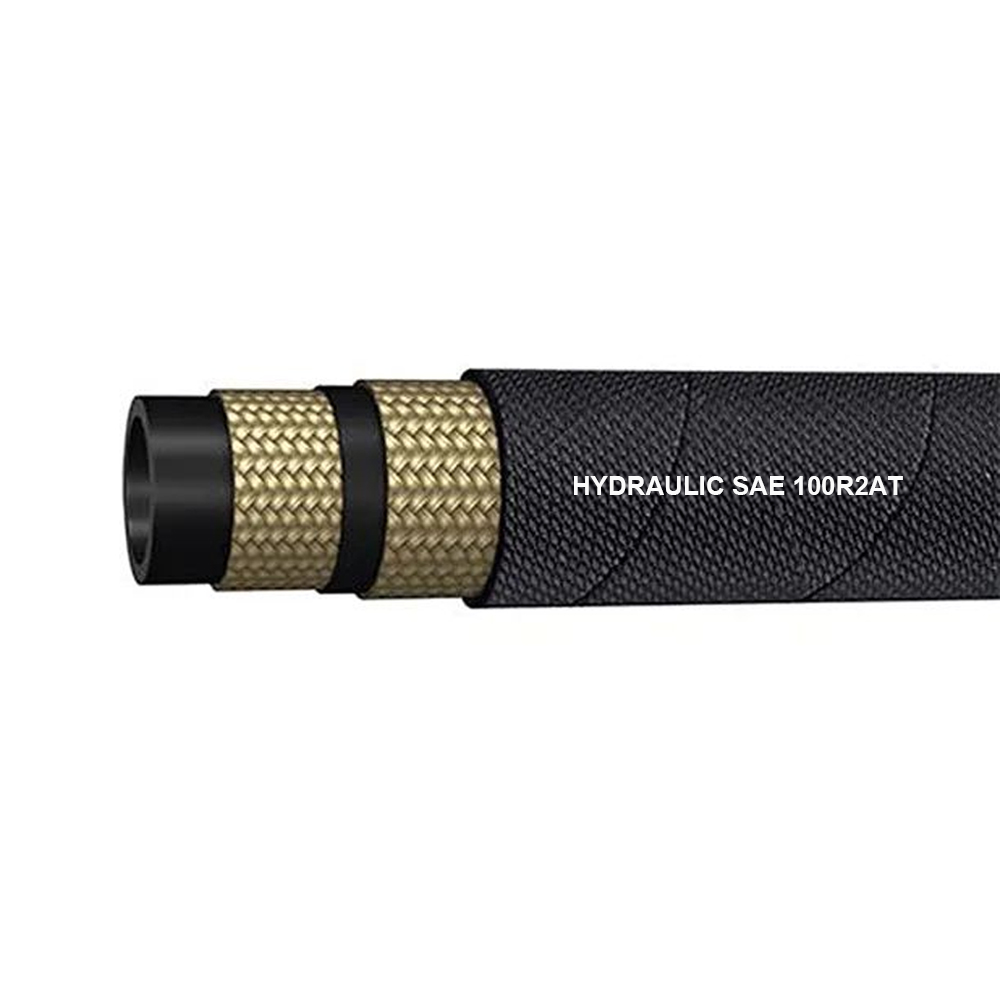

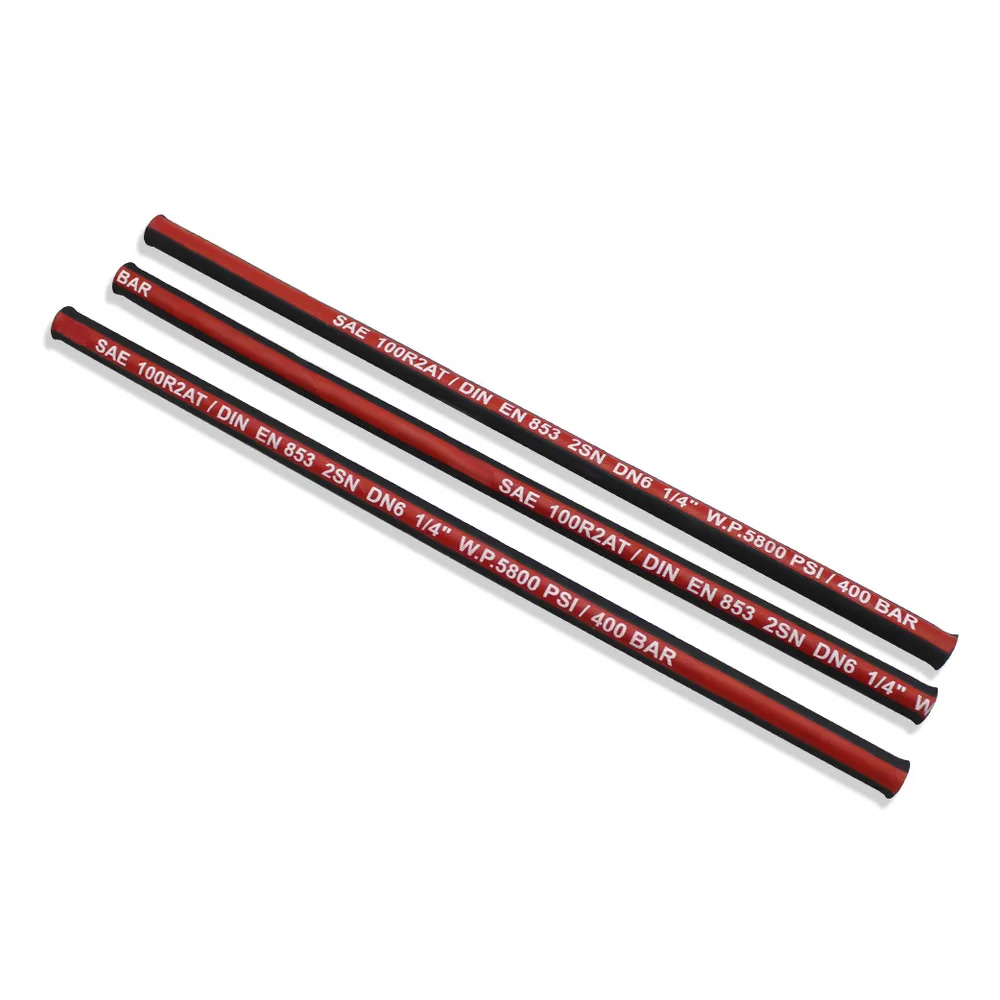

The SAE 100R2 hose is a heavy-duty hydraulic hose engineered with dual steel wire braided reinforcement layers for superior pressure resistance. Designed to operate reliably under extreme pressure and temperature conditions, it is widely utilized in demanding industrial applications including construction equipment, mining operations, and hydraulic machinery.
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | MIN.BURST PERS | MAX.W.P. | MIN.BEND.RAD. | FERRULE | |
| mm | DASH | in | mm | mm | MPa | MPa | mm | ||
| 2SN-03 | 5 | -03 | 3/16 | 4.8 | 13.4 | 137.9 | 34.5 | 89 | 03310-03 |
| 2SN-04 | 6 | -04 | 1/4 | 6.4 | 15.0 | 137.9 | 34.5 | 102 | 03310-04 |
| 2SN-05 | 8 | -05 | 5/16 | 7.9 | 16.7 | 117.2 | 29.3 | 114 | 03310-05 |
| 2SN-06 | 10 | -06 | 3/8 | 9.5 | 19.1 | 110.3 | 27.6 | 127 | 03310-06 |
| 2SN-08 | 12 | -08 | 1/2 | 12.7 | 22.2 | 96.5 | 24.1 | 178 | 03310-08 |
| 2SN-10 | 16 | -10 | 5/8 | 15.9 | 25.4 | 75.8 | 19.0 | 203 | 03310-10 |
| 2SN-12 | 20 | -12 | 3/4 | 19.0 | 29.3 | 62.0 | 15.5 | 241 | 03310-12 |
| 2SN-16 | 25 | -16 | 1 | 25.4 | 38.1 | 55.2 | 13.8 | 305 | 03310-16 |
| 2SN-20 | 32 | -20 | 1.1/4 | 31.8 | 48.3 | 44.8 | 11.2 | 419 | 03310-20 |
| 2SN-24 | 40 | -24 | 1.1/2 | 38.1 | 54.6 | 34.5 | 8.6 | 508 | 03310-24 |
| 2SN-32 | 50 | -32 | 2 | 50.8 | 67.4 | 31.0 | 7.8 | 635 | 03310-32 |
