AFW-T 90° Elbow SAE Butt Welding Flange

Description:

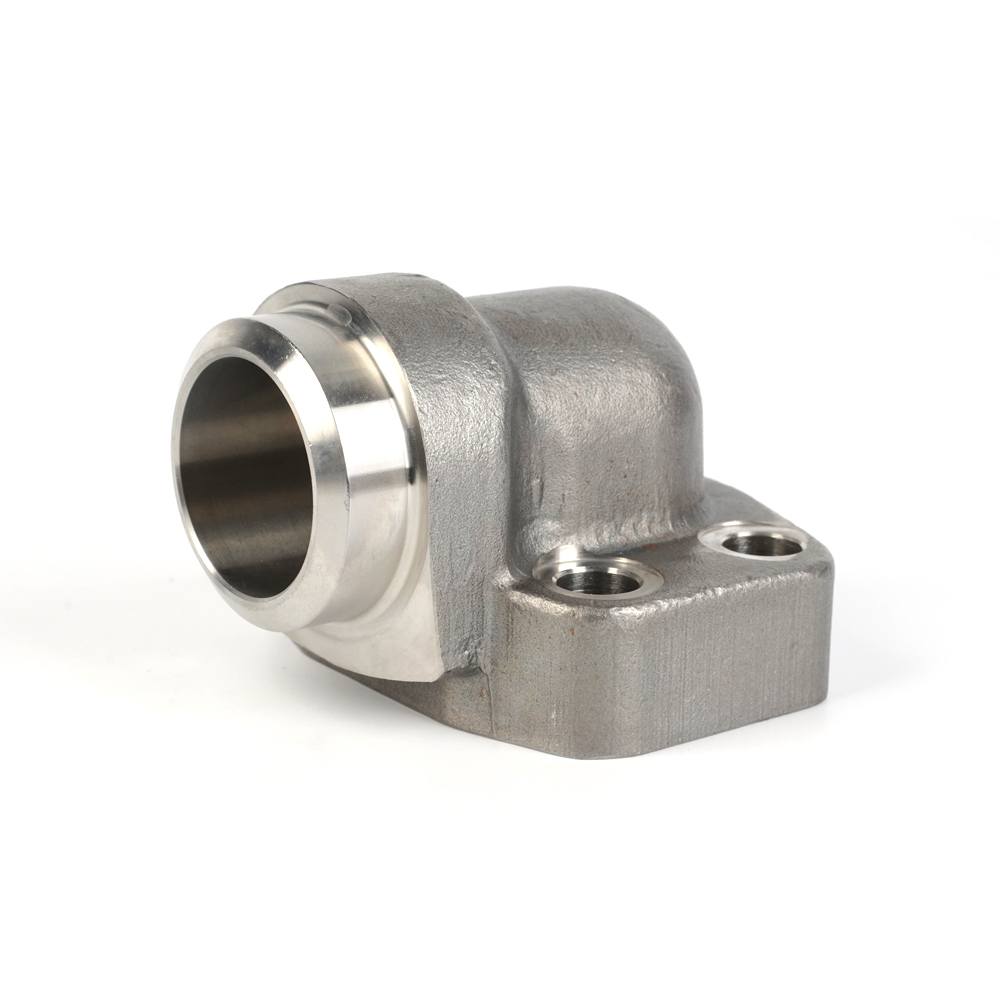

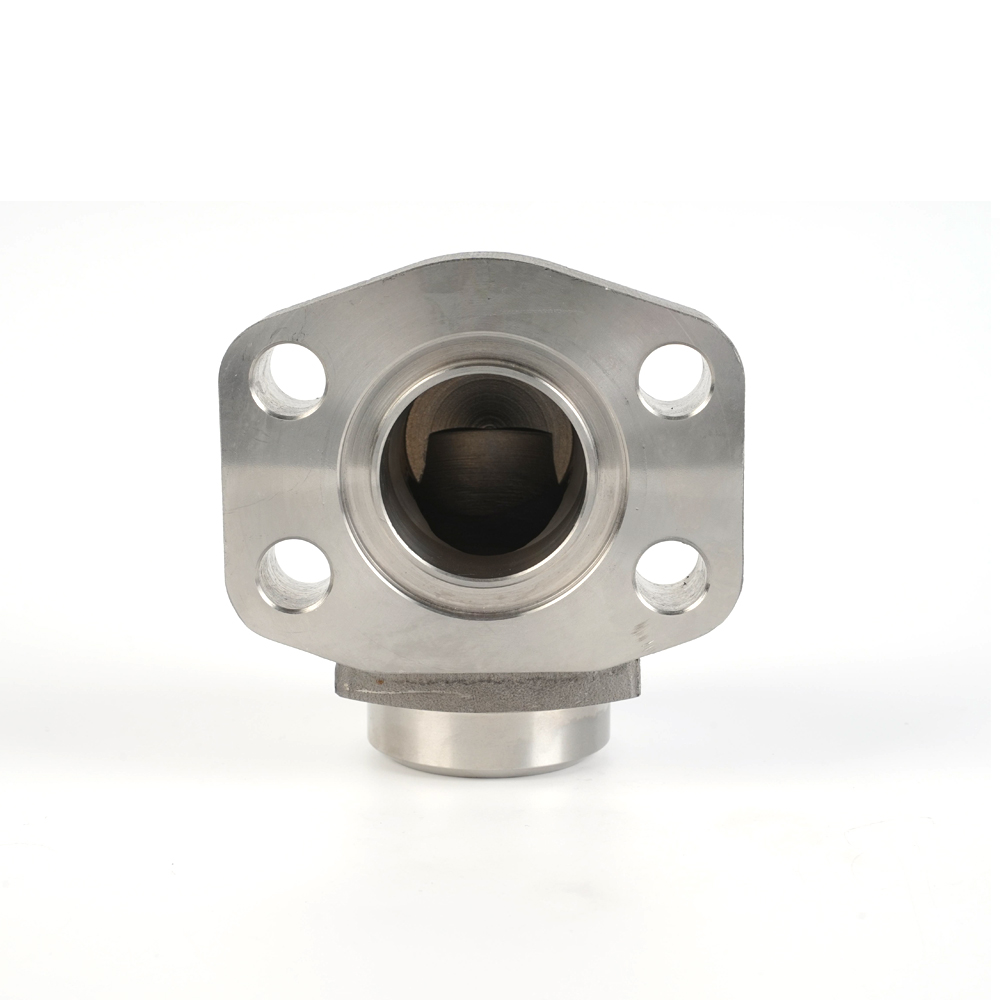

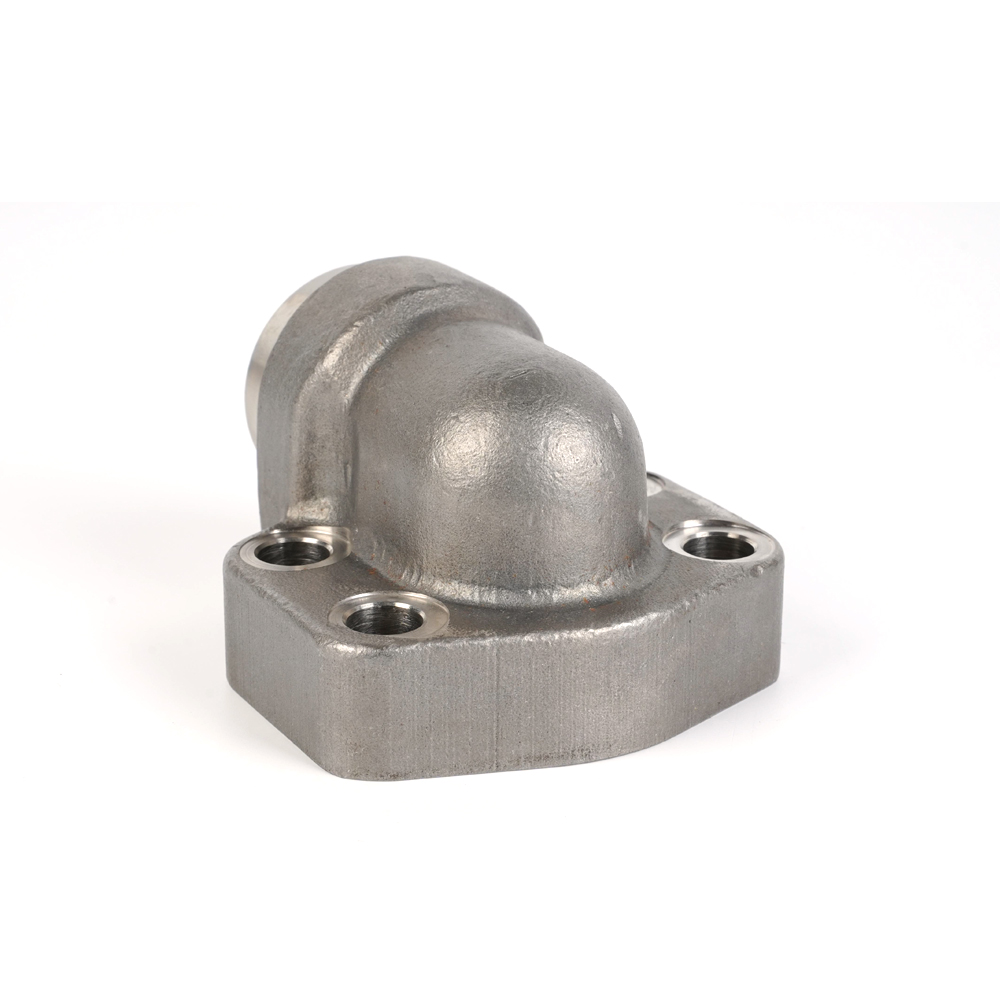

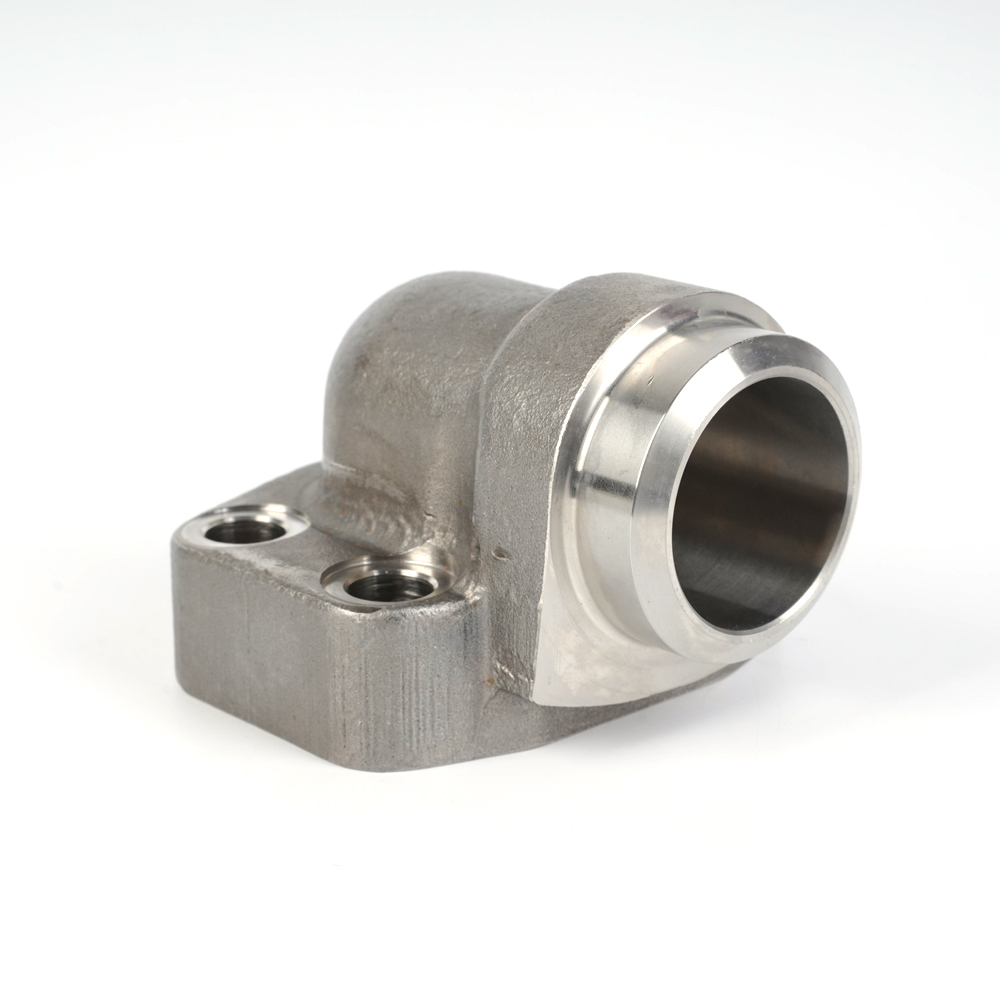

AFW-T bult welding flange is used as a 90° elbow pipe connectors. There are two pressure series for hydraulic SAE bult weld flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

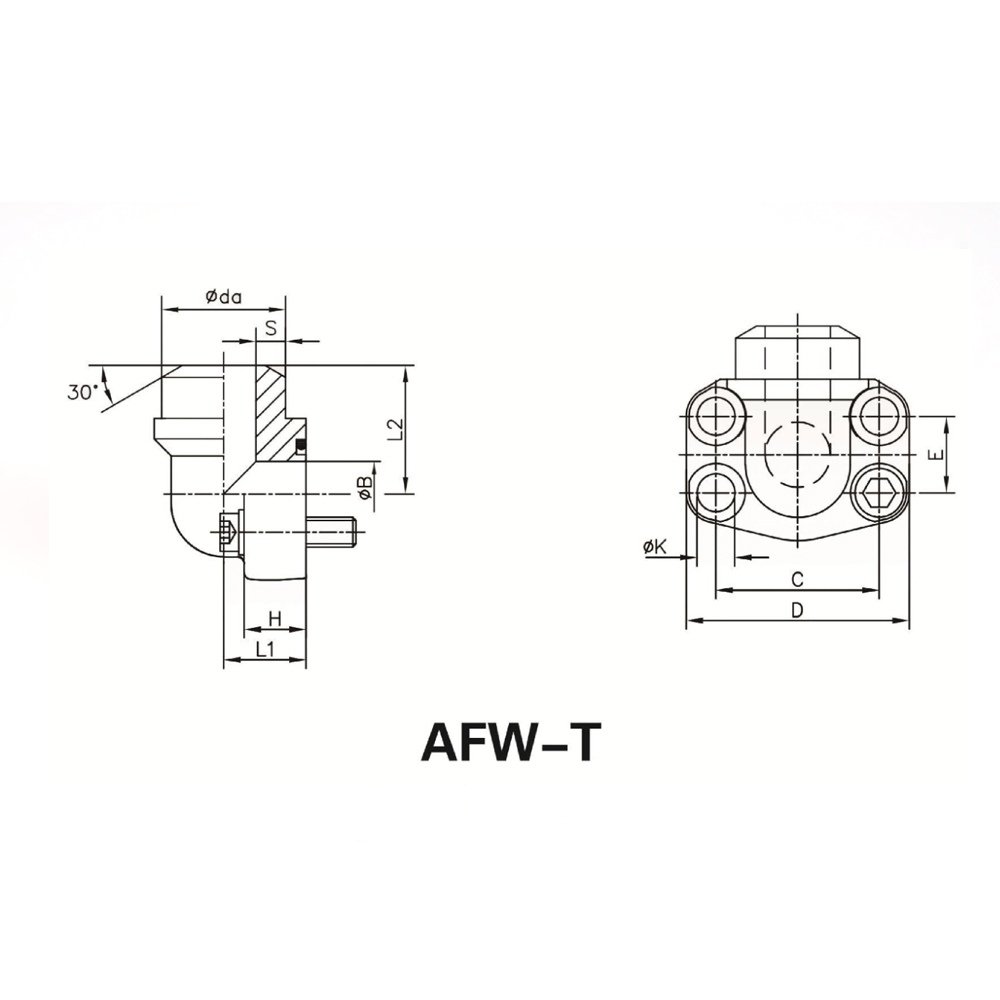

PART NO.	Size	DIMENSION									BOLT	O-Ring	W.T.	MAX.W.P
PART NO.	(inch)	daxs	B	C	D	E	H	K	L1	L2	BOLT	O-Ring	(kg)	(kg/cm²)
3000 psi
AFW301T	1/2″	20X3, 21.6×4.3, 22×3,22×4	13	38.1	54	17.48	16	9	20	37	M8X30	18.66×3.53	0.33	350
AFW302T	3/4″	25×3,27.2×4,28×4	19	47.63	65	22.23	18	11	24	39	M10X35	25.00×3.53	0.49	350
AFW303T	1″	30×4,35×4,38×5	25	52.37	70	26.19	19	11	28	44	M10X35	32.92×3.53	0.66	315
AFW304T	1-1/4″	38×4,42.4×4,42.8×5.4	32	58.72	79	30.18	21	11.5	34	52	M10X40	37.70×3.53	1.2	250
AFW305T	1-1/2″	42.4×4, 48.3×4.5, 48.6×5.3, 50×6	38	69.85	93	35.71	25	13.5	38	57	M12X45	47.22×3.53	1.65	200
AFW306T	2″	60.3×5.6,60.3×3, 61×5	51	77.77	102	42.88	25	13.5	42	65	M12X45	56.75×3.53	2	200
6000 psi
AFW601T	1/2″	20×3, 21.6×4.5,22×4	13	40.49	56	18.24	16	9	20	38	M8X30	18.66×3.53	0.35	400
AFW602T	3/4″	25×3,25×4,27.2×4, 28×4.5	19	50.8	71	23.8	19	11	28	43	M10X35	25.00×3.53	0.7	400
AFW603T	1″	28×4, 30×4, 30×5, 34×4.5, 35×5	25	57.15	79	27.76	21	13	34	51	M12X40	32.92×3.53	1	400
AFW604T	1-1/4″	35×4, 38×5. 38×6, 42.4×6, 42.8×5.4	32	66.68	93	31.75	25	15	38	56	M14X45	37.70×3.53	1.4	400
AFW605T	1-1/2″	38×5, 48.3×8, 48.6×5.3, 50×6,	38	79.38	110	36.5	25	17	42	65	M16X50	47.22×3.53	2.8	400
AFW606T	2″	60.3×10, 61×5, 61×8,65×9	51	96.82	134	44.45	33	21	45	75	M20X65	56.75X3.53	4	400

Click to enlarge

Category: Flange Hydraulic Adapter Tags: SAE, Flange, bult-weld, AFW-T

Description
Package& Shipping

Description

PART NO.	Size	DIMENSION									BOLT	O-Ring	W.T.	MAX.W.P
PART NO.	(inch)	daxs	B	C	D	E	H	K	L1	L2	BOLT	O-Ring	(kg)	(kg/cm²)
3000 psi
AFW301T	1/2″	20X3, 21.6×4.3, 22×3,22×4	13	38.1	54	17.48	16	9	20	37	M8X30	18.66×3.53	0.33	350
AFW302T	3/4″	25×3,27.2×4,28×4	19	47.63	65	22.23	18	11	24	39	M10X35	25.00×3.53	0.49	350
AFW303T	1″	30×4,35×4,38×5	25	52.37	70	26.19	19	11	28	44	M10X35	32.92×3.53	0.66	315
AFW304T	1-1/4″	38×4,42.4×4,42.8×5.4	32	58.72	79	30.18	21	11.5	34	52	M10X40	37.70×3.53	1.2	250
AFW305T	1-1/2″	42.4×4, 48.3×4.5, 48.6×5.3, 50×6	38	69.85	93	35.71	25	13.5	38	57	M12X45	47.22×3.53	1.65	200
AFW306T	2″	60.3×5.6,60.3×3, 61×5	51	77.77	102	42.88	25	13.5	42	65	M12X45	56.75×3.53	2	200
6000 psi
AFW601T	1/2″	20×3, 21.6×4.5,22×4	13	40.49	56	18.24	16	9	20	38	M8X30	18.66×3.53	0.35	400
AFW602T	3/4″	25×3,25×4,27.2×4, 28×4.5	19	50.8	71	23.8	19	11	28	43	M10X35	25.00×3.53	0.7	400
AFW603T	1″	28×4, 30×4, 30×5, 34×4.5, 35×5	25	57.15	79	27.76	21	13	34	51	M12X40	32.92×3.53	1	400
AFW604T	1-1/4″	35×4, 38×5. 38×6, 42.4×6, 42.8×5.4	32	66.68	93	31.75	25	15	38	56	M14X45	37.70×3.53	1.4	400
AFW605T	1-1/2″	38×5, 48.3×8, 48.6×5.3, 50×6,	38	79.38	110	36.5	25	17	42	65	M16X50	47.22×3.53	2.8	400
AFW606T	2″	60.3×10, 61×5, 61×8,65×9	51	96.82	134	44.45	33	21	45	75	M20X65	56.75X3.53	4	400

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
