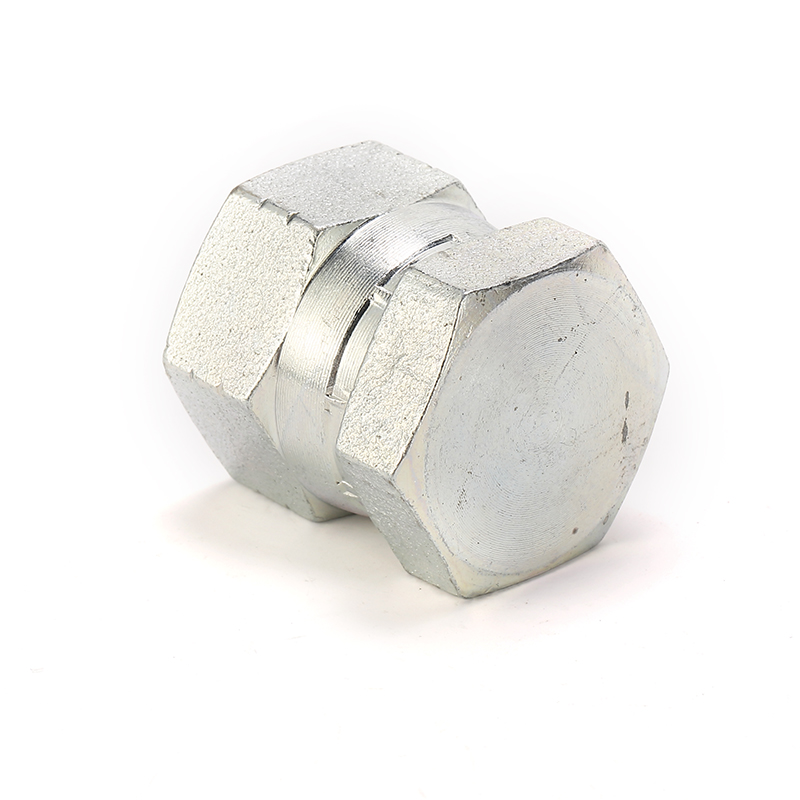

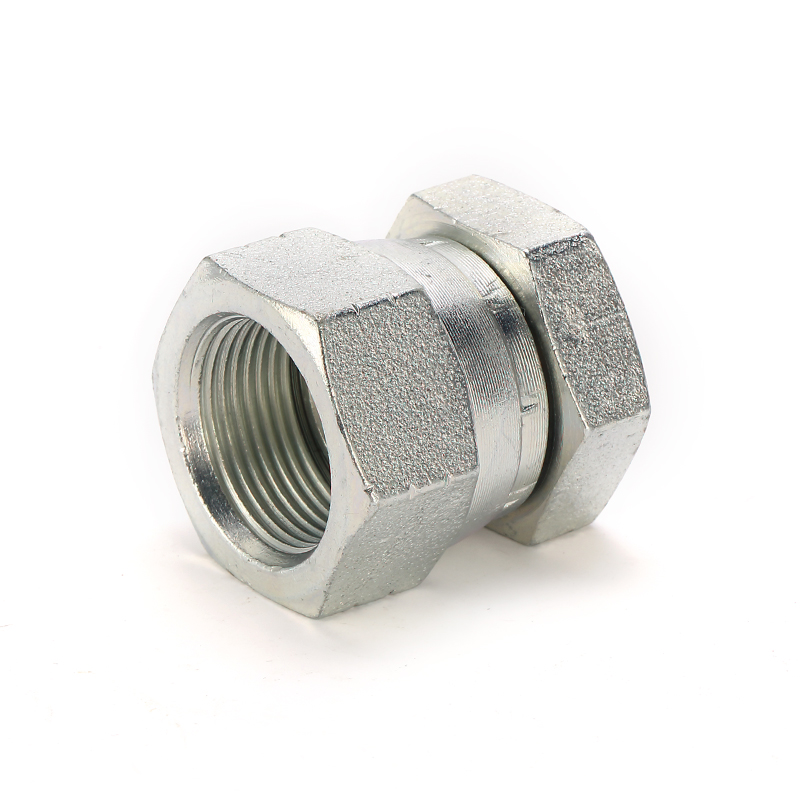

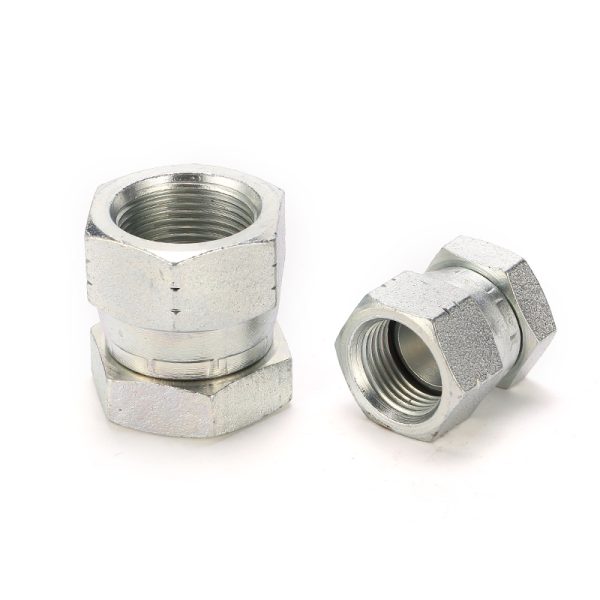

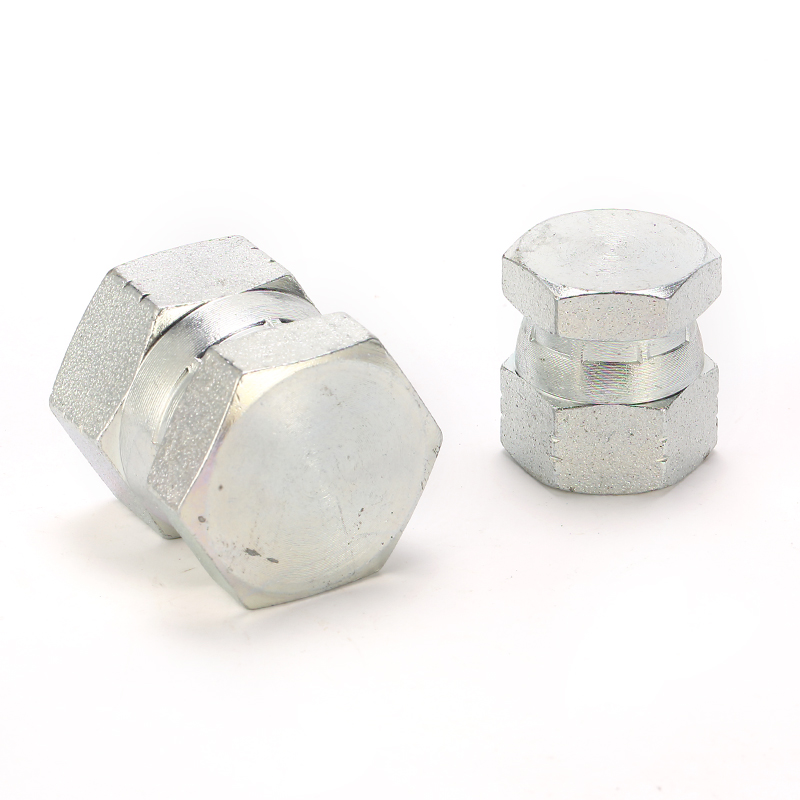

9S JIS Female 60° Cone Seat Plug

Description:

The 9S female JIS metric 60-degree cone plugs are made from durable materials such as carbon steel.

Category: JIS Hydraulic Adapter Tags: 9S, Carbon Steel, JIS, 60° Cone, Plug

Description
Package& Shipping

Description

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

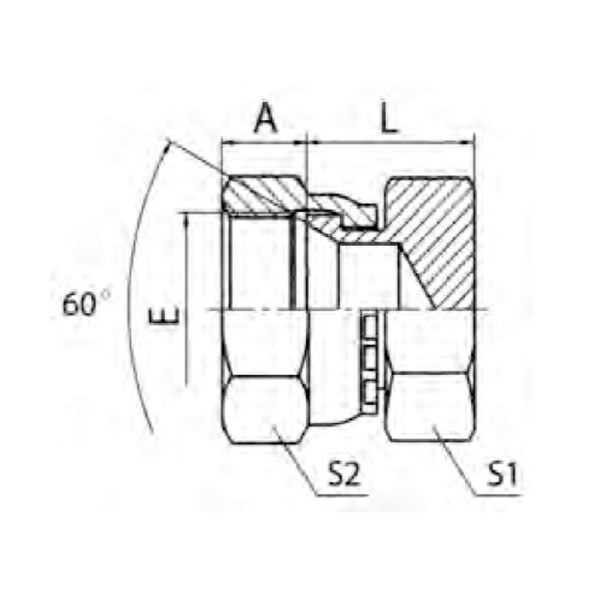

PART NO.	THREAD	DIMENSIONS
PART NO.	E	A	L	S1	S2
9S-04	G1/4″X19	9	14.5	17	19
9S-06	G3/8″X19	9.5	15.5	19	22
9S-08	G1/2″X14	11.3	19	22	27
9S-12	G3/4″X14	13	23.5	32	32
9S-16	G1″X11	15	25	36	41
9S-20	G1-1/4″X11	15.5	29.5	50	50
9S-24	G1-1/2″X11	17.5	29.5	55	55
9S-32	G2″X11	24	32	70	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

9S JIS Female 60° Cone Seat Plug

Package:

Delivery Time:
