Home Hose Assembly Hydraulic Hose SAE 100 R13 Multi Spiral High Pressure Hydraulic Hose
SAE 100 R12 Four Helical Wire Reinforced Hydraulic Hoses
Back to products
SAE 100 R14 Stainless Steel PTFE Hoses
Click to enlarge

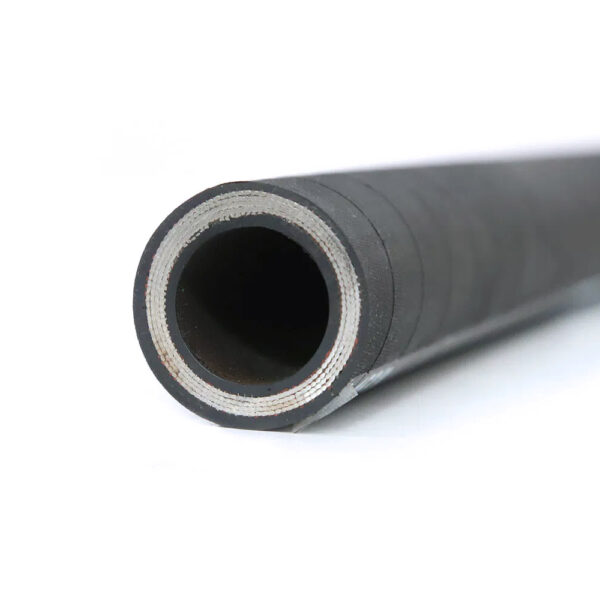

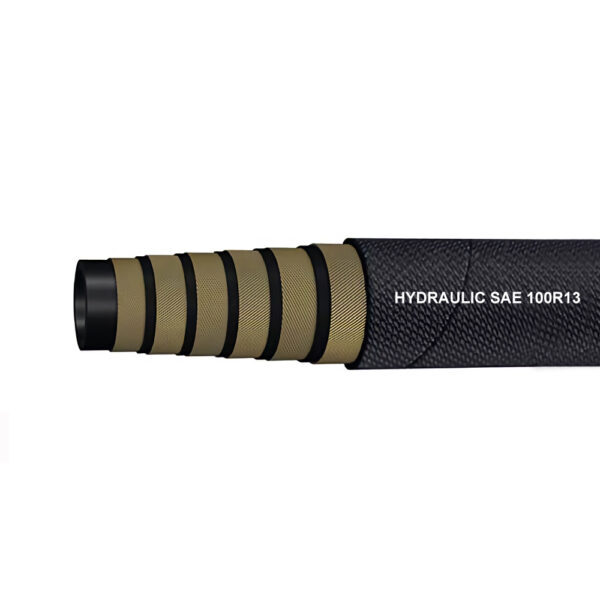

SAE 100 R13 Multi Spiral High Pressure Hydraulic Hose

Description:

Inner Tube: high quality black synthetic rubber.

Reinforcement: multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose work well in very high pressure environment.

Reinforcement 1: Four spirals of 1/4″ to 1″ (DN 19- 31) high-tensile steel wire.

Reinforcement 2: Six spirals of 1-1/4″ to 2″ (DN 38 – 51) high-tensile steel wire.

Cover: high-quality black abrasion, corrosion and weather resistant synthetic rubber, making the hose have longer service life.

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R13
Share:
  • Description
  • Package& Shipping
Description

The SAE 100R13 Hydraulic Hose is a high-pressure, multi-spiral hose designed for heavy-duty applications. Available with either four or six spiral steel wire reinforcement, it delivers superior performance in high-impulse environments such as construction, mining, and industrial machinery. Engineered to withstand extreme temperatures, it offers exceptional abrasion and ozone resistance for long-lasting durability.

Part No. Dash I.D.  O.D. W.P B.P B.R
Inch mm mm MPa PSI MPa PSI mm
SAE100R13-12 3/4″ 19.1 31.8 35 5075 140 20300 240
SAE100R13-16 1″ 25.4 39.2 35 5075 140 20300 300
SAE100R13-20 1-1/4″ 31.8 50 35 5075 140 20300 420
SAE100R13-24 1-1/2″ 38.1 58.5 35 5075 140 20300 500
SAE100R13-32 2″ 50.8 72 35 5075 140 20300 640
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Related products

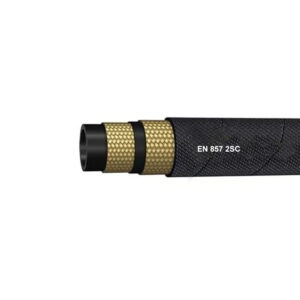

2 Wire Braid EN 857 2SC 1/2″ Hydraulic Hose
