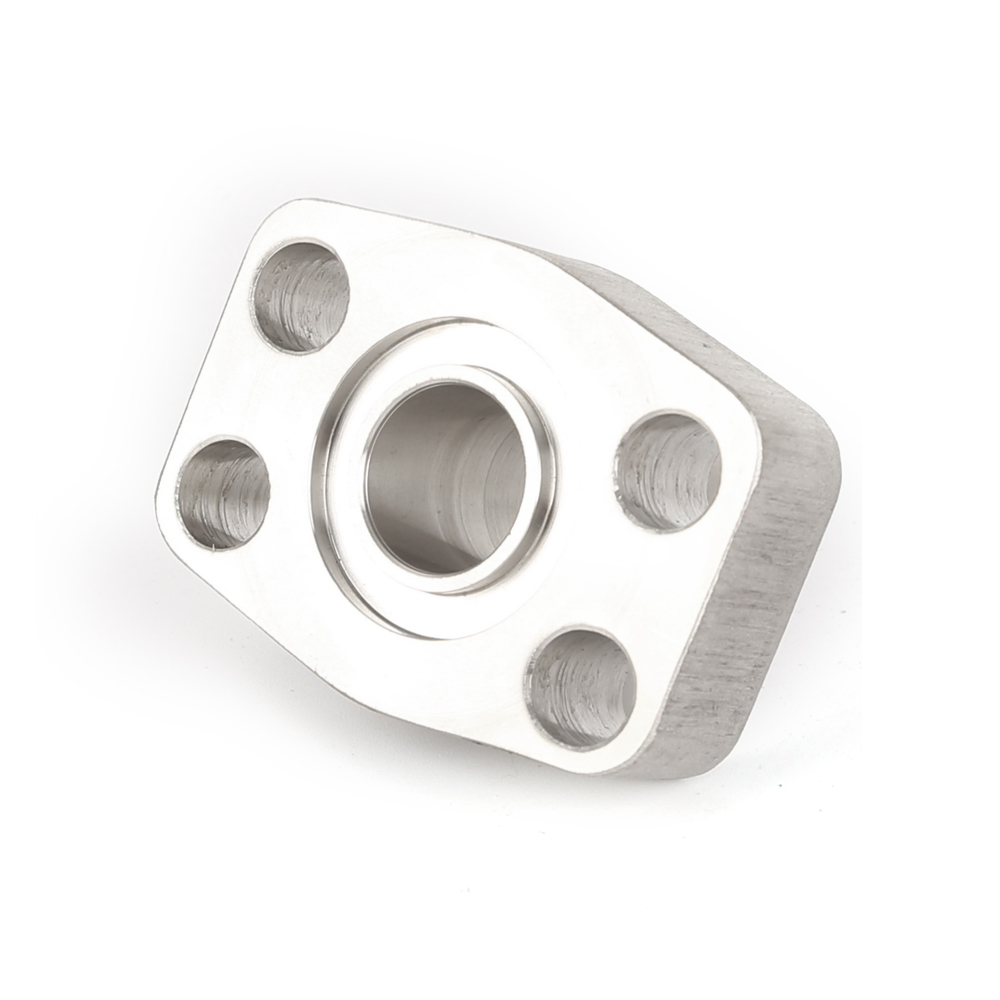

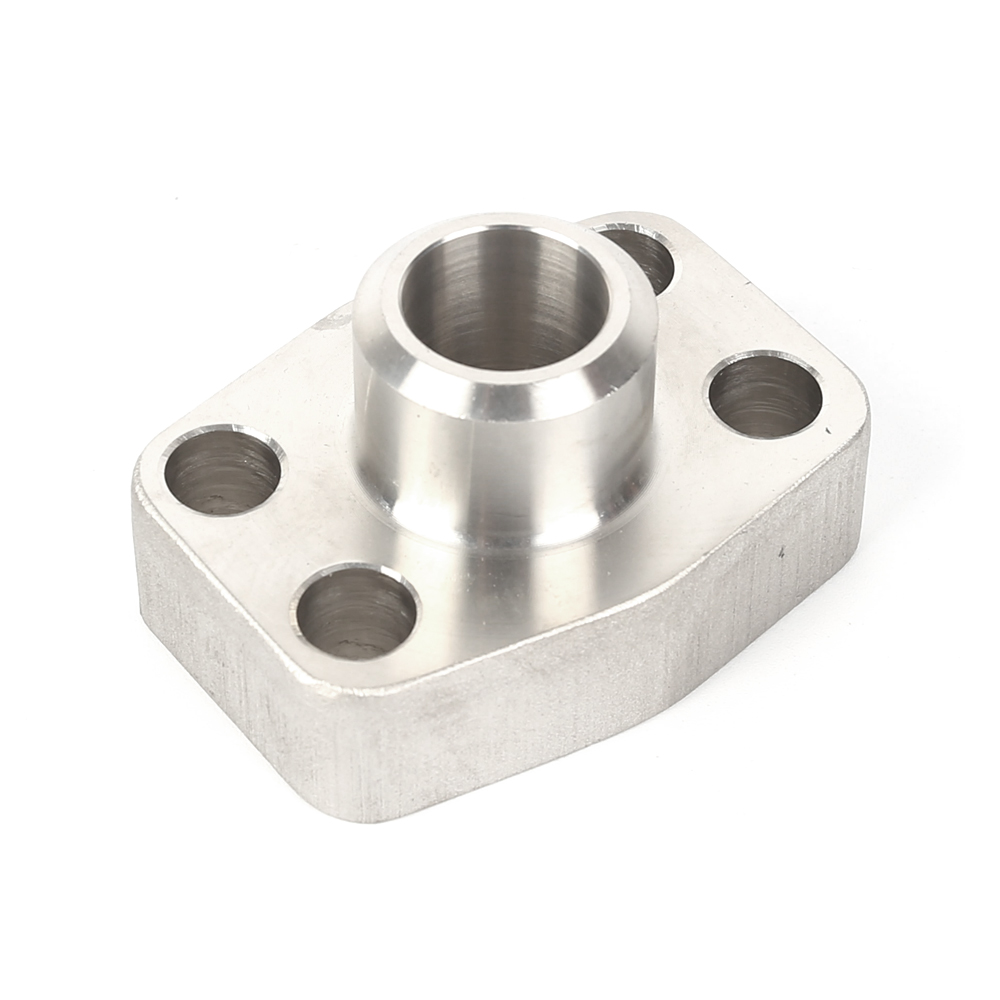

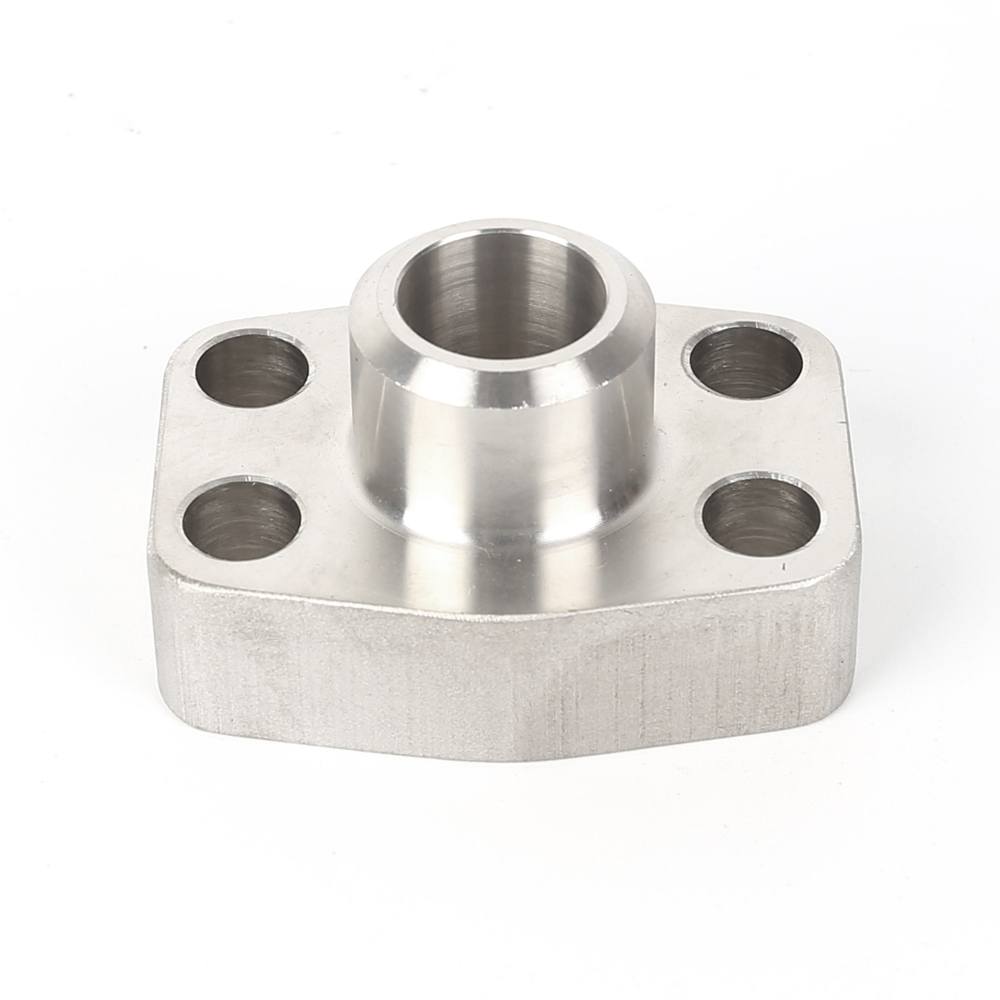

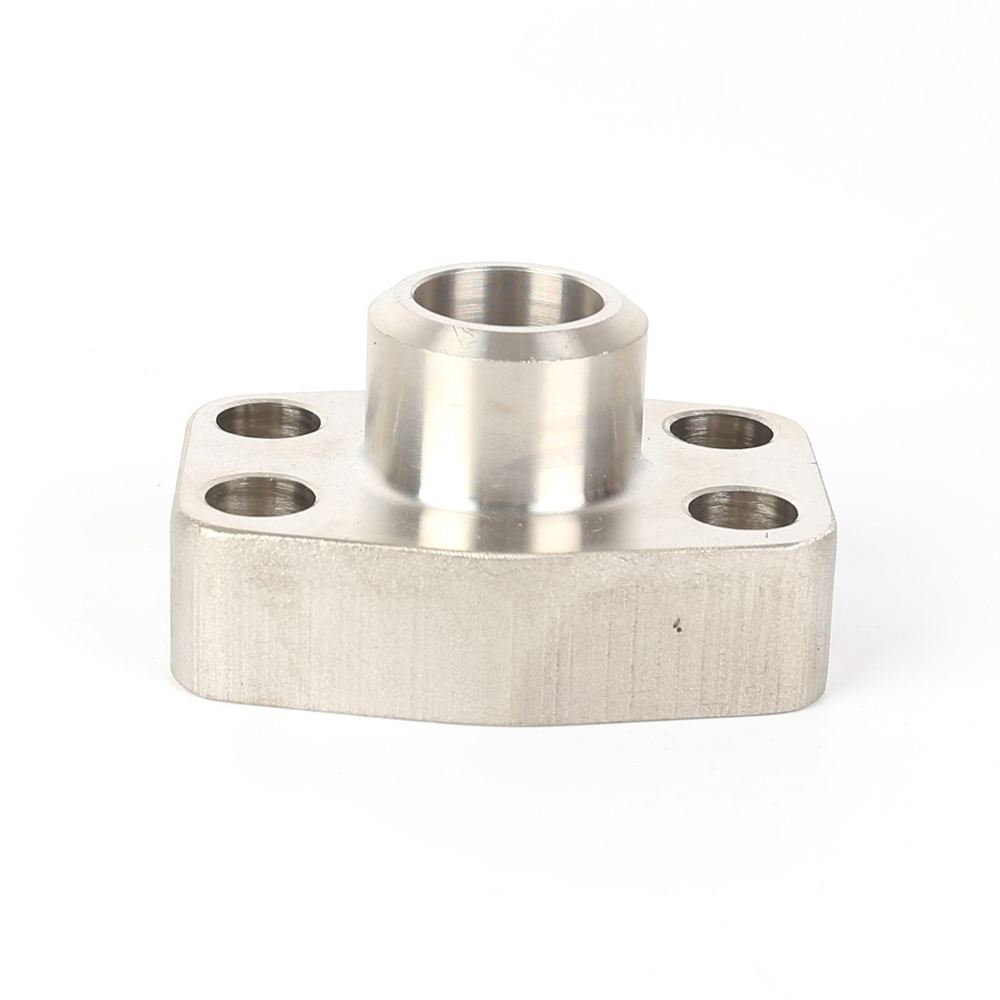

AFSA Hydraulic SAE Butt Welding Flange

Description:

AFSA bult welding flange is used as a reliable alternative to common pipe and tube connectors. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	SIZE	DIMENSION									BOLT	O-RING	W.T.	W.P.

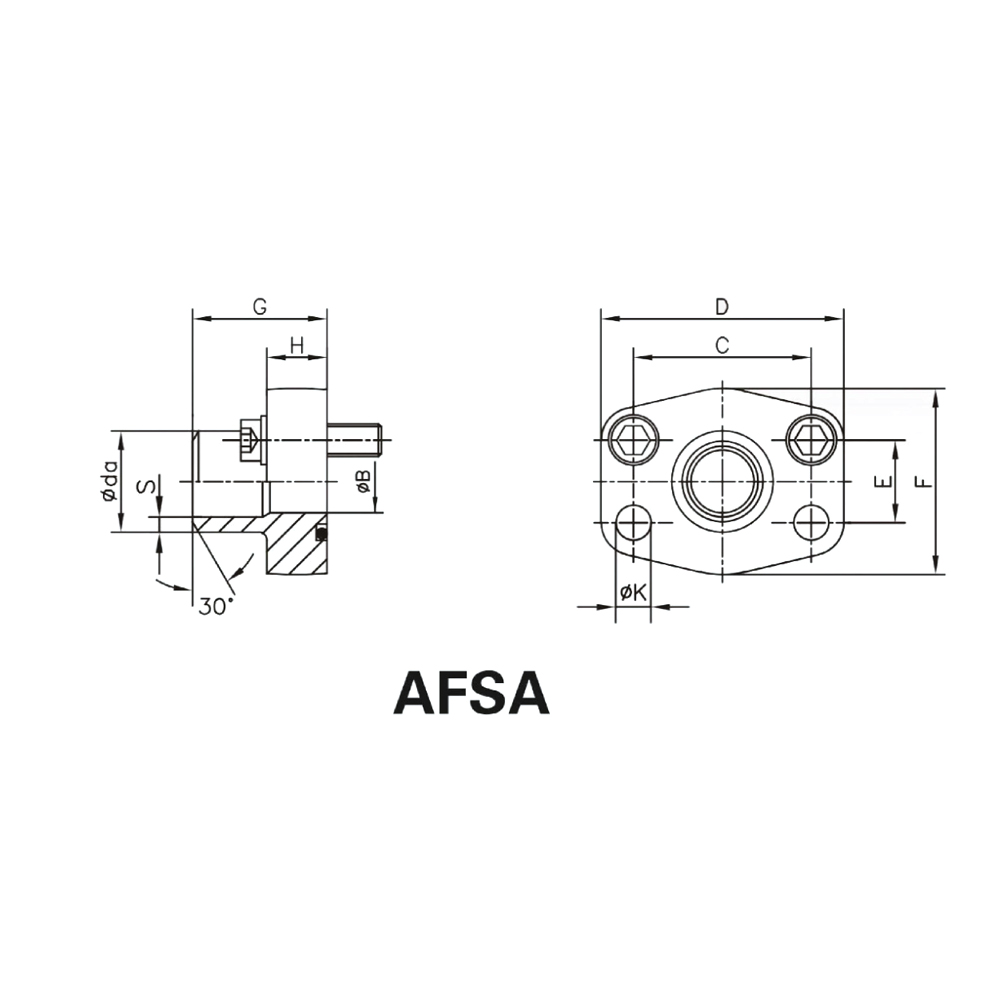

PART NO.	(INCH)	daxs	B	C	D	E	F	G	H	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000 psi
AFSA301	1/2″	16×2.5 17.5×2.25 18×3 20×3 21.6×4.3 22×3 22×4	13	38.1	54	17.48	46	36	16	9	M8X30	18.66×3.53	0.25	350
AFSA302	3/4″	25×3 26.9×3.6 28×4.5	19	47.63	65	22.23	50	36	18	11	M10X35	25.00×3.53	0.39	350
AFSA303	1″	28×4 30×4 33.7×3.6 34×5 35×5	25	52.37	70	26.19	55	38	18	11	M10X35	32.92×3.53	0.46	315
AFSA304	11/4″	38×4 42.4×3.6 42.4×5 42.8×5.4	32	58.72	79	30.18	68	41	21	11.5	M10X40	37.70×3.53	0.66	250
AFSA305	11/2″	38×4 42.4×4 48.3×4.5 48.3×6.3 48.6×5.3 49×3.5 50×3	38	69.85	93	35.71	78	45	25	13.5	M12X45	47.22×3.53	1.05	200
AFSA306	2″	34×4.5 42.4×4 48.3×3.2 49×3.5 60.3×4 60.3×5.6 61×5 64×3	51	77.77	102	42.88	90	45	25	13.5	M12X45	56.75×3.53	1.19	200
AFSA307	21/2″	74×4 76.1×4 76.1×5.5 77×7	63	88.9	114	50.8	105	50	25	13.5	M12X45	69.45×3.53	1.4	160
AFSA308	3″	76.1×4 76.1×7.1 89×4 89×5.5 89×8 89×11 90×4 92×9.5	73	106.38	135	61.93	124	50	27	17	M16X50	85.32×3.53	2.15	138
AFSA309	31/2″	89×4 103×7.1 108×10	89	120.65	152	69.85	136	48	27	17	M16X50	98.02×3.53	2.4	35
AFSA310	4″	88.9×3.6 114.3×4 114.3×8 115.5×8.3	99	130.18	162	77.77	146	48	27	17	M16X50	110.72×3.53	2.85	35
AFSA311	5″	140×4.5 140×6.5 140×10	120	152.4	184	92.08	180	50	28	17	M16X55	136.12×3.53	4	35
6000 psi
AFSA601	1/2″	16×2.5 17.5×2.25 18×3 20×3 21.6×4.3	13	40.49	56	18.24	48	36	16	9	M8X30	18.66×3.53	0.26	400
AFSA602	3/4″	20×3 22×3 25×4 26.9×5.6 28×4.5	19	50.8	71	23.8	55	36	21	11	M10X35	25.00×3.53	0.5	400
AFSA603	1″	25×4 28×3 30×4 33.7×7.1 34×5	25	57.15	81	27.76	65	42	25	13	M12X45	32.92×3.53	0.76	400
AFSA604	11/4″	30×4 38×5 38×6 42.4×5 42.8×5.4	32	66.68	95	31.75	78	45	27	15	M14X50	37.70×3.53	1.2	400
AFSA605	11/2″	38×6 48.3×7.1 48.3×8 48.6×5.3 49×8.5 50×8 60.3×10 61×10.5	38	79.38	112	36.5	94	50	30	17	M16X55	47.22×3.53	1.65	400
AFSA606	2″	60.3×10 61×5 63×8 76.1×8 76.1×12.5	51	96.82	134	44.45	114	65	37	21	M20X70	56.75×3.53	3.15	400
AFSA607	21/2″	76.1×12.5 88.9×14.2 89×11 90×14.5	63	123.83	180	58.73	152	80	45	25	M24X85	75.57×5.33	8.3	400
AFSA608	3″	90×12 114.3×14.2 114.3×17.5	73	152.4	208	71.43	178	90	55	32	M30X100	88.27×5.33	13.5	400
