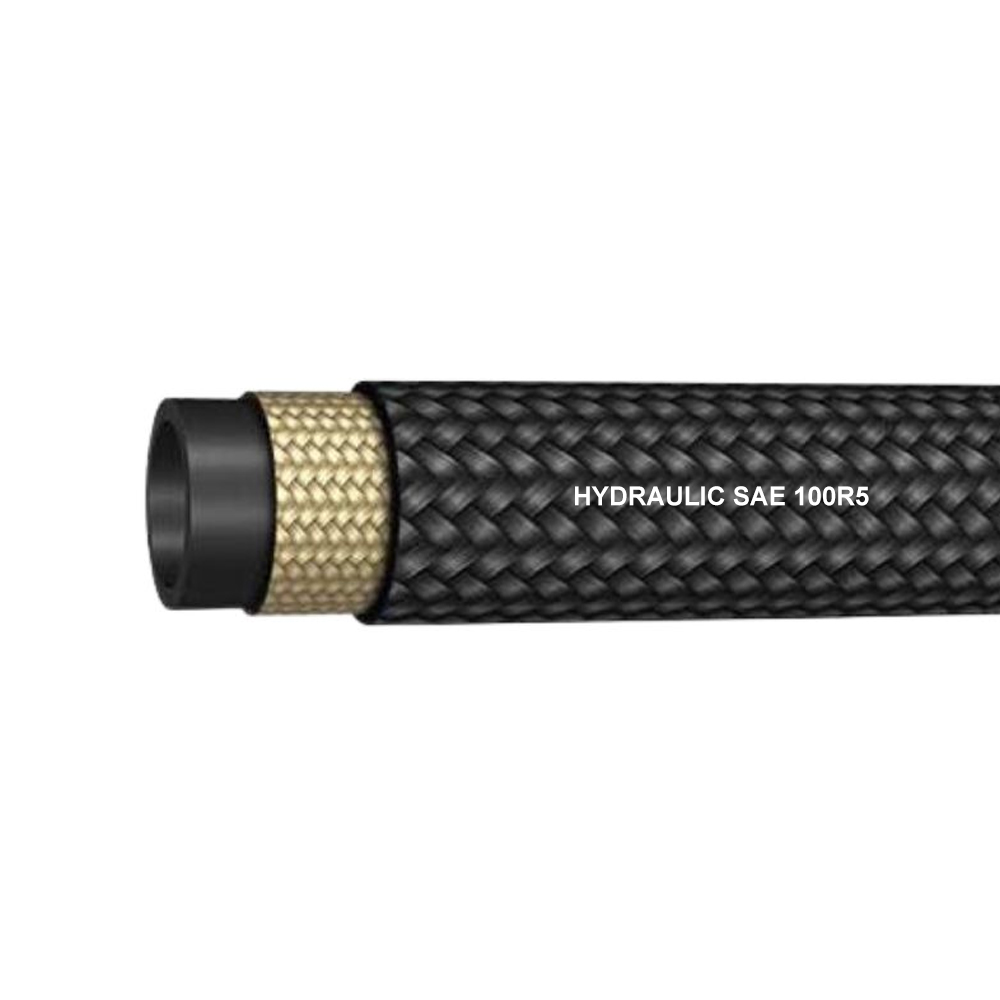

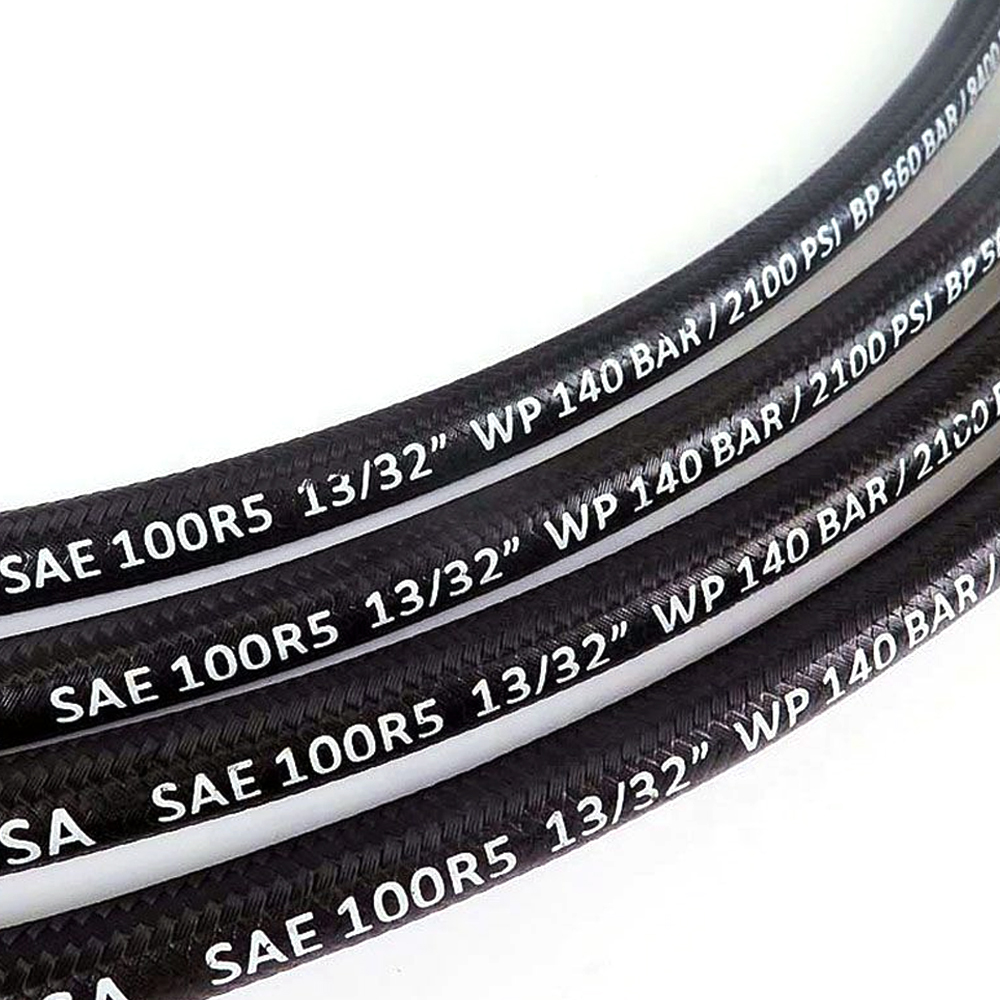

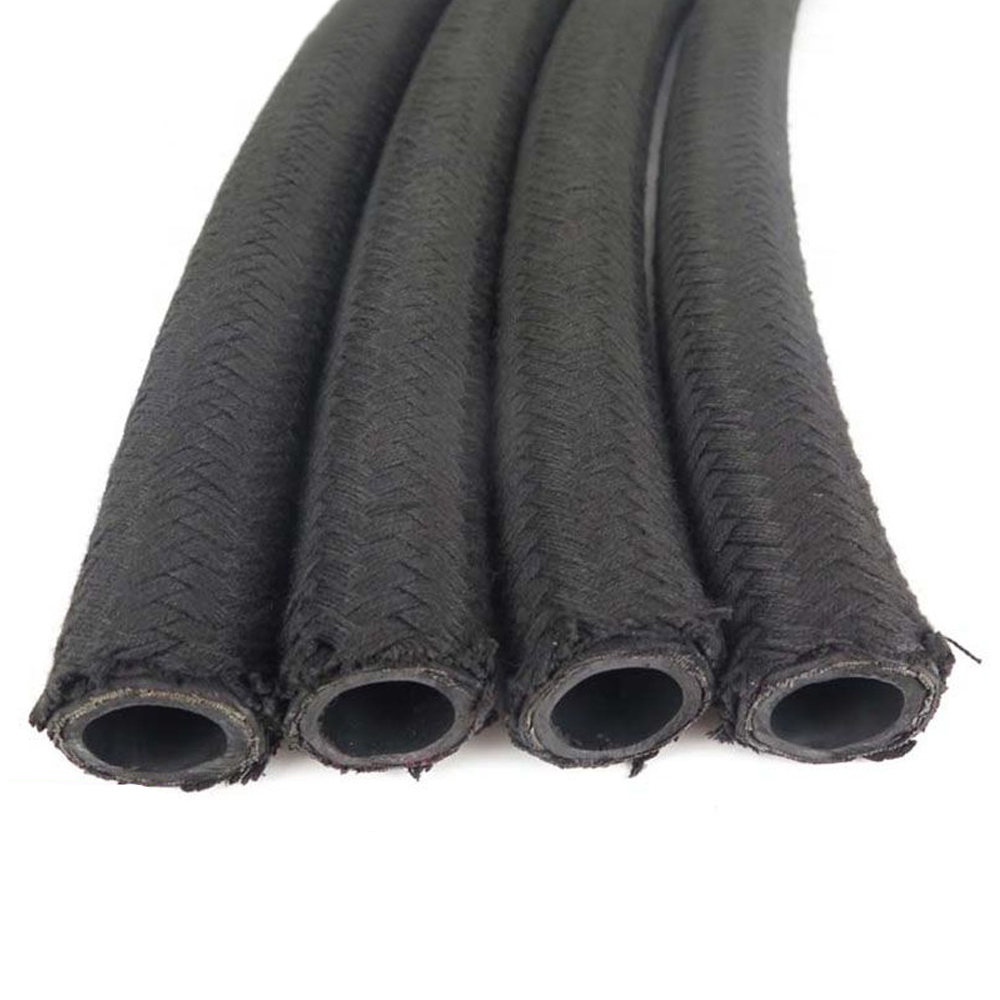

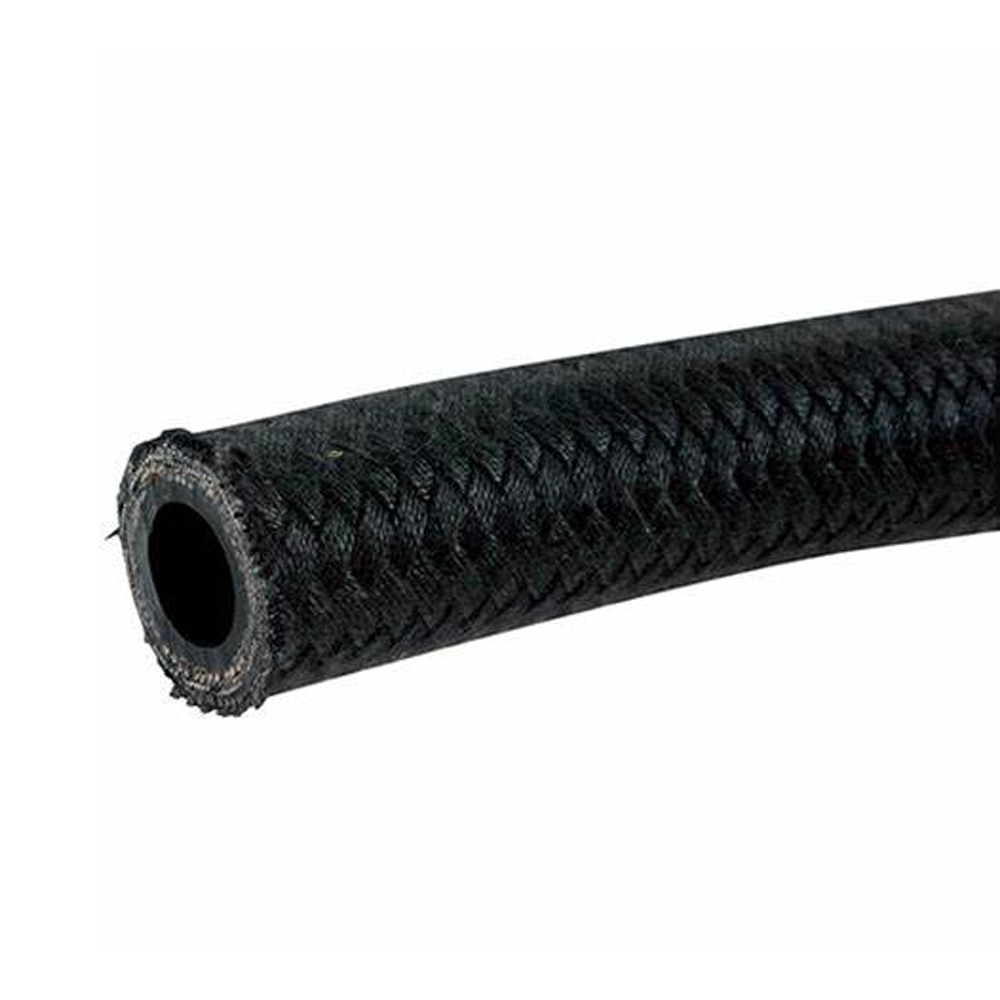

The SAE 100R5 hydraulic hose combines high-strength steel wire braid reinforcement with an abrasion-resistant textile cover layer. Engineered for extreme conditions (-40°F to +250°F), it delivers working pressures to 3,000 psi and burst pressures to 12,000 psi (diameter-dependent, 3/16″ to 3″). Designed for compatibility with standard R5 hose end fittings.
| HOSE PART NO. | DN | HOSE I.D. | HOSE O.D. | Working-pressure | Test-pressure | Burst- pressure | Bend Radius | |
| mm | inch | mm | mm | bar | bar | bar | mm | |
| 100R5-03 | 5 | 45367 | 4.8 | 13.2 | 207 | 410 | 820 | 76 |
| 100R5-04 | 6.3 | 45295 | 6.4 | 14.8 | 207 | 410 | 820 | 86 |
| 100R5-05 | 8 | 45428 | 7.9 | 17.1 | 155 | 310 | 620 | 102 |
| 100R5-06 | 10 | 13/32 | 10.3 | 19.5 | 138 | 280 | 560 | 117 |
| 100R5-08 | 12.5 | 45293 | 12.7 | 23.4 | 121 | 240 | 480 | 140 |
| 100R5-10 | 16 | 45420 | 15.9 | 27.4 | 103 | 210 | 420 | 165 |
| 100R5-12 | 22 | 45481 | 22.2 | 31.4 | 55 | 110 | 220 | 187 |
| 100R5-16 | 28 | 36899 | 28.6 | 38.1 | 43 | 86 | 170 | 229 |
| 100R5-20 | 35 | 36958 | 35 | 44.4 | 34 | 70 | 140 | 267 |
| 100R5-24 | 45 | 1-13/16 | 46 | 56.4 | 24 | 50 | 100 | 337 |
| 100R5-32 | 60 | 37323 | 60.3 | 73 | 24 | 48 | 96 | 610 |
