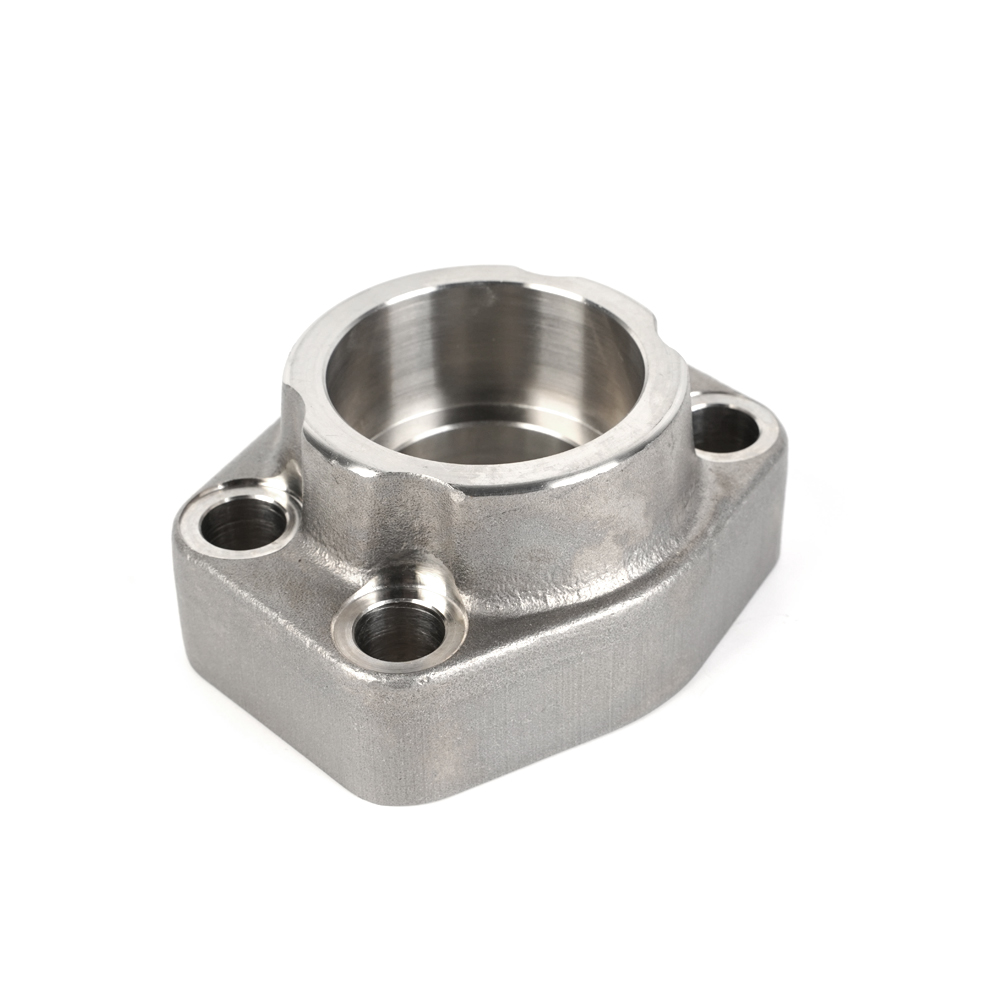

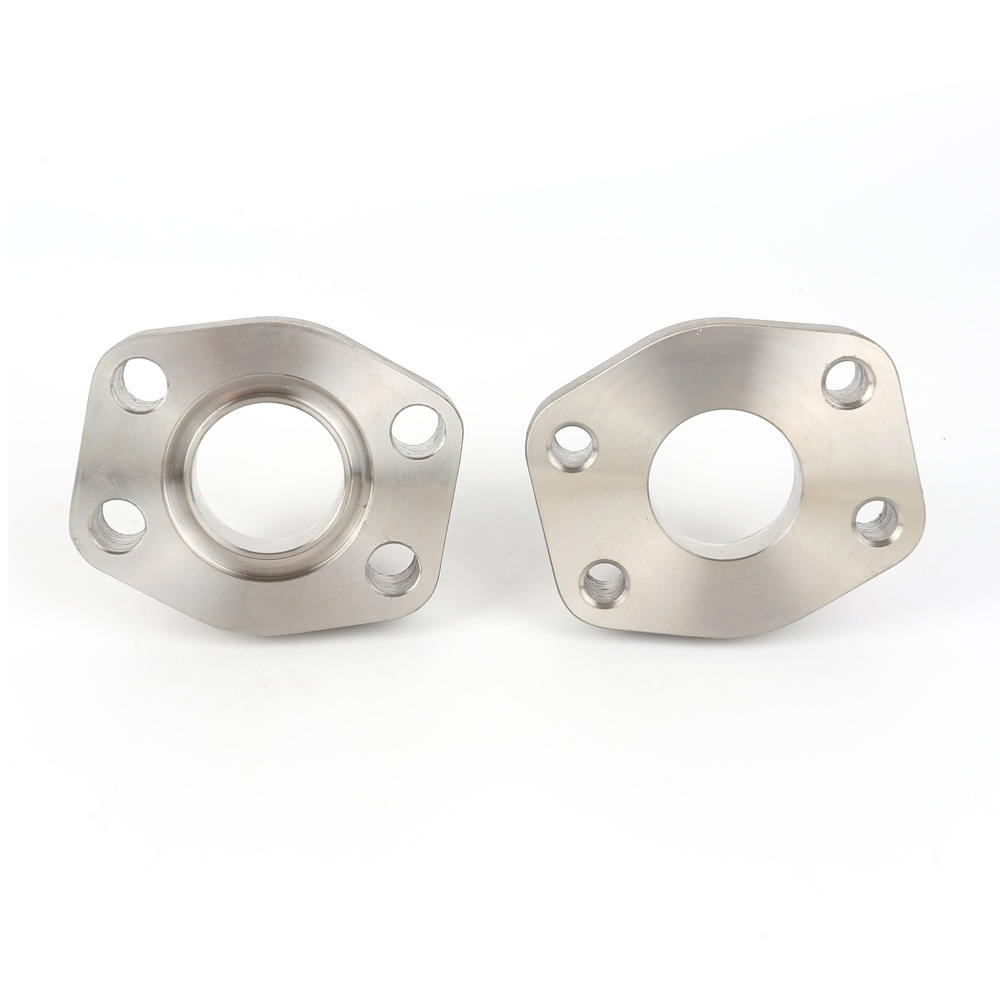

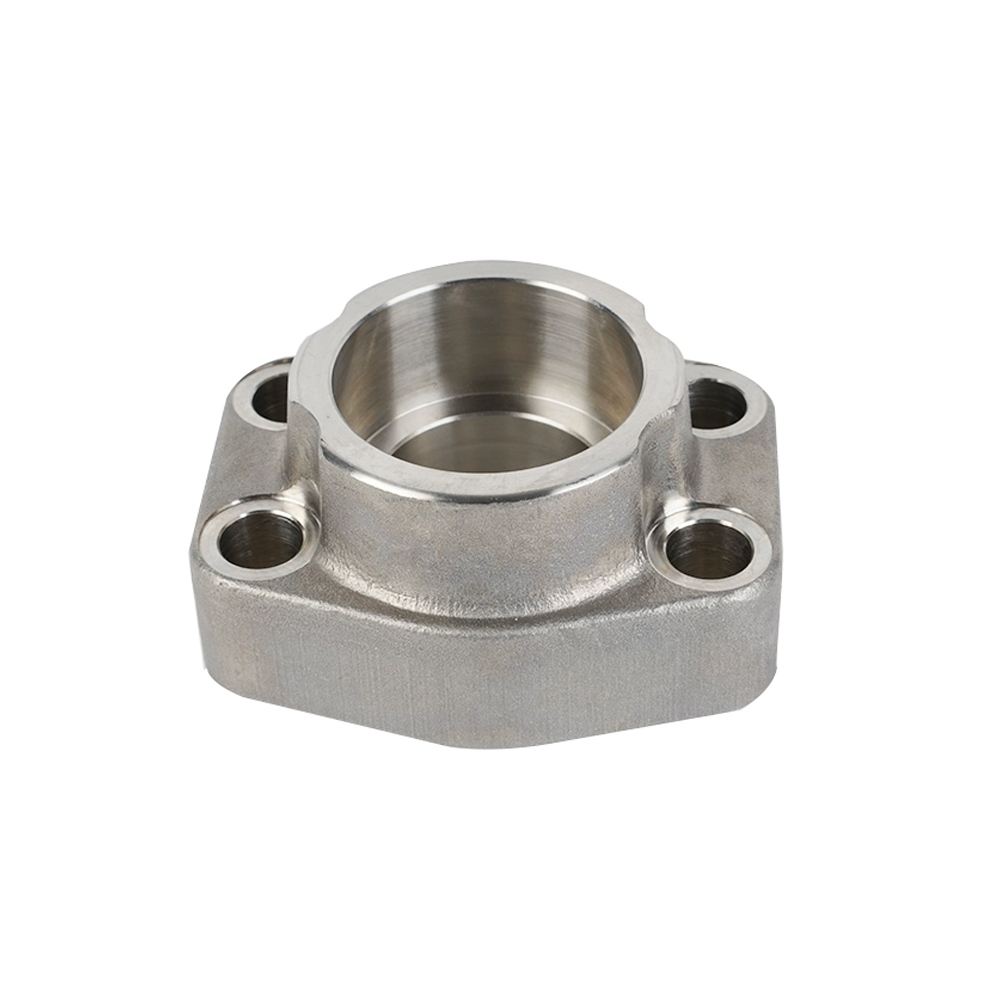

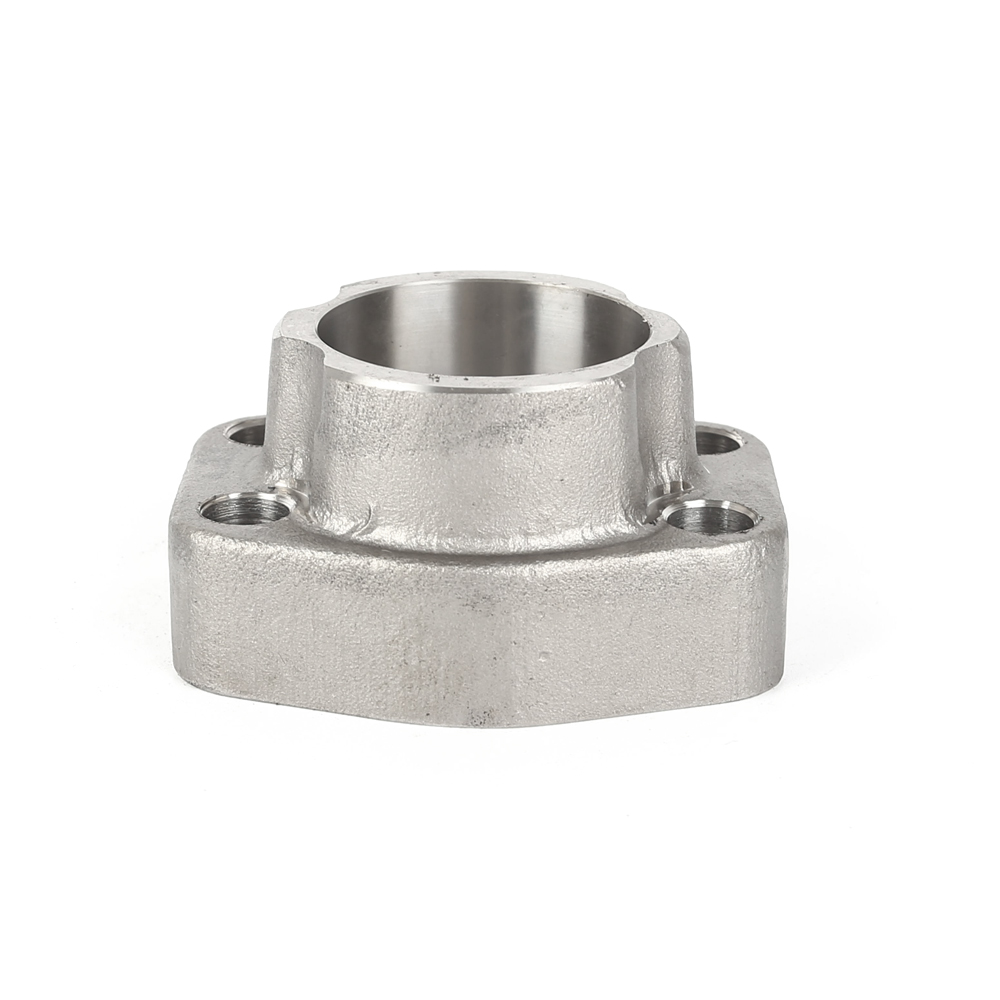

AFL Hydraulic SAE Socket Weld Flange

Description:

AFL weld flange is a type of socket weld pipe flange manufactured in accordance with ISO 6162 and SAE J518 standards. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

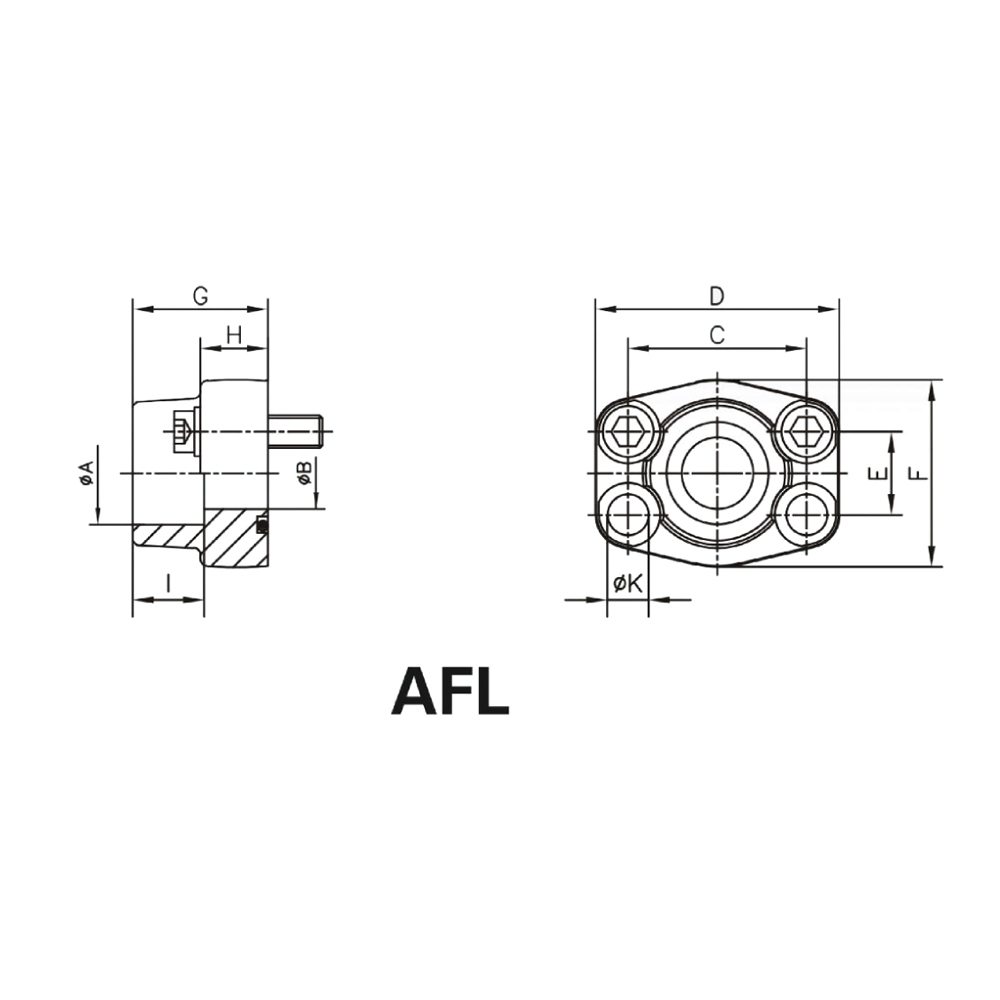

PART NO.	Size	DIMENSION										BOLT	O-RING	W.T.	W.P.
PART NO.	(INCH)	A	B	C	D	E	F	G	H	I	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000 psi
AFL301	1/2″	21.6	13	38.1	54	17.48	46	36	16	19	9	M8x30	18.66×3.53	0.25	350
AFL302	3/4″	27.2	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFL302-25	3/4″	25.3	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFL303	1″	34	25	52.37	70	26.19	55	38	18	19	11	M10x35	32.92×3.53	0.49	315
AFL304	11/4″	42.8	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFL304-38	11/4″	38.3	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFL305	11/2″	48.6	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFL305-50	11/2″	50.5	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFL306	2″	61	51	77.77	102	42.88	90	45	25	26	13.5	M12x45	56.75×3.53	1.3	200
AFL307	21/2″	76.6	63	88.9	114	50.8	105	50	25	30	13.5	M12X45	69.45X3.53	1.6	160
AFL308	3″	90.5	73	106.38	134	61.93	124	50	27	34	17	M16x50	85.32×3.53	2.3	138
AFL309	31/2″	103	89	120.65	152	69.85	136	48	27	34	17	M16x50	98.02×3.53	2.5	35
AFL310	4″	115.5	99	130.18	162	77.77	146	48	27	34	17	M16x50	110.72×3.53	2.9	35
AFL311	5″	142	120	152.4	184	92.08	180	50	29	28	17	M16x55	136.12×3.53	4	35
6000 psi
AFL601	1/2″	21.6	13	40.49	56	18.24	48	36	16	19	9	M8x30	18.66×3.53	0.3	400
AFL602	3/4″	27.2	19	50.8	71	23.8	55	35	21	22	11	M10x35	25.00×3.53	0.56	400
AFL603	1″	34	25	57.15	81	27.76	65	42	25	22	13	M12x45	32.92×3.53	0.85	400
AFL604	11/4″	42.8	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFL604-38	11/4″	38.3	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFL605	11/2″	48.6	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFL605-50	11/2″	50.5	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFL606	2″	61	51	96.82	134	44.45	114	65	37	32	21	M20x70	56.75×3.53	3.4	400
AFL607	21/2″	76.6	63	123.83	180	58.73	152	80	45	30	25	M24x85	75.57×5.33	8.3	400
AFL608	3″	90.5	73	152.4	208	71.43	178	90	55	30	32	M30x100	88.27×5.33	13.5	400

Click to enlarge

Category: Flange Hydraulic Adapter Tags: SAE, Flange, Weld, AFL

Description
Package& Shipping

Description

PART NO.	Size	DIMENSION										BOLT	O-RING	W.T.	W.P.
PART NO.	(INCH)	A	B	C	D	E	F	G	H	I	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000 psi
AFL301	1/2″	21.6	13	38.1	54	17.48	46	36	16	19	9	M8x30	18.66×3.53	0.25	350
AFL302	3/4″	27.2	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFL302-25	3/4″	25.3	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFL303	1″	34	25	52.37	70	26.19	55	38	18	19	11	M10x35	32.92×3.53	0.49	315
AFL304	11/4″	42.8	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFL304-38	11/4″	38.3	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFL305	11/2″	48.6	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFL305-50	11/2″	50.5	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFL306	2″	61	51	77.77	102	42.88	90	45	25	26	13.5	M12x45	56.75×3.53	1.3	200
AFL307	21/2″	76.6	63	88.9	114	50.8	105	50	25	30	13.5	M12X45	69.45X3.53	1.6	160
AFL308	3″	90.5	73	106.38	134	61.93	124	50	27	34	17	M16x50	85.32×3.53	2.3	138
AFL309	31/2″	103	89	120.65	152	69.85	136	48	27	34	17	M16x50	98.02×3.53	2.5	35
AFL310	4″	115.5	99	130.18	162	77.77	146	48	27	34	17	M16x50	110.72×3.53	2.9	35
AFL311	5″	142	120	152.4	184	92.08	180	50	29	28	17	M16x55	136.12×3.53	4	35
6000 psi
AFL601	1/2″	21.6	13	40.49	56	18.24	48	36	16	19	9	M8x30	18.66×3.53	0.3	400
AFL602	3/4″	27.2	19	50.8	71	23.8	55	35	21	22	11	M10x35	25.00×3.53	0.56	400
AFL603	1″	34	25	57.15	81	27.76	65	42	25	22	13	M12x45	32.92×3.53	0.85	400
AFL604	11/4″	42.8	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFL604-38	11/4″	38.3	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFL605	11/2″	48.6	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFL605-50	11/2″	50.5	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFL606	2″	61	51	96.82	134	44.45	114	65	37	32	21	M20x70	56.75×3.53	3.4	400
AFL607	21/2″	76.6	63	123.83	180	58.73	152	80	45	30	25	M24x85	75.57×5.33	8.3	400
AFL608	3″	90.5	73	152.4	208	71.43	178	90	55	30	32	M30x100	88.27×5.33	13.5	400

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
