Home Hose Assembly Hydraulic Hose 1-Wire 5/8″ EN 857 1SC Hydraulic Hose
Heavy Duty EN 856 4SH Hydraulic Hose
Back to products
2 Wire Braid EN 857 2SC 1/2" Hydraulic Hose
Click to enlarge

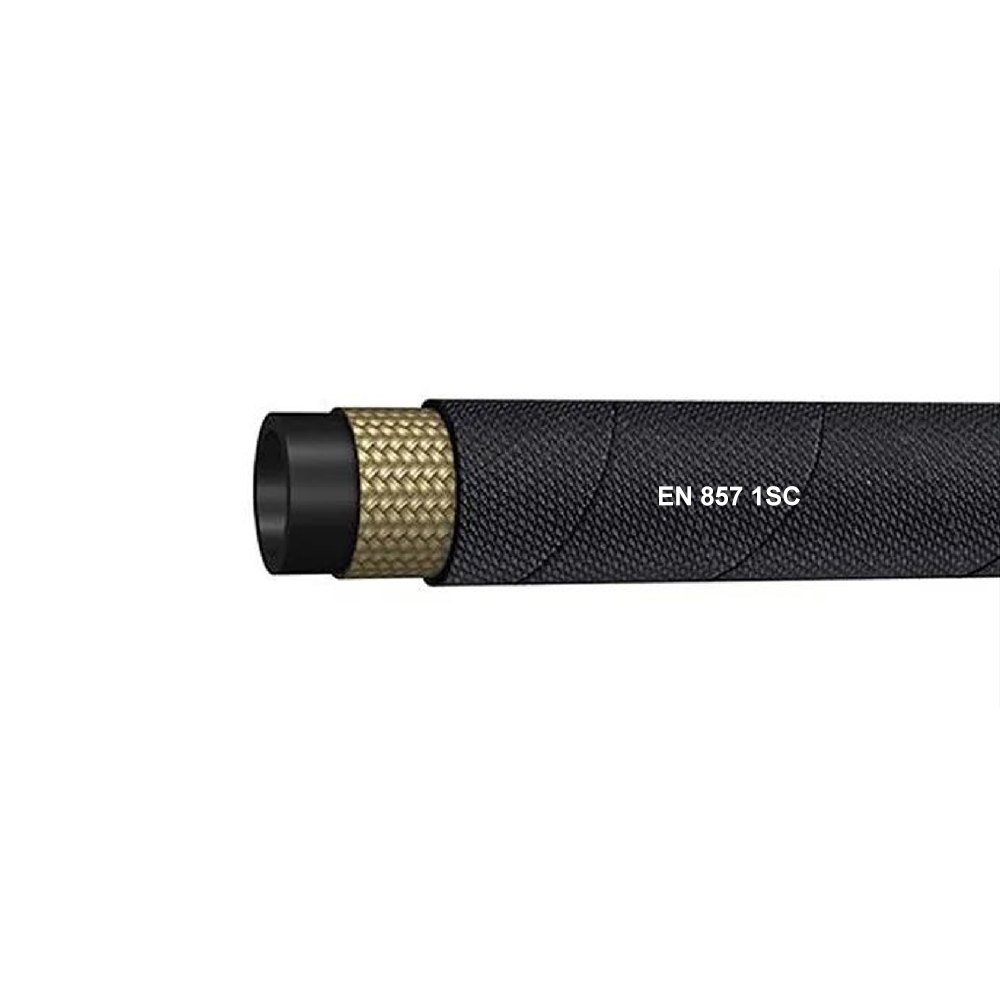

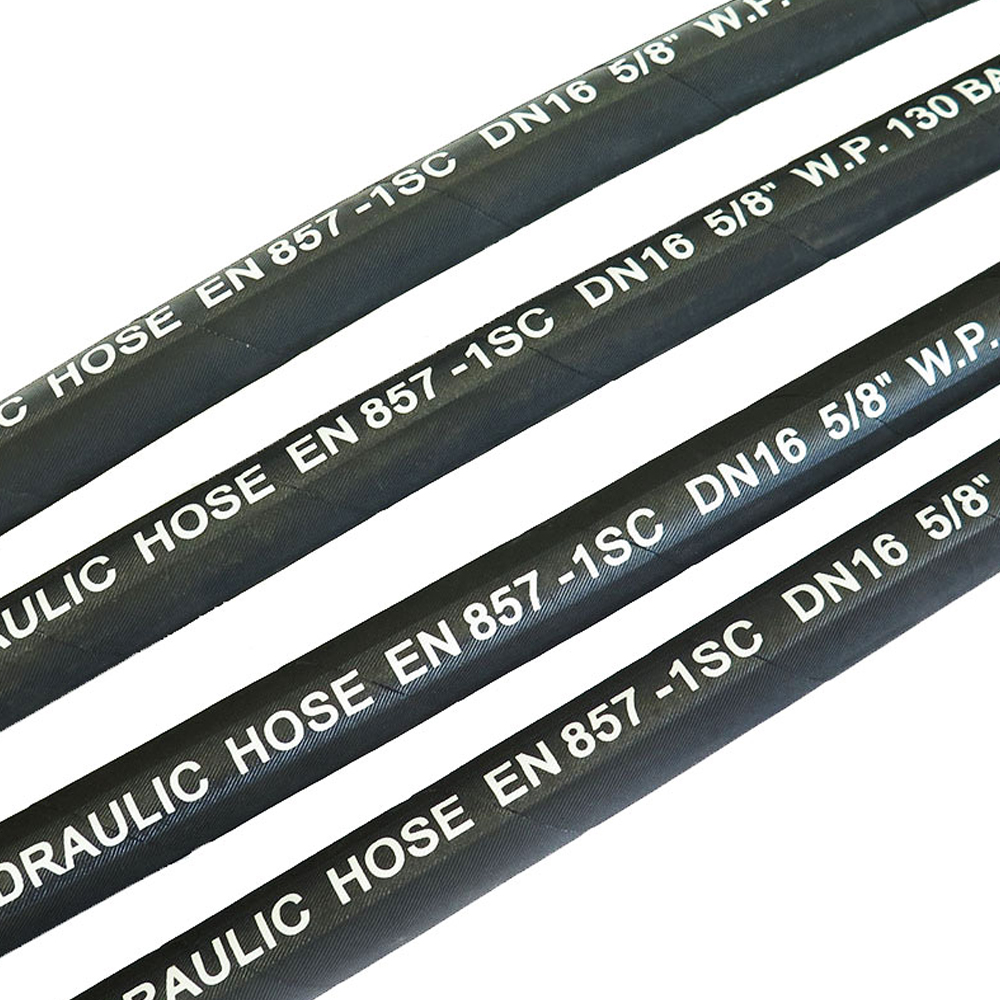

1-Wire 5/8″ EN 857 1SC Hydraulic Hose

Description:

Inner Tube: oil-resistant synthetic rubber.

Reinforcement: one high-tensile steel wire.

Cover: weather- and oil-resistant synthetic rubber.

Temperature Range: -40 ℃ to +100 ℃  (-40 °F to +212 °F ).

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: 1SC, EN857, SAE, Hydraulic Hose
Share:
  • Description
  • Package& Shipping
Description

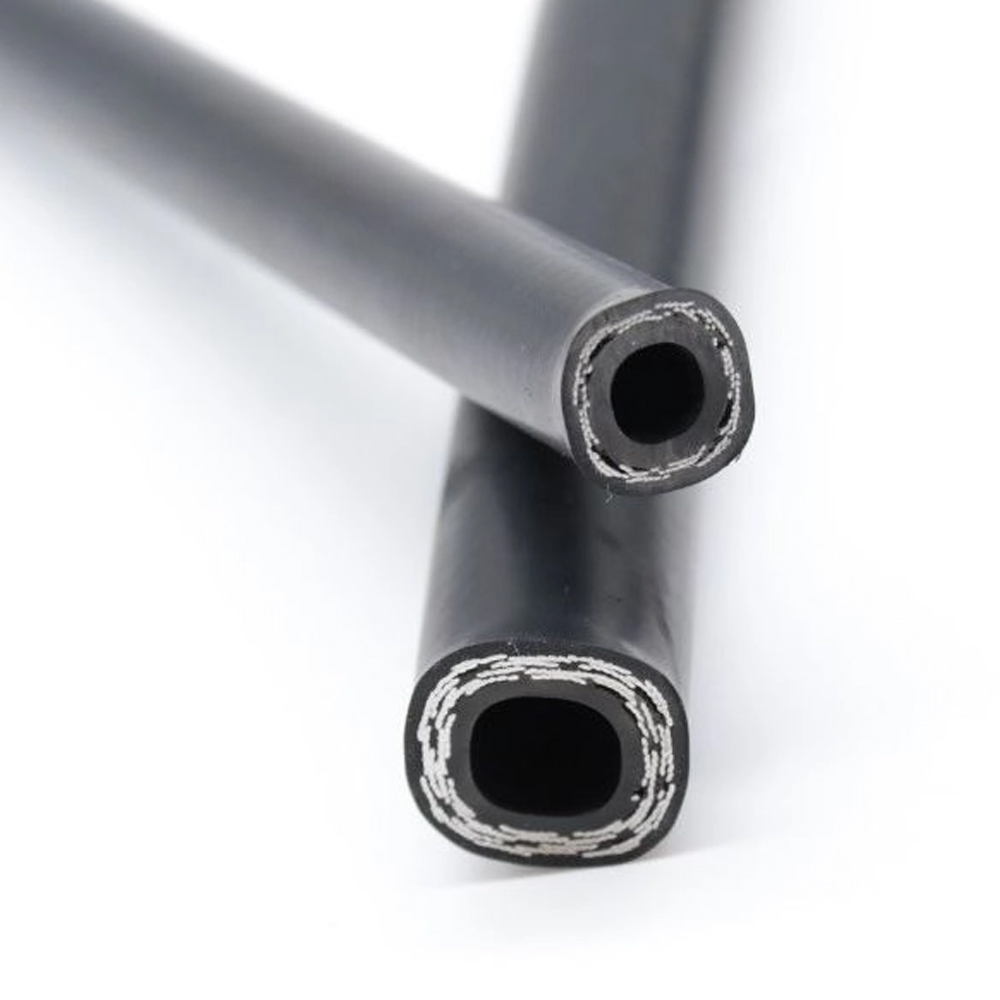

The EN 857 1SC hydraulic hose features a single-layer steel wire reinforcement and synthetic rubber cover, offering optimal balance between flexibility and durability. Designed for low-to-medium pressure applications, this hose is widely implemented across industrial machinery, construction equipment, and agricultural systems.

Part No. Dash I.D.  O.D. W.P B.P B.R
Inch mm mm MPa PSI MPa PSI mm
EN857 1SC-04 1/4″ 6.4 13.5 22.5 3263 90 13050 75
EN857 1SC-05 5/16″ 7.9 14.5 21.5 3118 85 12325 85
EN857 1SC-06 3/8″ 9.5 16.9 18 2610 72 10440 90
EN857 1SC-08 1/2″ 12.7 20.4 16 2320 64 9280 130
EN857 1SC-10 5/8″ 15.9 23 13 1885 52 7540 150
EN857 1SC-12 3/4″ 19.1 26.7 10.5 1523 42 6090 180
EN857 1SC-16 1″ 25.4 34.9 8.7 1262 35.2 5075 230
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
