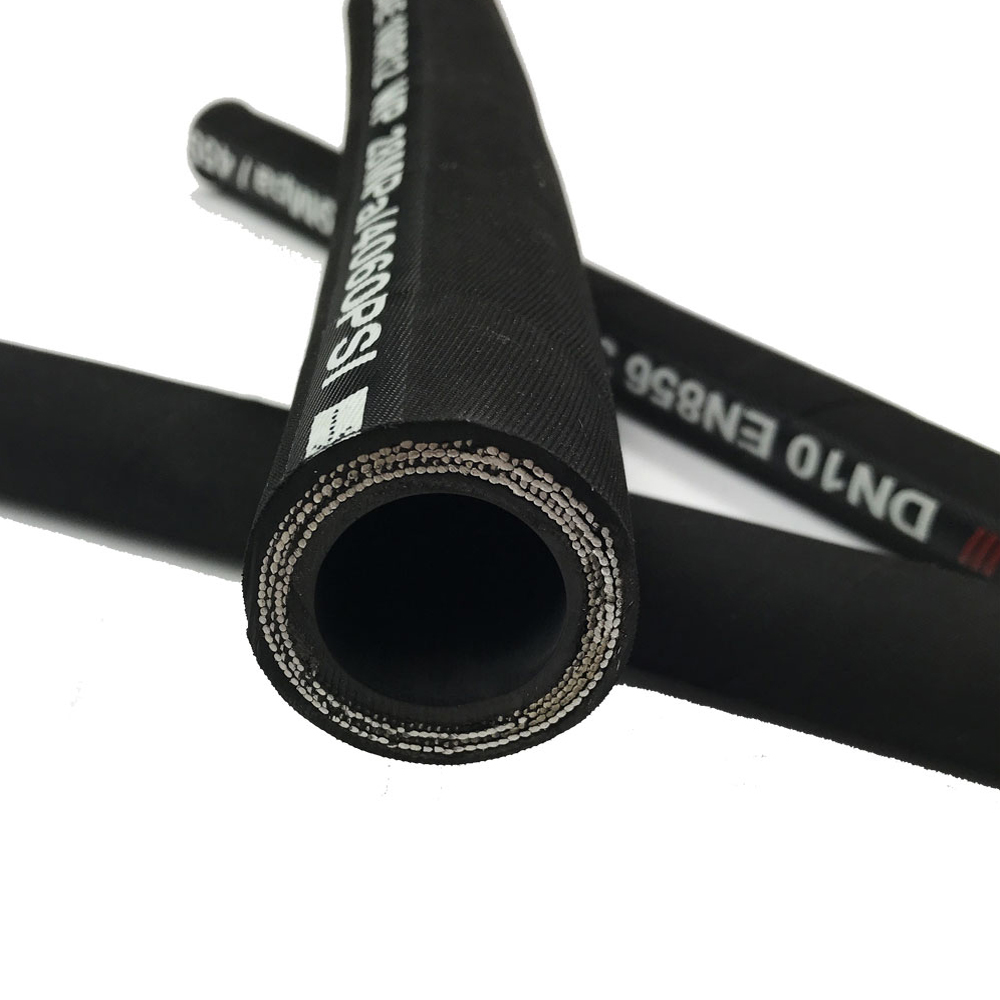

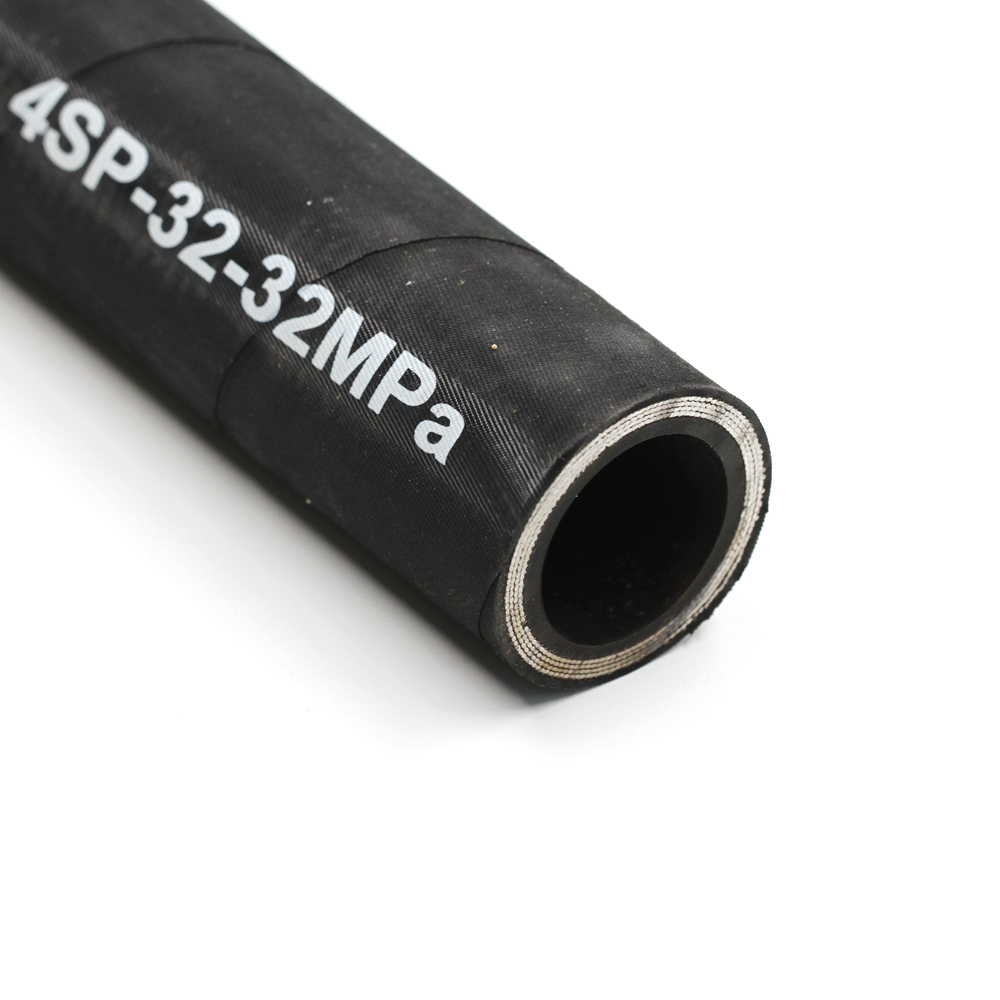

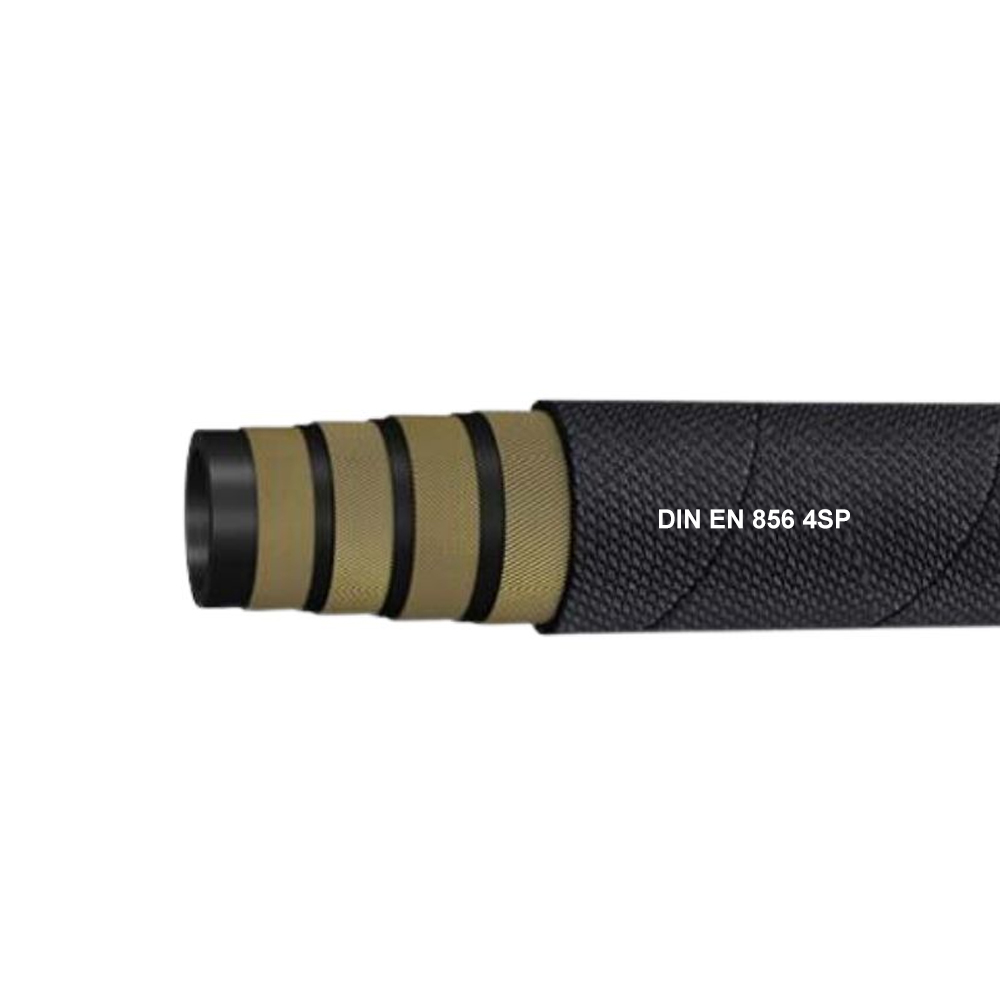

The EN 856 4SP hydraulic hose is a four-wire spiral-reinforced high-pressure solution engineered for extreme operating conditions in heavy machinery. Featuring an oil-resistant synthetic rubber inner tube, this hose incorporates four layers of high-tensile steel wire reinforcement, complete with an outer cover resistant to oils, weathering, and abrasion for maximum durability.
| Part No. | Dash | I.D. | O.D. | W.P | B.P | B.R | ||
| Inch | mm | mm | MPa | PSI | MPa | PSI | mm | |
| EN8564SP-04 | 1/4″ | 6.4 | 18 | 45 | 6525 | 180 | 26100 | 150 |
| EN8564SP-06 | 3/8″ | 9.5 | 20.8 | 44.5 | 6453 | 178 | 25810 | 180 |
| EN8564SP-08 | 1/2″ | 12.7 | 24 | 41.5 | 6018 | 166 | 24070 | 230 |
| EN8564SP-10 | 5/8″ | 15.9 | 27.6 | 35 | 5075 | 140 | 20300 | 250 |
| EN8564SP-12 | 3/4″ | 19.1 | 31.8 | 35 | 5075 | 140 | 20300 | 300 |
| EN8564SP-16 | 1″ | 25.4 | 39.7 | 28 | 4060 | 112 | 16240 | 340 |
| EN8564SP-20 | 1.1/4″ | 31.8 | 50.8 | 21 | 3045 | 84 | 12180 | 460 |
| EN8564SP-24 | 1.1/2″ | 38.1 | 57.2 | 18.5 | 2683 | 74 | 10730 | 560 |
| EN8564SP-32 | 2″ | 50.8 | 69.8 | 16.5 | 2393 | 66 | 9570 | 660 |
