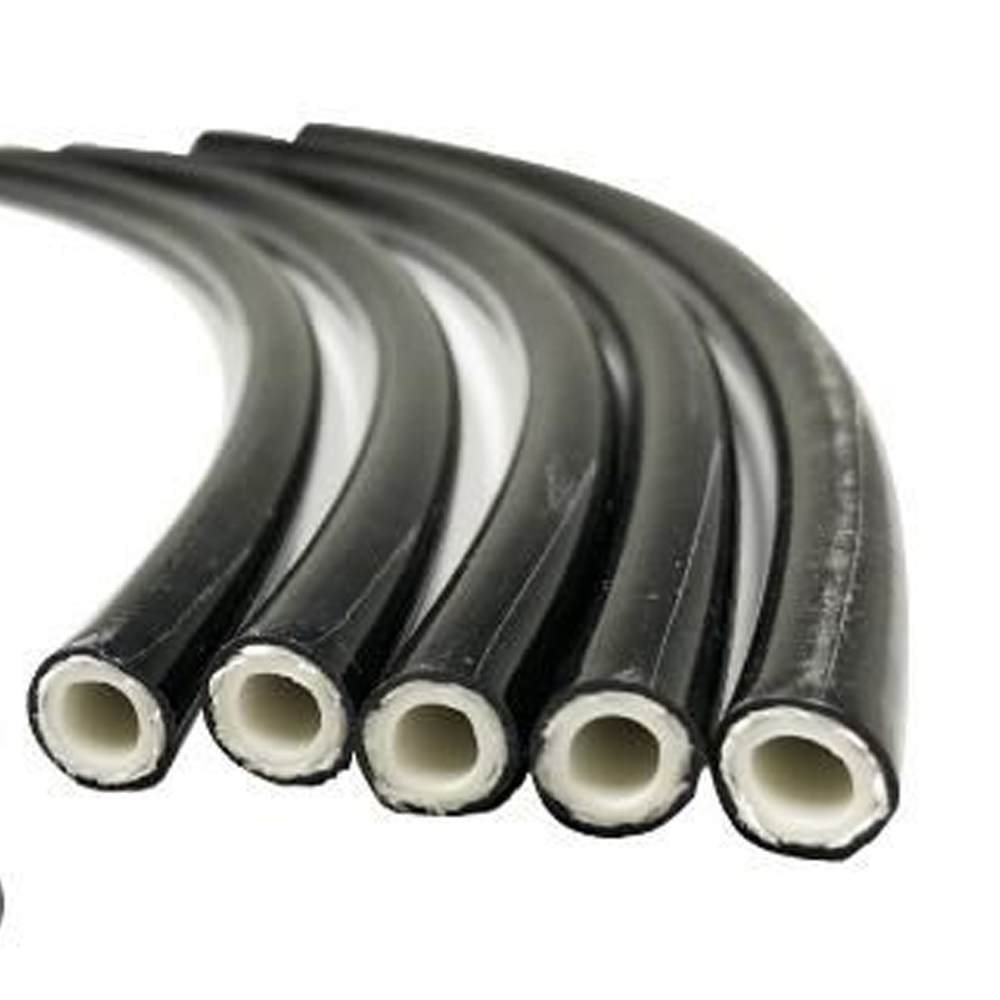

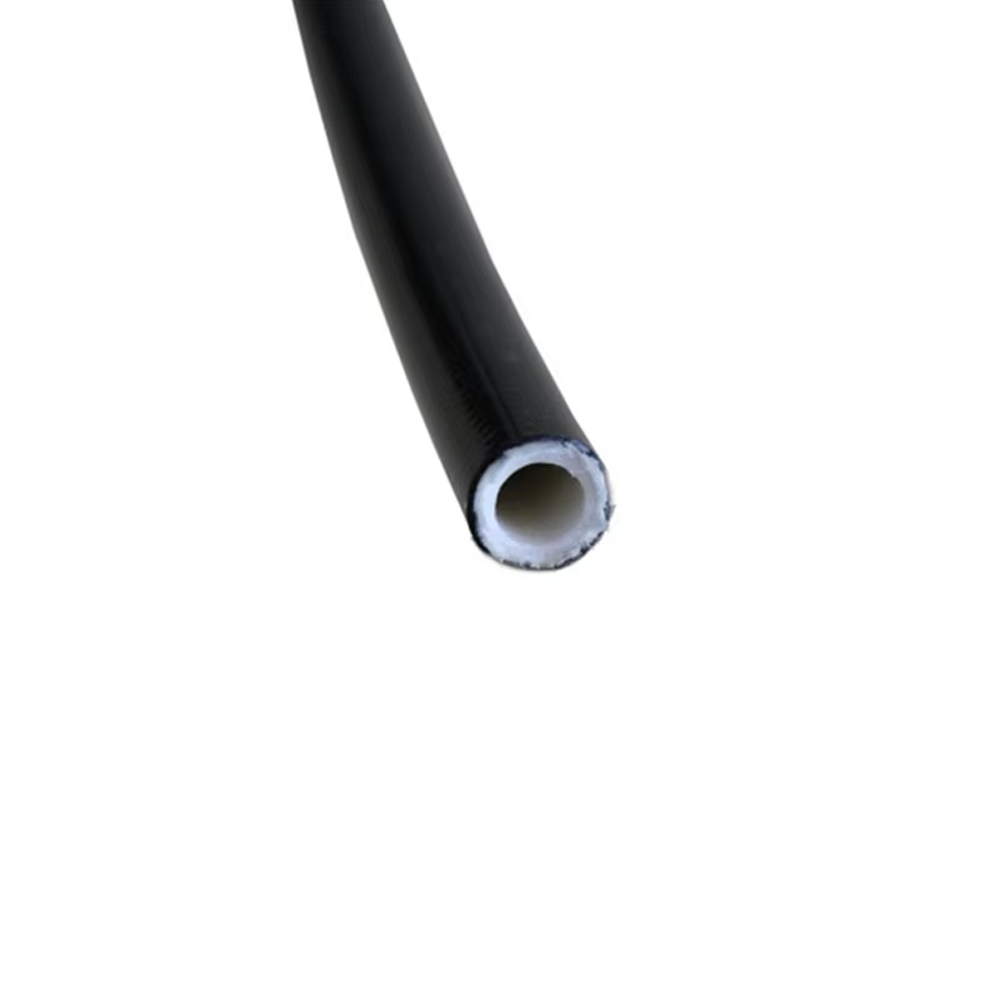

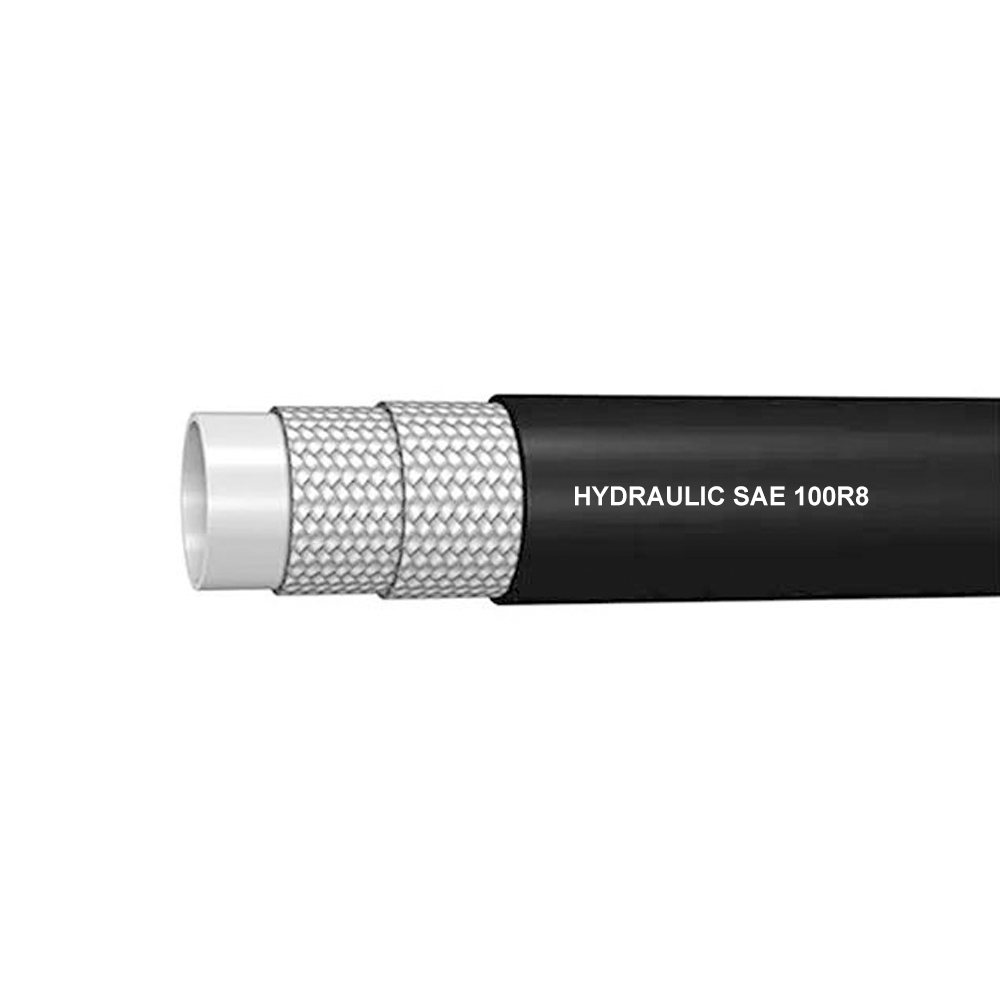

The SAE 100 R8 thermoplastic hydraulic hose is designed for high-pressure applications involving synthetic, petroleum-based, or water-based hydraulic fluids. With an operational temperature range of -40°C to +100°C, it ensures reliable performance in diverse environments.
| HOSE PART NO. | DN | DASH | HOSE I.D. | HOSE O.D. | Working-pressure | Burst- pressure | Bend Radius | |
| mm | inch | mm | mm | bar | bar | mm | ||
| 100R8-03 | 5 | 3/16 | -3 | 4.8 | 13.1 | 345 | 1379 | 90 |
| 100R8-04 | 6.3 | 1/4 | -4 | 6.4 | 15.9 | 345 | 1379 | 100 |
| 100R8-05 | 8 | 5/16 | -5 | 7.9 | 17 | 300 | 1200 | 115 |
| 100R8-06 | 10 | 3/8 | -6 | 9.5 | 19 | 276 | 1103 | 125 |
| 100R8-08 | 12.5 | 1/2 | -8 | 12.7 | 22.7 | 245 | 965 | 180 |
| 100R8-10 | 16 | 5/8 | -10 | 15.9 | 25 | 192 | 768 | 205 |
| 100R8-12 | 19 | 3/4 | -12 | 18.9 | 29 | 157 | 630 | 240 |
| 100R8-16 | 25 | 1 | -16 | 25.4 | 34 | 140 | 560 | 300 |
