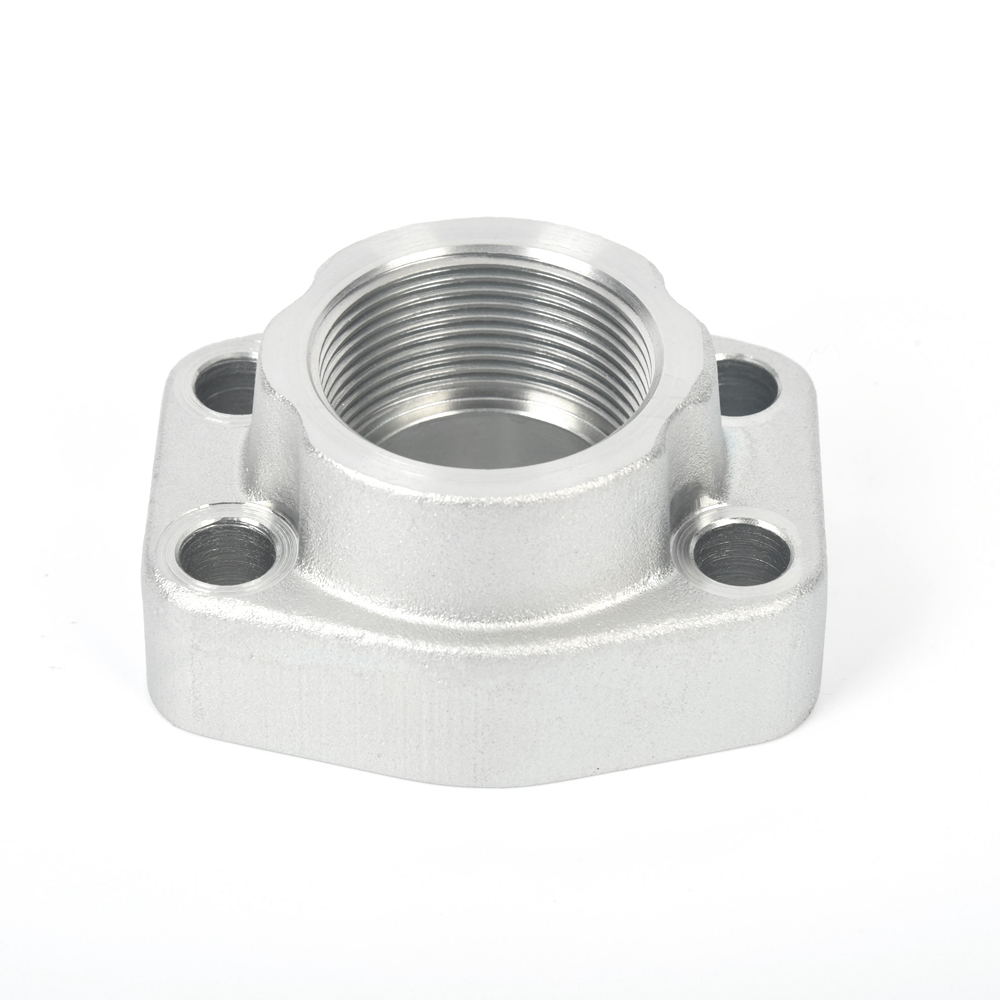

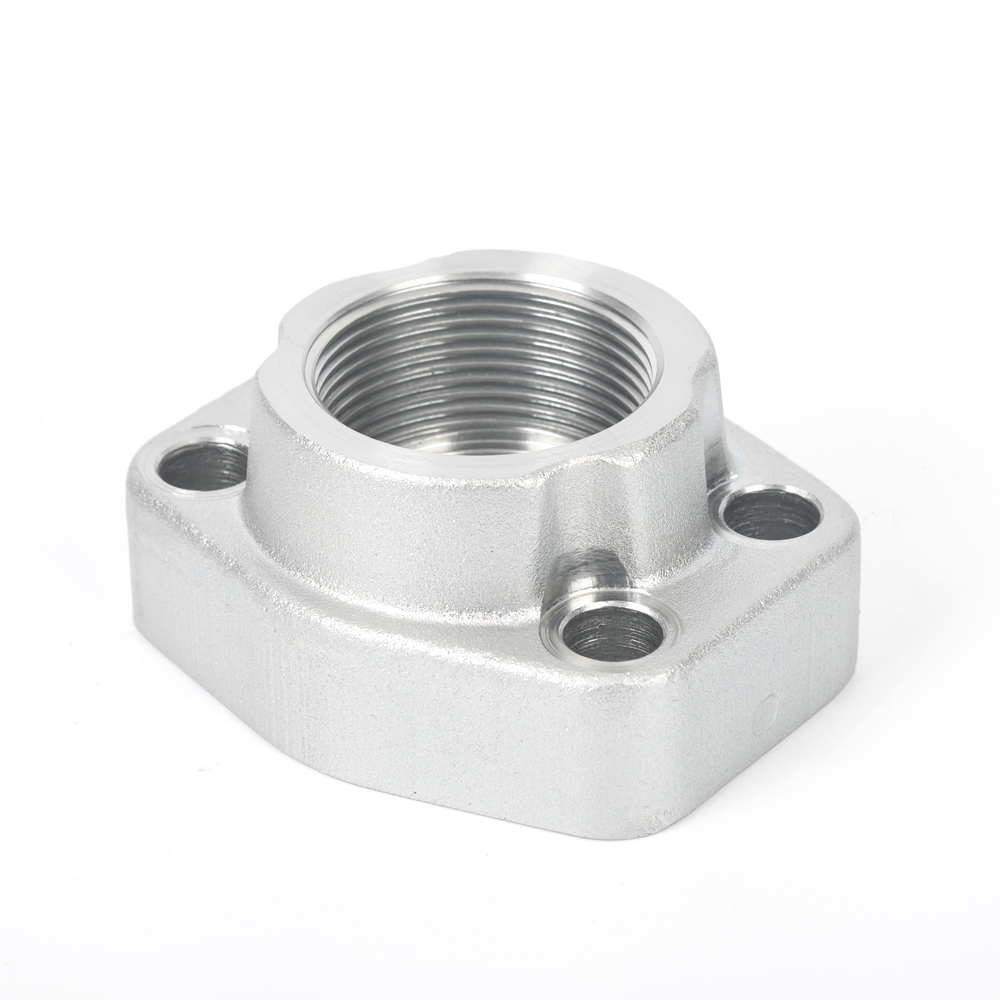

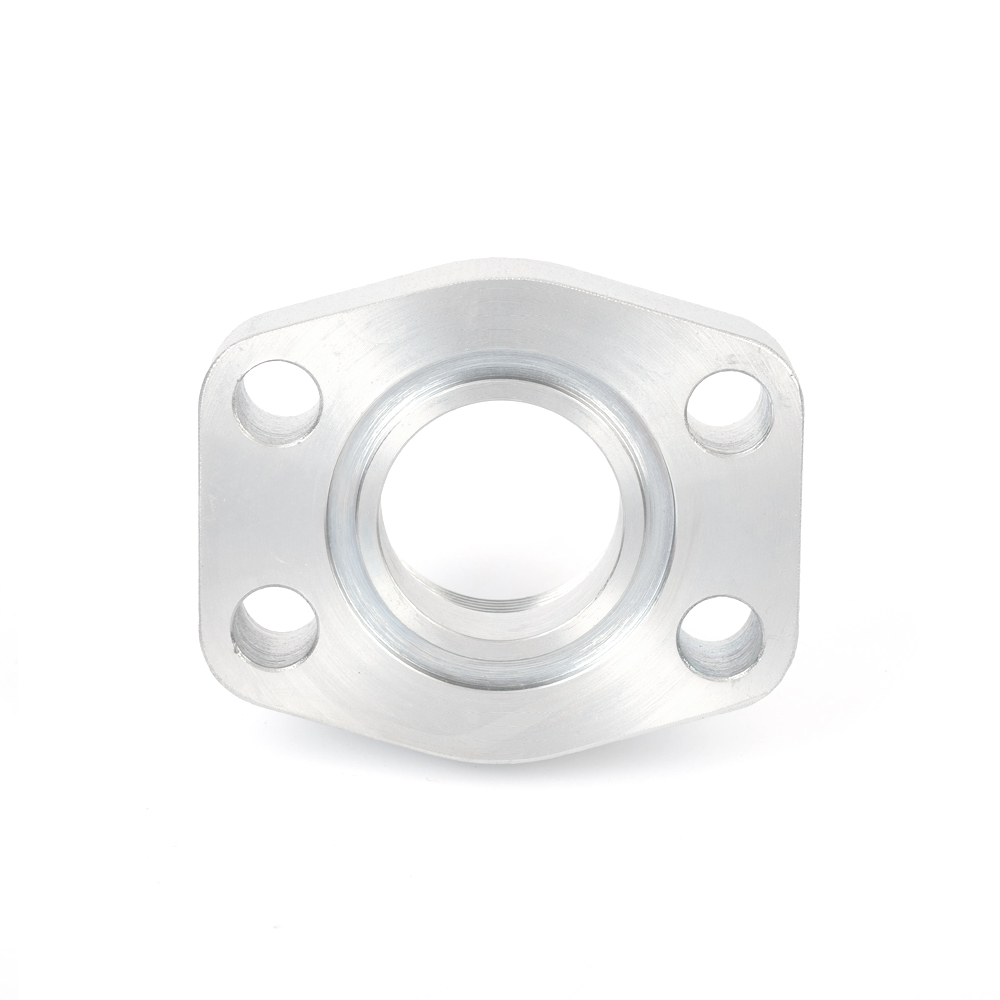

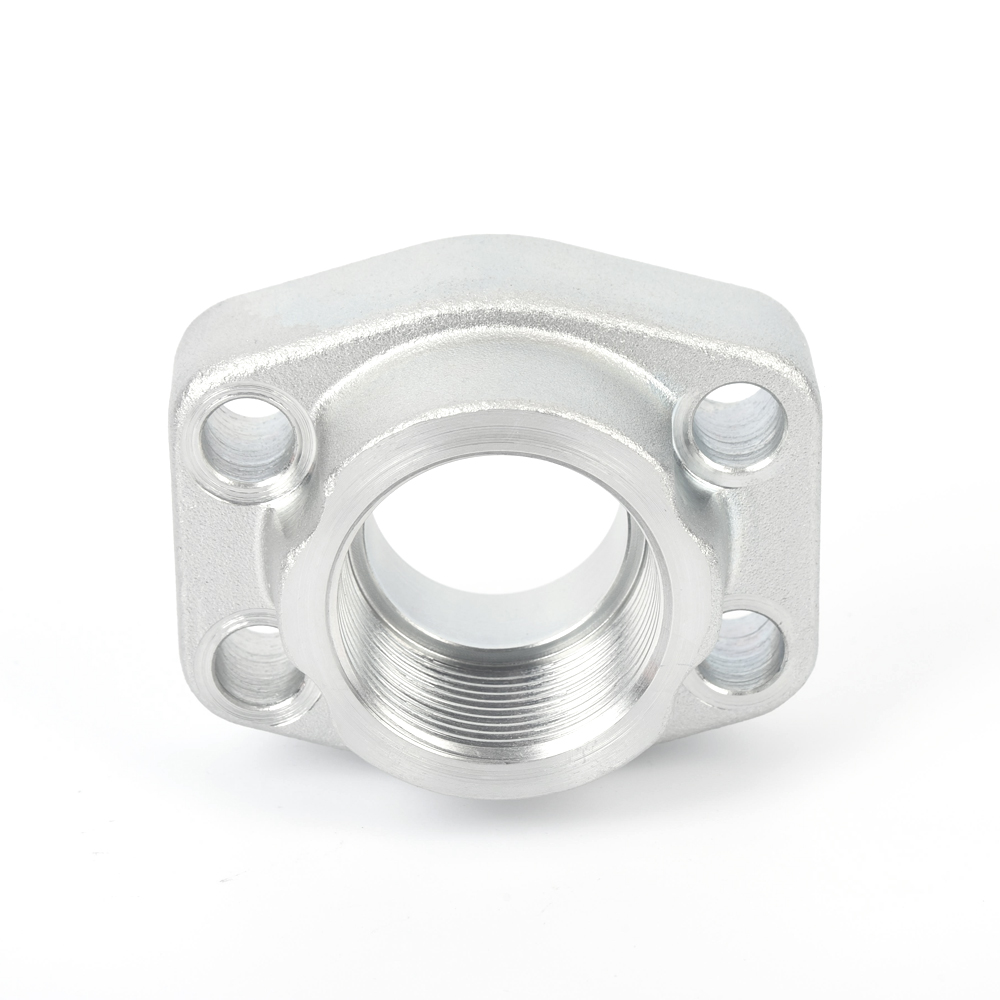

AFE-G Hydraulic BSPP SAE Flange

Description:

AFE-G BSPP SAE flanges are hydraulic flanges that conform to SAE J518 / ISO6162 standards. They come in two series and have maximum pressures of 3000psi and 6000psi, respectively.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

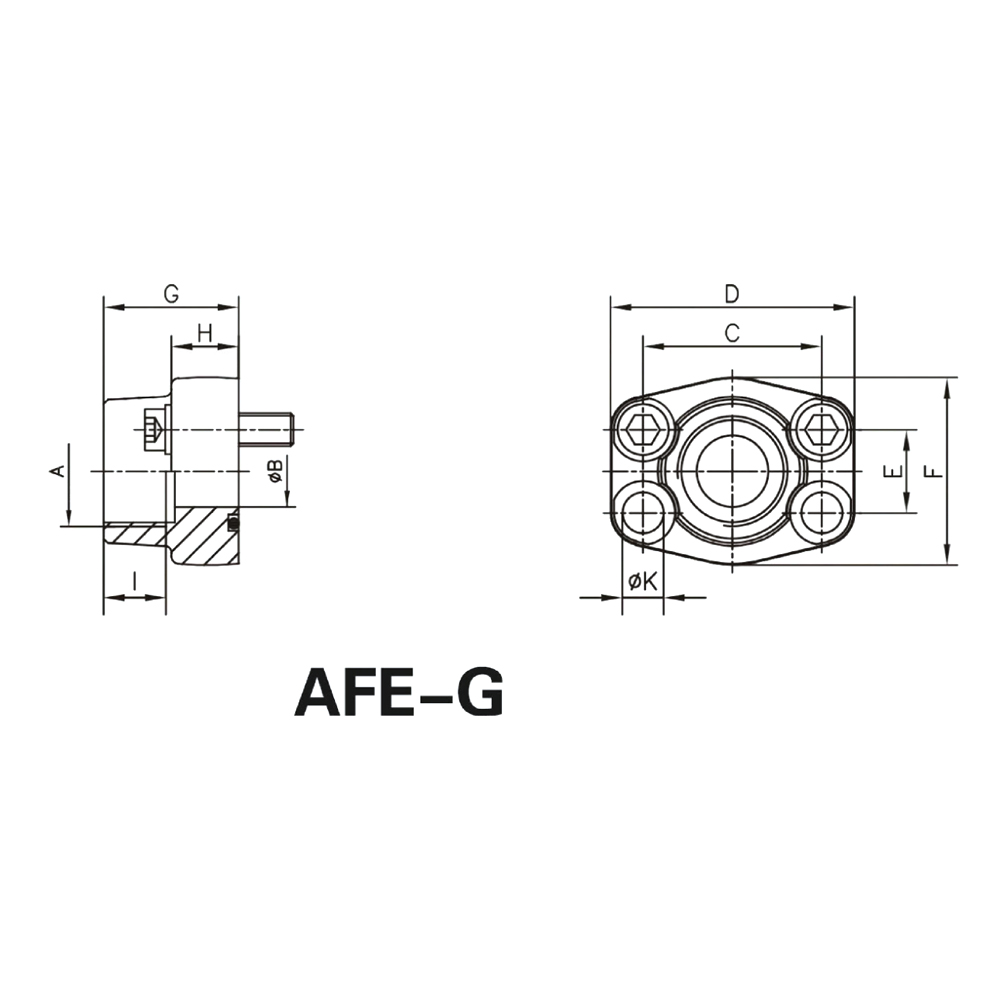

PART NO.	SIZE	DIMENSION										BOLT	O-RING	W.T.	W.P.
PART NO.	(INCH)	A	B	C	D	E	F	G	H	I	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000psi
AFE301G	1/2″	G1/2″	13	38.1	54	17.48	46	36	16	19	9	M8x30	18.66×3.53	0.25	350
AFE302G	3/4″	G3/4″	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFE303G	1″	G1″	25	52.37	70	26.19	55	38	18	22	11	M10x35	32.92×3.53	0.49	315
AFE304G	11/4″	G11/4″	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFE305G	11/2″	G11/2″	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFE306G	2″	G2″	51	77.77	102	42.88	90	50	25	30	13.5	M12x45	56.75×3.53	1.3	200
AFE307G	21/2″	G21/2″	63	88.9	114	50.8	105	50	25	30	13.5	M12X45	69.45 x 3.53	1.6	160
AFE308G	3″	G3″	73	106.38	134	61.93	124	48	27	34	17	M16x50	85.32×3.53	2.3	138
AFE309G	31/2″	G31/2″	89	120.65	152	69.85	136	48	27	34	17	M16x50	98.02×3.53	2.5	35
AFE310G	4″	G4″	99	130.18	162	77.77	146	56	27	34	17	M16x50	110.72×3.53	2.9	35
AFE311G	5″	G5″	120	152.4	184	92.08	180	50	29	30	17	M16x55	136.12×3.53	4	35
6000psi
AFE601G	1/2″	G1/2″	13	40.49	56	18.24	48	36	16	19	9	M8x30	18.66×3.53	0.3	400
AFE602G	3/4″	G3/4″	19	50.8	71	23.8	55	35	21	19	11	M10x35	25.00×3.53	0.56	400
AFE603G	1″	G1″	25	57.15	81	27.76	65	42	25	22	13	M12x45	32.92×3.53	0.85	400
AFE604G	11/4″	G11/4″	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFE605G	11/2″	G11/2″	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFE606G	2″	G2″	51	96.82	134	44.45	114	65	37	32	21	M20x70	56.75×3.53	3.4	400
AFE607G	21/2″	G21/2″	63	123.83	180	58.73	152	80	45	34	25	M24x85	75.57×5.33	8.3	400
AFE608G	3″	G3″	73	152.4	208	71.43	178	90	55	34	32	M30x100	88.27×5.33	13.5	400

Click to enlarge

Category: Flange Hydraulic Adapter Tags: SAE, Flange, Weld, AFL

Description
Package& Shipping

Description

PART NO.	SIZE	DIMENSION										BOLT	O-RING	W.T.	W.P.
PART NO.	(INCH)	A	B	C	D	E	F	G	H	I	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000psi
AFE301G	1/2″	G1/2″	13	38.1	54	17.48	46	36	16	19	9	M8x30	18.66×3.53	0.25	350
AFE302G	3/4″	G3/4″	19	47.63	65	22.23	50	36	18	19	11	M10x35	25.00×3.53	0.39	350
AFE303G	1″	G1″	25	52.37	70	26.19	55	38	18	22	11	M10x35	32.92×3.53	0.49	315
AFE304G	11/4″	G11/4″	32	58.72	79	30.18	68	41	21	22	11.5	M10x40	37.70×3.53	0.71	250
AFE305G	11/2″	G11/2″	38	69.85	93	35.71	78	45	25	24	13.5	M12x45	47.22×3.53	1.13	200
AFE306G	2″	G2″	51	77.77	102	42.88	90	50	25	30	13.5	M12x45	56.75×3.53	1.3	200
AFE307G	21/2″	G21/2″	63	88.9	114	50.8	105	50	25	30	13.5	M12X45	69.45 x 3.53	1.6	160
AFE308G	3″	G3″	73	106.38	134	61.93	124	48	27	34	17	M16x50	85.32×3.53	2.3	138
AFE309G	31/2″	G31/2″	89	120.65	152	69.85	136	48	27	34	17	M16x50	98.02×3.53	2.5	35
AFE310G	4″	G4″	99	130.18	162	77.77	146	56	27	34	17	M16x50	110.72×3.53	2.9	35
AFE311G	5″	G5″	120	152.4	184	92.08	180	50	29	30	17	M16x55	136.12×3.53	4	35
6000psi
AFE601G	1/2″	G1/2″	13	40.49	56	18.24	48	36	16	19	9	M8x30	18.66×3.53	0.3	400
AFE602G	3/4″	G3/4″	19	50.8	71	23.8	55	35	21	19	11	M10x35	25.00×3.53	0.56	400
AFE603G	1″	G1″	25	57.15	81	27.76	65	42	25	22	13	M12x45	32.92×3.53	0.85	400
AFE604G	11/4″	G11/4″	32	66.68	95	31.75	78	45	27	25	15	M14x50	37.70×3.53	1.21	400
AFE605G	11/2″	G11/2″	38	79.38	112	36.5	94	50	30	28	17	M16x55	47.22×3.53	1.9	400
AFE606G	2″	G2″	51	96.82	134	44.45	114	65	37	32	21	M20x70	56.75×3.53	3.4	400
AFE607G	21/2″	G21/2″	63	123.83	180	58.73	152	80	45	34	25	M24x85	75.57×5.33	8.3	400
AFE608G	3″	G3″	73	152.4	208	71.43	178	90	55	34	32	M30x100	88.27×5.33	13.5	400

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
