Hydraulic SAE Split Flange Code 61/62

Description:

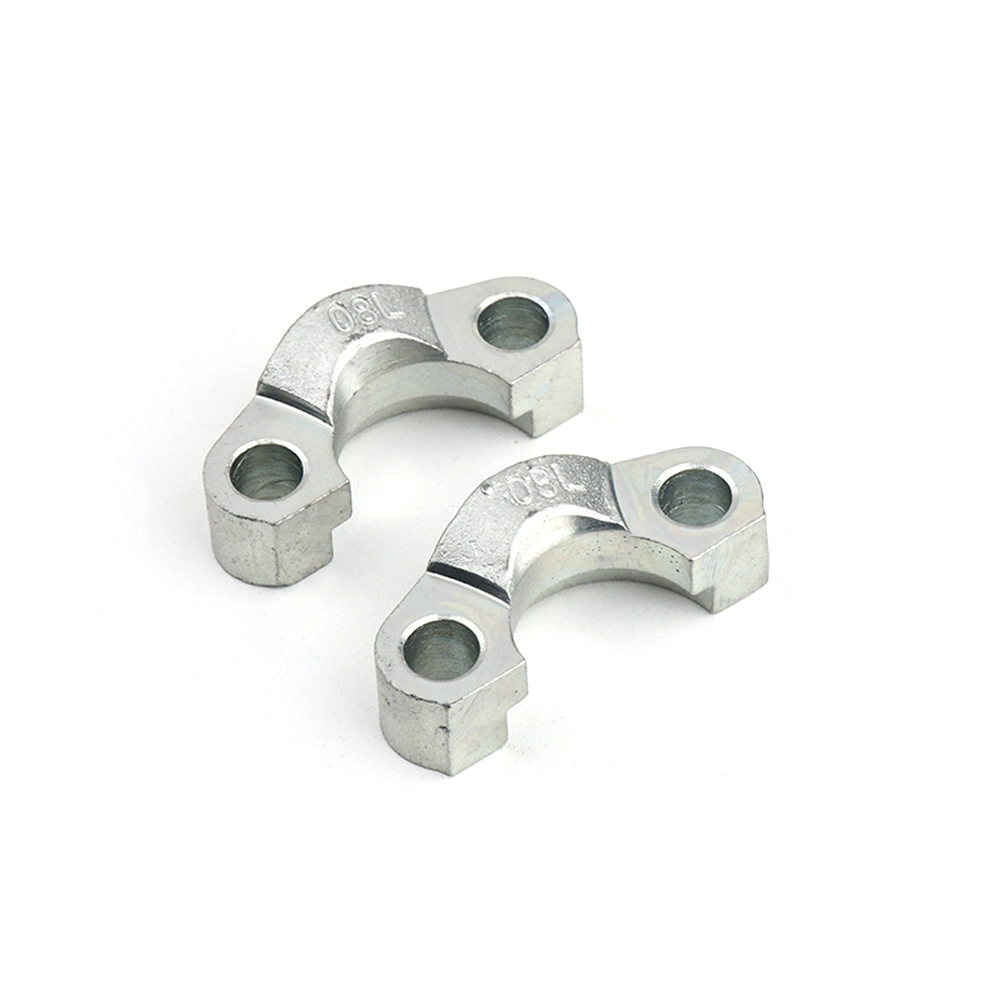

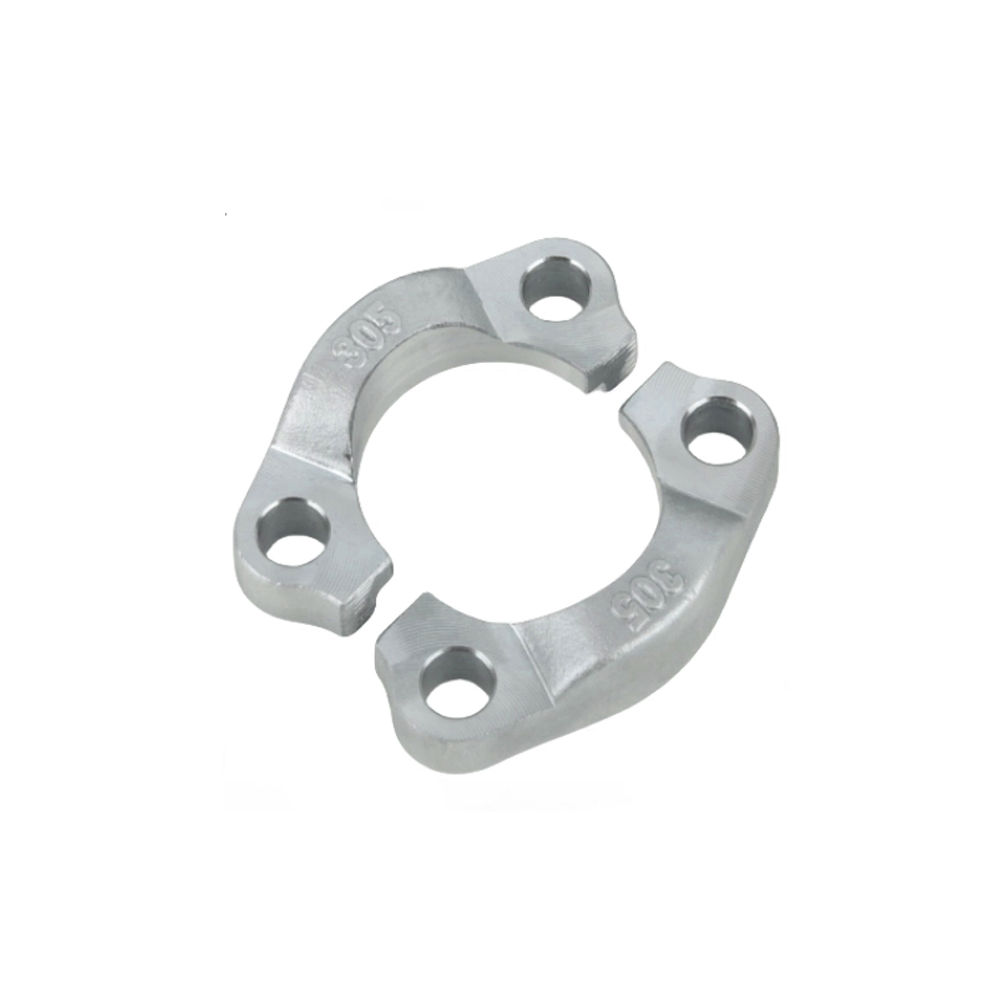

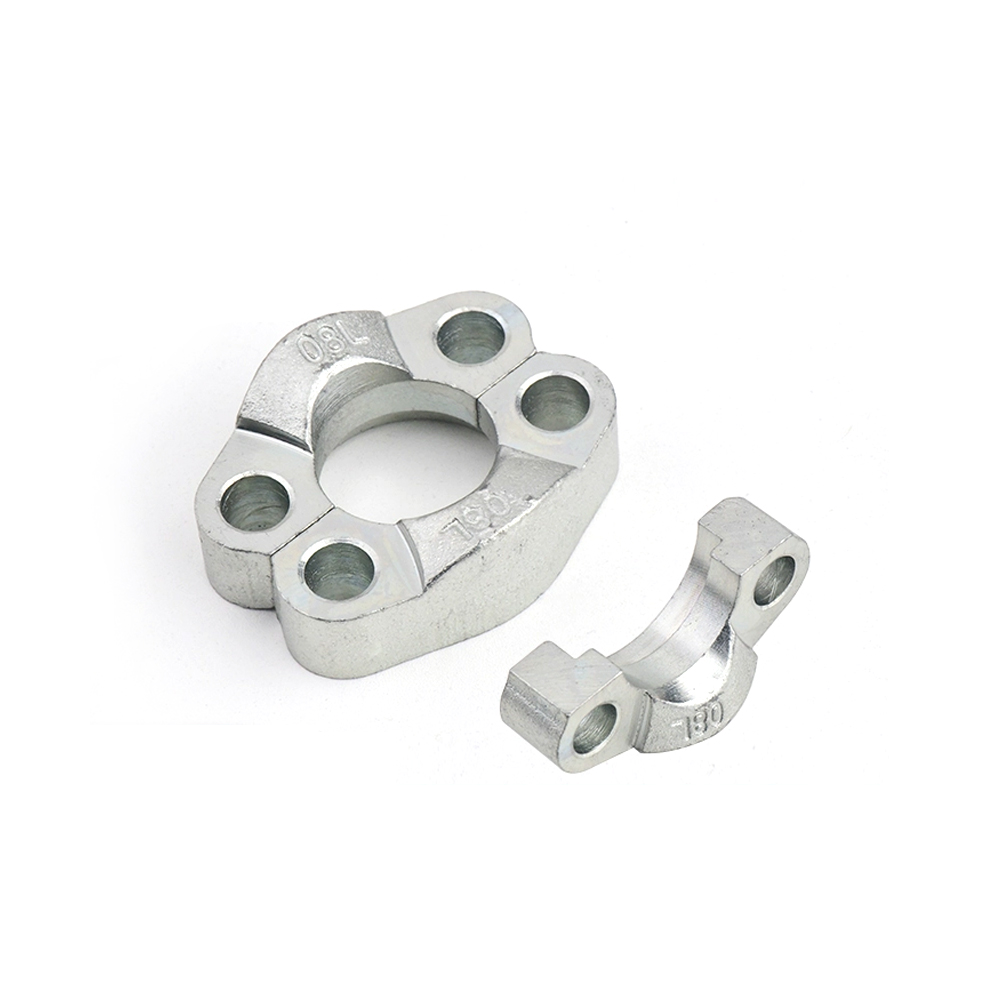

FL/FS hydraulic SAE split flange halves is a type of split flange manufactured in accordance with ISO 6162 and SAE J518 standards. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

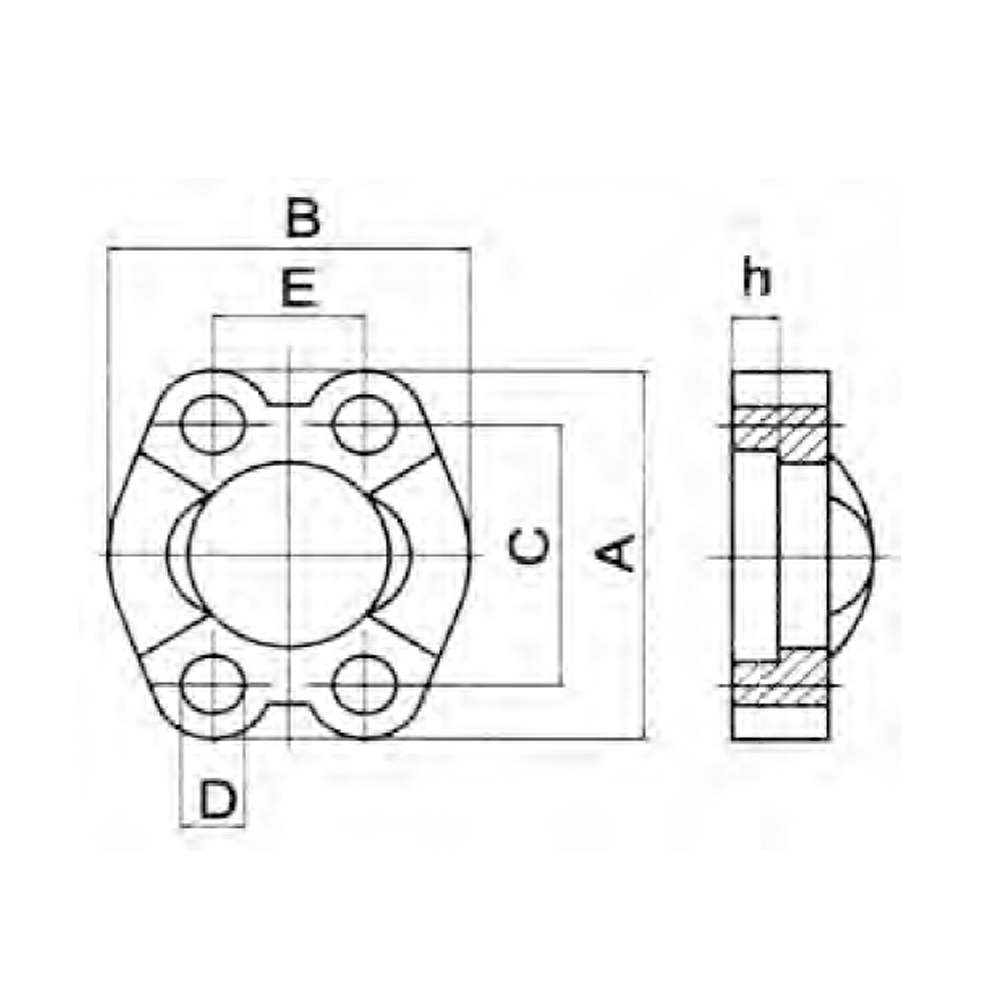

PART NO.	FLANGE SIZE	DIMENSIONS						BOLT		W.P.
PART NO.	FLANGE SIZE	A	B	C	D	E	h	BOLT	O-RING	MPa
3000PSI
FL-08W	1/2″	53.8	46.1	38.1	9	17.5	6.2	M8X25	O210	34.5
FL-12W	3/4″	65	52.4	47.6	11	22.2	6.2	M10X30	O214
FL-16W	1″	69.9	58.7	52.4	11	26.2	7.5	M10X30	O219
FL-20W	1.1/4″	79.2	73	58.7	11	30.2	7.5	M10X30	O222	27.6
FL-24W	1.1/2″	93.7	82.6	69.9	13.5	35.7	7.5	M12X35	O225	20.7
FL-32W	2″	101.6	96.8	77.8	13.5	42.9	9	M12X35	O228	20.7
FL-40W	2.1/2″	114	109	88.9	13.5	50.8	9	M12X40	O232	17.2
FL-48W	3″	135	130.6	106.4	17.5	61.9	9	M16X50	O237	13.8
6000PSI
FS-08W	1/2″	56.3	49.2	40.5	9	18.2	7.2	M8X30	O210	42
FS-12W	3/4″	71.4	61.8	50.8	11	23.8	8.2	M10X35	O214
FS-16W	1″	81	71.4	57.2	13	27.8	9	M12X45	O219
FS-20W	1.1/4″	95.3	79.2	66.7	15	31.8	9.8	M14X50	O222
FS-24W	1.1/2″	112.8	96.8	79.4	17	36.6	12	M16X55	O225
FS-32W	2″	133.4	115.6	96.8	21	44.4	12	M20X70	O228
