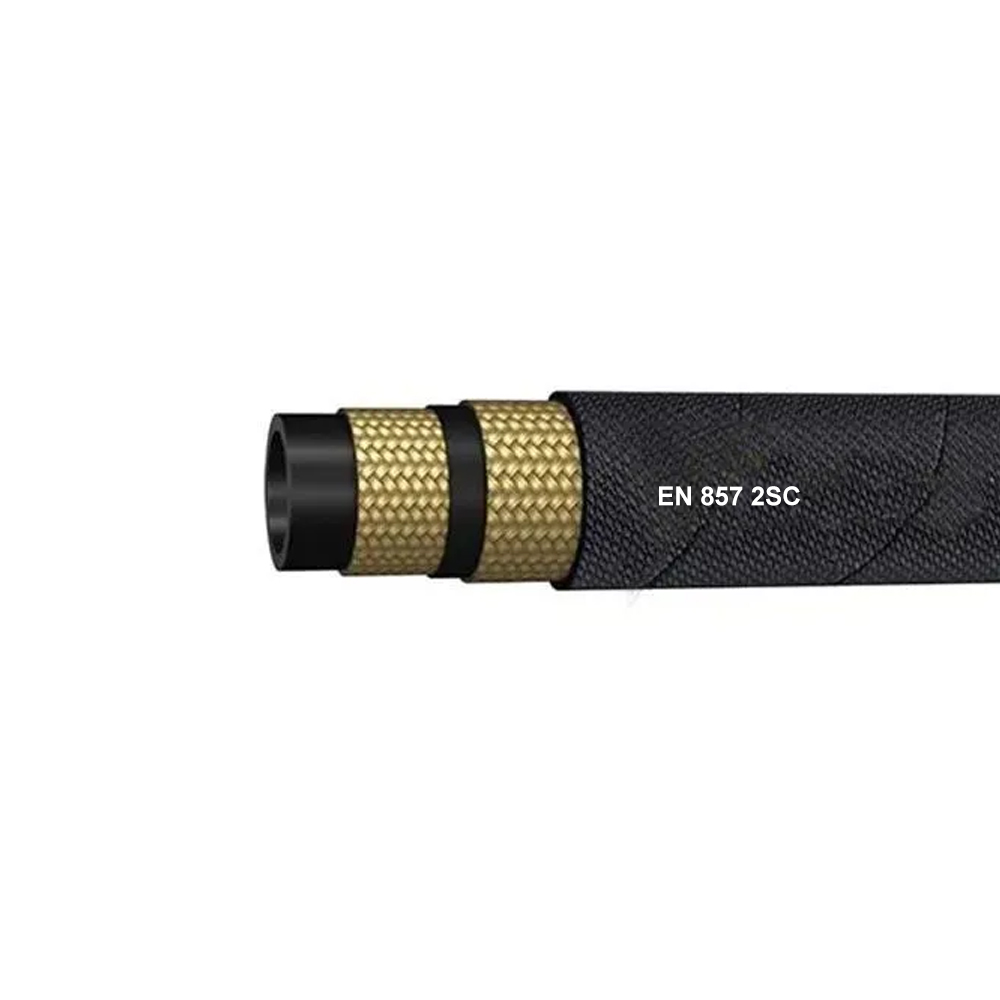

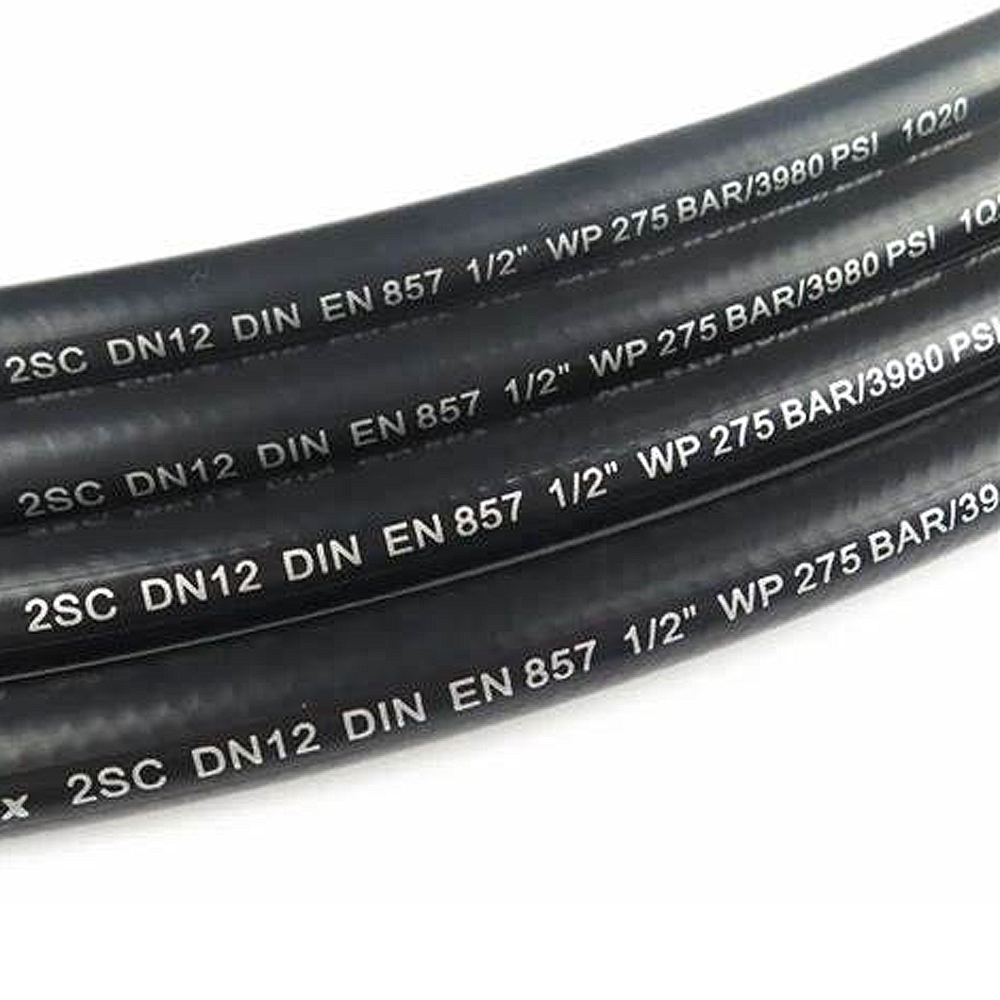

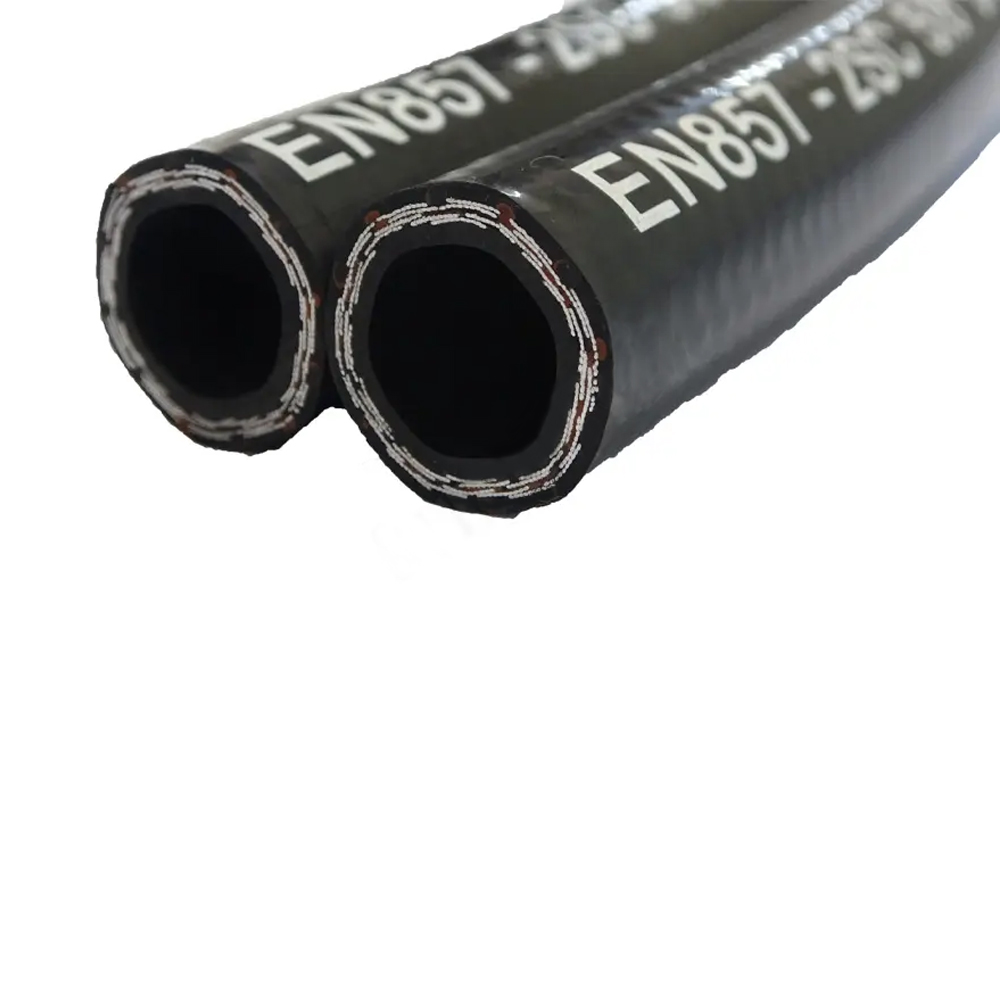

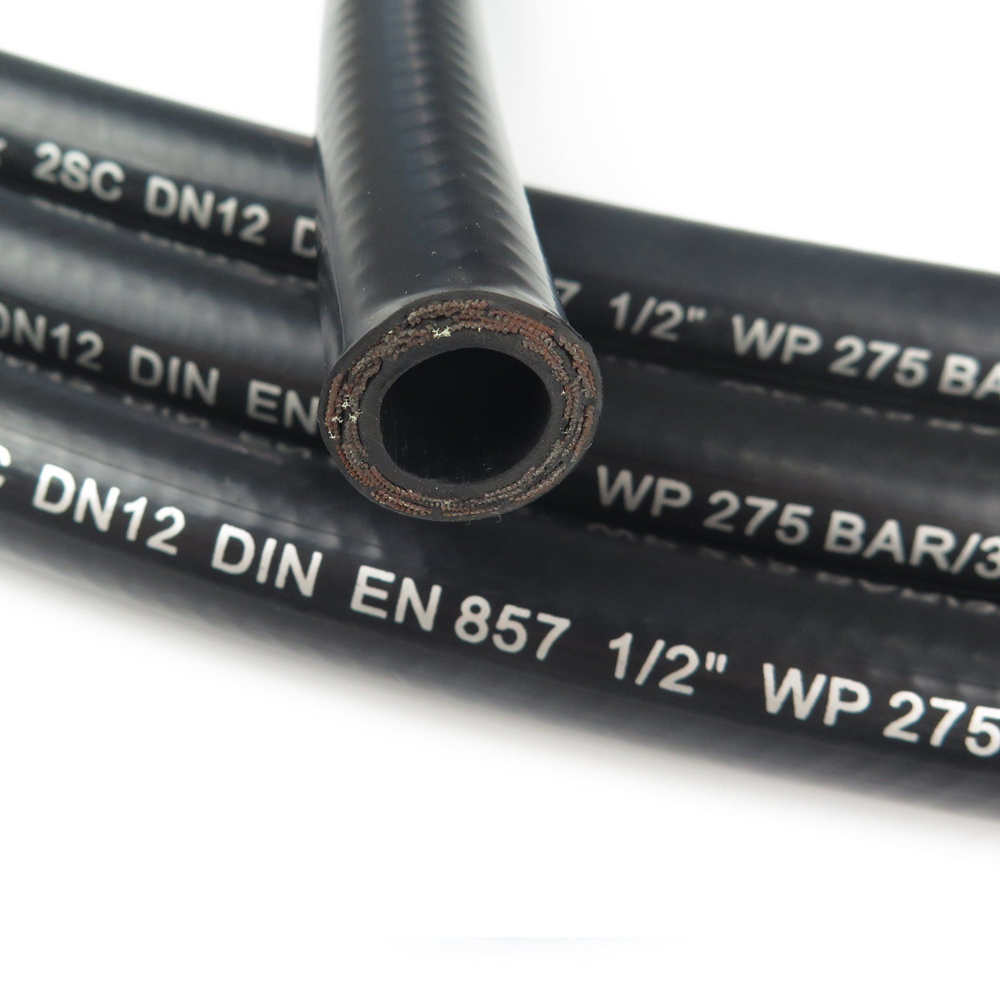

The 2-wire braid EN 857 2SC hydraulic hose is ideal for hydraulic systems demanding tight bends and exceptional abrasion resistance. With superior pulse performance and flexibility compared to SAE 100R2 and SAE 100R16 hoses, it excels in various applications. Its chemical and weather resistance enhances durability, while the high-tensile steel braid ensures reliable performance under high working pressures and tight bend radii. Suitable for water- and petroleum-based hydraulic fluids within a temperature range of -40°C to 100°C, this oil-resistant hose maintains its shape without deformation.
| Part No. | Dash | I.D. | O.D. | W.P | B.P | B.R | ||
| Inch | mm | mm | MPa | PSI | MPa | PSI | mm | |
| EN857 2SC-04 | 1/4″ | 6.4 | 14.2 | 40 | 5800 | 160 | 23200 | 75 |
| EN857 2SC-05 | 5/16″ | 7.9 | 16 | 35 | 5075 | 140 | 20300 | 85 |
| EN857 2SC-06 | 3/8″ | 9.5 | 18.3 | 33 | 4785 | 132 | 19140 | 90 |
| EN857 2SC-08 | 1/2″ | 12.7 | 21.5 | 27.5 | 3988 | 110 | 15950 | 130 |
| EN85 72SC-10 | 5/8″ | 15.9 | 24.7 | 25 | 3625 | 100 | 14500 | 170 |
| EN857 2SC-12 | 3/4″ | 19.1 | 28.6 | 21.5 | 3118 | 86 | 12470 | 200 |
| EN857 2SC-16 | 1″ | 25.4 | 36.6 | 16.2 | 2393 | 66 | 9570 | 250 |
