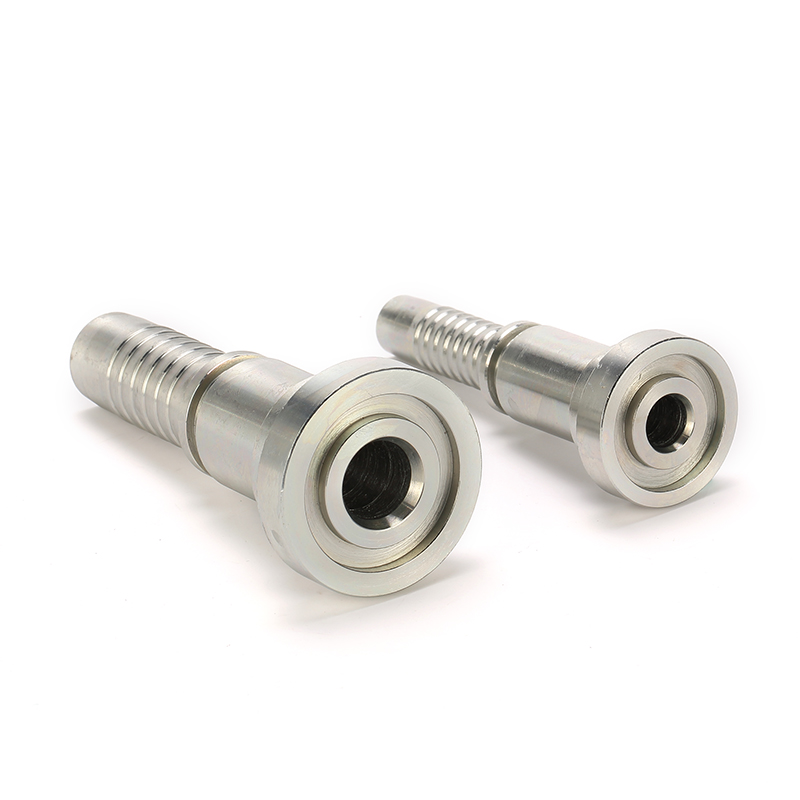

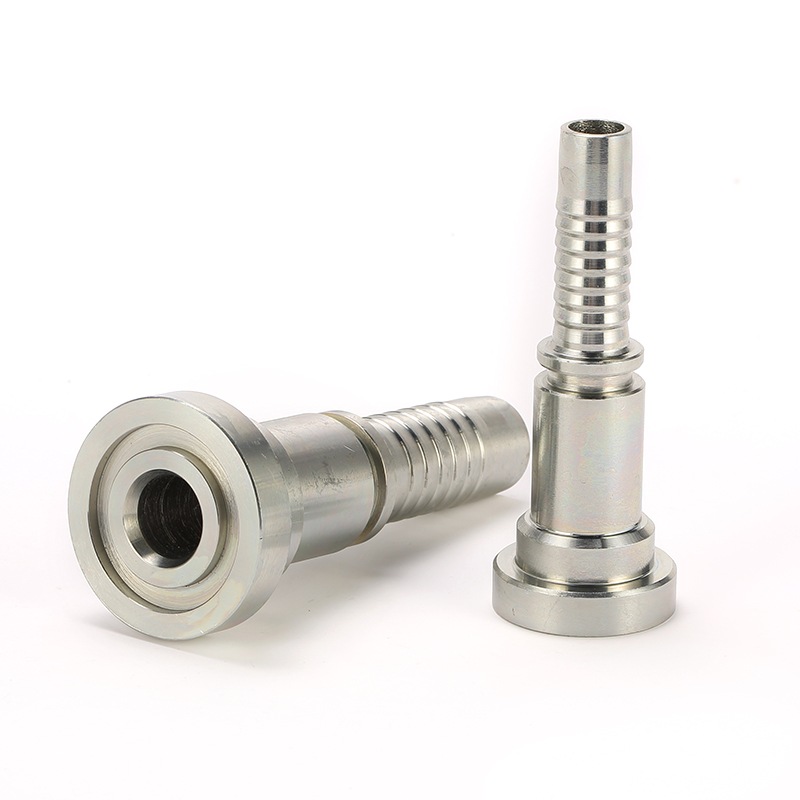

87612 6000PSI Code62 Flange Hose Fittings

Description:

The 87612 hydraulic Code62 SAE 6000PSI flange, which is a straight flange fitting, is crafted in accordance with the SAE J516 standard. This particular type of flange is applicable for use with either one or two-wire hoses.

INQUIRE NOW

"*" indicates required fields

Category: Flange Hose Fittings Tags: Female, Carbon Steel, SAEJ514, Flange, Code62
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART  NO. FLANGE SIZE HOSE  BORE DIMENSIONS
DN DASH A C D H L
87642-08-08 1/2″ 12 08 59 31.8 23.9 24 7.9
87642-08-12 1/2″ 20 12 79.8 31.8 23.9 31.8 7.9
87642-12-10 3/4″ 16 10 72.5 41.3 31.7 28 8.9
87642-12-12 3/4″ 20 12 79.3 41.3 31.7 31.8 8.9
87642-16-16 1″ 25 16 90 47.6 38 34.7 9.6
87642-20-20 1.1/4″ 32 20 104 54 43.6 41.5 10.4
87642-24-20 1.1/2″ 32 20 106 63.5 50.8 45 12.7
87642-24-24 1.1/2″ 40 24 120 63.5 50.8 46 12.7
87642-32-24 2″ 40 24 125 79.4 66.5 55 12.7
87642-32-32 2″ 50 32 143 79.4 66.5 52.7 12.7
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
