Description:

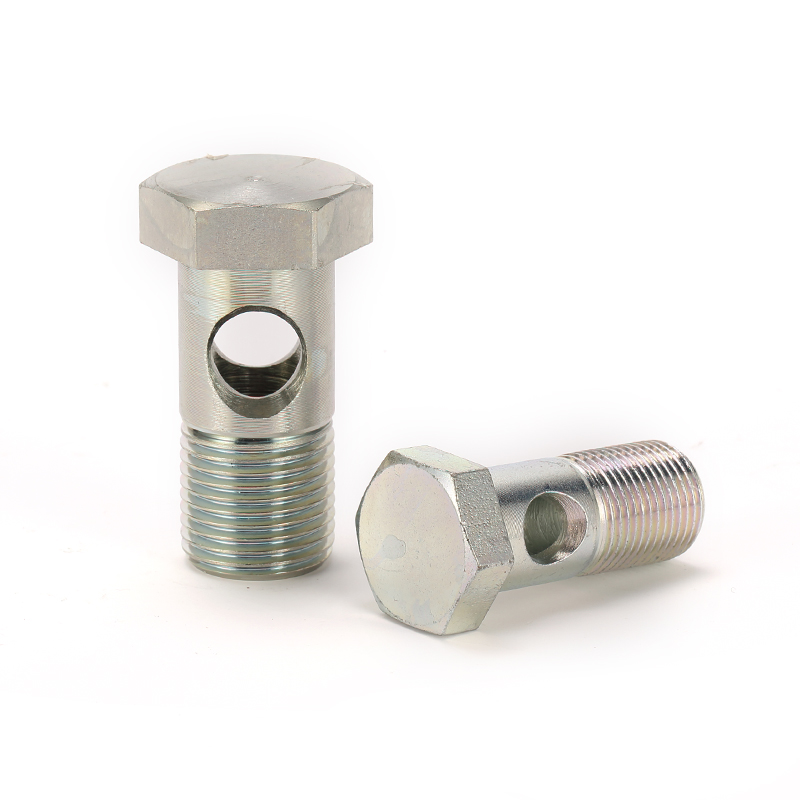

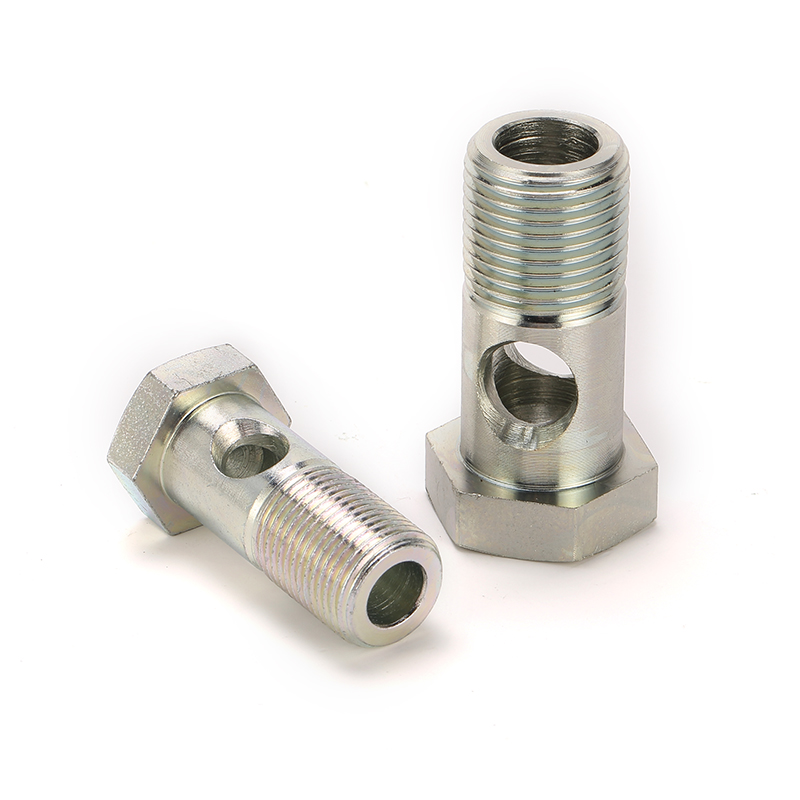

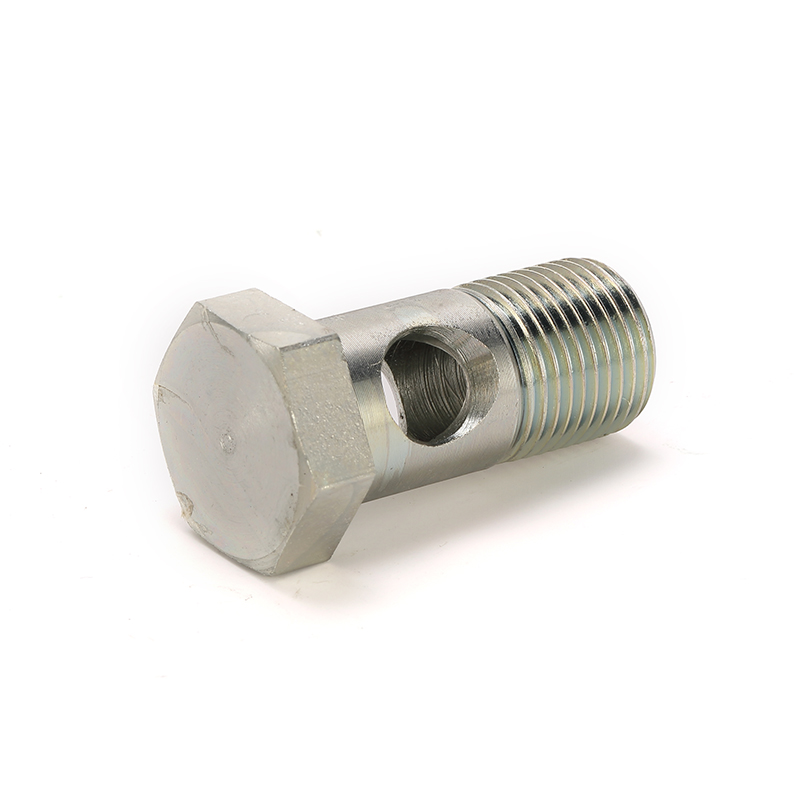

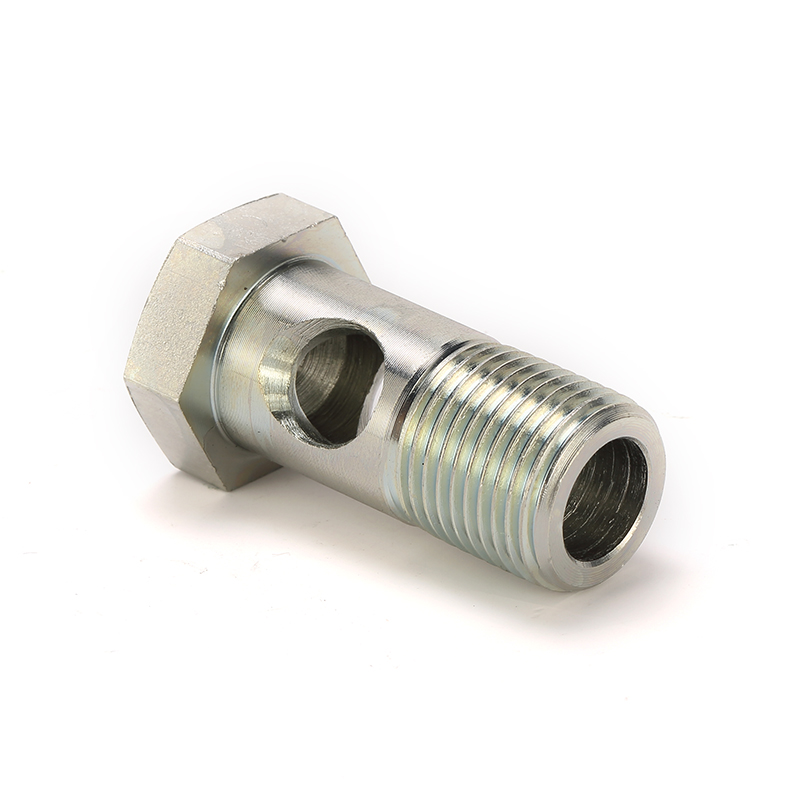

The 720B Banjo bolt represents a banjo fitting equipped with a male BSP thread. This banjo bolt is screwed into the banjo to firmly fix the brake line in position. Banjo fittings are engineered to establish a secure seal among components and are prevalently applied in hydraulic or pneumatic systems.
"*" indicates required fields
Banjo fittings manufactured from stainless steel or carbon steel. It include BSPP and Metric and other different type for use with hydraulic pipes, tube, and hoses.
| PART NO. | THREAD E | DIMENSIONS | |||
| A | B | C | S1 | ||
| 720B-02 | G1/8″X28 | 29.5 | 4.8 | 4.8 | 14 |
| 720B-04 | G1/4″X19 | 28.5 | 6 | 6 | 19 |
| 720B-06 | G3/8″X19 | 38.5 | 9 | 7 | 22 |
| 720B-08 | G1/2″X14 | 44 | 13 | 8.5 | 27 |
| 720B-10 | G5/8″X14 | 48.5 | 15 | 10 | 30 |
| 720B-12 | G3/4″X14 | 56 | 18 | 10 | 32 |
| 720B-16 | G1″X11 | 68.5 | 22 | 13 | 41 |
We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
