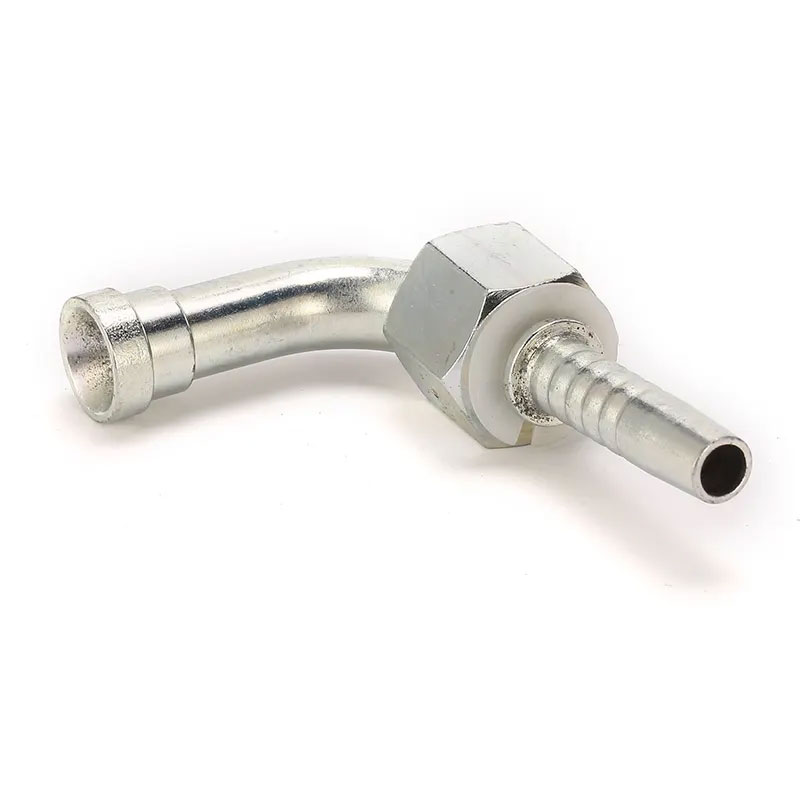

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

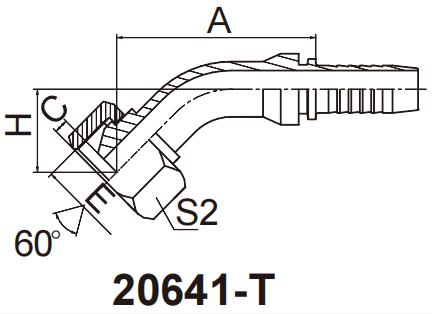

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20641-14-04 | M14X1.5 | 6 | 04 | 42.7 | 5.5 | 20.6 | 19 |
| 20641-16-05 | M16X1.5 | 8 | 05 | 45.1 | 5.5 | 21.8 | 22 |
| 20641-18-06 | M18X1.5 | 10 | 06 | 47.4 | 5.5 | 23.2 | 24 |
| 20641-22-08 | M22X1.5 | 12 | 08 | 61.8 | 6 | 26.8 | 27 |
| 20641-27-10DT | M27X1.5 | 16 | 10 | 71.4 | 6 | 27.1 | 32 |
| 20641-30-12D | M30X1.5 | 20 | 12 | 81.6 | 6 | 33.5 | 36 |
| 20641-36-14T | M36X2 | 22 | 14 | 81.9 | 6.5 | 31.6 | 41 |
| 20641-39-16T | M39X2 | 25 | 16 | 88.5 | 6.5 | 34.3 | 46 |
| 20641-45-20T | M45X2 | 32 | 20 | 99.1 | 8.5 | 38.4 | 55 |
| 20641-52-24T | M52X2 | 40 | 24 | 113.4 | 10 | 42.7 | 60 |
