20541-T 45 Elbow Metric Female 24°Cone O-Ring H.T. Fittings

Description:

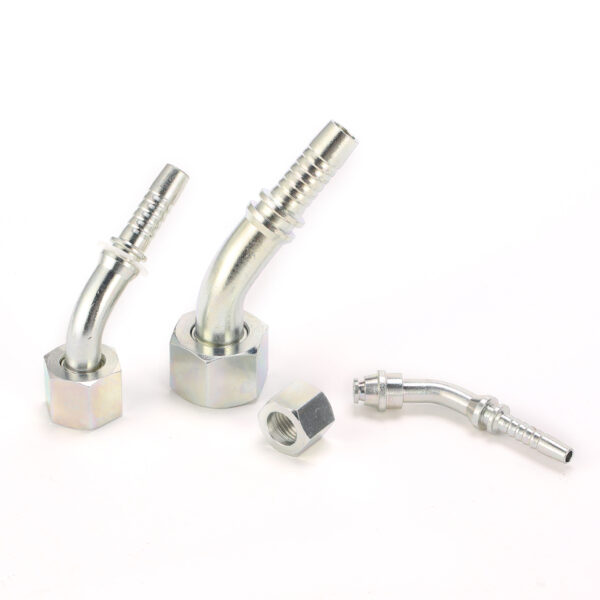

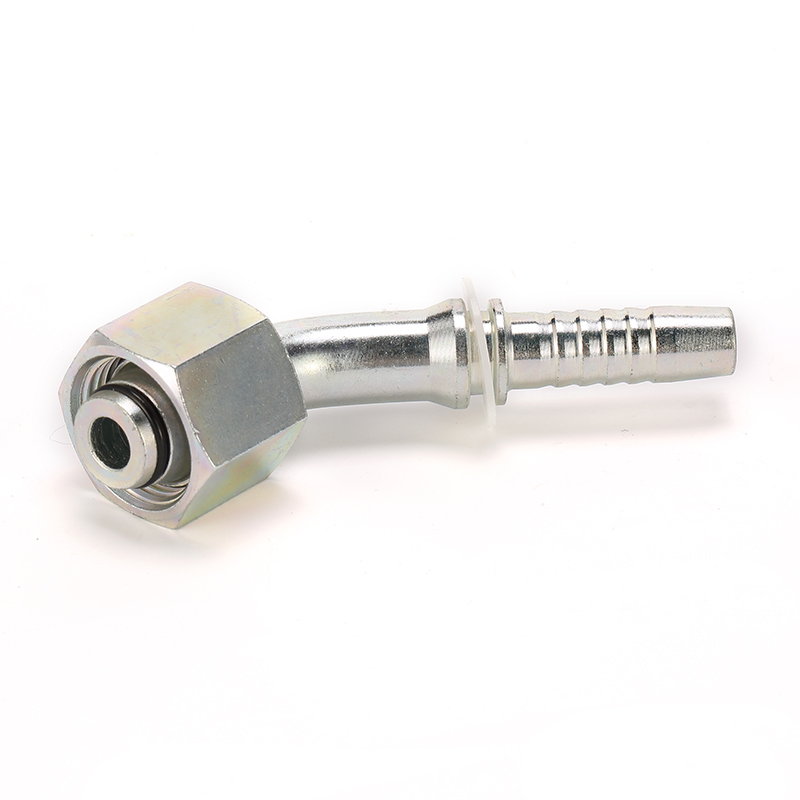

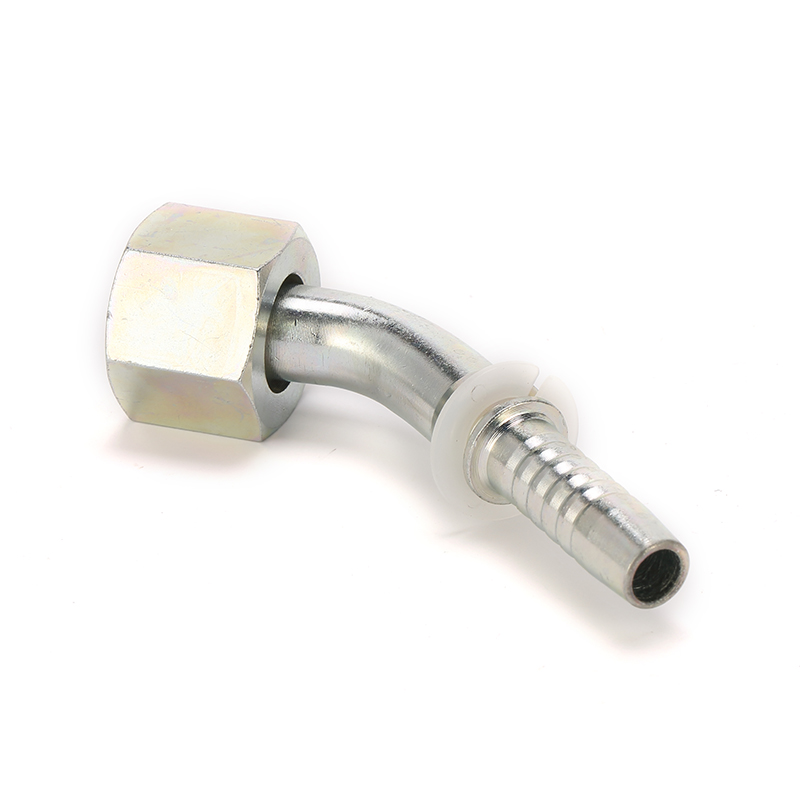

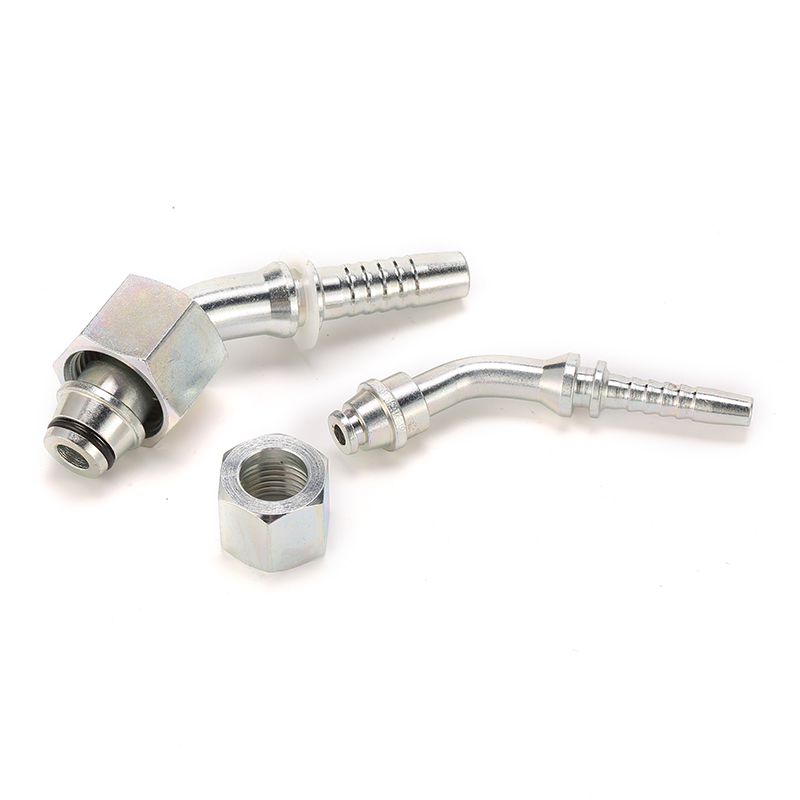

The 20541 45-degree elbow female 24-degree cone heavy-duty hydraulic hose fitting comes with a female metric thread, allowing it to be easily connected to other fittings. It is also equipped with an O-ring that ensures a leak-proof seal. These heavy-duty fittings are specifically engineered for high-pressure applications.

"*" indicates required fields

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

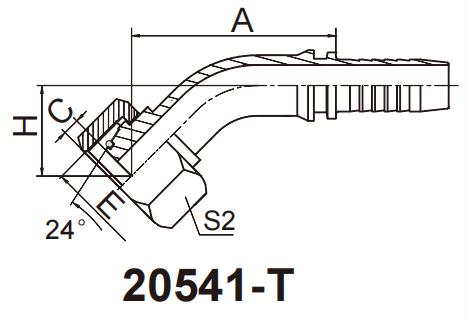

PART NO.	THREAD E	HOSE BORE		TUBEO.D	ORING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBEO.D	ORING	A	C	H	S2
20541-14-04W	M16X1.5	6	04	6	4.5X1.5	38.1	1.1	16	17
20541-16-04	M16X1.5	6	04	8	6.0X1.5	50.4	1.5	28.3	22
20541-16-04T	M16X1.5	6	04	8	6.5X1.5	38.4	1.8	16.3	19
20541-16-04W	M16X1.5	8	05	8	6.5X1.5	38.4	1.5	16.3	19
20541-16-05	M16X1.5	8	05	8	6.0X1.5	52.2	1.5	28.9	22
20541-18-04T	M18X1.5	6	04	10	7.5X1.5	43.4	2	21.3	22
20541-18-06	M18X1.5	10	06	10	7.5X1.5	54.3	2	29.6	24
20541-18-06T	M18X1.5	10	06	10	8.0X1.5	43.8	1.5	17.3	22
20541-20-04T	M20X1.5	6	04	12	9.0X1.5	45.5	2.5	23.4	24
20541-20-05T	M20X1.5	8	05	12	9.0X1.5	48.1	2.5	24.3	24
20541-20-06T	M20X1.5	10	06	12	9.0X1.5	49.7	2.5	25	24
20541-20-08	M20X1.5	12	08	12	9.0X1.5	67.8	2.5	32.8	27
20541-20-08W	M20X1.5	12	08	12	10.0X1.5	42.8	2.5	19	24
20541-22-06T	M22X1.5	10	06	14	10.0X2.0	49.6	2.5	25.3	27
20541-22-08	M22X1.5	12	08	14	10.0X2.0	68.1	2.5	33.2	27
20541-22-08T	M22X1.5	12	08	14	10.0X2.0	49.6	2.5	20.7	27
20541-24-08T	M24X1.5	12	08	16	12.0X2.0	62.5	3	27.5	30
20541-24-10	M24X1.5	16	10	16	12.0X2.0	80.7	2.5	35.9	30
20541-24-10W	M24X1.5	16	10	16	13.0X2.0	49.7	3	22.9	30
20541-30-10T	M30X2	16	10	20	16.3X2.4	75.8	3	31	36
20541-30-12	M30X2	20	12	20	16.3X2.4	90.5	3	42.4	36
20541-30-12T	M30X2	20	12	20	16.3X2.4	65.8	2.5	26.7	36
20541-36-12T	M36X2	20	12	25	20.3X2.4	82.7	3	34.6	41
20541-36-14T	M36X2	22	14	25	20.3X2.4	84.4	3	34	41
20541-36-16	M36X2	25	16	25	20.3X2.4	99.7	3	44.2	41
20541-42-16T	M42X2	25	16	30	25.3X2.4	92.3	5	36.8	50
20541-42-20	M42X2	32	20	30	25.3X2.4	110.8	5	50	50
20541-52-20T	M52X2	32	20	38	33.3X2.4	103.4	6.5	41.2	60
20541-52-24T	M52X2	40	24	38	33.3X2.4	115.9	6.5	45.1	60
