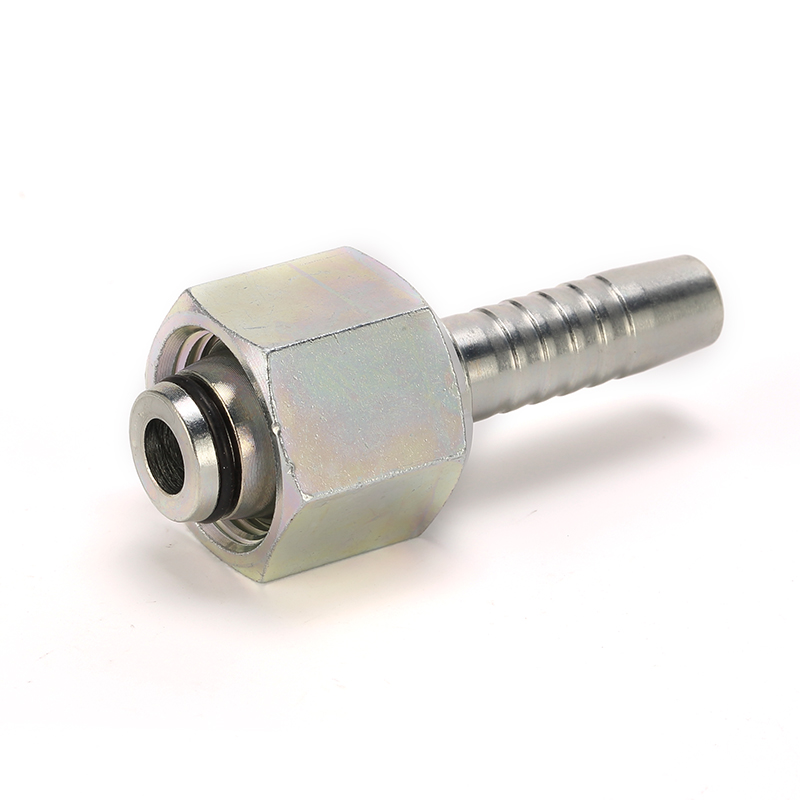

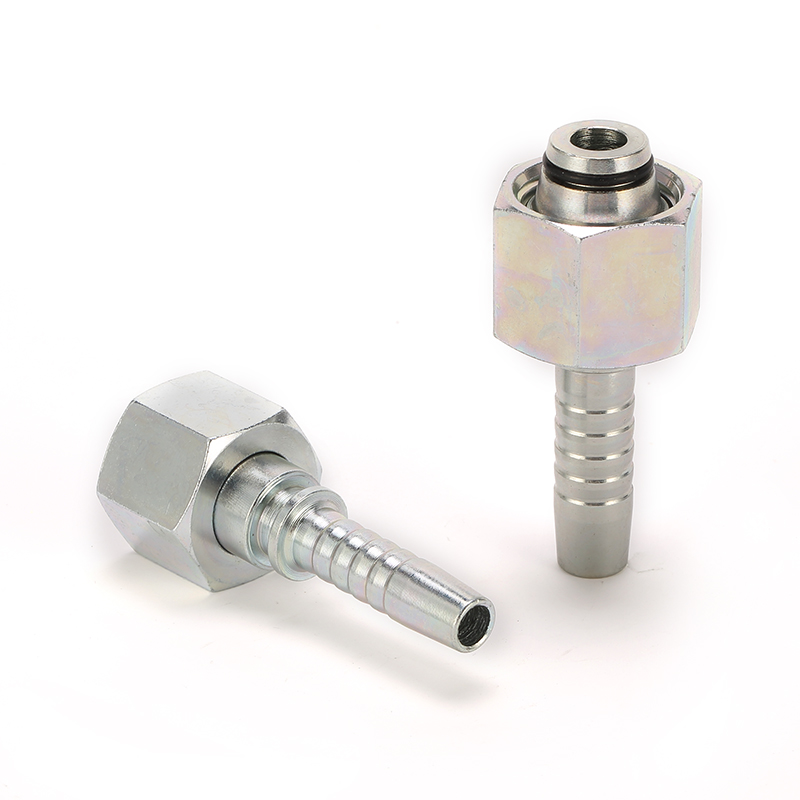

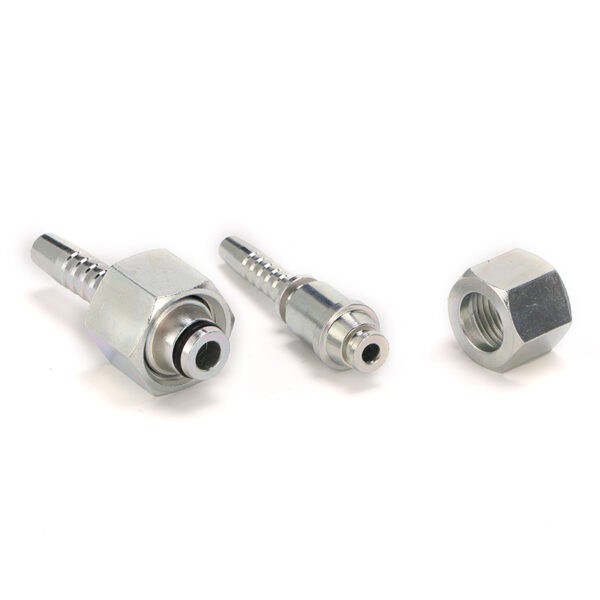

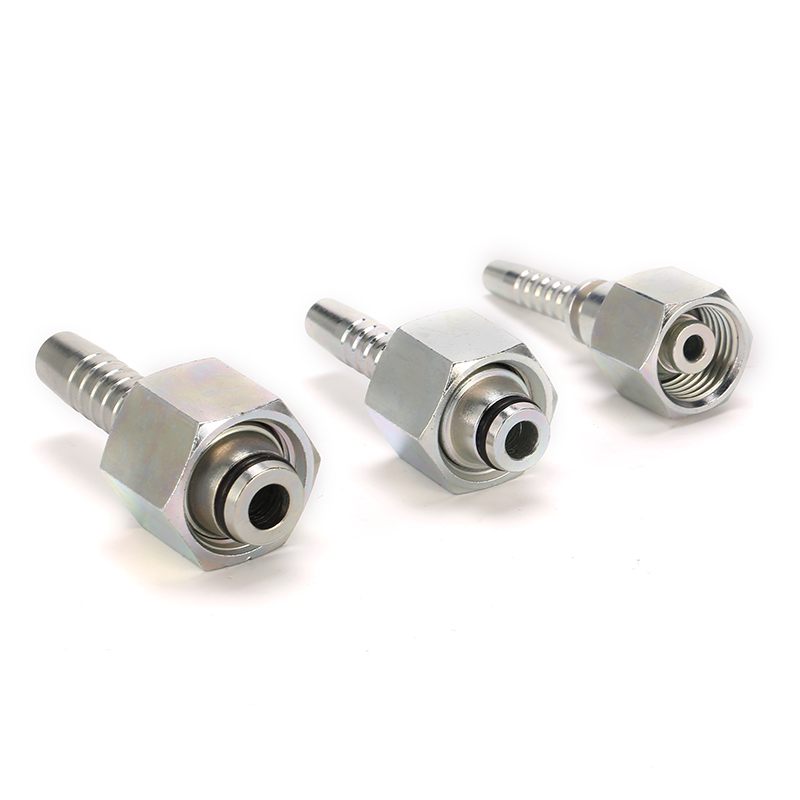

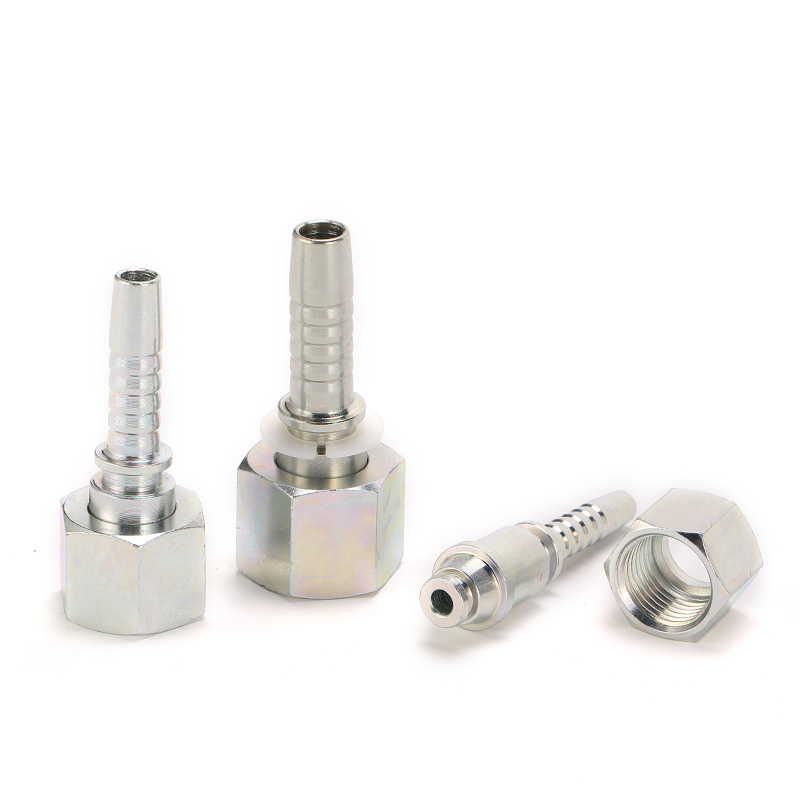

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

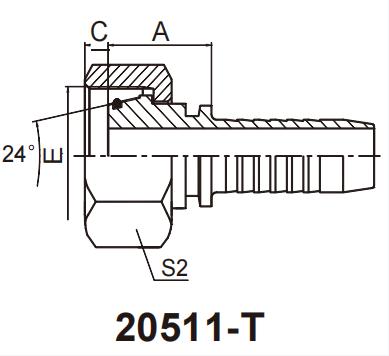

| PART NO. | THREAD E | HOSE BORE | TUBEO.D | ORING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20511-14-04 | M14X1.5 | 6 | 04 | 6 | 4.5X1.5 | 28.5 | 1.1 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 4 | 8 | 6.5X1.5 | 29.0 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | 6.5X1.5 | 29.0 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 6 | 10 | 8.0X1.5 | 29.0 | 2.0 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 08 | 12 | 10.0X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 8 | 14 | 11.0X2.0 | 31.5 | 2.5 | 27 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | 16.3X2.4 | 39.0 | 3.0 | 36 |
| 20511-18-04T | M18X1.5 | 6 | 4 | 10 | 8.0X1.5 | 26.5 | 2.0 | 22 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | 10.0X1.5 | 28.5 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | 11.0X2.0 | 28.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | 13.0X2.0 | 28.5 | 2.5 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | 13.0X2.0 | 30.0 | 3.0 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | 16.3X2.4 | 36.0 | 3.0 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | 20.3X2.4 | 36.0 | 3.0 | 41 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | 20.3X2.4 | 36.0 | 3.0 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | 25.3X2.4 | 40.0 | 5.0 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | 25.3X2.4 | 41.0 | 5.0 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | 33.3X2.4 | 44.0 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | 33.3X2.4 | 44.0 | 6.5 | 60 |
