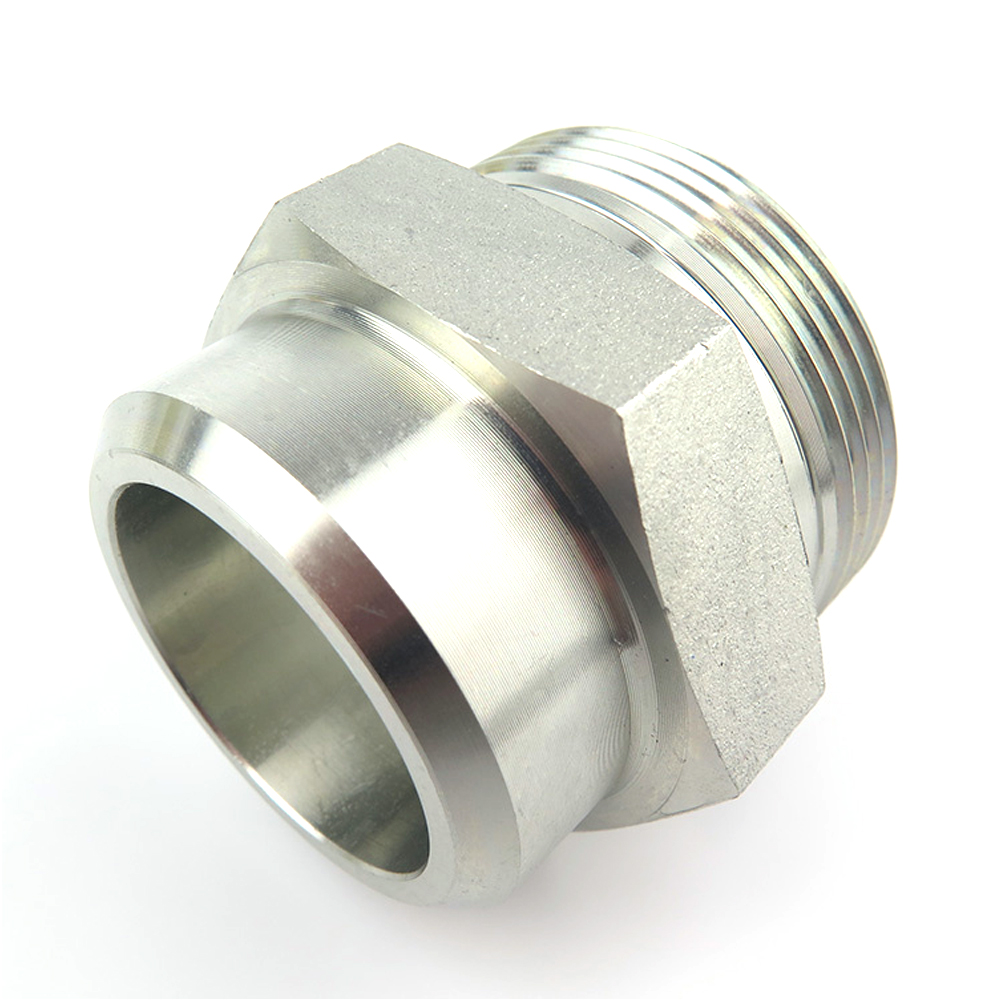

1CW/1DW Weld Fittings

Description:

1CW metric adapter is a male adapter that has a welding fittings.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

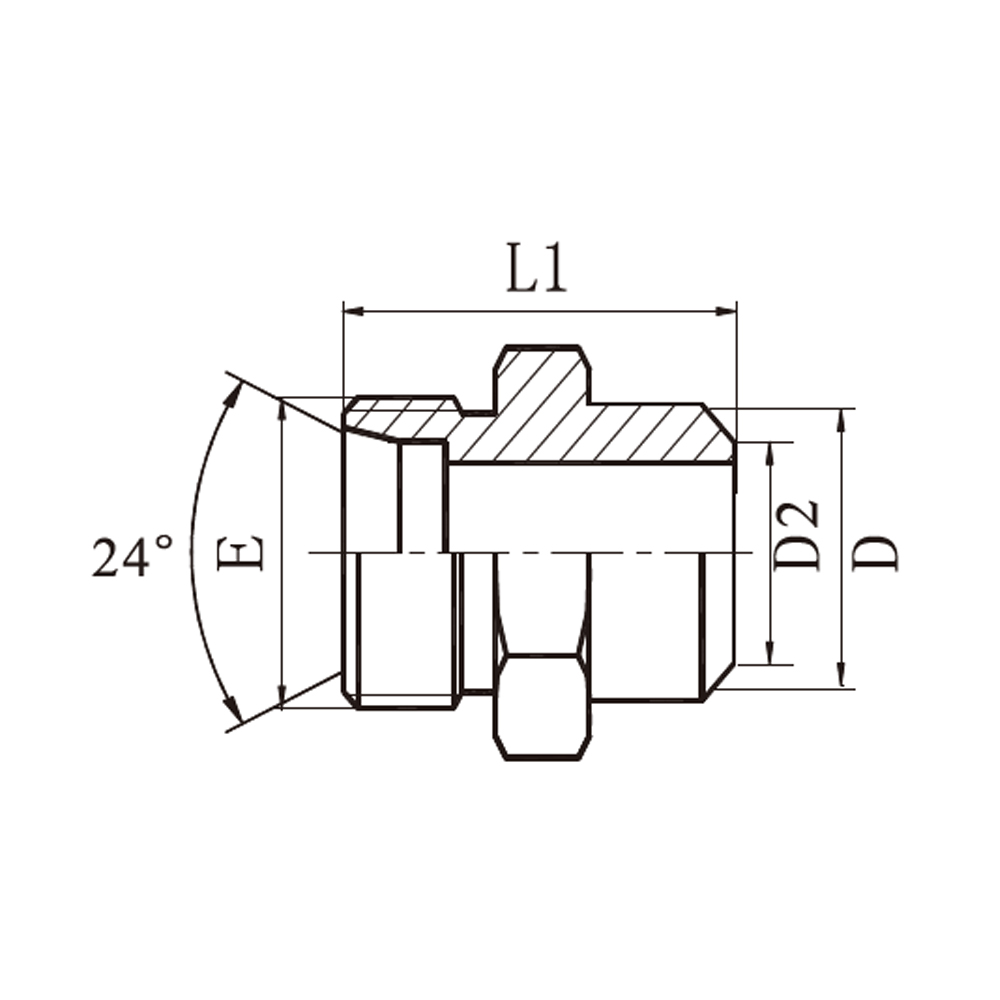

PART NO.	THREAD	TUBE O.D.		DIMENSIONS						MPa
PART NO.	E	D1	D2	B	D	I1	L1	S1	S2	MPa
1CW-12-06	M12X1.5	6	6	7	10	7	21	12	14	31.5 L series
1CW-14-08	M14X1.5	8	8	8	12	8	23	14	17
1CW-16-10	M16X1.5	10	10	8	14	10	25	17	19
1CW-18-12	M18X1.5	12	12	8	16	10	25	19	22
1CW-22-15	M22X1.5	15	15	10	19	11	28	22	27
1CW-26-18	M26X1.5	18	18	10	22	13.5	31	27	32
1CW-26-22	M26X1.5	18	22	12	27	11.5	31	27	32	16 L series
1CW-30-22	M30X2	22	22	12	27	13.5	33	32	36
1CW-30-25	M30X2	22	25	12	29	13.5	33	32	36
1CW-36-28	M36X2	28	28	12	32	14.5	34	41	41
1CW-45-35	M45X2	35	35	14	40	18.5	43	46	50
1CW-52-42	M52X2	42	42	16	46	19	46	55	60
1DW-14-06	M14X1.5	6	6	7	11	11	25	14	17	63 S series
1DW-16-08	M16X1.5	8	8	8	13	13	28	17	19
1DW-18-10	M18X1.5	10	10	8	15	12.5	28	19	22
1DW-20-12	M20X1.5	12	12	10	17	14.5	32	22	24
1DW-22-14	M22X1.5	14	14	10	19	16	34	24	27
1DW-24-16	M24X1.5	16	16	10	21	16.5	35	27	30	40 S series
1DW-30-20	M30X2	20	20	12	26	17.5	40	32	36
1DW-36-25	M36X2	25	25	12	32	20	44	41	46
1DW-42-30	M42X2	30	30	14	37	20.5	48	46	50
1DW-52-38	M52X2	38	38	16	44	22	54	55	60	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: Weld, Carbon Steel, Metric, 1CW

Description
Package& Shipping

Description

PART NO.	THREAD	TUBE O.D.		DIMENSIONS						MPa
PART NO.	E	D1	D2	B	D	I1	L1	S1	S2	MPa
1CW-12-06	M12X1.5	6	6	7	10	7	21	12	14	31.5 L series
1CW-14-08	M14X1.5	8	8	8	12	8	23	14	17
1CW-16-10	M16X1.5	10	10	8	14	10	25	17	19
1CW-18-12	M18X1.5	12	12	8	16	10	25	19	22
1CW-22-15	M22X1.5	15	15	10	19	11	28	22	27
1CW-26-18	M26X1.5	18	18	10	22	13.5	31	27	32
1CW-26-22	M26X1.5	18	22	12	27	11.5	31	27	32	16 L series
1CW-30-22	M30X2	22	22	12	27	13.5	33	32	36
1CW-30-25	M30X2	22	25	12	29	13.5	33	32	36
1CW-36-28	M36X2	28	28	12	32	14.5	34	41	41
1CW-45-35	M45X2	35	35	14	40	18.5	43	46	50
1CW-52-42	M52X2	42	42	16	46	19	46	55	60
1DW-14-06	M14X1.5	6	6	7	11	11	25	14	17	63 S series
1DW-16-08	M16X1.5	8	8	8	13	13	28	17	19
1DW-18-10	M18X1.5	10	10	8	15	12.5	28	19	22
1DW-20-12	M20X1.5	12	12	10	17	14.5	32	22	24
1DW-22-14	M22X1.5	14	14	10	19	16	34	24	27
1DW-24-16	M24X1.5	16	16	10	21	16.5	35	27	30	40 S series
1DW-30-20	M30X2	20	20	12	26	17.5	40	32	36
1DW-36-25	M36X2	25	25	12	32	20	44	41	46
1DW-42-30	M42X2	30	30	14	37	20.5	48	46	50
1DW-52-38	M52X2	38	38	16	44	22	54	55	60	31.5 S series

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
