1CG9/1DG9 90-Degree Metric To BSP Hydraulic Adapter
1CG9/1DG9 90-Degree Metric To BSP Hydraulic Adapter
Click to enlarge

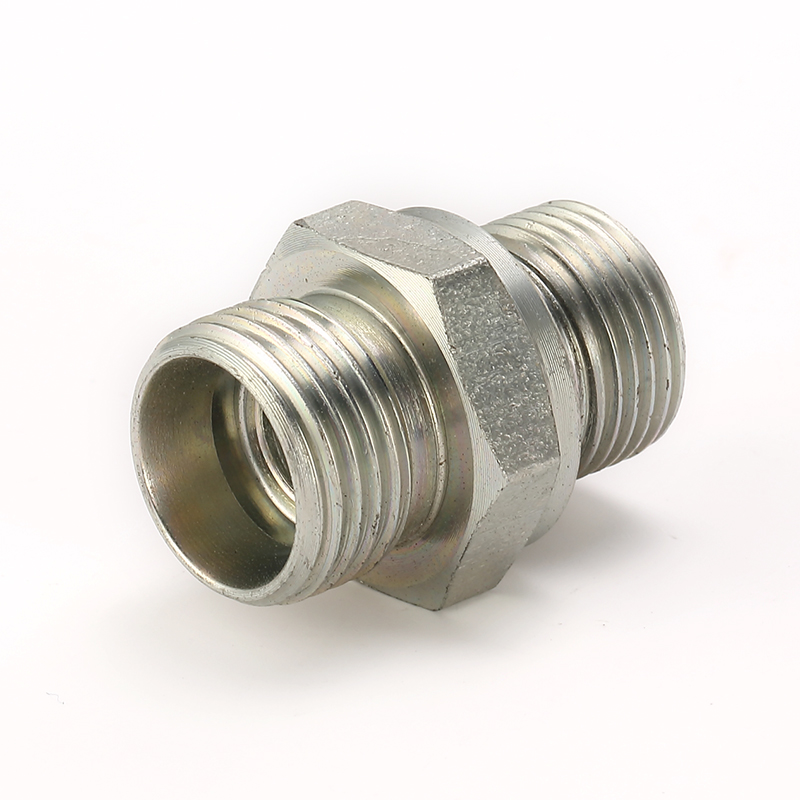

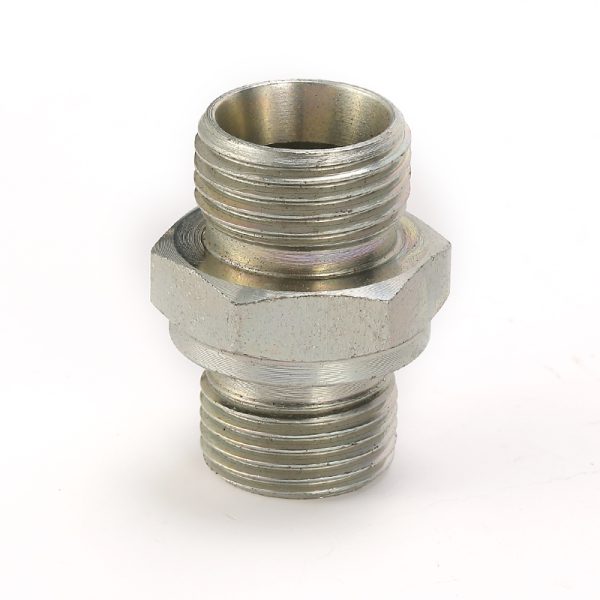

1CG/1DG Metric To BSP O-Ring Adapter

Description:

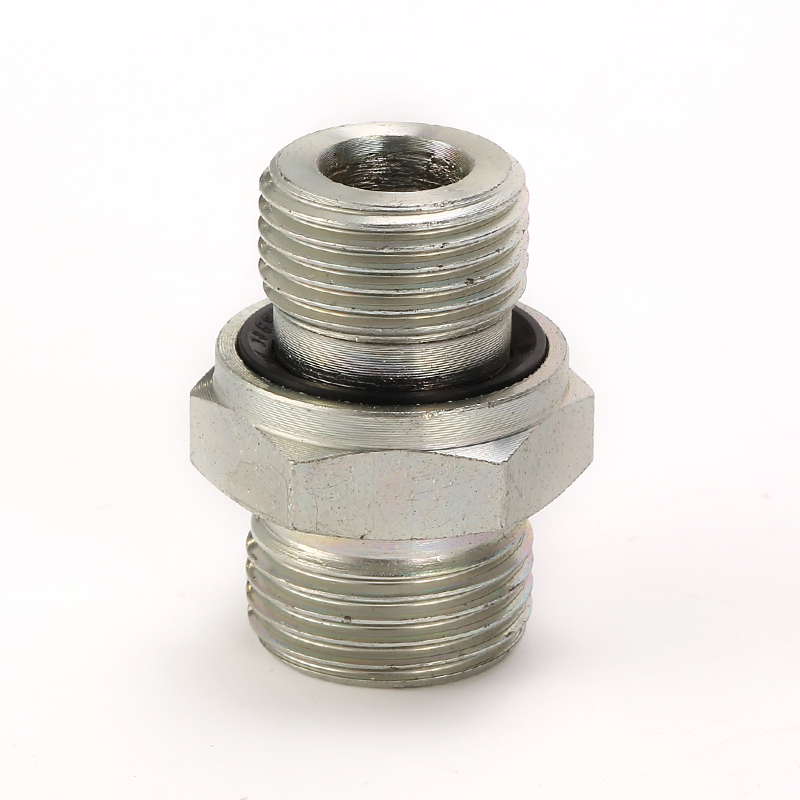

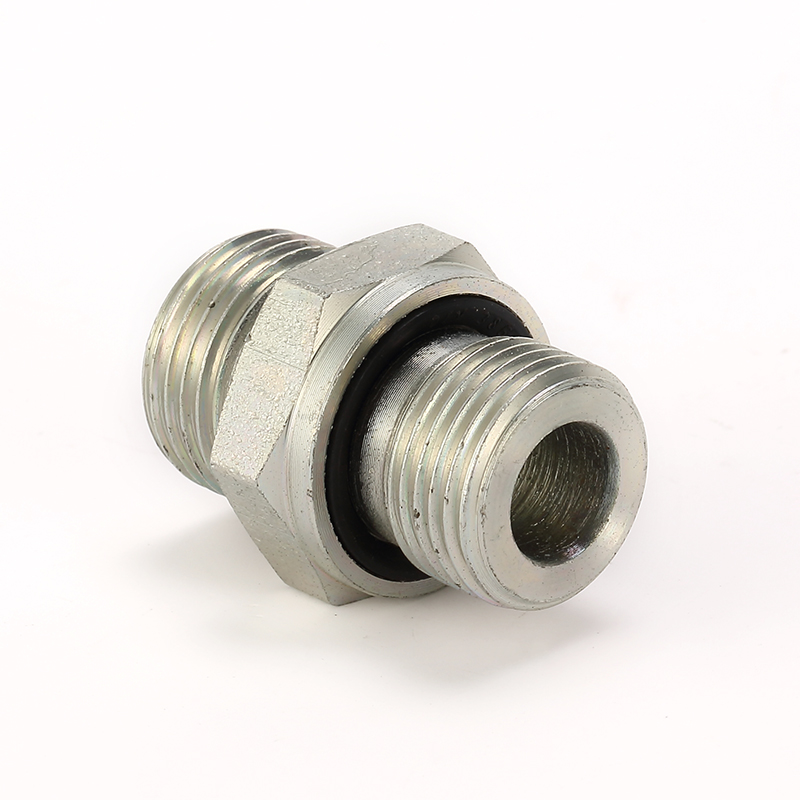

1CG/1DG metric to BSP adapter is a male adapter that has a male 24-degree cone metric thread, and a 60-degree cone BSP thread with o-ring sealing.

INQUIRE NOW

"*" indicates required fields

Category: Tags: , ,
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

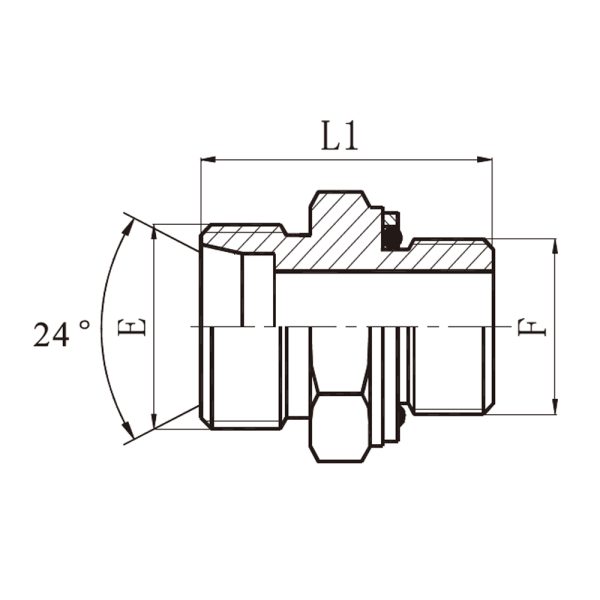

PART NO. THREAD TUBE O.D. DIMENSIONS MPa
E F D1 B I1 L1 S1 S2
1CG-12-02 M12X1.5 G1/8″X28 6 9.5 10.5 27 14 14 31.5
L series
1CG-12-04 M12X1.5 G1/4″X19 6 11 9.5 27.5 19 14
1CG-14-04 M14X1.5 G1/4″X19 8 11 10 28 19 17
1CG-14-06 M14X1.5 G3/8″X19 8 11.5 11.5 30 22 17
1CG-14-08 M14X1.5 G1/2″X14 8 14 13 34 27 17
1CG-16-04 M16X1.5 G1/4″X19 10 10 12 30 19 19
1CG-16-06 M16X1.5 G3/8″X19 10 11.5 12.5 31 22 19
1CG-16-08 M16X1.5 G1/2″X14 10 14 14 35 27 19
1CG-18-06 M18X1.5 G3/8″X19 12 11.5 12.5 31 22 22
1CG-18-08 M18X1.5 G1/2″X14 12 14 14 35 27 22
1CG-22-06 M22X1.5 G3/8″X19 15 11.5 13.5 32 24 27
1CG-22-08 M22X1.5 G1/2″X14 15 14 15 36 27 27
1CG-22-12 M22X1.5 G3/4″X14 15 15.5 20 42.5 32 27
1CG-26-08 M26X1.5 G1/2″X14 18 14 14.5 36 27 32
1CG-26-12 M26X1.5 G3/4″X14 18 15.5 14.5 37.5 32 32
1CG-30-12 M30X2 G3/4″X14 22 15.5 16.5 39.5 32 36 16
L series
1CG-30-16 M30X2 G1″X11 22 18 17.5 43 41 36
1CG-36-16 M36X2 G1″X11 28 18 17.5 43 41 41
1CG-45-20 M45X2 G1.1/4″X11 35 20 19.5 50 50 50
1CG-52-20 M52X2 G1.1/4″X11 42 20 19 50 55 60
1CG-52-24 M52X2 G1.1/2″X11 42 21.5 19 51.5 55 60
1CG-52-32 M52X2 G2″X11 42 24.5 25 60.5 70 60
1DG-14-04 M14X1.5 G1/4″X19 6 10 15 32 19 17 63
S series
1DG-16-04 M16X1.5 G1/4″X19 8 11 15 33 19 19
1DG-18-04 M18X1.5 G1/4″X19 10 11 14.5 33 19 22
1DG-18-06 M18X1.5 G3/8″X19 10 11.5 15 34 22 22
1DG-20-06 M20X1.5 G3/8″X19 12 11.5 15 34 22 24
1DG-20-08 M20X1.5 G1/2″X14 12 14 17.5 39 27 24
1CG-22-06 M22X1.5 G3/8″X19 14 11.5 16 35.5 24 27
1DG-22-08 M22X1.5 G1/2″X14 14 14 19 41 27 27
1DG-24-04 M24X1.5 G1/4″X19 16 11 17 36.5 27 30
1CG-24-08 M24X1.5 G1/2″X14 16 14 18.5 41 27 30 40
S series
1DG-30-12 M30X2 G3/4″X14 20 15.5 20.5 46.5 32 36
1DG-36-12 M36X2 G3/4″X14 25 15.5 23 50.5 41 46
1DG-36-16 M36X2 G1″X11 25 18 23 53 41 46
1DG-42-16 M42X2 G1″X11 30 18 23.5 55 46 50
1DG-42-20 M42X2 G1.1/4″X11 30 20 23.5 57 50 50 31.5
S series
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
