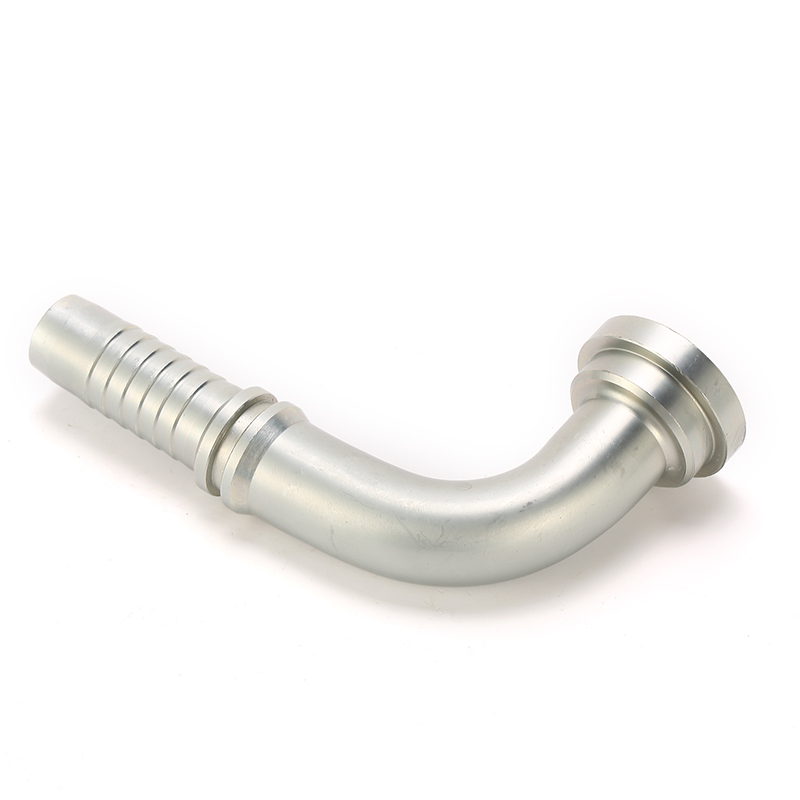

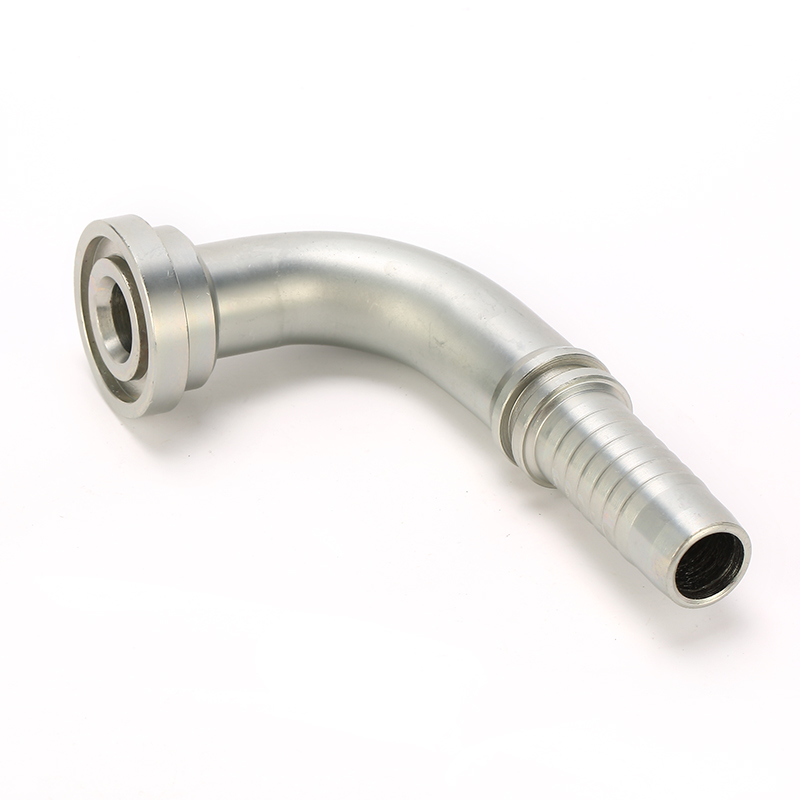

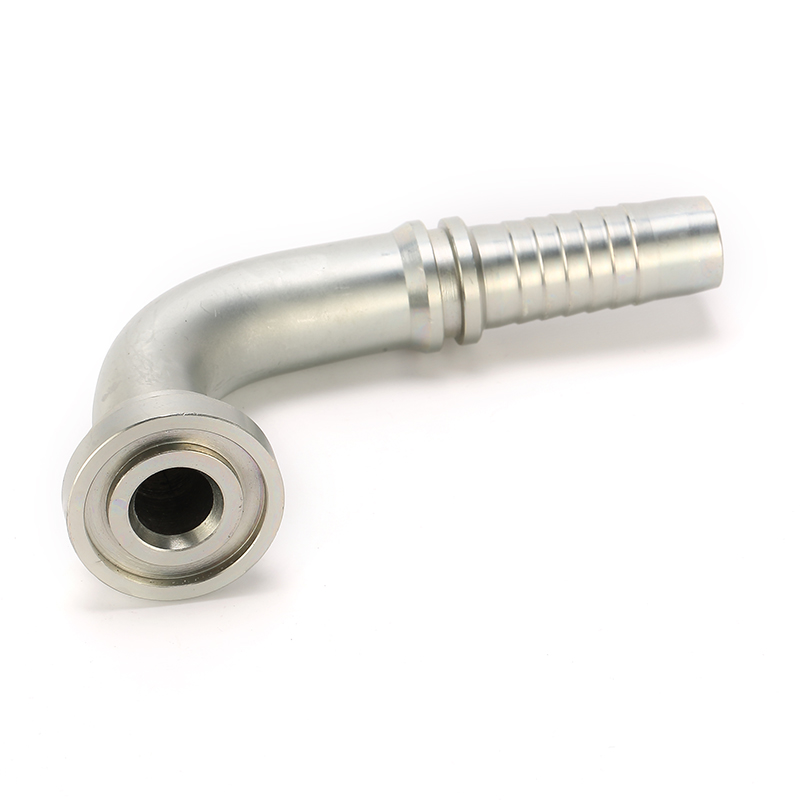

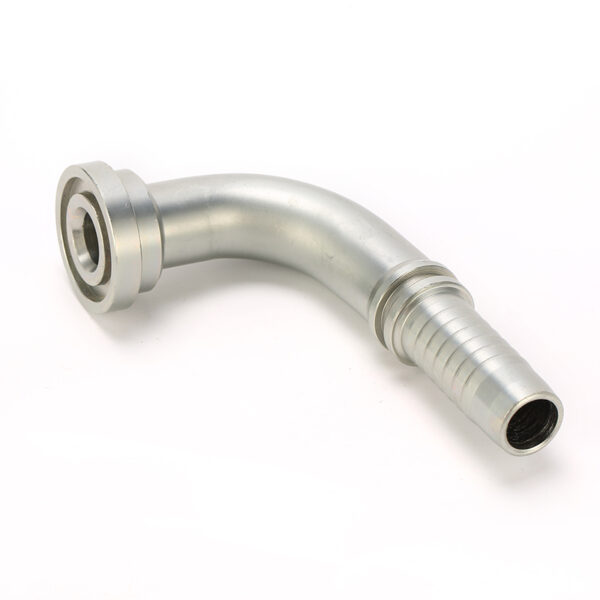

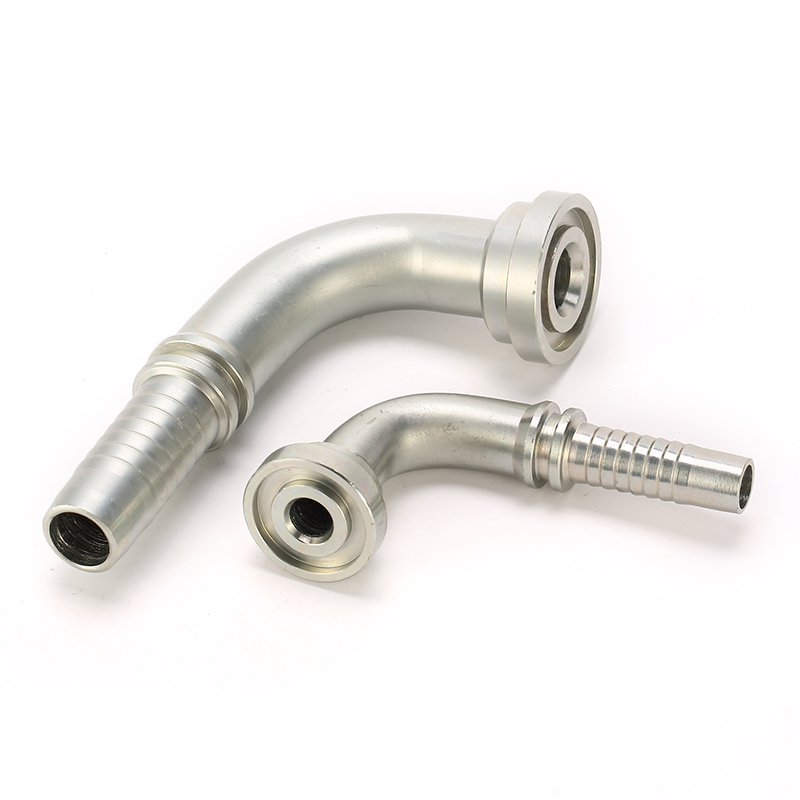

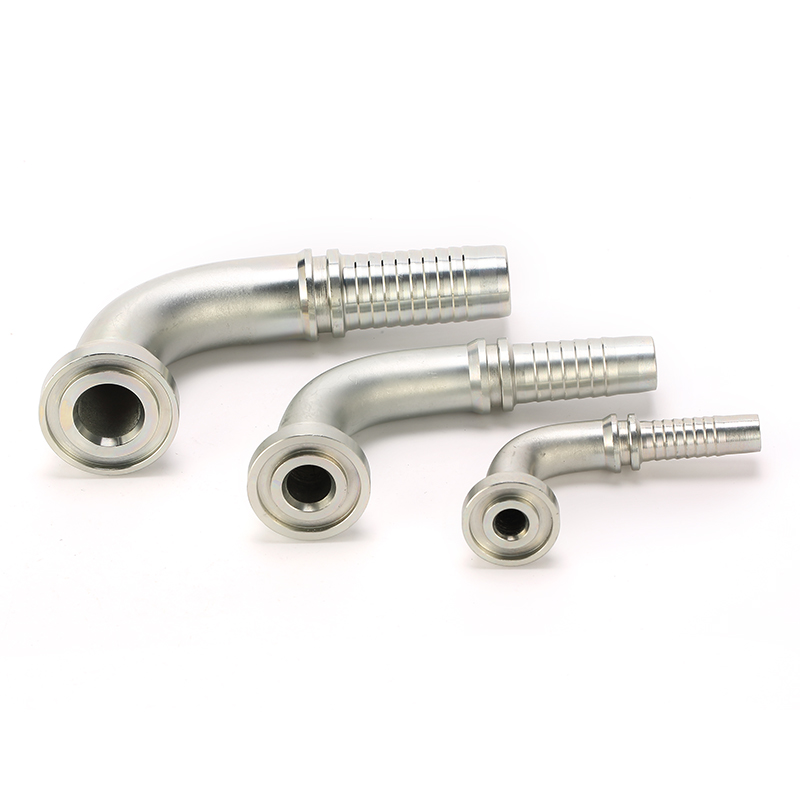

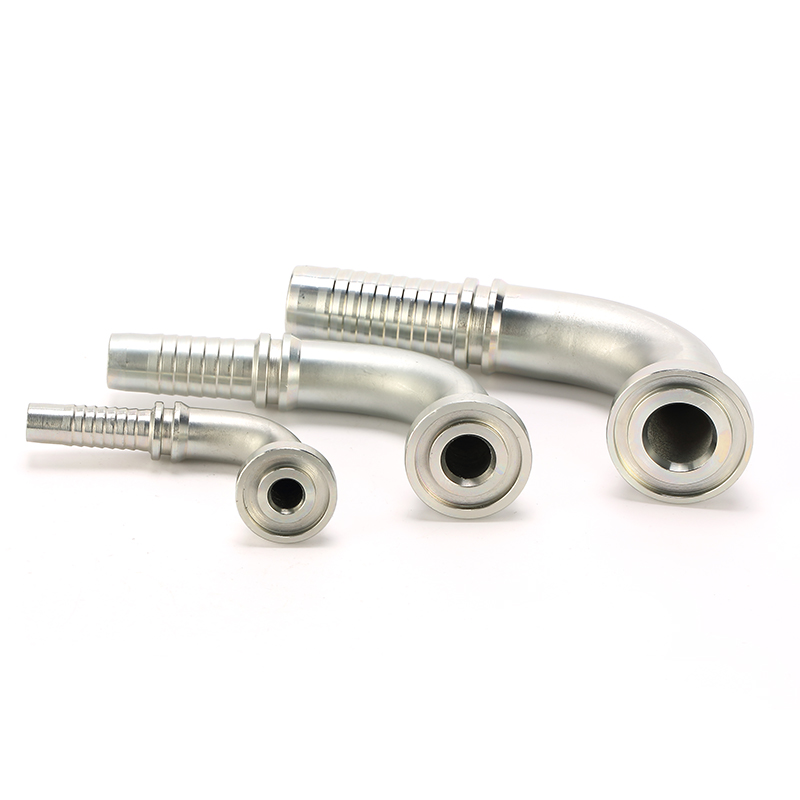

87392 3000PSI Code 61 90° Elbow Flange Fittings

Description:

The 87392 hydraulic Code61 SAE 3000PSI flange, being a 90-degree elbow flange fitting, is designed following the SAE J516 standard. Such a flange is suitable for utilization with either one or two-wire hoses.

"*" indicates required fields

SAE flanges are a dependable replacement for standard pipe and tube connectors. The maximum working pressure is 3000 PSI or 6000 PSI. Topol Power hydraulic flange fittings product line ensures you’ll find the perfect solution for any hydraulic application.

PART NO.	FLANGE SIZE	HOSE BORE		DIMENSIONS

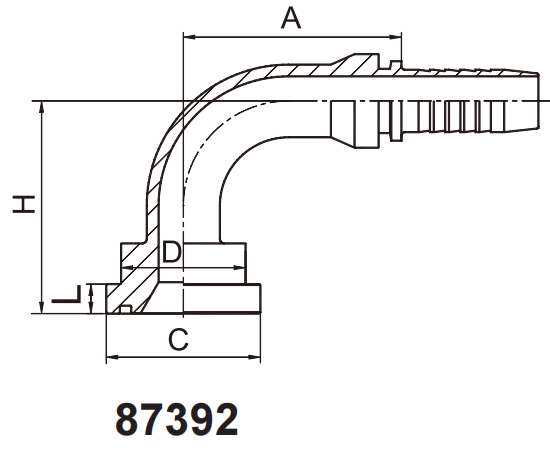

PART NO.	FLANGE SIZE	DN	DASH	A	C	D	H	L
87392-08-08	1/2″	12	08	41	30.2	23.9	47	7
87392-12-08	3/4″	12	08	48.5	38.1	31.7	48	7
87392-12-10	3/4″	16	10	56.5	38.1	31.7	52.5	7
87392-12-12	3/4″	20	12	66.3	38.1	31.7	62	7
87392-12-12(H100)	3/4″	20	12	66.3	38.1	31.7	100	7
87392-12-12(H127)	3/4″	20	12	66.3	38.1	31.7	127	7
87392-12-12(H150)	3/4″	20	12	66.3	38.1	31.7	150	7
87392-12-16	3/4″	25	16	76	38.1	31.7	65.5	7
87392-16-12	1″	20	12	66.3	44.4	38	62	8.2
87392-16-16	1″	25	16	78	44.4	38	67.5	8.2
87392-16-16(H100)	1″	25	16	78	44.4	38	100	8.2
87392-16-16(H127)	1″	25	16	78	44.4	38	127	8.2
87392-16-16(H150)	1″	25	16	78	44.4	38	150	8.2
87392-16-20	1″	32	20	91	44.4	38	78.5	8.2
87392-20-16	1.1/4″	25	16	78	50.8	43.2	67.5	8.2
87392-20-20	1.1/4″	32	20	91.5	50.8	43.2	78.5	8.2
87392-20-20(H100)	1.1/4″	32	20	91.5	50.8	43.2	100	8.2
87392-20-20(H127)	1.1/4″	32	20	91.5	50.8	43.2	127	8.2
87392-20-20(H150)	1.1/4″	32	20	91.5	50.8	43.2	150	8.2
87392-20-24	1.1/4″	40	24	108.5	50.8	43.2	78.5	8.2
87392-24-20	1.1/2″	32	20	91.5	60.3	50.3	80.5	8.2
87392-24-24	1.1/2″	40	24	111	60.3	50.3	94	8.2
87392-24-24(H127)	1.1/2″	40	24	111	60.3	50.3	127	8.2
87392-32-24	2″	40	24	111	71.4	62.2	94	9.8
87392-32-32	2″	50	32	132	71.4	62.2	114.3	9.8
87392-40-32	2.1/2″	50	32	132	84.1	74.2	114.3	9.8
