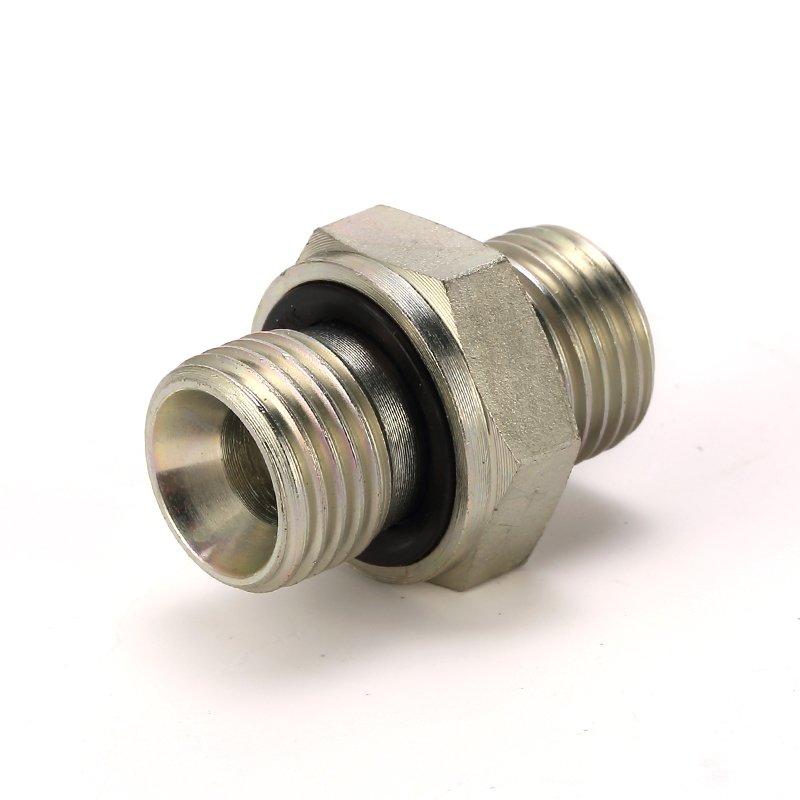

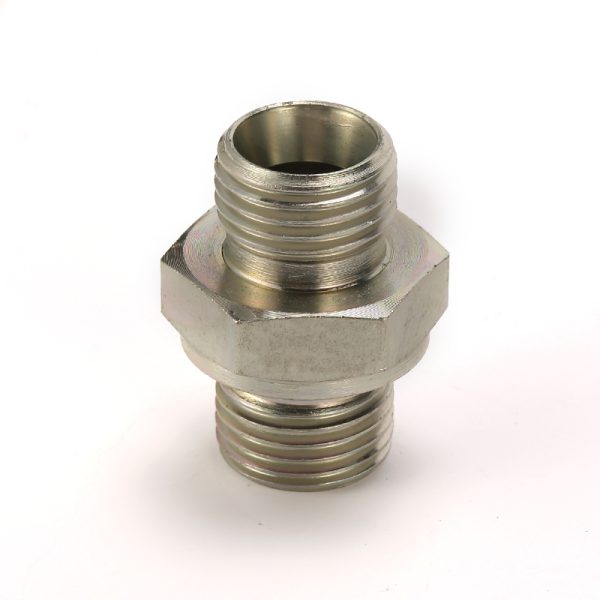

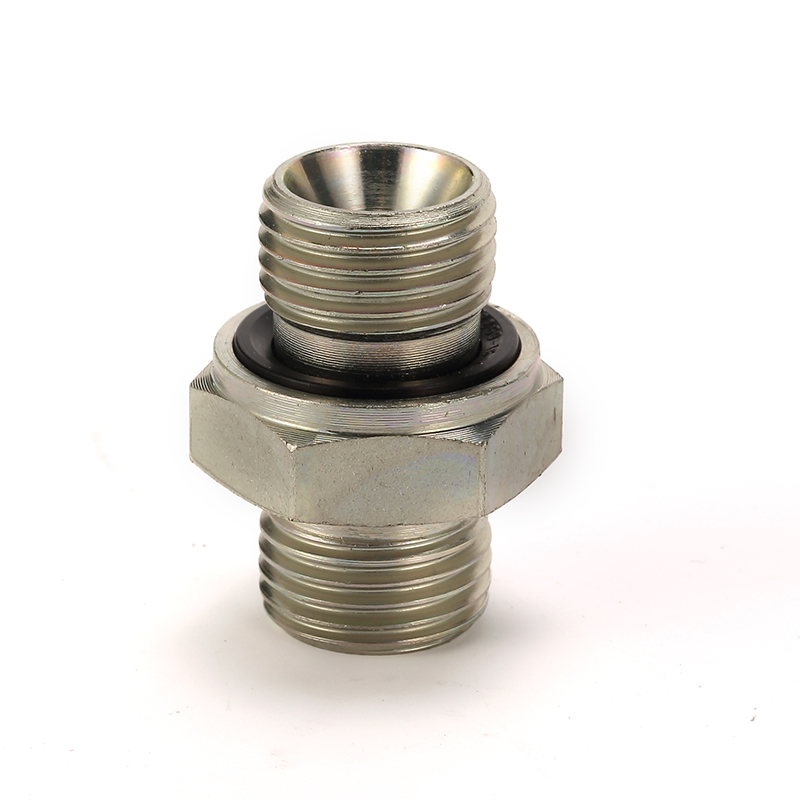

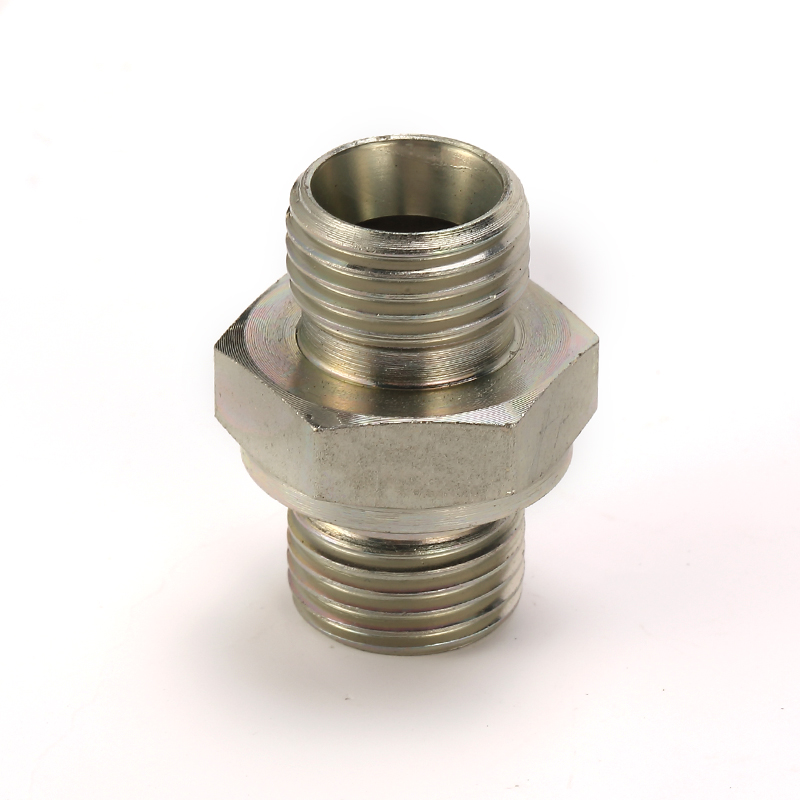

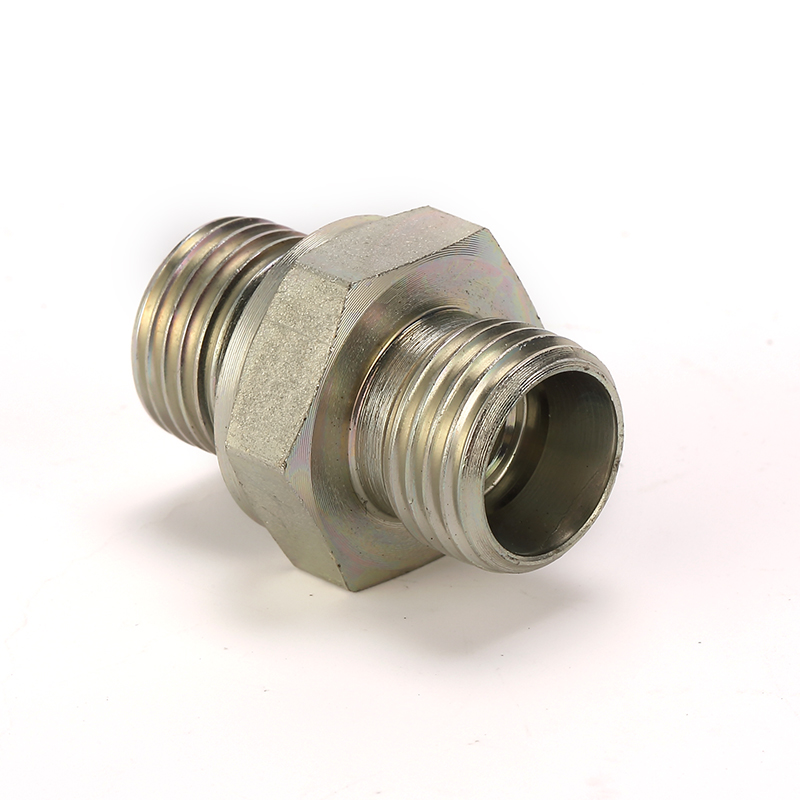

1CM/1DM-RN Metric To BSP 24° Cone Adapter

Description:

1CM/1DM-RN metric to BSP adapter is a male adapter that has a male 24-degree cone metric thread, and a 60-degree cone BSP thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

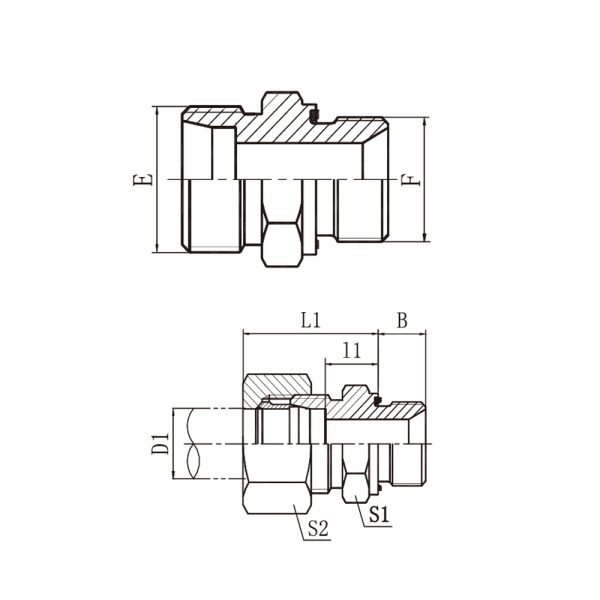

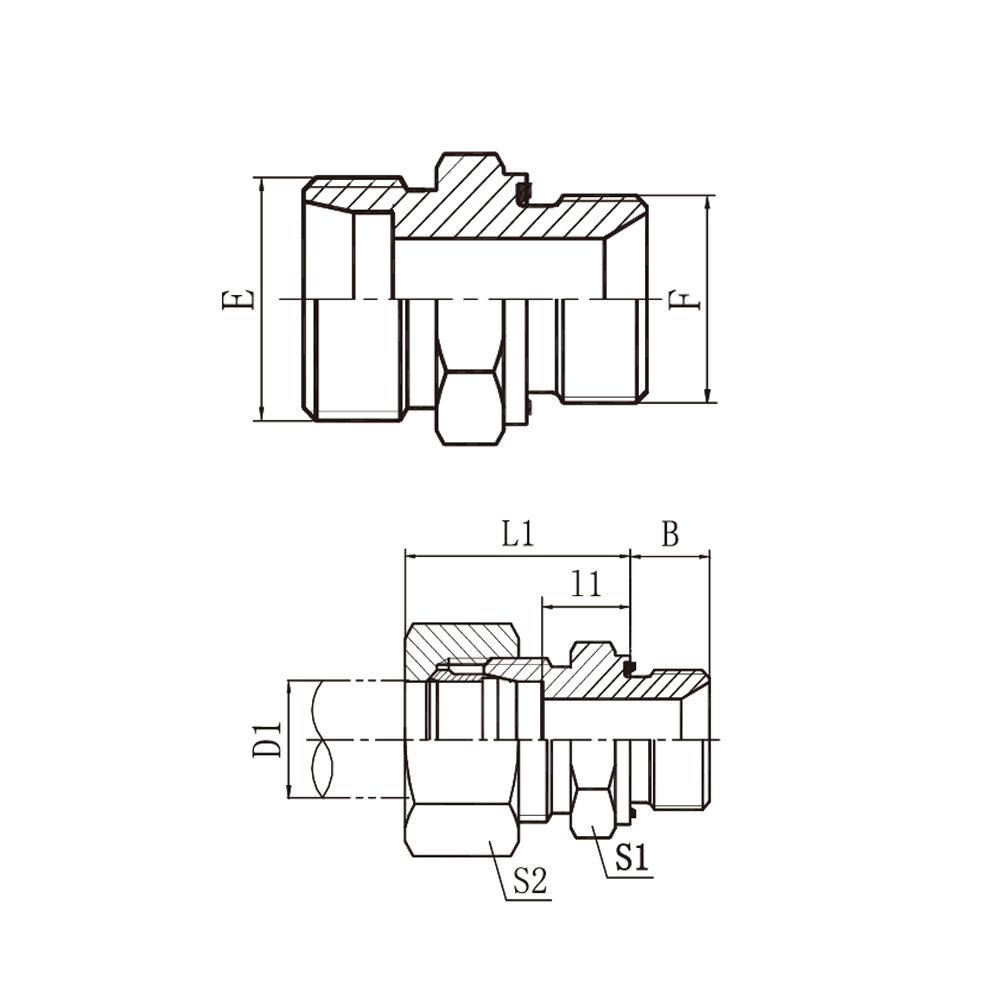

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L	S1	S2	MPa
1CM-12-10	M12X1.5	M10X1	6	8	9.5	24.5	14	14	31.5 L series
1CM-14-12	M14X1.5	M12X1.5	8	10	10	27	17	17
1CM-14-18	M14X1.5	M18X1.5	8	12	11.5	30.5	24	17
1CM-16-14	M16X1.5	M14X1.5	10	11	11	29	19	19
1CM-16-16	M16X1.5	M16X1.5	10	12	12.5	31.5	22	19
1CM-16-18	M16X1.5	M18X1.5	10	12	13	32	24	19
1CM-16-22	M16X1.5	M22X1.5	10	14	15	36	27	19
1CM-18-14	M18X1.5	M14X1.5	12	11	11	29	19	22
1CM-18-16	M18X1.5	M16X1.5	12	12	12	31	22	22
1CM-18-18	M18X1.5	M18X1.5	12	12	12.5	31.5	24	22
1CM-18-22	M18X1.5	M22X1.5	12	14	14	35	27	22
1CM-22-16	M22X1.5	M16X1.5	15	12	13.5	32.5	24	27
1CM-22-18	M22X1.5	M18X1.5	15	12	13.5	32.5	24	27
1CM-22-22	M22X1.5	M22X1.5	15	14	15	36	27	27
1CM-26-18	M26X1.5	M18X1.5	18	12	14.5	34	27	32
1CM-26-22	M26X1.5	M22X1.5	18	14	14.5	36	27	32
1CM-30-22	M30X2	M22X1.5	22	14	16.5	38	32	36	16 L series
1CM-30-26	M30X2	M26X1.5	22	16	16.5	42	32	36
1CM-30-27	M30X2	M27X2	22	16	18.5	42	32	36
1CM-36-33	M36X2	M33X2	28	18	17.5	43	41	41
1CM-45-42	M45X2	M42X2	35	20	21.5	52	50	50
1CM-52-48	M52X2	M48X2	42	22	19	52	55	60
1DM-14-12	M14X1.5	M12X1.5	6	10	12	29	17	17	63 S series
1DM-16-14	M16X1.5	M14X1.5	8	11	13	31	19	19
1DM-18-16	M18X1.5	M16X1.5	10	12	15	34.5	22	22
1DM-20-18	M20X1.5	M18X1.5	12	12	17	36.5	24	24
1DM-20-22	M20X1.5	M22X1.5	12	14	15.5	37	27	24
1DM-22-20	M22X1.5	M20X1.5	14	14	17	39	27	27
1DM-24-18	M24X1.5	M18X1.5	16	12	16.5	37	27	30	40 S series
1DM-24-22	M24X1.5	M22X1.5	16	14	16.5	39	27	30
1DM-30-27	M30X2	M27X2	20	16	18.5	45	32	36
1DM-36-33	M36X2	M33X2	25	18	23	53	41	46
1DM-42-42	M42X2	M42X2	30	20	23.5	57	50	50	25 S series
1DM-52-48	M52X2	M48X2	38	22	26	64	55	60	25 S series
