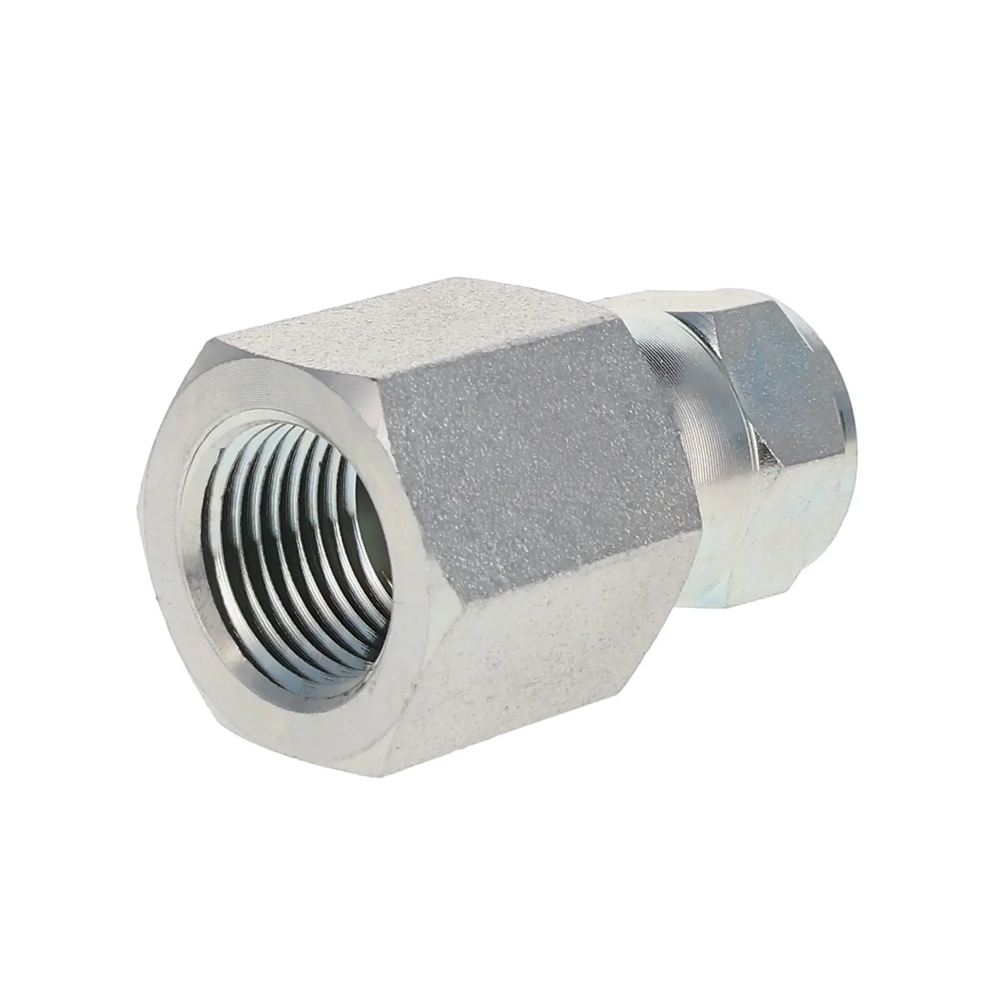

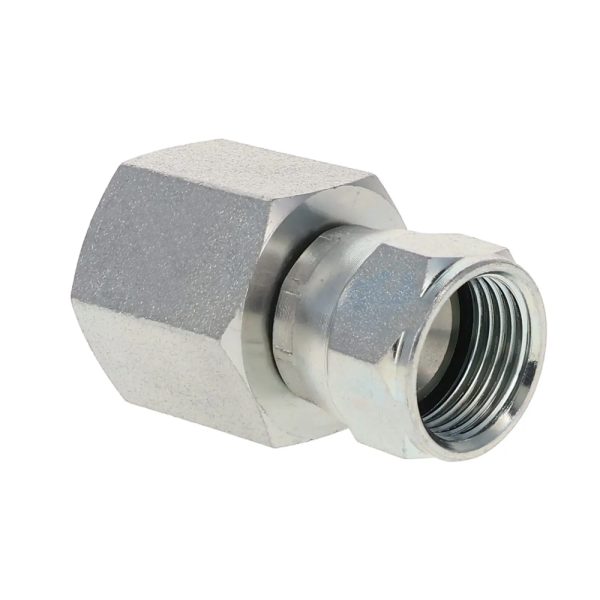

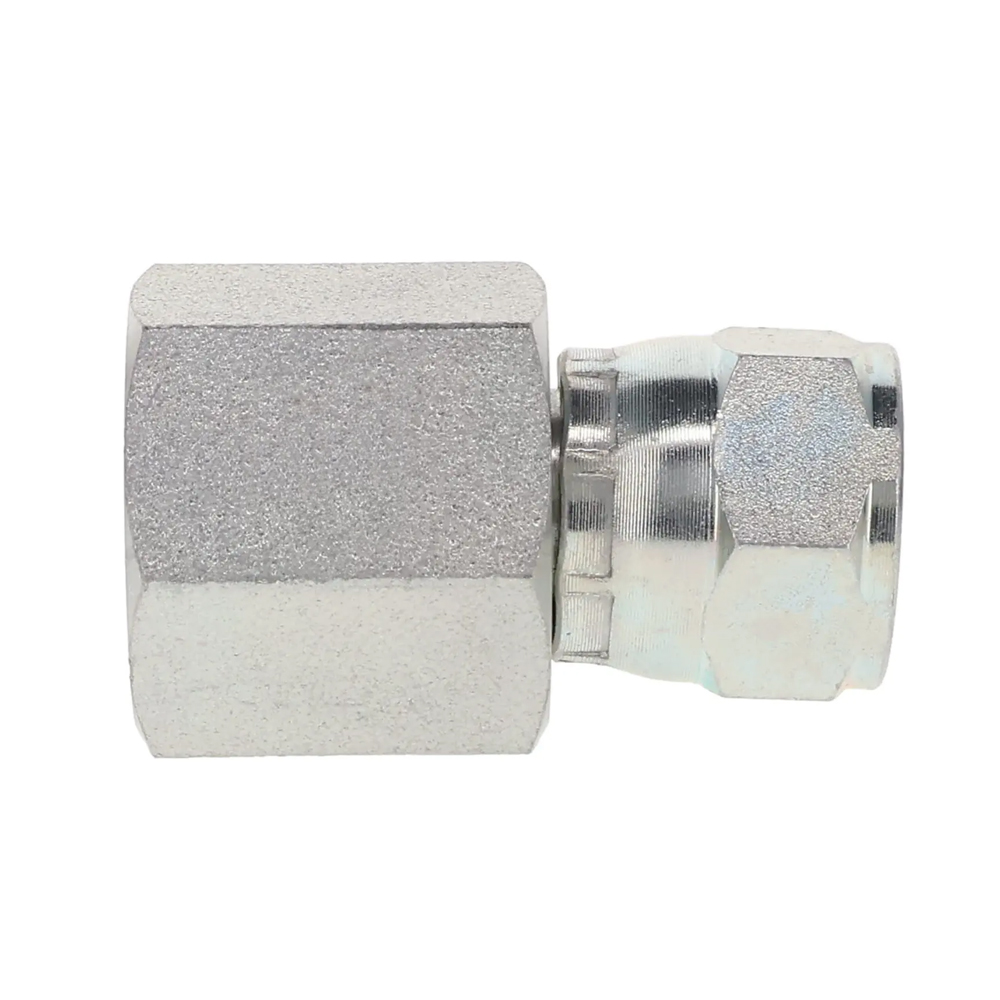

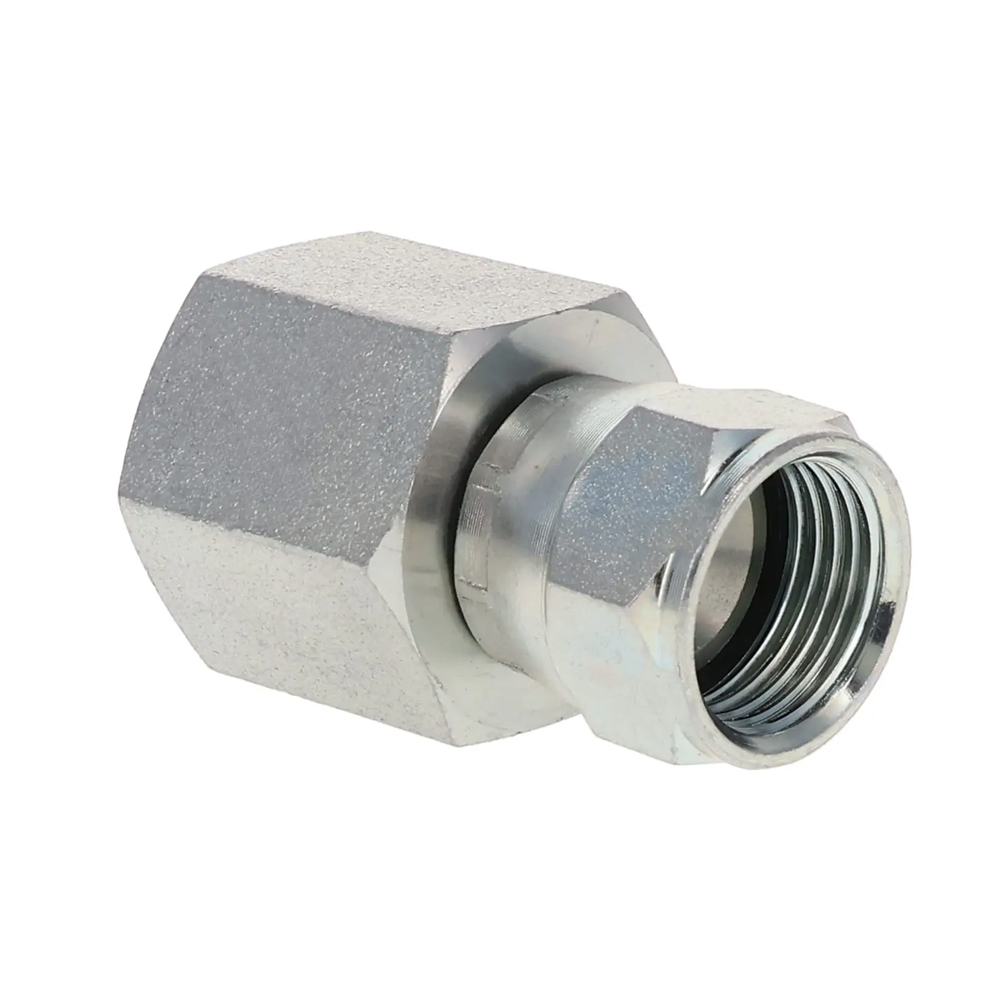

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

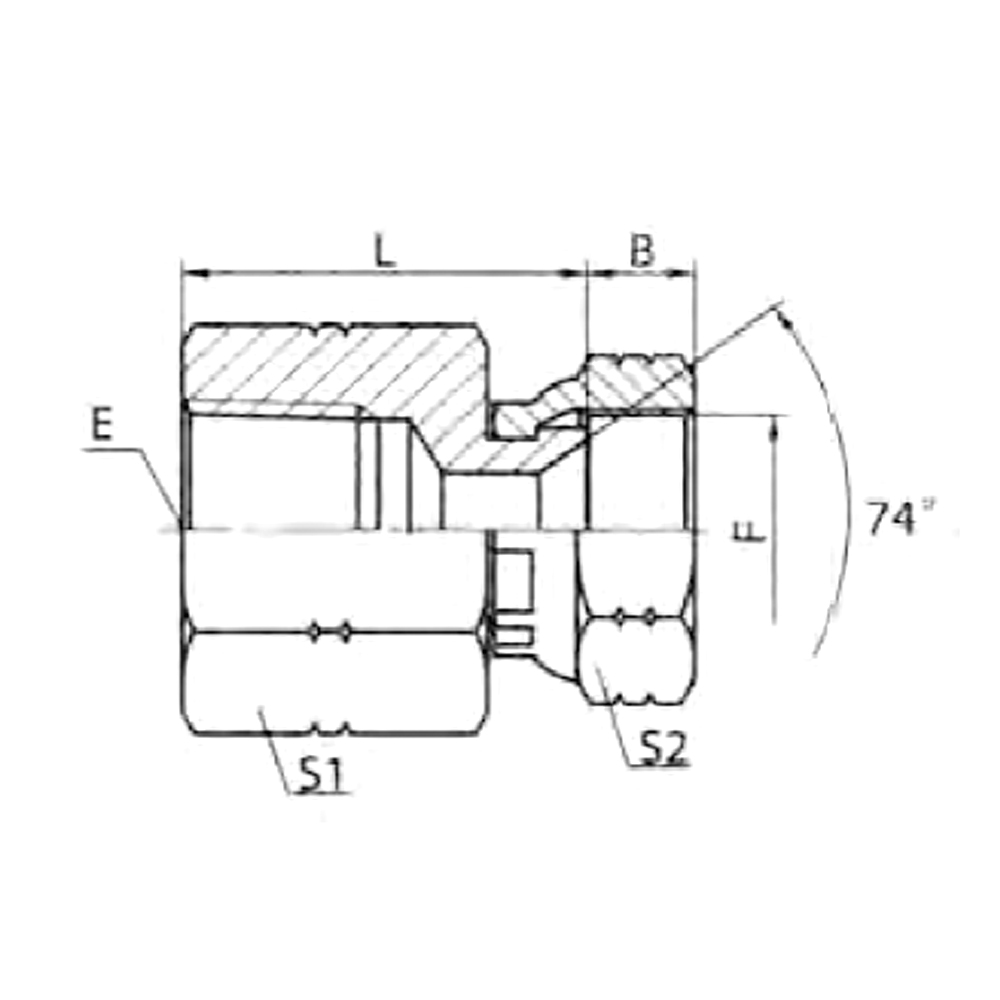

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | B | L | S1 | S2 | |
| 7NJ-04S | Z1/4″X18 | 7/16″X20 | 9.5 | 29 | 19 | 17 |
| 7NJ-04-06S | Z1/4″X18 | 9/16″X18 | 9.5 | 29 | 19 | 19 |
| 7NJ-06S | Z3/8″X18 | 9/16″X18 | 9.5 | 30 | 24 | 19 |
| 7NJ-06-08S | Z3/8″X18 | 3/4″X16 | 10.8 | 32 | 24 | 24 |
| 7NJ-08S | Z1/2″X14 | 3/4″X16 | 10.8 | 37.5 | 30 | 24 |
| 7NJ-08-10S | Z1/2″X14 | 7/8″X14 | 12 | 38 | 30 | 27 |
| 7NJ-08-12S | Z1/2″X14 | 1.1/16″X12 | 13 | 37.5 | 30 | 32 |
| 7NJ-12S | Z3/4″X14 | 1.1/16″X12 | 13 | 40.5 | 36 | 32 |
| 7NJ-16S | Z1″X11.5 | 1.5/16″X12 | 14 | 47.5 | 41 | 41 |
| 7NJ-20S | Z1.1/4″X11.5 | 1.5/8″X12 | 15 | 52 | 50 | 50 |
| 7NJ-24S | Z1.1/2″X11.5 | 1.7/8″X12 | 19 | 53.5 | 60 | 55 |
