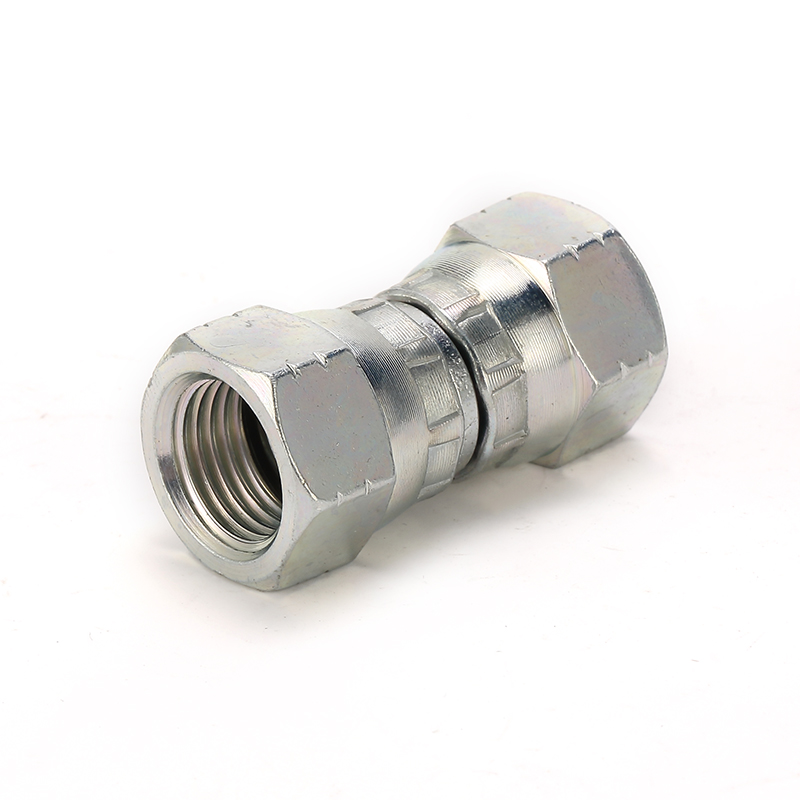

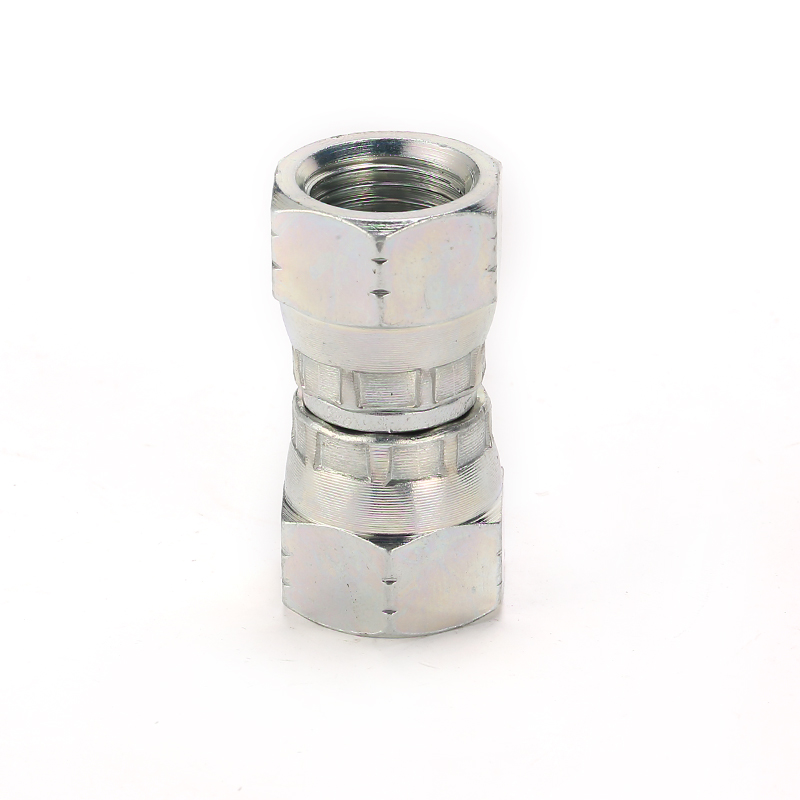

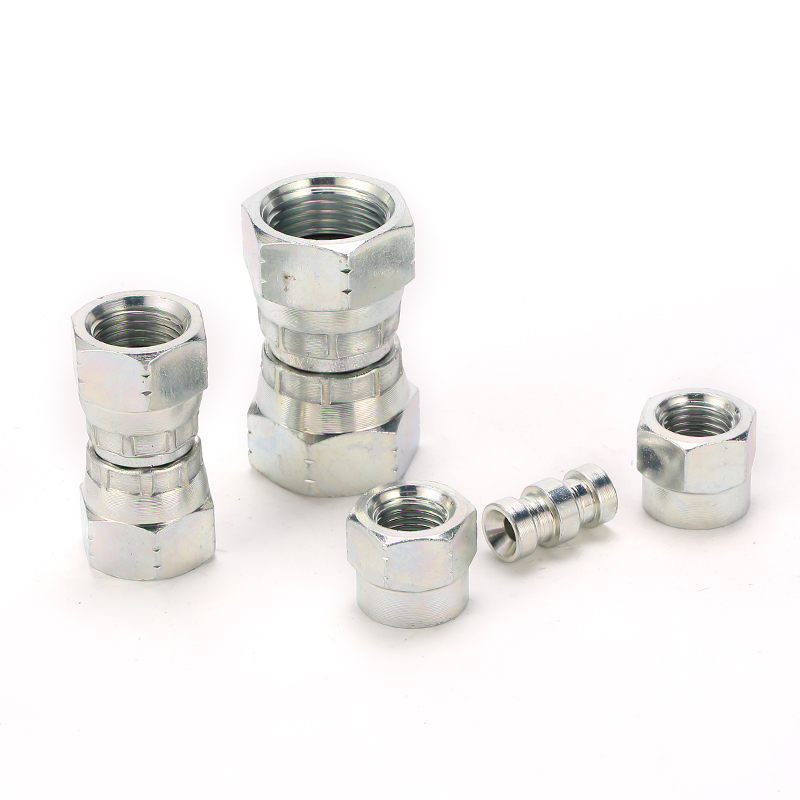

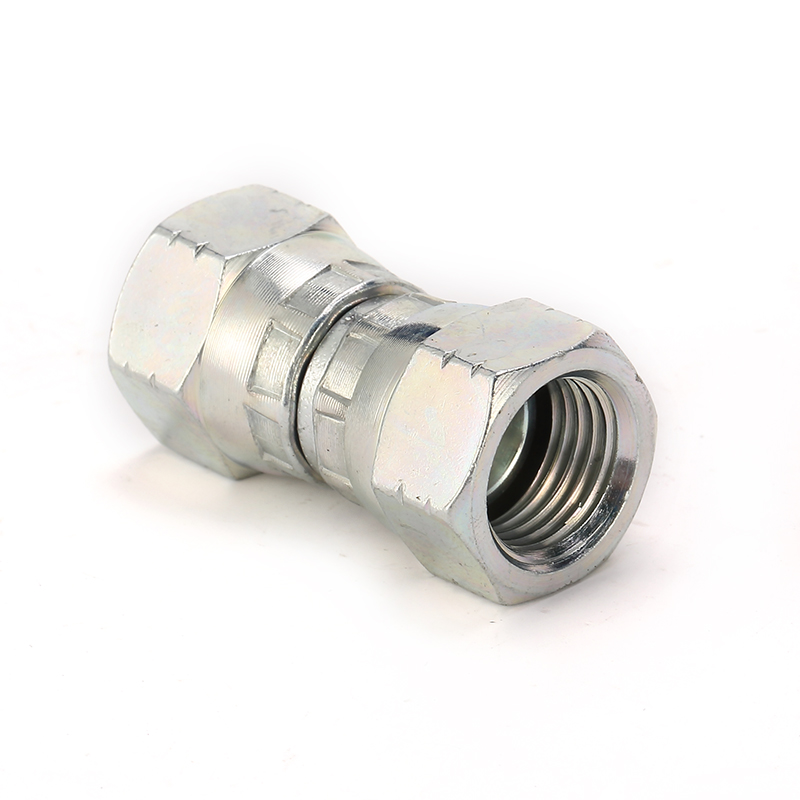

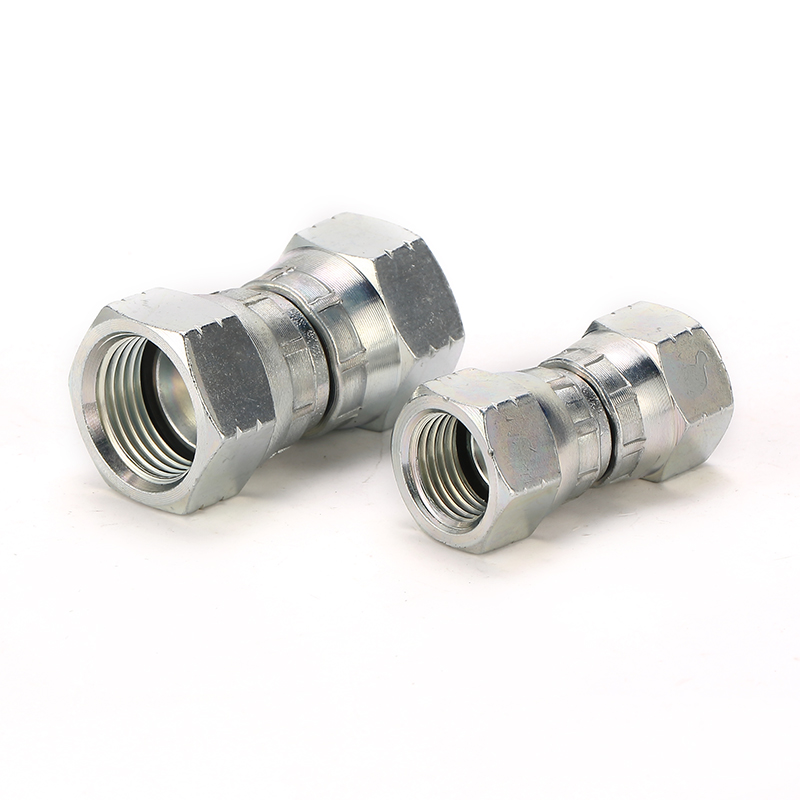

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

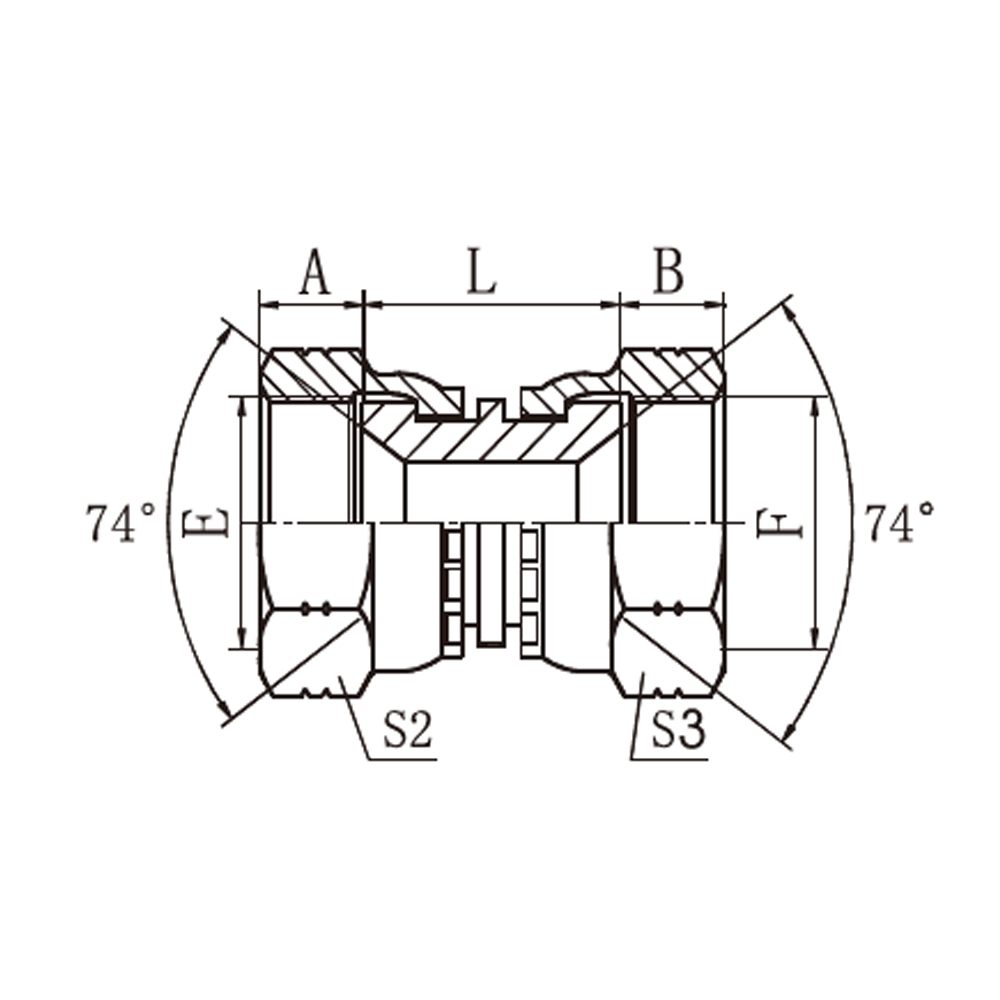

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S2 | S3 | |
| 3J-04 | 7/16″X20 | 7/16″X20 | 9.5 | 9.5 | 19 | 17 | 17 |
| 3J-05 | 1/2″X20 | 1/2″X20 | 9 | 9 | 21 | 19 | 19 |
| 3J-06 | 9/16″X18 | 9/16″X18 | 9.5 | 9.5 | 21 | 19 | 19 |
| 3J-06-08 | 9/16″X18 | 3/4″X16 | 9.5 | 10.8 | 23 | 19 | 24 |
| 3J-08 | 3/4″X16 | 3/4″X16 | 10.8 | 10.8 | 24 | 24 | 24 |
| 3J-10 | 7/8″X14 | 7/8″X14 | 12 | 12 | 27 | 27 | 27 |
| 3J-12 | 1.1/16″X12 | 1.1/16″X12 | 13 | 13 | 27.5 | 32 | 32 |
| 3J-16 | 1.5/16″X12 | 1.5/16″X12 | 14 | 14 | 30.5 | 41 | 41 |
| 3J-20 | 1.5/8″X12 | 1.5/8″X12 | 15 | 15 | 35 | 50 | 50 |
| 3J-24 | 1.7/8″X12 | 1.7/8″X12 | 19 | 19 | 37 | 55 | 55 |
