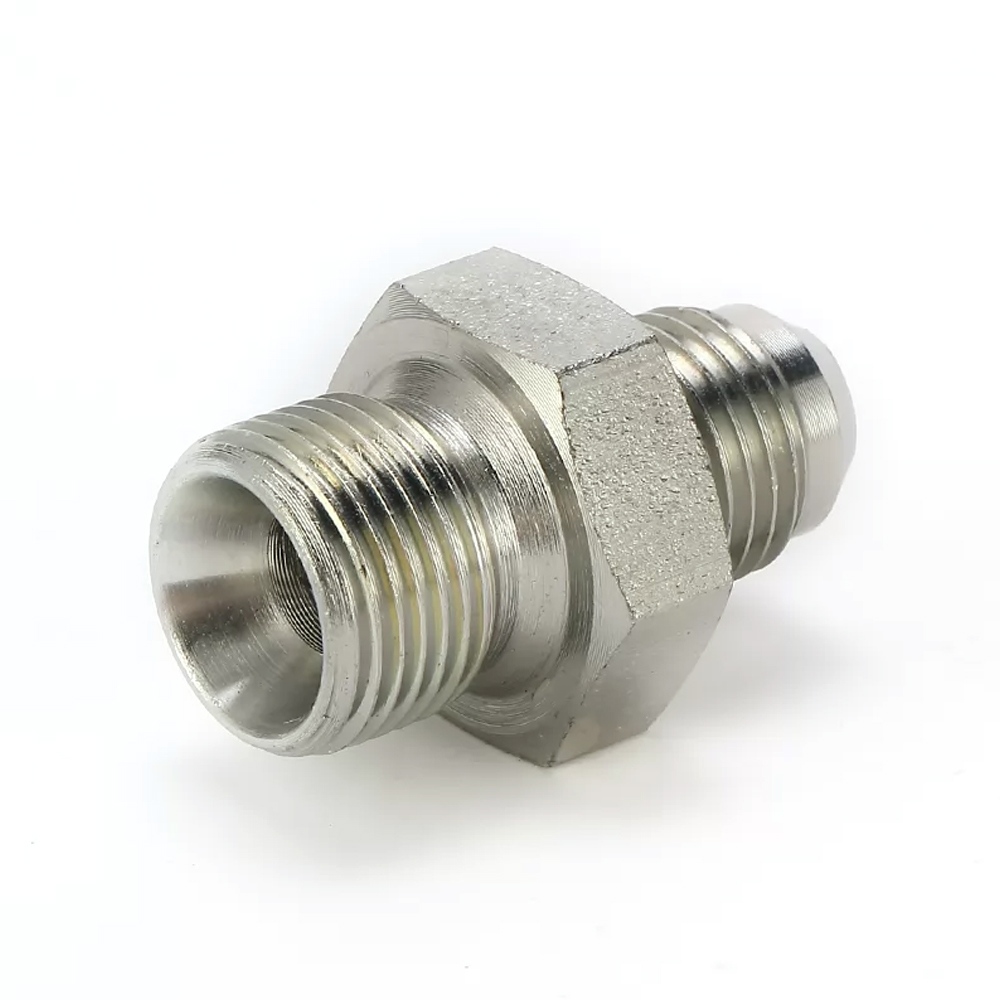

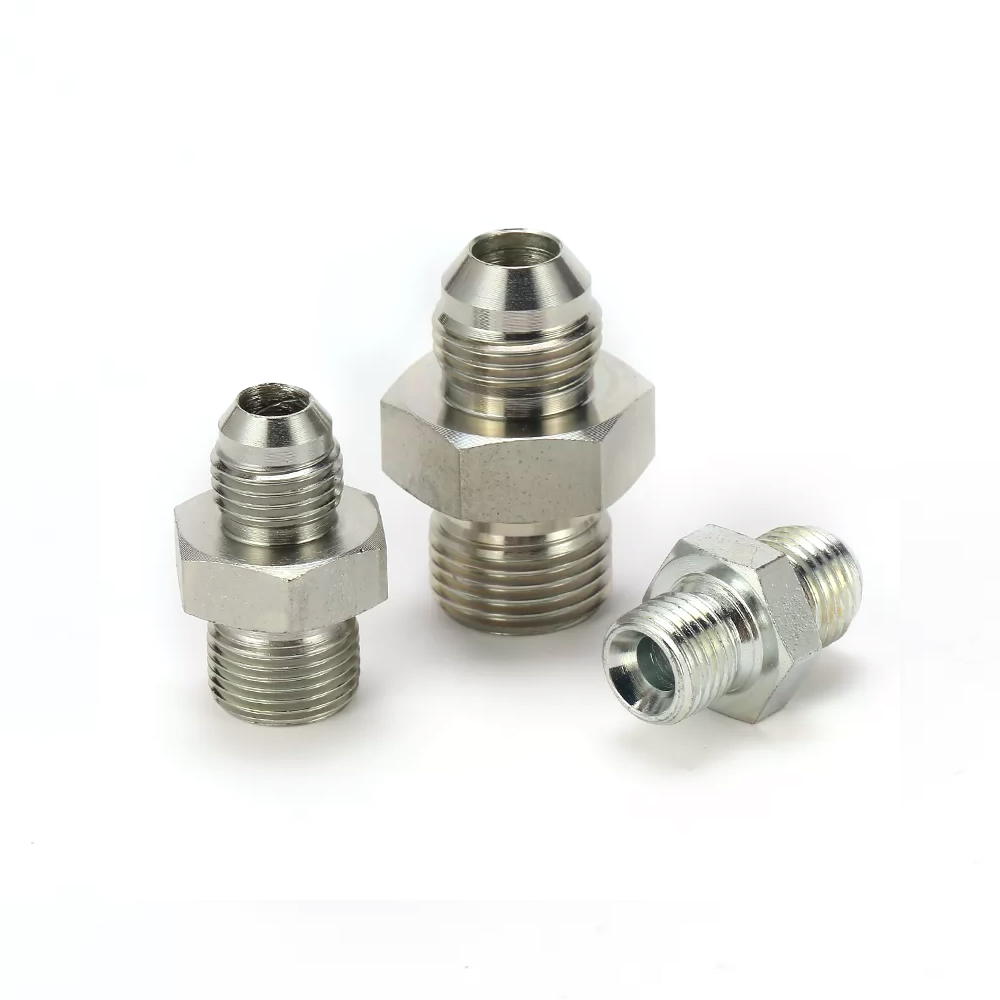

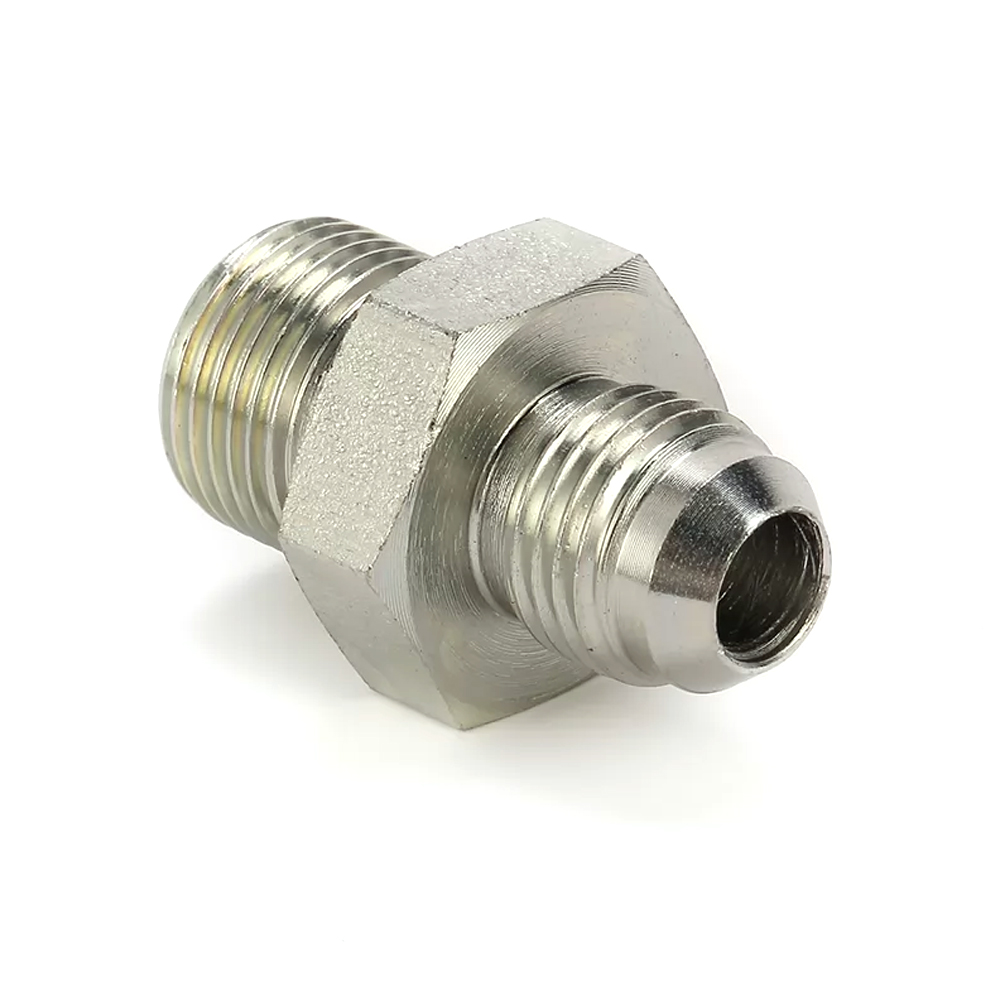

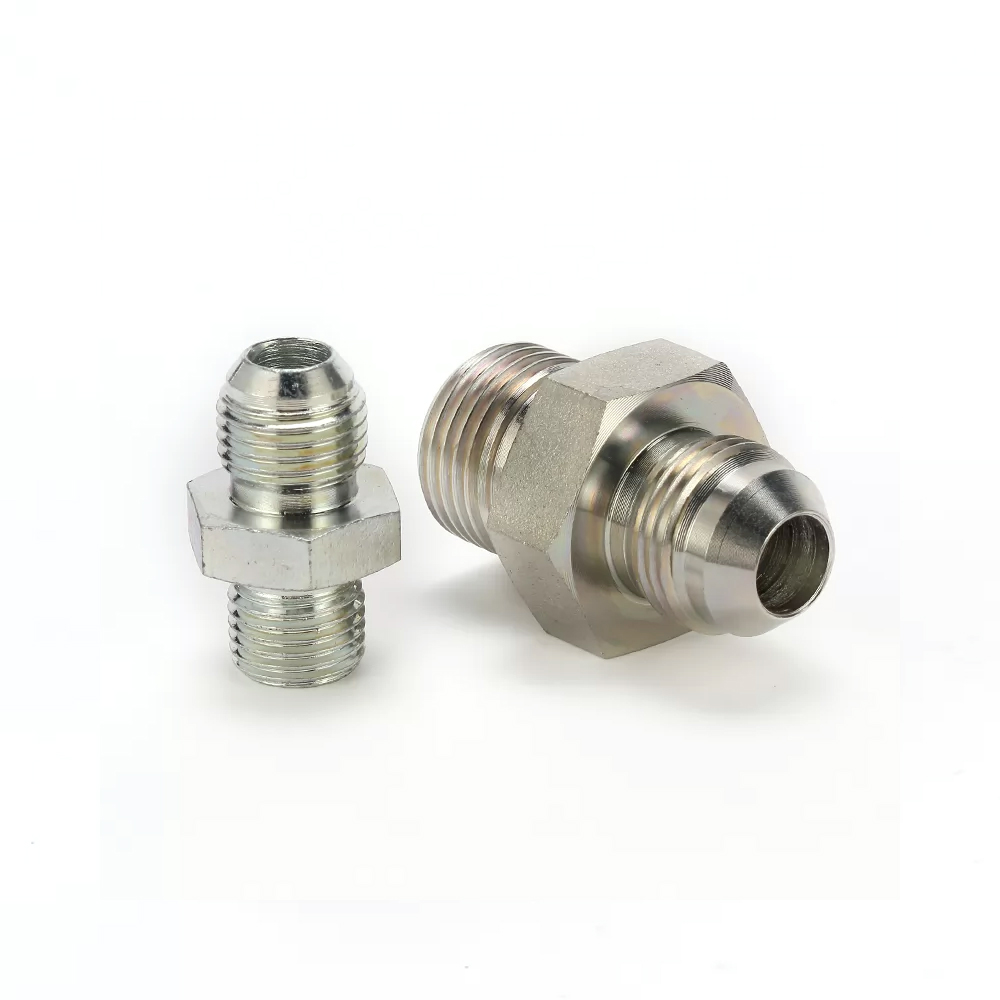

1BJ BSP To JIC Male Forging Adapter

Description:

1BJ BSP male hydraulic fittings are straight double-use male thread connectors, with a 60-degree cone seat BSP thread and JIC thread.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

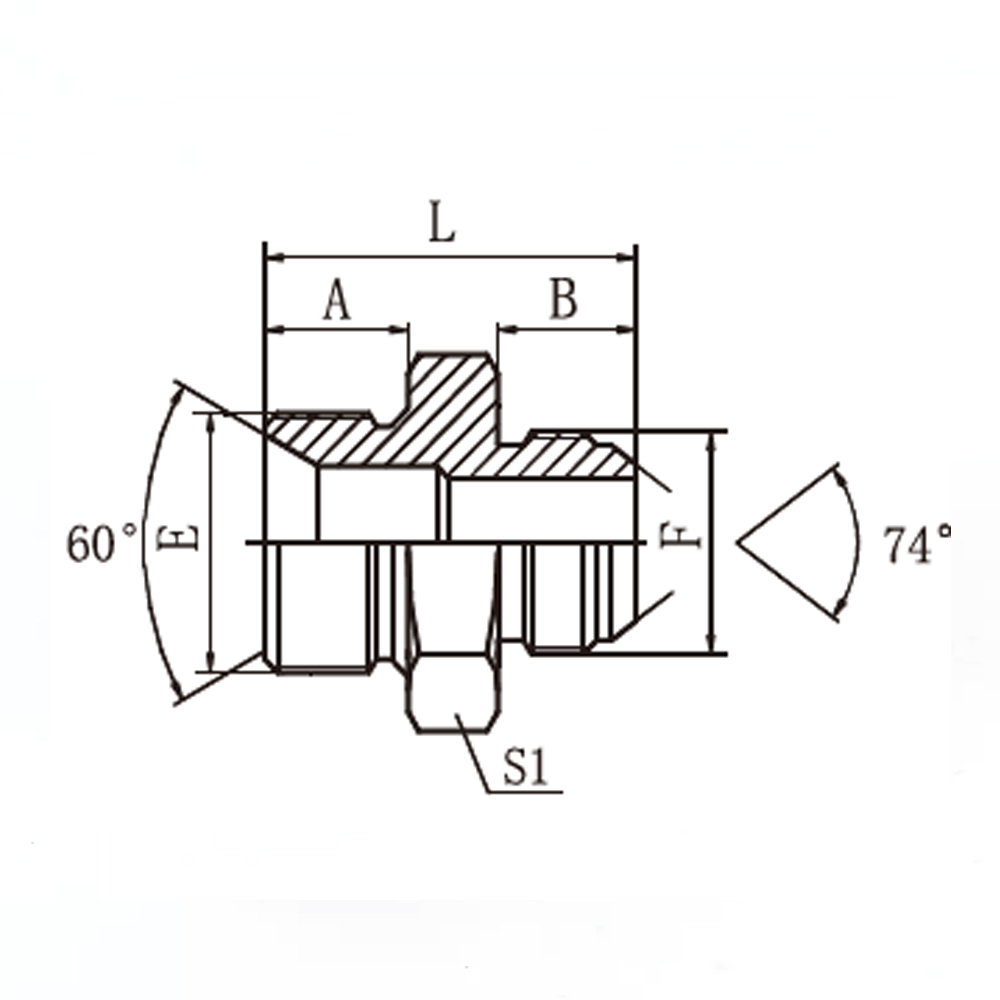

PART NO.	THREAD	DIMENSIONS
PART NO.	E	F	A	B	L	S1
1BJ-02-04	G1/8″X28	7/16″X20	10	14	30	14
1BJ-02-05	G1/8″X28	1/2″X20	10	14	30	14
1BJ-04	G1/4″X19	7/16″X20	12	14	32	19
1BJ-04-05	G1/4″X19	1/2″X20	12	14	32	19
1BJ-06	G3/8″X19	9/16″X18	13.5	14	35.5	22
1BJ-06-05	G3/8″X19	1/2″X20	13.5	14	35.5	22
1BJ-06-08	G3/8″X19	3/4″X16	13.5	16.7	38.5	22
1BJ-08	G1/2″X14	3/4″X16	16	16.7	43	27
1BJ-08-06	G1/2″X14	9/16″X18	16	14	40	27
1BJ-08-10	G1/2″X14	7/8″X14	16	19.3	45.5	27
1BJ-10	G5/8″X14	7/8″X14	17.5	19.3	47	30
1BJ-10-08	G5/8″X14	3/4″X16	17.5	16.7	44	30
1BJ-10-12	G5/8″X14	1.1/16″X12	17.5	22	49.5	30
1BJ-12	G3/4″X14	1.1/16″X12	18.5	22	51.5	32
1BJ-12-10	G3/4″X14	7/8″X14	18.5	19.3	49	32
1BJ-12-14	G3/4″X14	1.3/16″X12	18.5	22.6	52	32
1BJ-16	G1″X11	1.5/16″X12	20.5	23.1	57	41
1BJ-16-14	G1″X11	1.3/16″X12	20.5	22.6	56	41
1BJ-16-20	G1″X11	1.5/8″X12	20.5	24.3	58	46
1BJ-20	G1.1/4″X11	1.5/8″X12	20.5	24.3	61.7	50
1BJ-20-16	G1.1/4″X11	1.5/16″X12	20.5	23.1	60.5	50
1BJ-20-24	G1.1/4″X11	1.7/8″X12	20.5	27.5	63	50
1BJ-24-20	G1.1/2″X11	1.5/8″X12	23	24.3	62.5	55
1BJ-24	G1.1/2″X11	1.7/8″X12	23	27.5	67.5	55
1BJ-24-32	G1.1/2″X11	2.1/2″X12	23	34	74	65
1BJ-32	G2″X11	2.1/2″X12	25.5	34	77.5	70
1BJ-32-24	G2″X11	1.7/8″X12	25.5	27.5	70	70

Click to enlarge

Category: BSP Hydraulic Adapter Tags: Male, JIC, O-ring, 1BJ, BSP

Description
Package& Shipping

Description

PART NO.	THREAD	DIMENSIONS
PART NO.	E	F	A	B	L	S1
1BJ-02-04	G1/8″X28	7/16″X20	10	14	30	14
1BJ-02-05	G1/8″X28	1/2″X20	10	14	30	14
1BJ-04	G1/4″X19	7/16″X20	12	14	32	19
1BJ-04-05	G1/4″X19	1/2″X20	12	14	32	19
1BJ-06	G3/8″X19	9/16″X18	13.5	14	35.5	22
1BJ-06-05	G3/8″X19	1/2″X20	13.5	14	35.5	22
1BJ-06-08	G3/8″X19	3/4″X16	13.5	16.7	38.5	22
1BJ-08	G1/2″X14	3/4″X16	16	16.7	43	27
1BJ-08-06	G1/2″X14	9/16″X18	16	14	40	27
1BJ-08-10	G1/2″X14	7/8″X14	16	19.3	45.5	27
1BJ-10	G5/8″X14	7/8″X14	17.5	19.3	47	30
1BJ-10-08	G5/8″X14	3/4″X16	17.5	16.7	44	30
1BJ-10-12	G5/8″X14	1.1/16″X12	17.5	22	49.5	30
1BJ-12	G3/4″X14	1.1/16″X12	18.5	22	51.5	32
1BJ-12-10	G3/4″X14	7/8″X14	18.5	19.3	49	32
1BJ-12-14	G3/4″X14	1.3/16″X12	18.5	22.6	52	32
1BJ-16	G1″X11	1.5/16″X12	20.5	23.1	57	41
1BJ-16-14	G1″X11	1.3/16″X12	20.5	22.6	56	41
1BJ-16-20	G1″X11	1.5/8″X12	20.5	24.3	58	46
1BJ-20	G1.1/4″X11	1.5/8″X12	20.5	24.3	61.7	50
1BJ-20-16	G1.1/4″X11	1.5/16″X12	20.5	23.1	60.5	50
1BJ-20-24	G1.1/4″X11	1.7/8″X12	20.5	27.5	63	50
1BJ-24-20	G1.1/2″X11	1.5/8″X12	23	24.3	62.5	55
1BJ-24	G1.1/2″X11	1.7/8″X12	23	27.5	67.5	55
1BJ-24-32	G1.1/2″X11	2.1/2″X12	23	34	74	65
1BJ-32	G2″X11	2.1/2″X12	25.5	34	77.5	70
1BJ-32-24	G2″X11	1.7/8″X12	25.5	27.5	70	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
