50041 45 Elbow Metric Standpipe Fittings

Description:

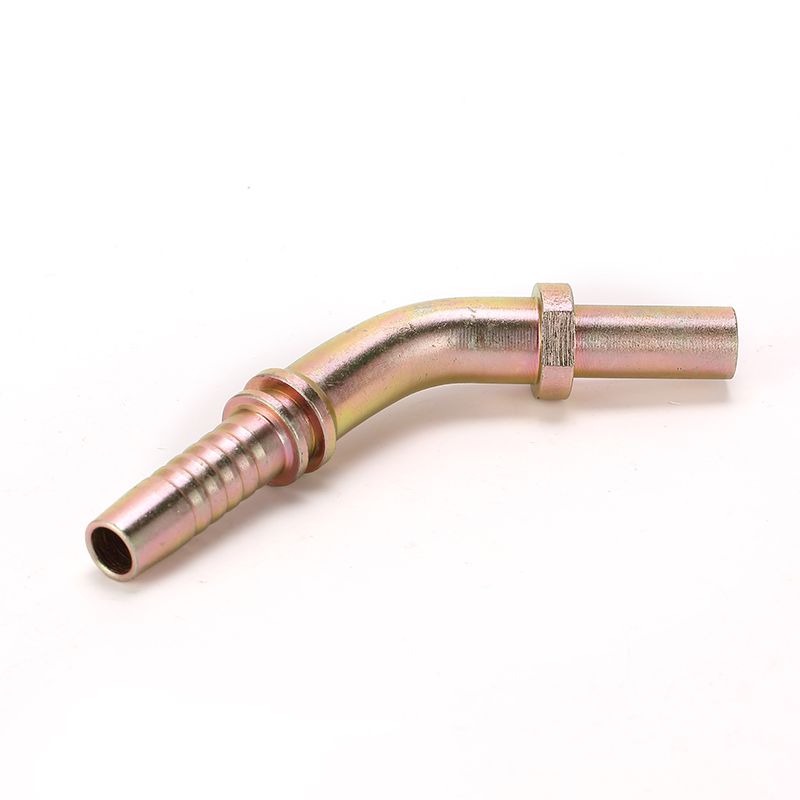

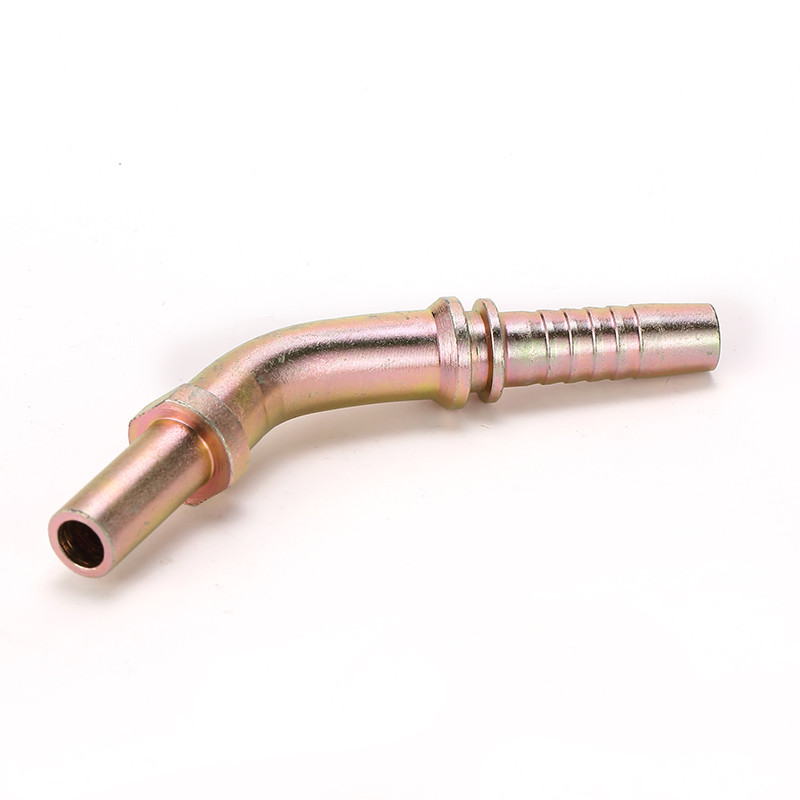

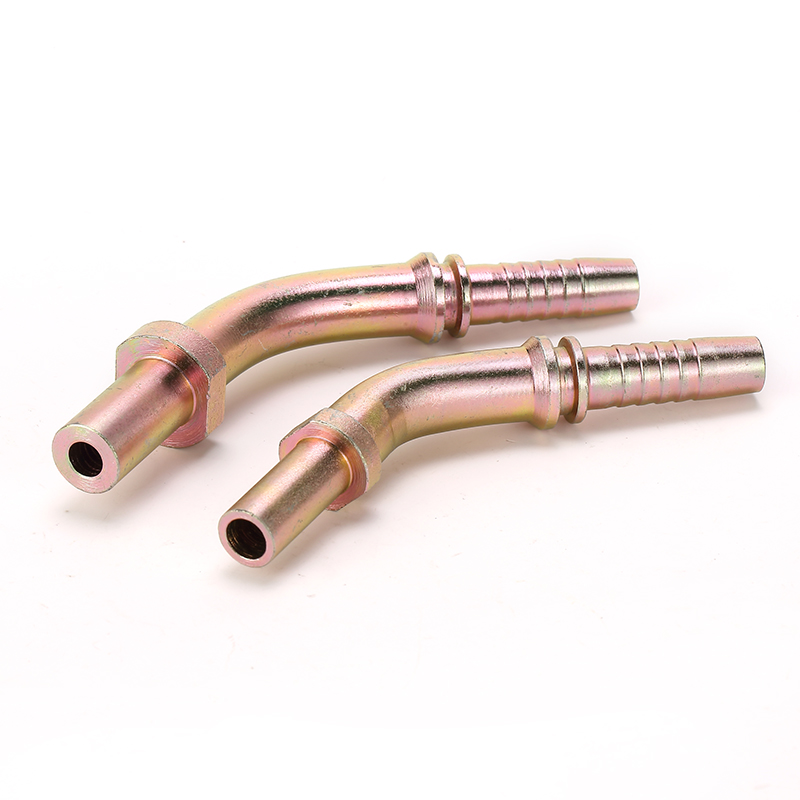

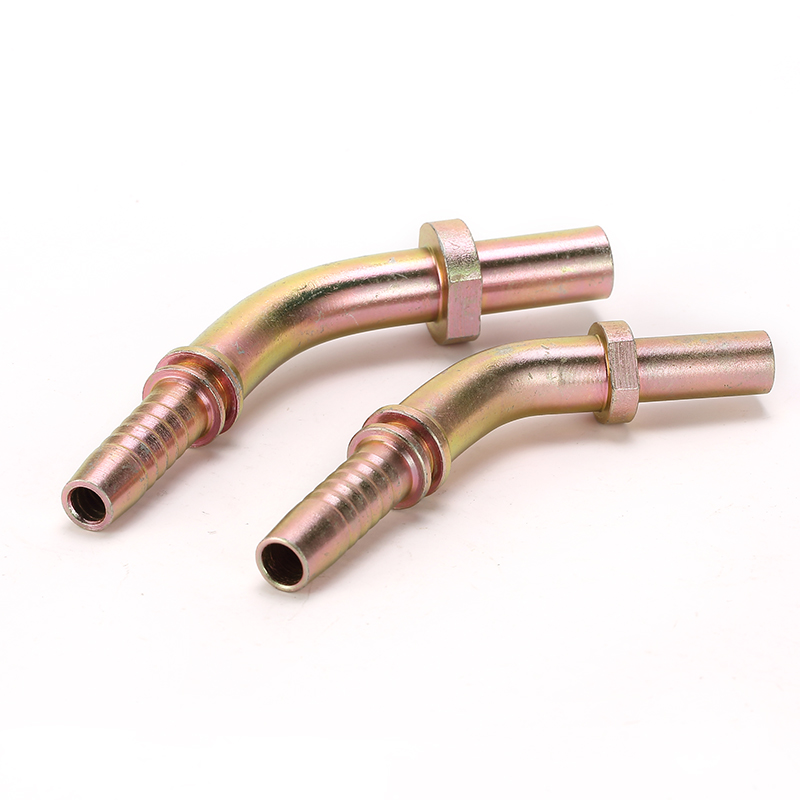

The 50041 metric standpipe fitting is a 45-degree fitting featuring a metric thread on one end and a smooth hose tail on the other. The smooth hose tail is designed to connect with a hose that has a matching inside diameter.

"*" indicates required fields

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

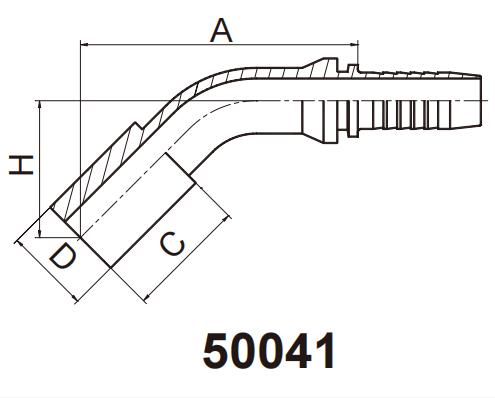

PART NO.	TUBEO.D	HOSE BORE		DIMENSIONS			NOTE
PART NO.	TUBEO.D	DN	DASH	A	C	H	NOTE
50041-06-03	6	5	03	47.8	22	27.5	LIGHT TYPE
50041-06-04	6	6	04	52.2	22	30.1
50041-08-05	8	8	05	55.7	24	32.4
50041-08-06	8	10	06	57.9	24	33.1
50041-10-05	10	8	05	54	23	30.6
50041-10-06	10	10	06	56.1	23	31.3
50041-12-06	12	10	06	58.5	23	34.5
50041-12-08	12	12	08	72.4	23	37.4
50041-15-06	15	10	06	59.3	25	34.5
50041-15-08	15	12	08	70.6	25	35.7
50041-18-08	18	12	08	73.4	26	38.5
50041-18-10	18	16	10	84.6	26	39.8
50041-22-10	22	16	10	87.1	28	42.3
50041-22-12	22	20	12	39.3	28	45.9
50041-22-16	22	25	16	100.9	28	46.7
50041-28-16	28	25	16	103.7	30	49.5
50041-35-20	35	32	20	118.5	36	57.8
50041-08-04	8	6	04	53.6	24	31.5	HEAVY TYPE
50041-10-04	10	6	04	54	26	31.9
50041-12-04	12	6	04	57.1	26	35.1
50041-12-05	12	8	05	59.2	26	35.9
50041-14-06	14	10	06	61.6	29	37.3
50041-14-08	14	12	08	73.8	29	38.8
50041-14-12	14	20	12	91.9	29	43.8
50041-16-08	16	12	08	76.6	30	41.7
50041-16-10	16	16	10	87.8	30	43
50041-20-10	20	16	10	92.8	36	48
50041-20-12	20	20	12	110.7	36	52.6
50041-25-12	25	20	12	101.8	40	54.5
50041-25-16	25	25	16	109.4	40	55.2
50041-30-16	30	25	16	113.6	44	59.4
50041-30-20	30	32	20	124.2	44	63.5
50041-38-16	38	25	16	117.9	50	63.6
50041-38-20	38	32	20	128.4	50	67.7

Click to enlarge

Category: Metric Hose Fittings Tags: Carbon Steel, Metric hose fitting, Female

Description
Package& Shipping

Description

PART NO.	TUBEO.D	HOSE BORE		DIMENSIONS			NOTE
PART NO.	TUBEO.D	DN	DASH	A	C	H	NOTE
50041-06-03	6	5	03	47.8	22	27.5	LIGHT TYPE
50041-06-04	6	6	04	52.2	22	30.1
50041-08-05	8	8	05	55.7	24	32.4
50041-08-06	8	10	06	57.9	24	33.1
50041-10-05	10	8	05	54	23	30.6
50041-10-06	10	10	06	56.1	23	31.3
50041-12-06	12	10	06	58.5	23	34.5
50041-12-08	12	12	08	72.4	23	37.4
50041-15-06	15	10	06	59.3	25	34.5
50041-15-08	15	12	08	70.6	25	35.7
50041-18-08	18	12	08	73.4	26	38.5
50041-18-10	18	16	10	84.6	26	39.8
50041-22-10	22	16	10	87.1	28	42.3
50041-22-12	22	20	12	39.3	28	45.9
50041-22-16	22	25	16	100.9	28	46.7
50041-28-16	28	25	16	103.7	30	49.5
50041-35-20	35	32	20	118.5	36	57.8
50041-08-04	8	6	04	53.6	24	31.5	HEAVY TYPE
50041-10-04	10	6	04	54	26	31.9
50041-12-04	12	6	04	57.1	26	35.1
50041-12-05	12	8	05	59.2	26	35.9
50041-14-06	14	10	06	61.6	29	37.3
50041-14-08	14	12	08	73.8	29	38.8
50041-14-12	14	20	12	91.9	29	43.8
50041-16-08	16	12	08	76.6	30	41.7
50041-16-10	16	16	10	87.8	30	43
50041-20-10	20	16	10	92.8	36	48
50041-20-12	20	20	12	110.7	36	52.6
50041-25-12	25	20	12	101.8	40	54.5
50041-25-16	25	25	16	109.4	40	55.2
50041-30-16	30	25	16	113.6	44	59.4
50041-30-20	30	32	20	124.2	44	63.5
50041-38-16	38	25	16	117.9	50	63.6
50041-38-20	38	32	20	128.4	50	67.7

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

50041 45 Elbow Metric Standpipe Fittings

Package:

Delivery Time:
