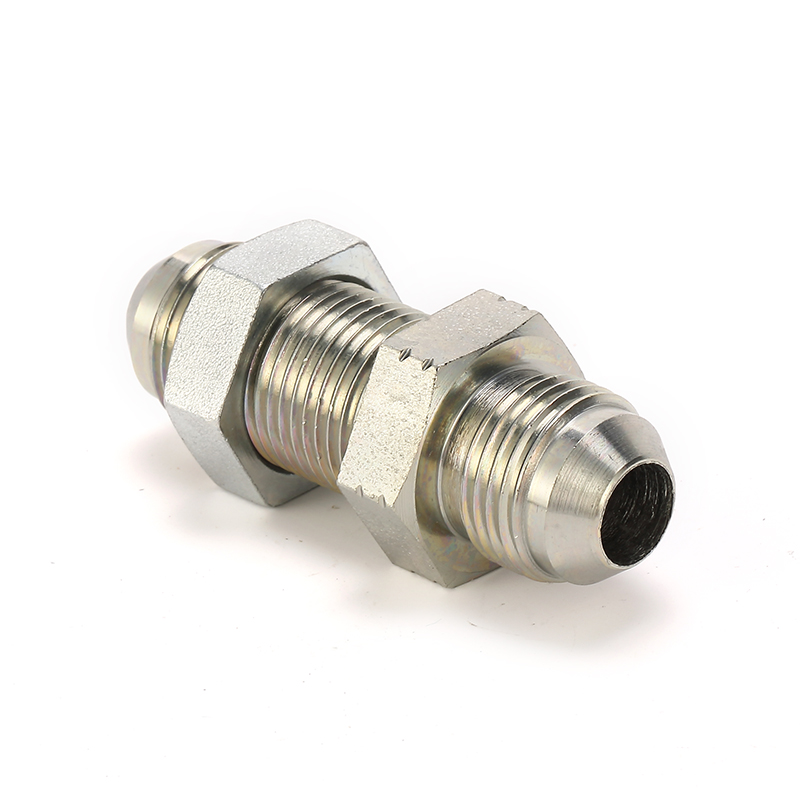

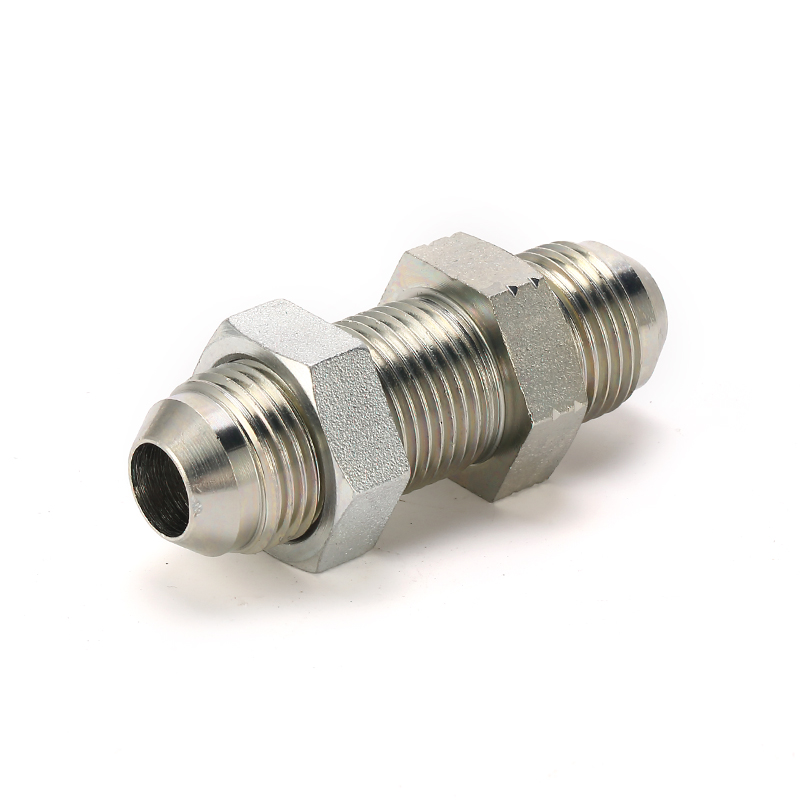

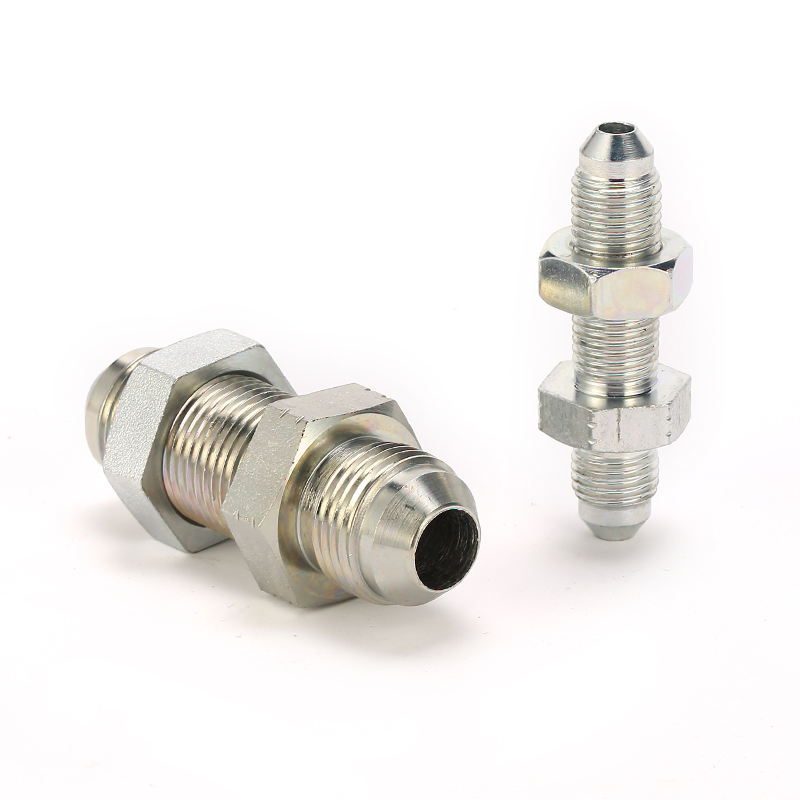

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 6J-04LN | 7/16＂X20 | 7/16＂X20 | 14 | 30.5 | 52.6 | 17 | 17 |
| 6J-05LN | 1/2＂X20 | 1/2＂X20 | 14 | 30.5 | 52.6 | 19 | 19 |
| 6J-06LN | 9/16＂X18 | 9/16＂X18 | 14.1 | 32.5 | 55.4 | 22 | 22 |
| 6J-08LN | 3/4＂X16 | 3/4＂X16 | 16.7 | 36.5 | 62 | 24 | 24 |
| 6J-10LN | 7/8＂X14 | 7/8＂X14 | 19.3 | 40.1 | 69.6 | 30 | 30 |
| 6J-12LN | 1.1/16＂X12 | 1.1/16＂X12 | 21.9 | 44.4 | 78.5 | 36 | 36 |
| 6J-14LN | 1.3/16＂X12 | 1.3/16＂X12 | 22.6 | 44.4 | 79.2 | 38 | 38 |
| 6J-16LN | 1.5/16＂X12 | 1.5/16＂X12 | 23.1 | 44.4 | 79.8 | 41 | 41 |
| 6J-20LN | 1.5/8＂X12 | 1.5/8＂X12 | 24.3 | 45.7 | 84.1 | 50 | 50 |
| 6J-24LN | 1.7/8＂X12 | 1.7/8＂X12 | 27.5 | 46 | 89.4 | 55 | 55 |
| 6J-32LN | 2.1/2＂X12 | 2.1/2＂X12 | 33.9 | 53.1 | 106.7 | 70 | 70 |
