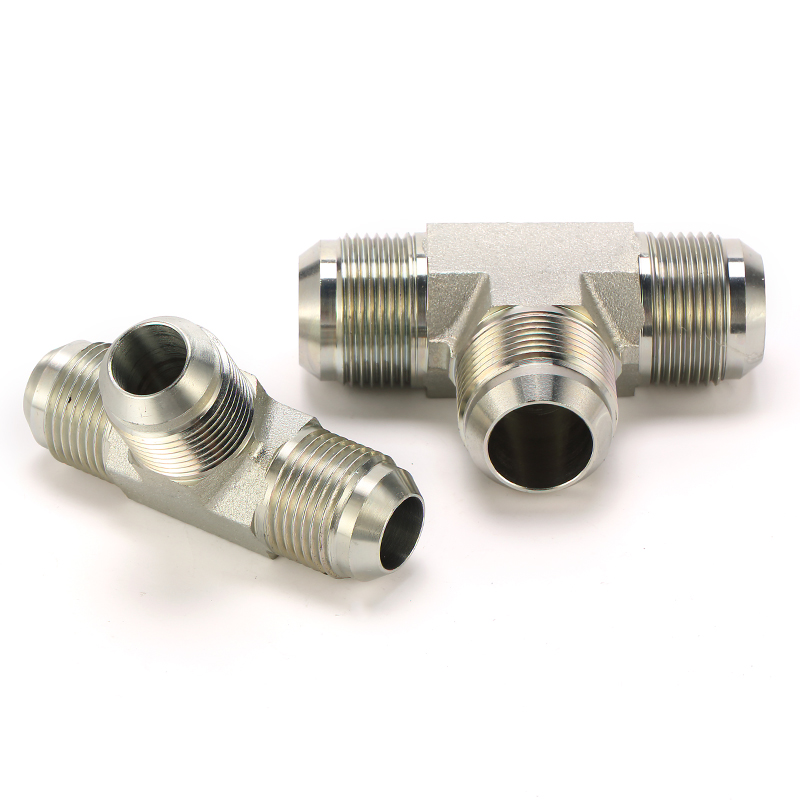

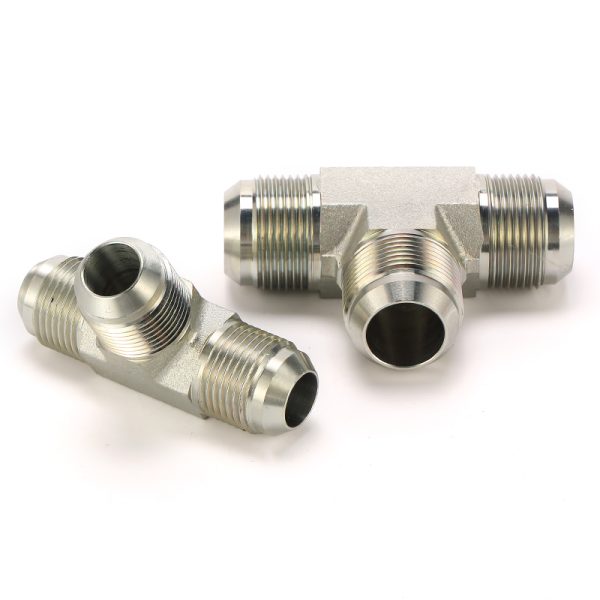

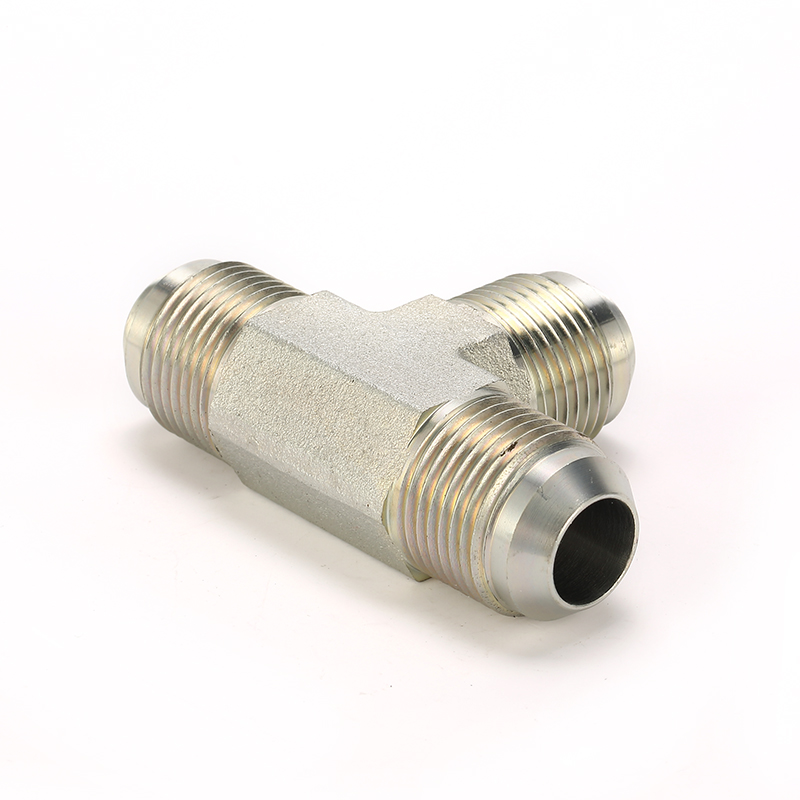

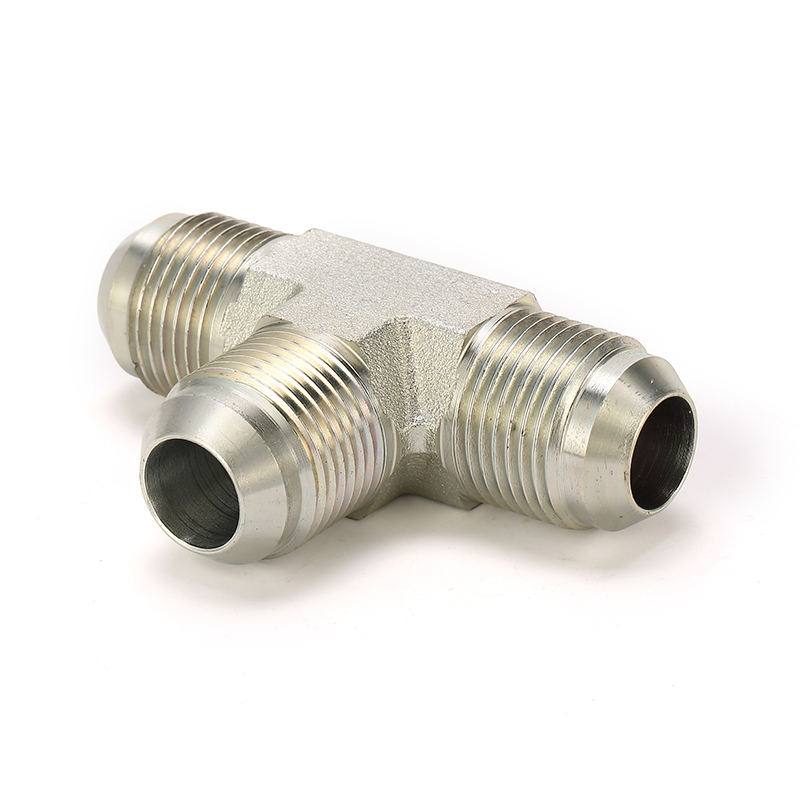

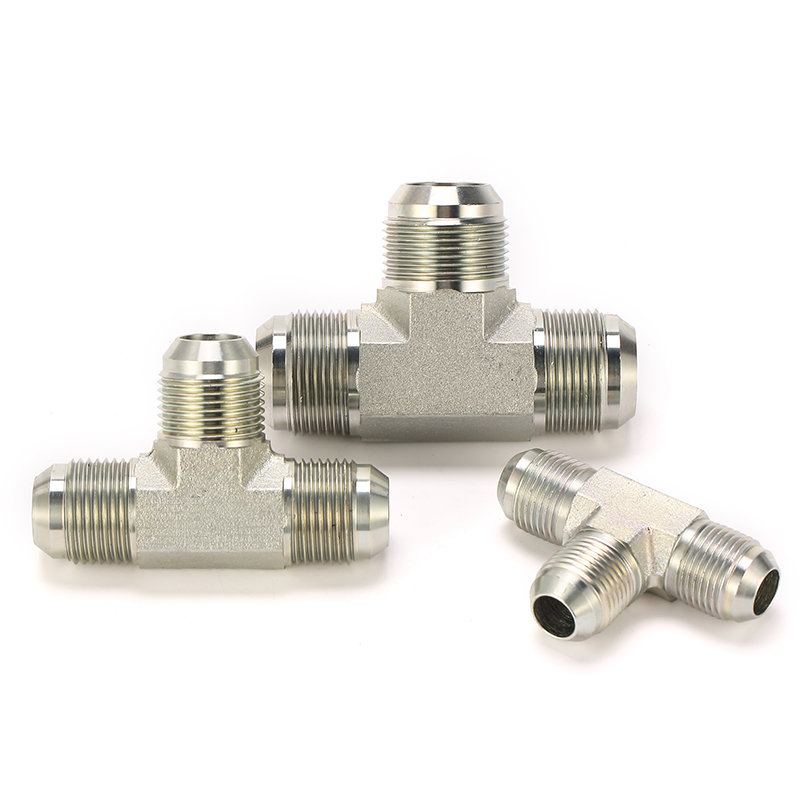

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | DIMENSIONS | |||||

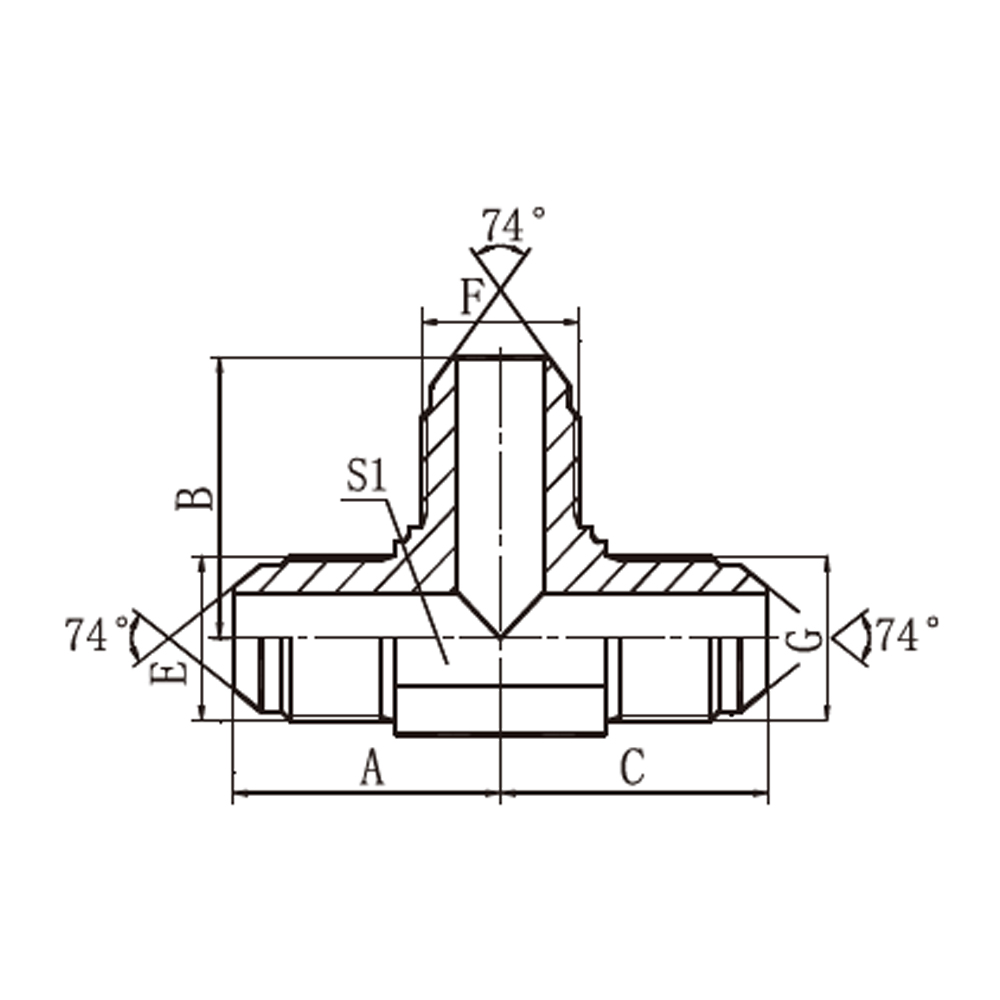

| E | F | G | A | B | C | S1 | |
| AJ-04 | 7/16″X20 | 7/16″X20 | 7/16″X20 | 24.5 | 24.5 | 24.5 | 11 |
| AJ-04-06-04 | 7/16″X20 | 9/16″X18 | 7/16″X20 | 26.6 | 26.6 | 26.6 | 14 |
| AJ-05 | 1/2″X20 | 1/2″X20 | 1/2″X20 | 26 | 26 | 26 | 14 |
| AJ-06-04-06 | 9/16″X18 | 7/16″X20 | 9/16″X18 | 26.9 | 26.9 | 26.9 | 14 |
| AJ-06 | 9/16″X18 | 9/16″X18 | 9/16″X18 | 26.9 | 26.9 | 26.9 | 14 |
| AJ-08 | 3/4″X16 | 3/4″X16 | 3/4″X16 | 32 | 32 | 32 | 19 |
| AJ-08-06-08 | 3/4″X16 | 9/16″X18 | 3/4″X16 | 32 | 30 | 32 | 19 |
| AJ-10 | 7/8″X14 | 7/8″X14 | 7/8″X14 | 37.8 | 37.8 | 37.8 | 22 |
| AJ-12 | 1.1/16″X12 | 1.1/16″X12 | 1.1/16″X12 | 44.2 | 44.2 | 44.2 | 27 |
| AJ-16 | 1.5/16″X12 | 1.5/16″X12 | 1.5/16″X12 | 49 | 49 | 49 | 33 |
| AJ-16-12-16 | 1.5/16″X12 | 1.1/16″X12 | 1.5/16″X12 | 49 | 49 | 49 | 33 |
| AJ-20 | 1.5/8″X12 | 1.5/8″X12 | 1.5/8″X12 | 56.5 | 56.5 | 56.5 | 41 |
| AJ-24 | 1.7/8″X12 | 1.7/8″X12 | 1.7/8″X12 | 63 | 63 | 63 | 48 |
| AJ-32 | 2.1/2″X11 | 2.1/2″X11 | 2.1/2″X11 | 78 | 78 | 78 | 63 |
