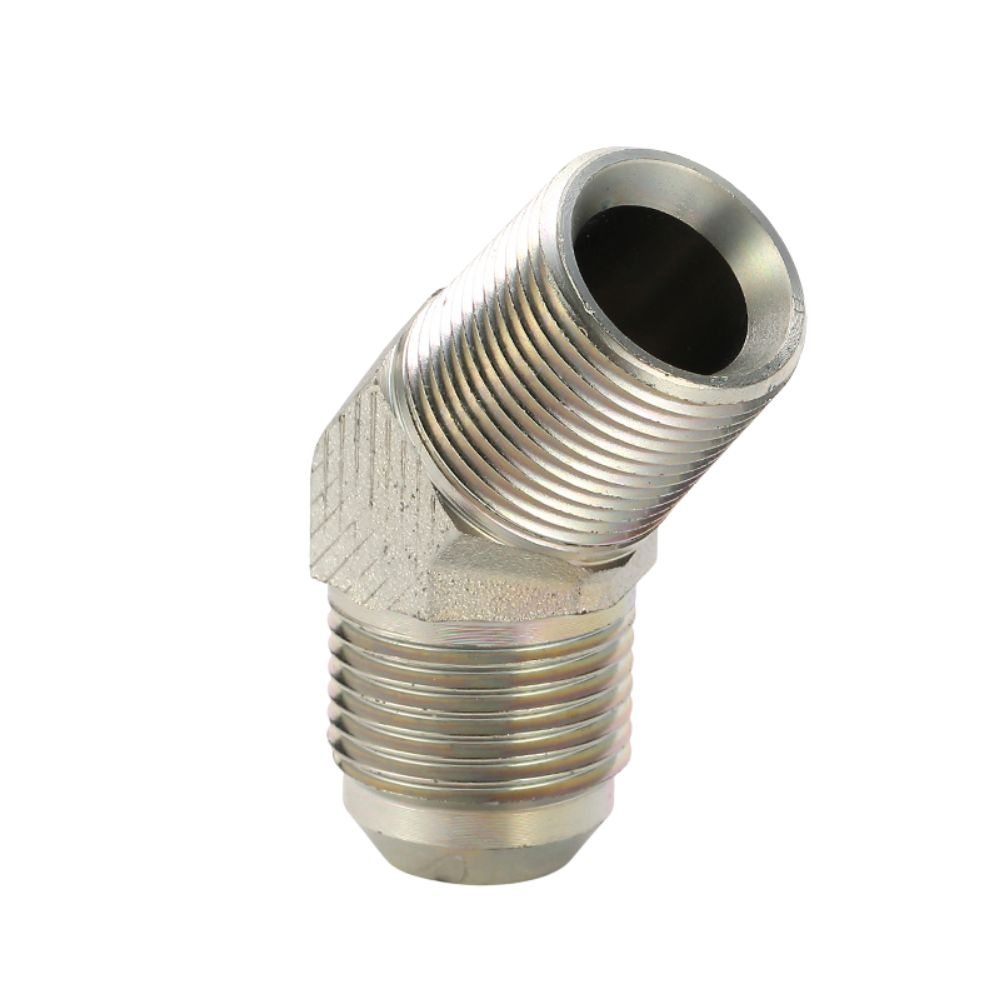

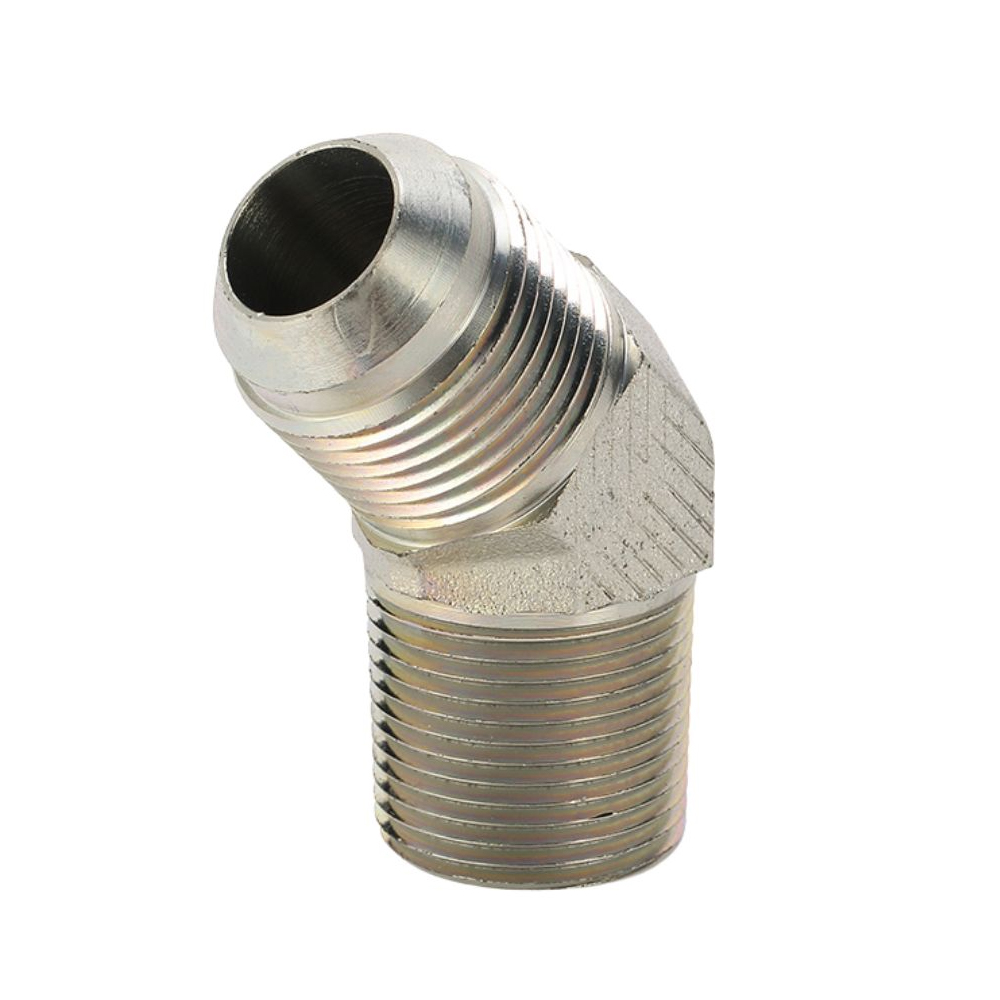

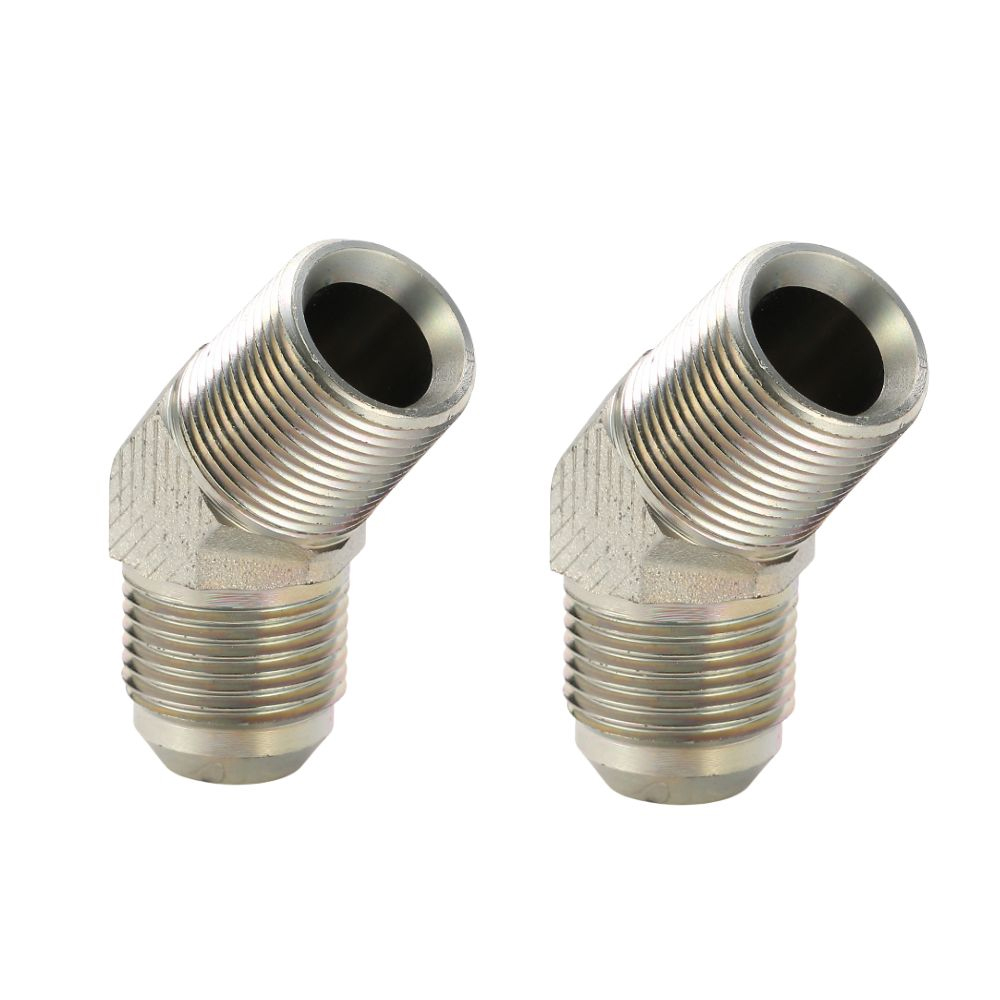

1JN4 JIC to NPT 45° Elbow Hydraulic Fitting

Description:

1JN4-JIC to NPT hydraulic fittings have an NPT (National Pipe Taper) connection on one end and a JIC (Joint Industry Council) connection on the other end. And they also have a 45-degree elbow.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

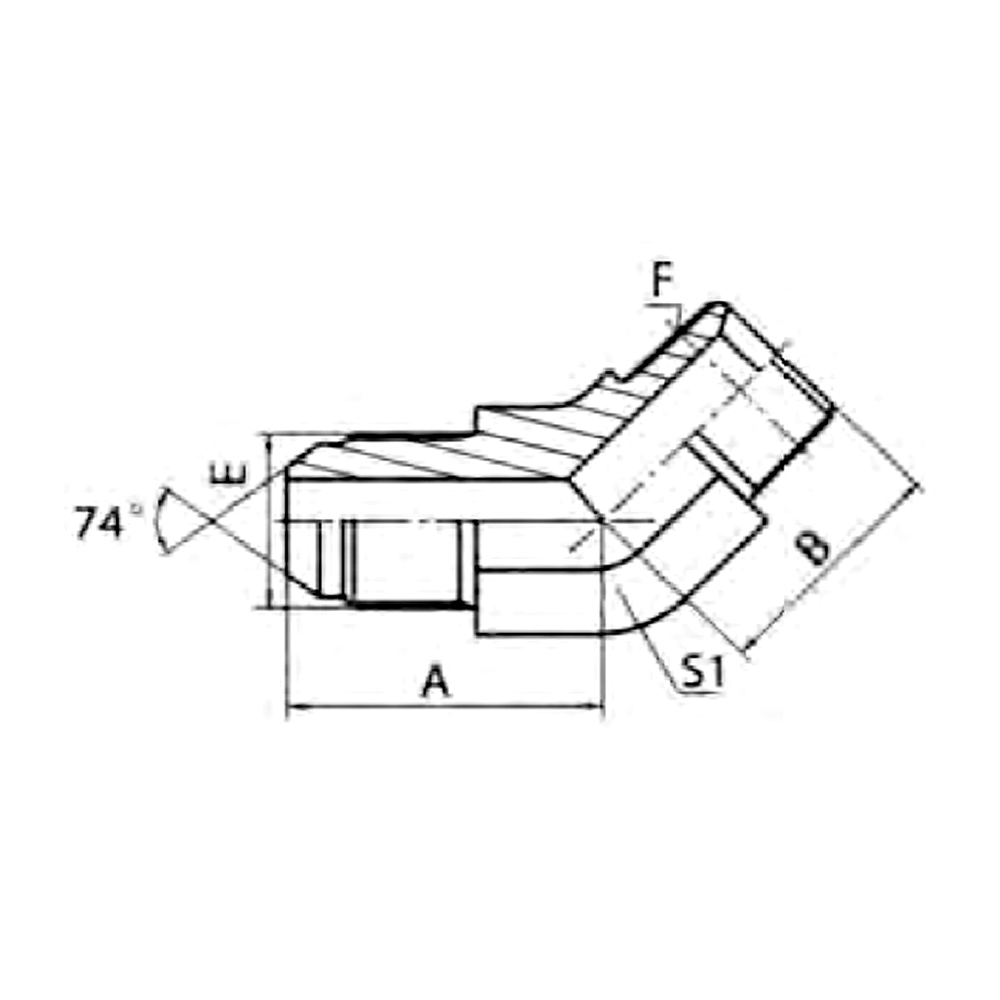

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1JN4-02	5/16″X24	Z1/8″X27	18	17	11
1JN4-03-02	3/8″X24	Z1/8″X27	19	17	11
1JN4-04-02	7/16″X20	Z1/8″X27	21.5	17	11
1JN4-04	7/16″X20	Z1/4″X18	22.3	21	14
1JN4-04-06	7/16″X20	Z3/8″X18	23	24.5	19
1JN4-04-08	7/16″X20	Z1/2″X14	24.5	29.5	22
1JN4-05-02	1/2″X20	Z1/8″X27	22.3	18	14
1JN4-05-04	1/2″X20	Z1/4″X18	22.3	21	14
1JN4-06-02	9/16″X18	Z1/8″X27	22.8	17.3	14
1JN4-06-04	9/16″X18	Z1/4″X18	22.8	21	14
1JN4-06	9/16″X18	Z3/8″X18	24	24	19
1JN4-06-08	9/16″X18	Z1/2″X14	25	29.5	22
1JN4-08-04	3/4″X16	Z1/4″X18	26.8	22	19
1JN4-08-06	3/4″X16	Z3/8″X18	26.8	24	19
1JN4-08	3/4″X16	Z1/2″X14	28	29.5	22
1JN4-08-12	3/4″X16	Z3/4″X14	29	35	27
1JN4-10-08	7/8″X14	Z1/2″X14	31	29.5	22
1JN4-10-12	7/8″X14	Z3/4″X14	32	35	27
1JN4-12-08	1.1/16″X12	Z1/2″X14	35.5	31	27
1JN4-12	1.1/16″X12	Z3/4″X14	35.5	35	27
1JN4-12-16	1.1/16″X12	Z1″X11.5	37.5	39	33
1JN4-14-12	1.3/16″X12	Z3/4″X14	37	35.5	30
1JN4-16-12	1.5/16″X12	Z3/4″X14	38.5	36.5	33
1JN4-16	1.5/16″X12	Z1″X11.5	38.5	39	33
1JN4-16-20	1.5/16″X12	Z1.1/4″X11.5	42	42.5	41
1JN4-20-16	1.5/8″X12	Z1″X11.5	43	42.5	41
1JN4-20	1.5/8″X12	Z1.1/4″X11.5	43	42	41
1JN4-20-24	1.5/8″X12	Z1.1/2″X11.5	46	45	48
1JN4-24	1.7/8″X12	Z1.1/2″X11.5	49	45	48

Click to enlarge

Category: JIC Flared Adapter Tags: JIC 37°, NPT, Male, JIC, 1JN4

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1JN4-02	5/16″X24	Z1/8″X27	18	17	11
1JN4-03-02	3/8″X24	Z1/8″X27	19	17	11
1JN4-04-02	7/16″X20	Z1/8″X27	21.5	17	11
1JN4-04	7/16″X20	Z1/4″X18	22.3	21	14
1JN4-04-06	7/16″X20	Z3/8″X18	23	24.5	19
1JN4-04-08	7/16″X20	Z1/2″X14	24.5	29.5	22
1JN4-05-02	1/2″X20	Z1/8″X27	22.3	18	14
1JN4-05-04	1/2″X20	Z1/4″X18	22.3	21	14
1JN4-06-02	9/16″X18	Z1/8″X27	22.8	17.3	14
1JN4-06-04	9/16″X18	Z1/4″X18	22.8	21	14
1JN4-06	9/16″X18	Z3/8″X18	24	24	19
1JN4-06-08	9/16″X18	Z1/2″X14	25	29.5	22
1JN4-08-04	3/4″X16	Z1/4″X18	26.8	22	19
1JN4-08-06	3/4″X16	Z3/8″X18	26.8	24	19
1JN4-08	3/4″X16	Z1/2″X14	28	29.5	22
1JN4-08-12	3/4″X16	Z3/4″X14	29	35	27
1JN4-10-08	7/8″X14	Z1/2″X14	31	29.5	22
1JN4-10-12	7/8″X14	Z3/4″X14	32	35	27
1JN4-12-08	1.1/16″X12	Z1/2″X14	35.5	31	27
1JN4-12	1.1/16″X12	Z3/4″X14	35.5	35	27
1JN4-12-16	1.1/16″X12	Z1″X11.5	37.5	39	33
1JN4-14-12	1.3/16″X12	Z3/4″X14	37	35.5	30
1JN4-16-12	1.5/16″X12	Z3/4″X14	38.5	36.5	33
1JN4-16	1.5/16″X12	Z1″X11.5	38.5	39	33
1JN4-16-20	1.5/16″X12	Z1.1/4″X11.5	42	42.5	41
1JN4-20-16	1.5/8″X12	Z1″X11.5	43	42.5	41
1JN4-20	1.5/8″X12	Z1.1/4″X11.5	43	42	41
1JN4-20-24	1.5/8″X12	Z1.1/2″X11.5	46	45	48
1JN4-24	1.7/8″X12	Z1.1/2″X11.5	49	45	48

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
