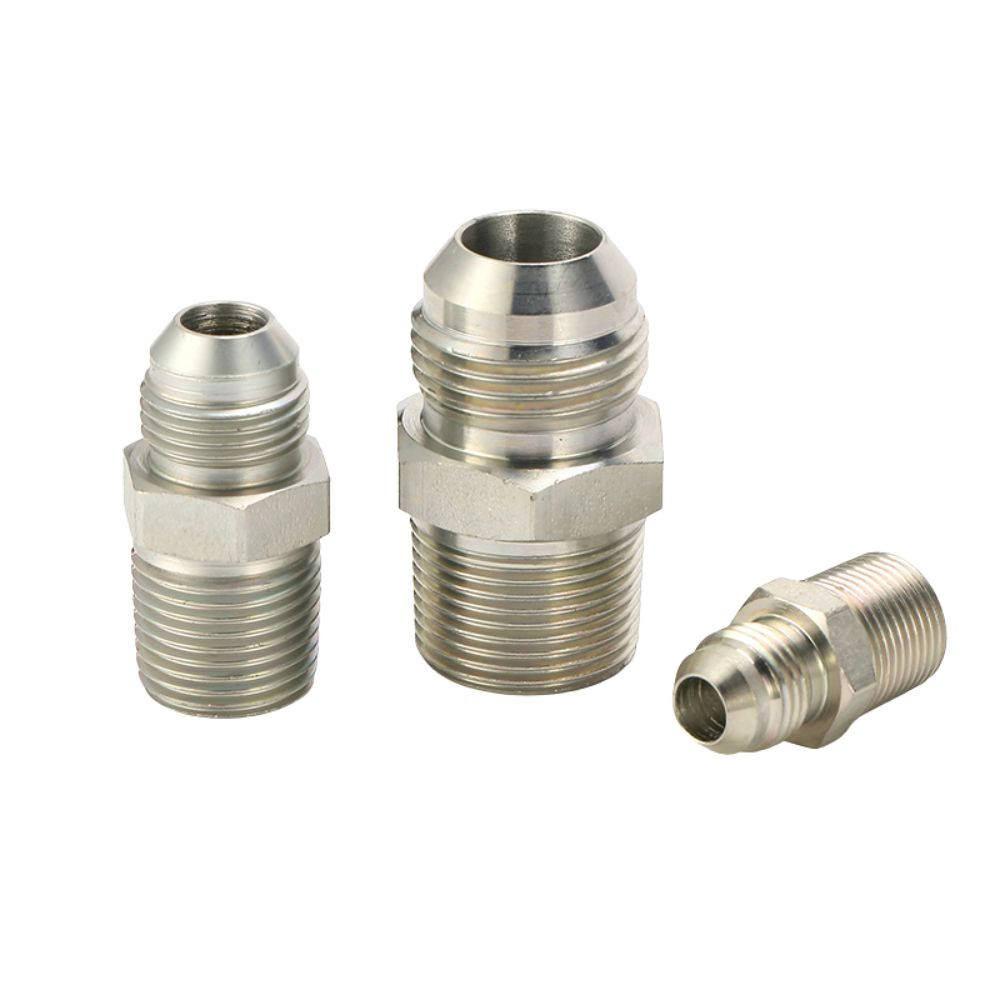

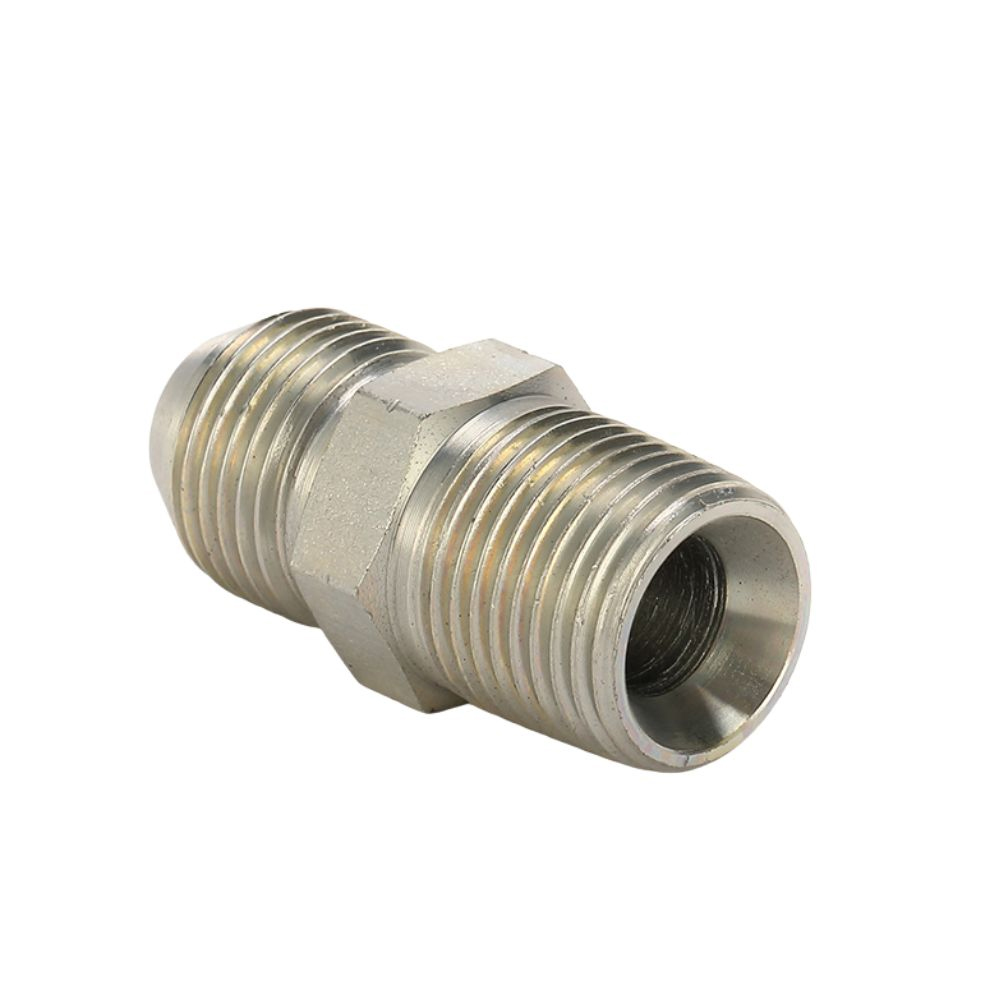

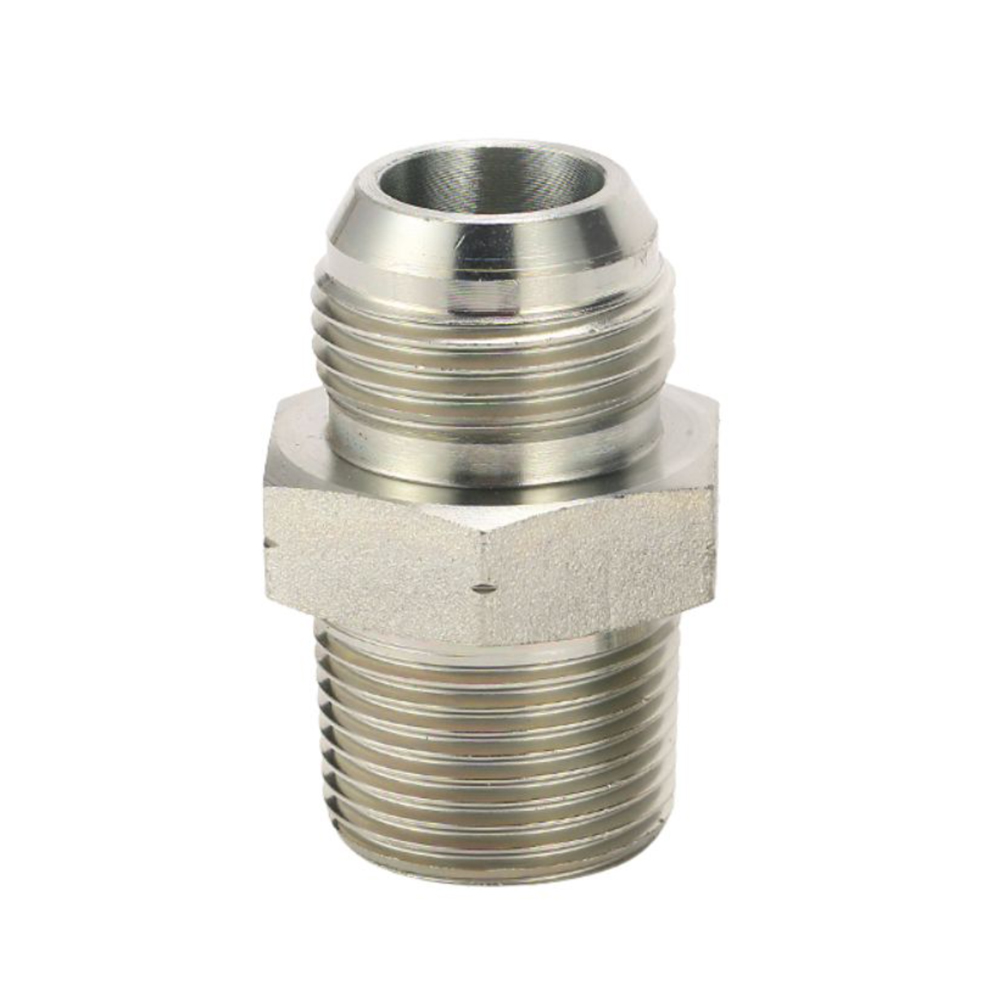

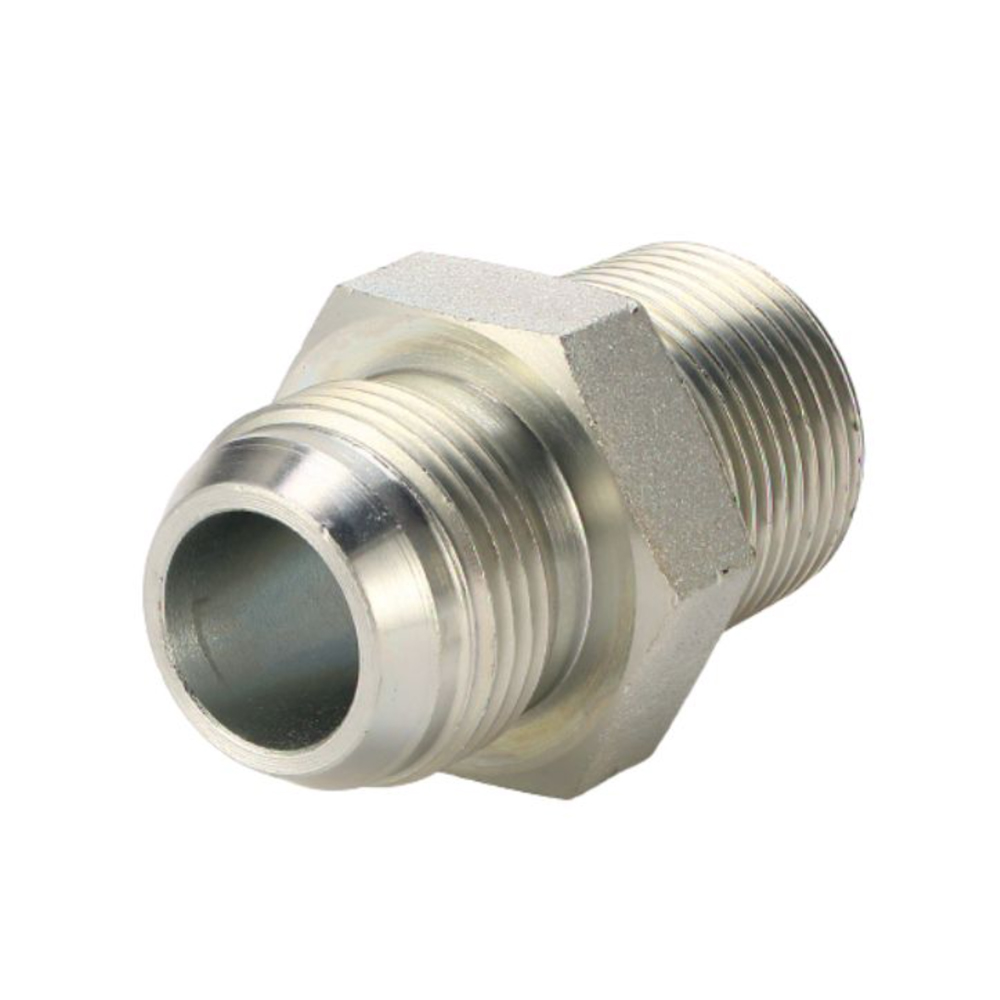

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

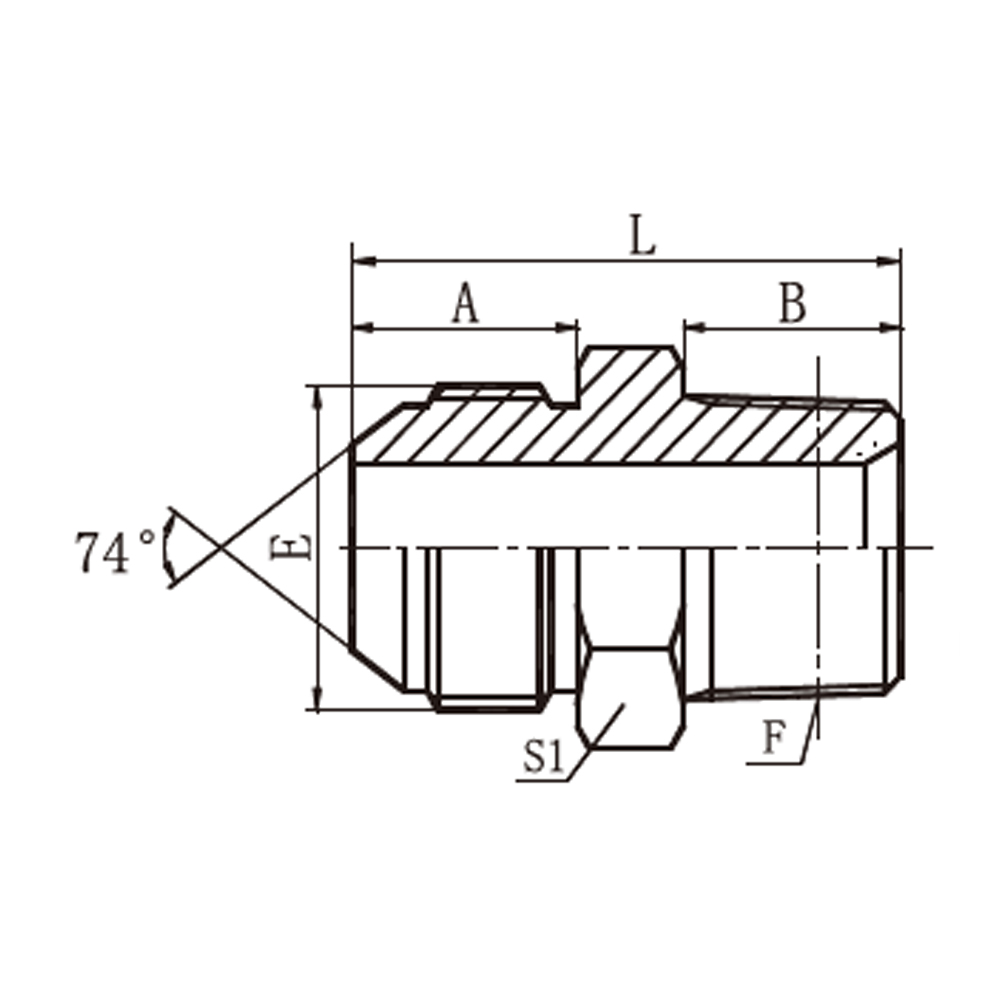

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | L | S1 | |
| 1JT-04-02SP | 7/16″X20 | R1/8″X28 | 14 | 10 | 30 | 12 |
| 1JT-04SP | 7/16″X20 | R1/4″X19 | 14 | 14.5 | 34.5 | 14 |
| 1JT-04-06SP | 7/16″X20 | R3/8″X19 | 14 | 15 | 35 | 17 |
| 1JT-05-02SP | 1/2″X20 | R1/8″X28 | 14 | 10.5 | 30.5 | 14 |
| 1JT-05-04SP | 1/2″X20 | R1/4″X19 | 14 | 14.5 | 34 | 14 |
| 1JT-05-06SP | 1/2″X20 | R3/8″X19 | 14 | 15 | 35 | 17 |
| 1JT-06-02SP | 9/16″X18 | R1/8″X28 | 14.1 | 10.5 | 30.5 | 17 |
| 1JT-06-04SP | 9/16″X18 | R1/4″X19 | 14.1 | 14.5 | 34 | 17 |
| 1JT-06SP | 9/16″X18 | R3/8″X19 | 14.1 | 15 | 34 | 17 |
| 1JT-06-08SP | 9/16″X18 | R1/2″X14 | 14.1 | 20 | 41 | 22 |
| 1JT-08-06SP | 3/4″X16 | R3/8″X19 | 16.7 | 15 | 39 | 22 |
| 1JT-08SP | 3/4″X16 | R1/2″X14 | 16.7 | 20 | 44.5 | 22 |
| 1JT-08-12SP | 3/4″X16 | R3/4″X14 | 16.7 | 20 | 46 | 30 |
| 1JT-10-06SP | 7/8″X14 | R3/8″X19 | 19.3 | 15 | 42.5 | 24 |
| 1JT-10-08SP | 7/8″X14 | R1/2″X14 | 19.3 | 20 | 46.5 | 24 |
| 1JT-10-12SP | 7/8″X14 | R3/4″X14 | 19.3 | 20 | 48.5 | 30 |
| 1JT-12-08SP | 1.1/16″X12 | R1/2″X14 | 21.9 | 20 | 51 | 30 |
| 1JT-12SP | 1.1/16″X12 | R3/4″X14 | 21.9 | 20 | 51 | 30 |
| 1JT-12-16SP | 1.1/16″X12 | R1″X11 | 21.9 | 25.5 | 57.5 | 36 |
| 1JT-14-12SP | 1.3/16″X12 | R3/4″X14 | 22.6 | 20 | 52.5 | 32 |
| 1JT-14-16SP | 1.3/16″X12 | R1″X11 | 22.6 | 25.5 | 57.5 | 36 |
| 1JT-16-12SP | 1.5/16″X12 | R3/4″X14 | 23.1 | 20 | 53 | 36 |
| 1JT-16SP | 1.5/16″X12 | R1″X11 | 23.1 | 25.5 | 59 | 36 |
| 1JT-16-20SP | 1.5/16″X12 | R1.1/4″X11 | 23.1 | 26.5 | 61.5 | 46 |
| 1JT-20-16SP | 1.5/8″X12 | R1″X11 | 24.3 | 25.5 | 62.5 | 46 |
| 1JT-20SP | 1.5/8″X12 | R1.1/4″X11 | 24.3 | 26.5 | 63 | 46 |
| 1JT-20-24SP | 1.5/8″X12 | R1.1/2″X14 | 24.3 | 26.5 | 66.5 | 50 |
| 1JT-24-20SP | 1.7/8″X12 | R1.1/4″X11 | 27.5 | 26.5 | 67.5 | 50 |
| 1JT-24SP | 1.7/8″X12 | R1.1/2″X11 | 27.5 | 26.5 | 69.5 | 50 |
| 1JT-24-32SP | 1.7/8″X12 | R2″X11 | 27.5 | 30 | 73.6 | 65 |
| 1JT-32-24SP | 2.1/2″X12 | R1.1/2″X11 | 33.9 | 26.5 | 77.5 | 65 |
