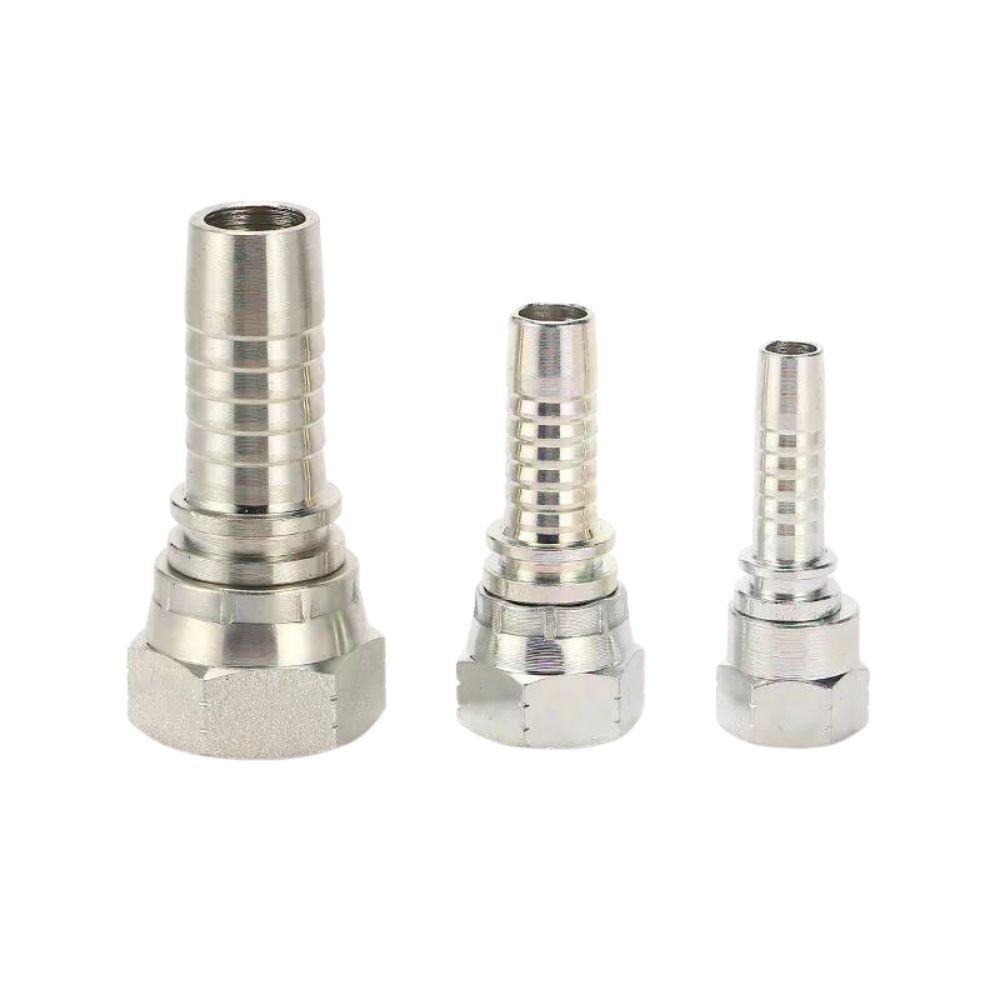

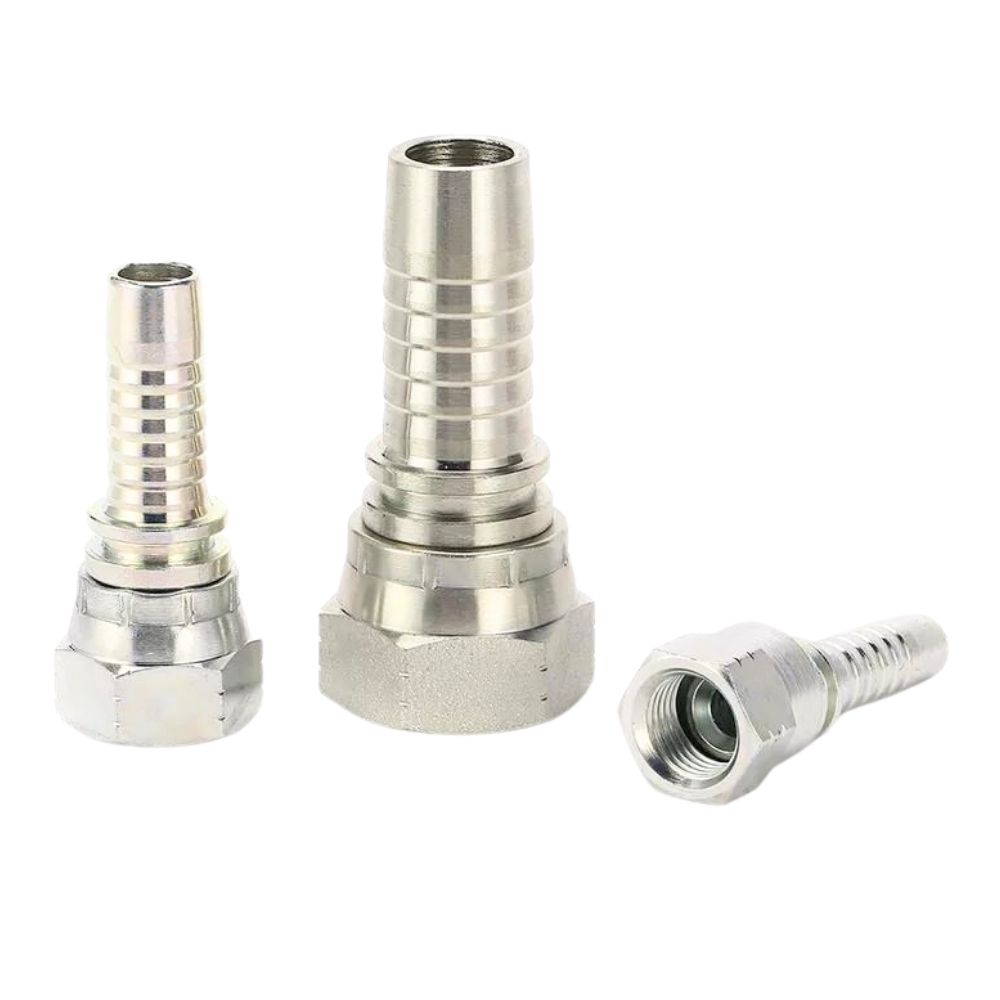

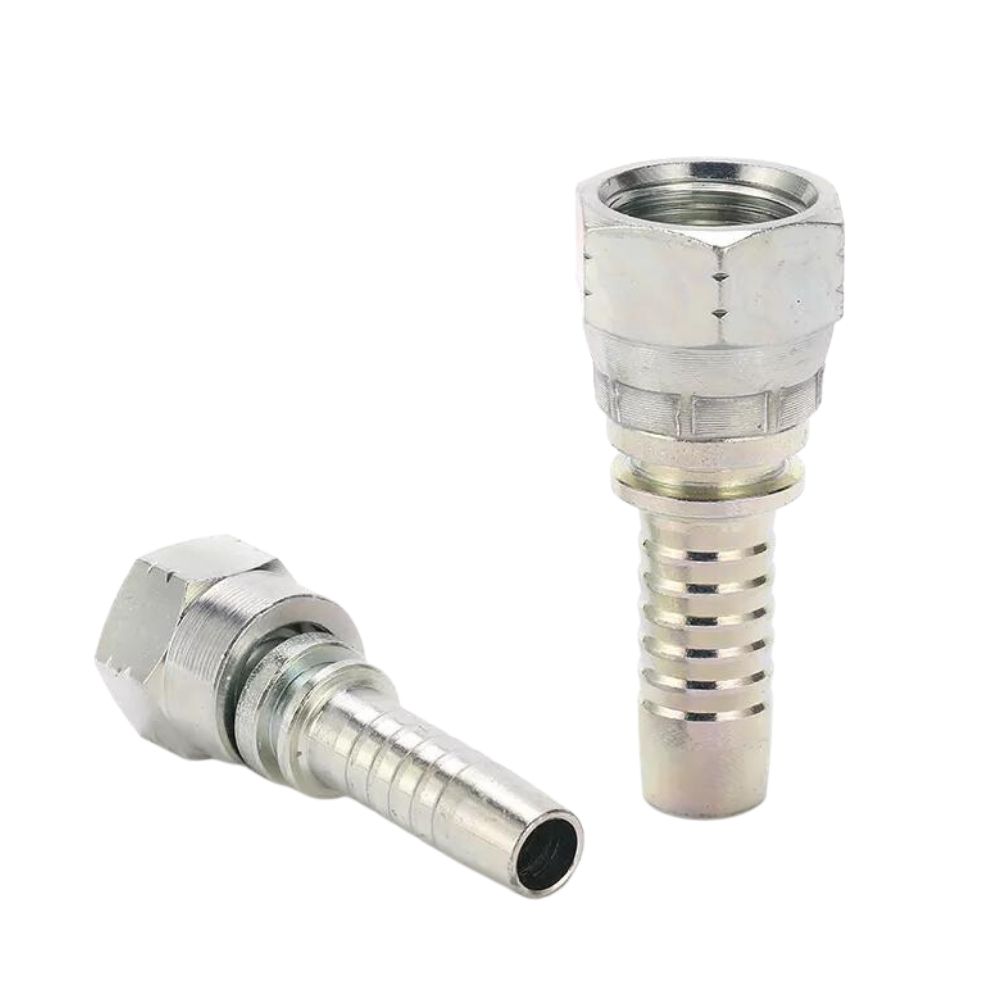

Our JIC hydraulic fittings include female, male, double nut, crimping nut, T nut, K type, straight, 45°, 90°. JIC hydraulic fittings are manufactured by Topol Power and designed according to industry standards and are suitable for high temperature and pressure environments.

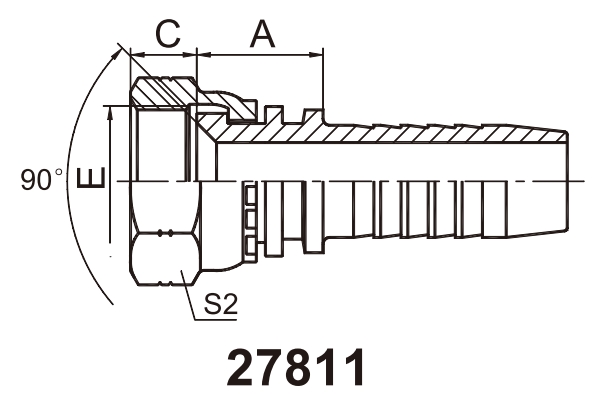

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 27811-04-03 | 7/16″X20 | 5 | 03 | 14 | 9 | 15 |
| 27811-04-04 | 7/16″X20 | 6 | 04 | 15 | 9 | 15 |
| 27811-05-05 | 1/2″X20 | 8 | 05 | 15.5 | 9.5 | 17 |
| 27811-06-04 | 5/8″X18 | 6 | 04 | 17 | 11.3 | 22 |
| 27811-06-05 | 5/8″X18 | 8 | 05 | 17 | 11.3 | 22 |
| 27811-06-06 | 5/8″X18 | 10 | 06 | 17 | 11.3 | 22 |
| 27811-08-08 | 3/4″X16 | 12 | 08 | 18 | 11 | 24 |
| 27811-10-08 | 7/8″X14 | 12 | 08 | 18.5 | 13 | 27 |
| 27811-10-10 | 7/8″X14 | 16 | 10 | 20 | 13 | 27 |
| 27811-12-12 | 1.1/16″X14 | 20 | 12 | 21.5 | 14.3 | 32 |
