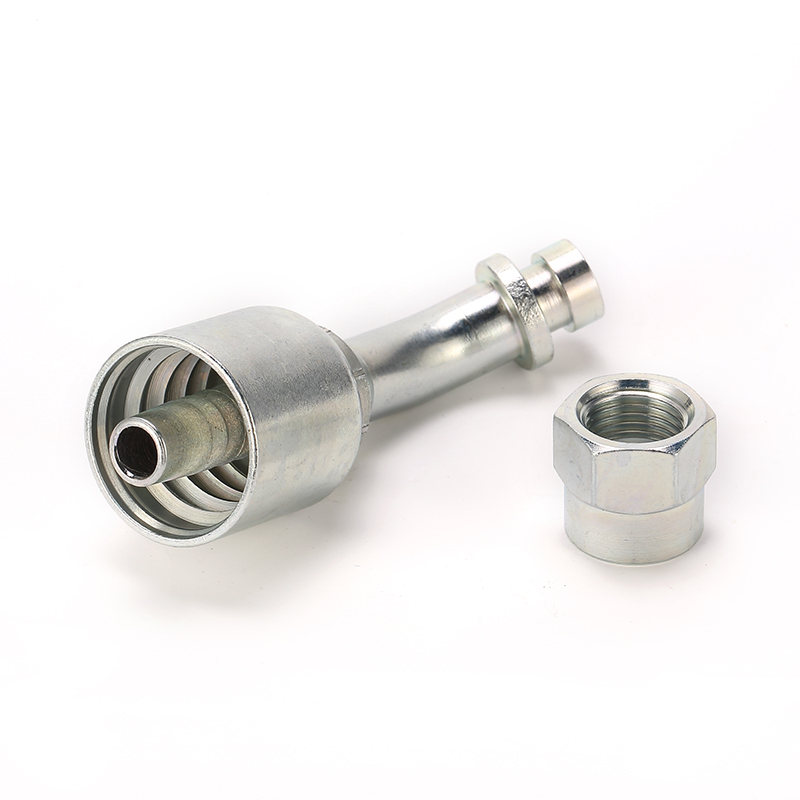

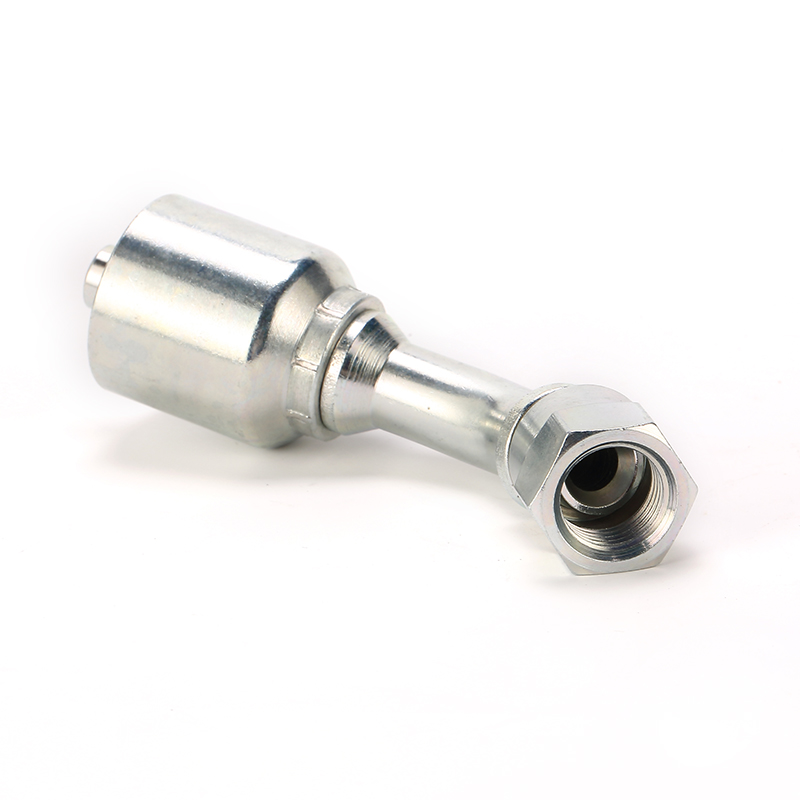

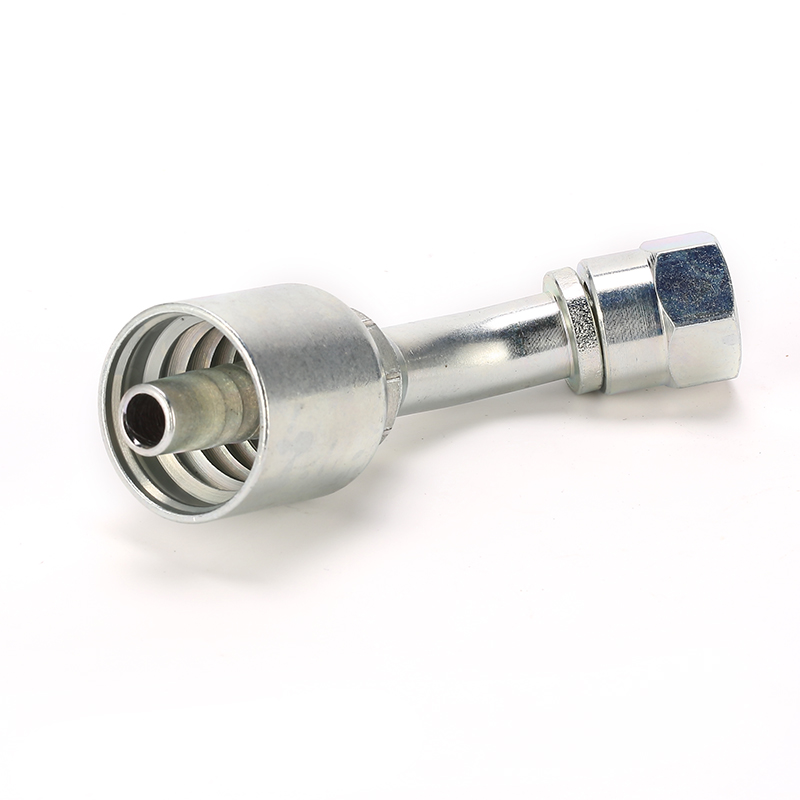

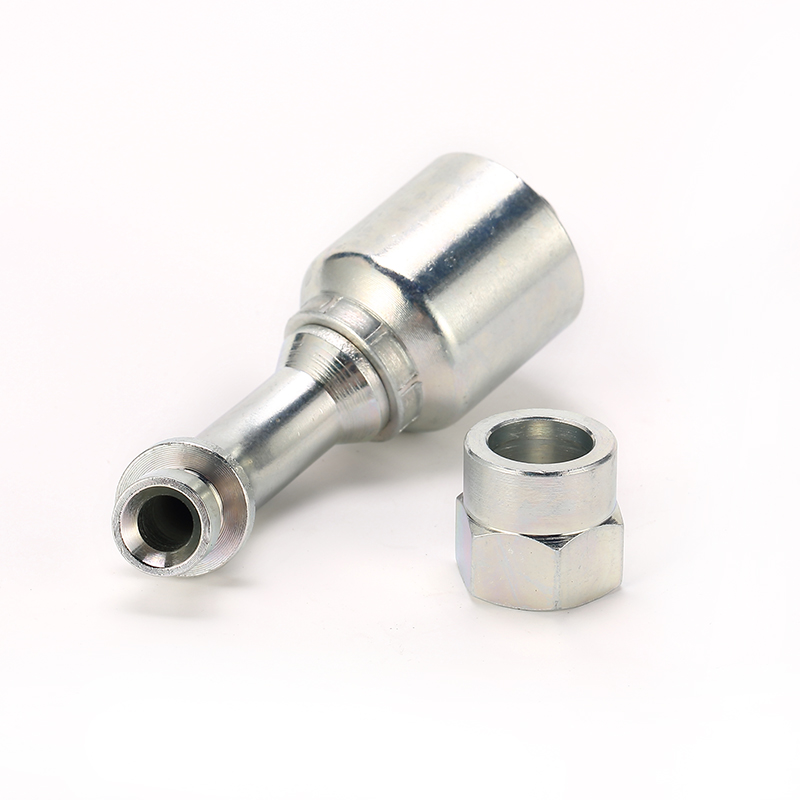

26741PK 45° Elbow JIC Female One Piece Fittings

Description:

The 26741pk hydraulic fittings with 45 ° elbow are renowned for their convenient assembly, diverse range of shapes and end forms, compatibility with hoses, and extensive application across multiple markets. It feature one-piece construction and are used in applications ranging from hydraulic industry standards.

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

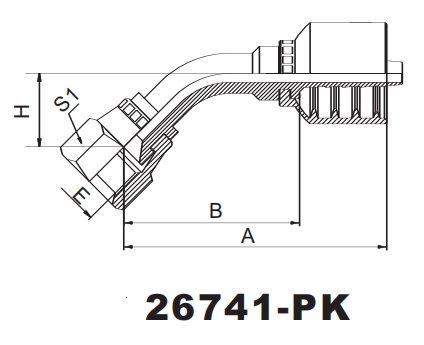

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	H	S1
26741-04-04PK	7/16″X20	6	04	61.5	41.9	18.1	14
26741-06-04PK	9/16″X18	6	04	62.5	42.9	19	19
26741-08-06PK	3/4″X16	10	06	70	48	21	24
26741-08-08PK	3/4″X16	12	08	88	59.5	23.5	24
26741-10-10PK	7/8″X14	16	10	108	70.9	25	27
26741-12-12PK	1.1/16″X12	20	12	118	78.4	30	32
26741-16-16PK	1.5/16″X12	25	16	132.5	87.5	31.5	38
26741-20-20PK	1.5/8″X12	32	20	145.8	98.8	37	50
26741-24-24PK	1.7/8″X12	40	24	155	116.6	43	60
26741-32-32PK	2.1/2″X12	50	32	184.5	137.3	51	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
