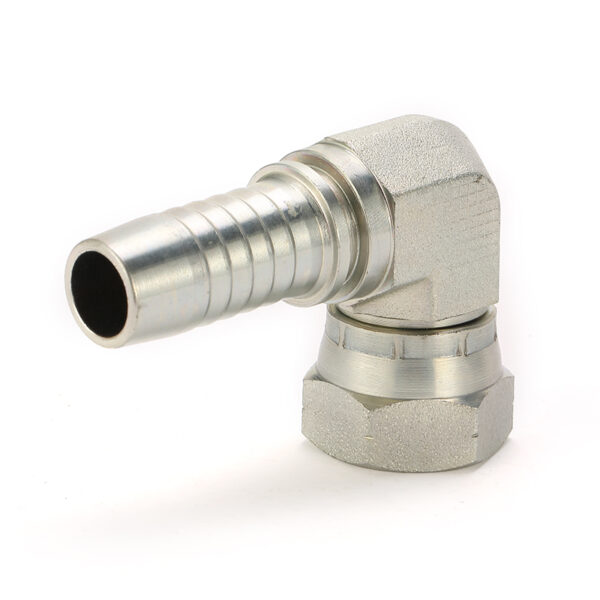

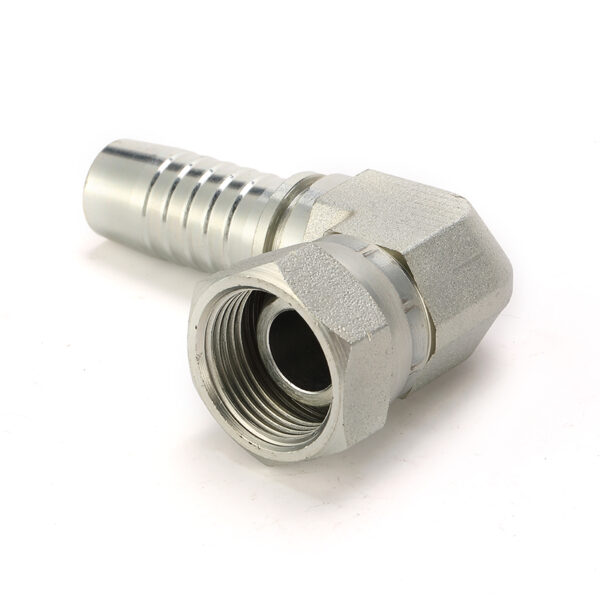

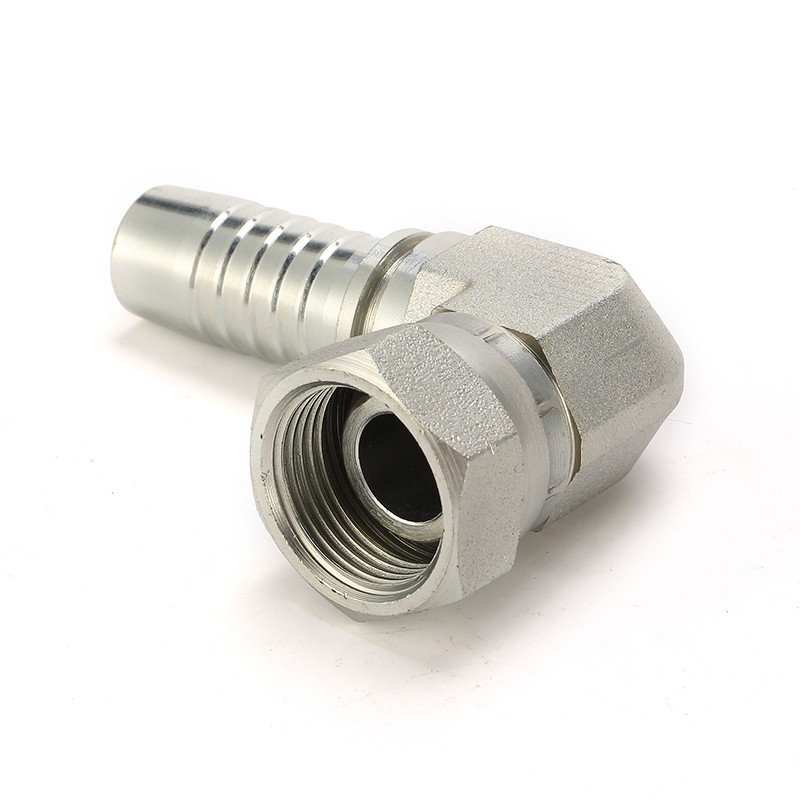

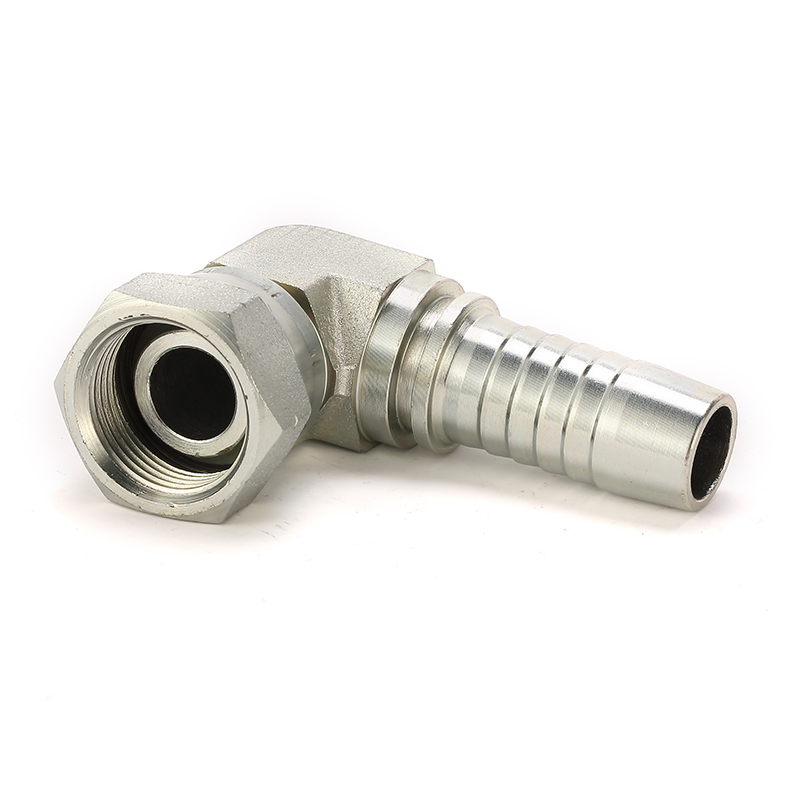

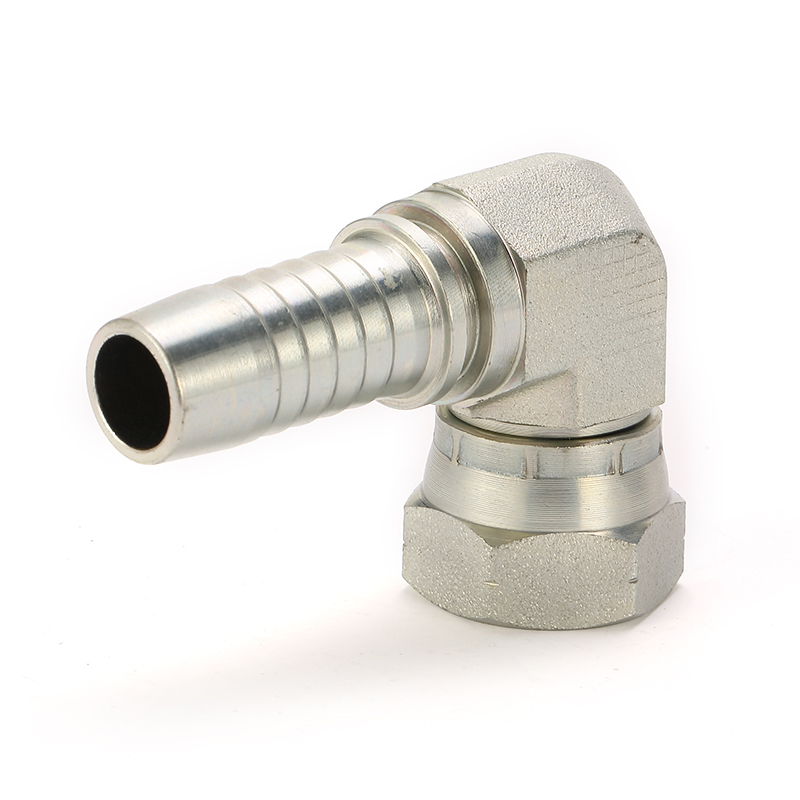

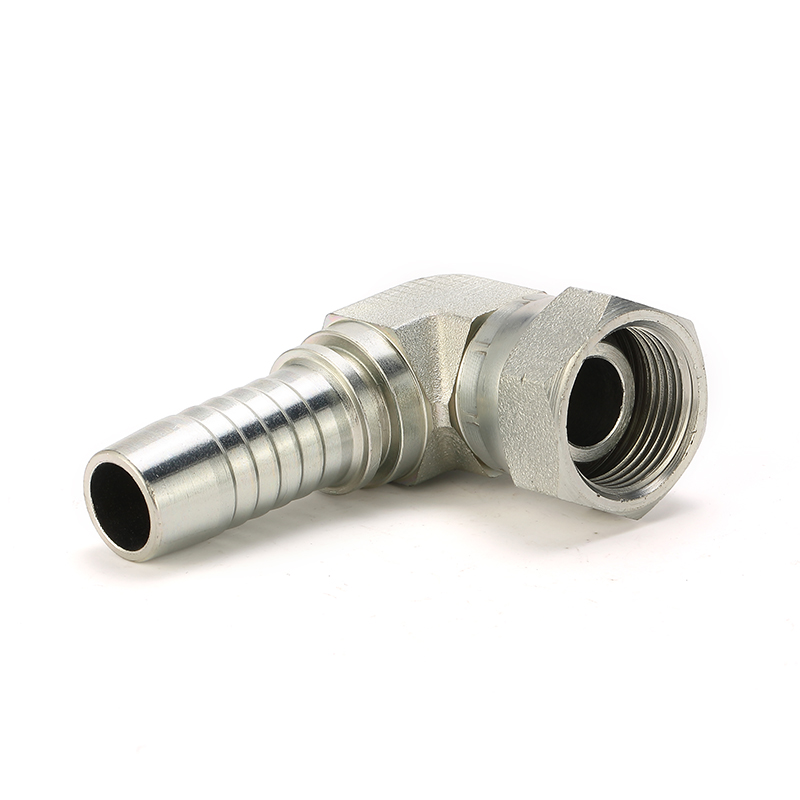

22691K 90 Elbow BSP Female 60° Cone Hose Fittings

Description:

The 22691k-BSP hydraulic hose fitting is a female fitting that features a 60-degree cone seat and a 90-degree elbow, making it suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a collection of technical standards that define a specific type of thread.

INQUIRE NOW

"*" indicates required fields

Category: Tags: , , , ,
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

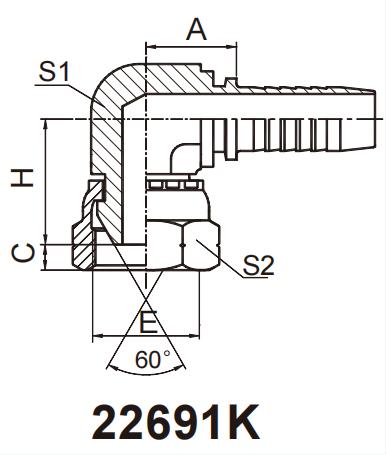

PART NO THREAD  E HOSE  BORE DIMENSIONS
DN DASH A C H S1 S2
22691K-04-04 G1/4″X19 6 04 17.5 5.5 18.5 11 19
22691K-06-04 G3/8″X19 6 04 20 6.3 24 16 22
22691K-06-05 G3/8″X19 8 05 20 6.3 24 16 22
22691K-06-06 G3/8″X19 10 06 20 6.3 24 16 22
22691K-08-06 G1/2″X14 10 06 23 7.5 28.5 19 27
22691K-08-08 G1/2″X14 12 08 23.5 7.5 28.5 19 27
22691K-10-10 G5/8″X14 16 10 24.5 9.5 30.5 22 30
22691K-12-12 G3/4″X14 20 12 27.5 10.9 33 27 32
22691K-16-16 G1″X11 25 16 43 11.7 38.5 33 41
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
