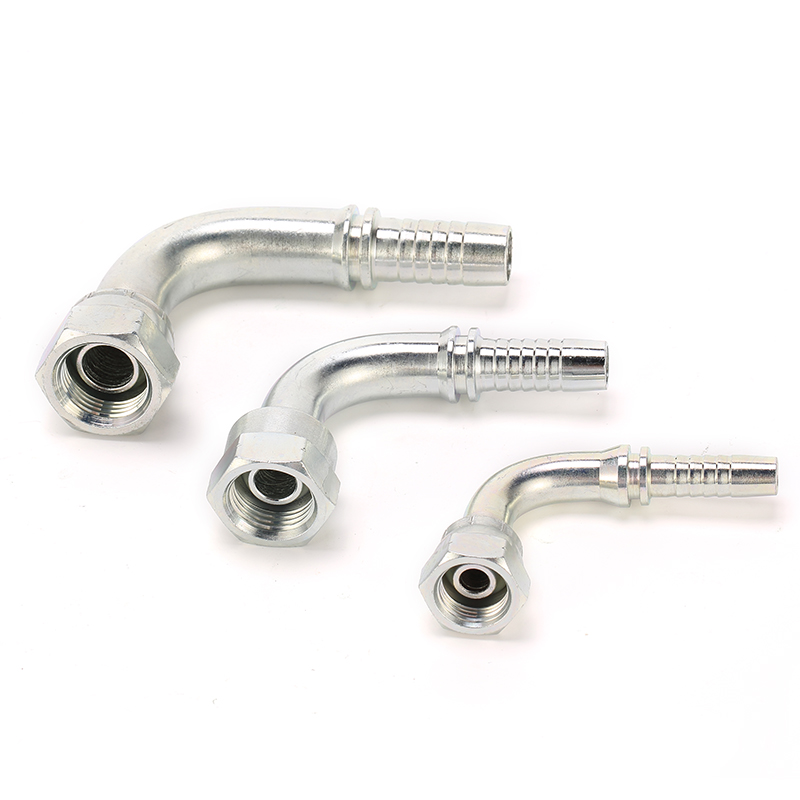

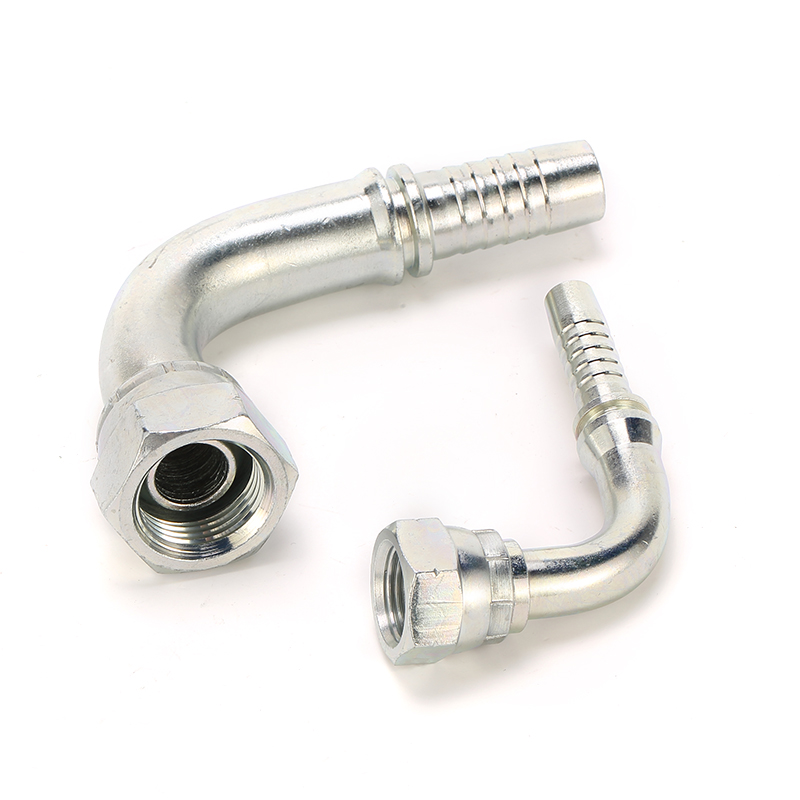

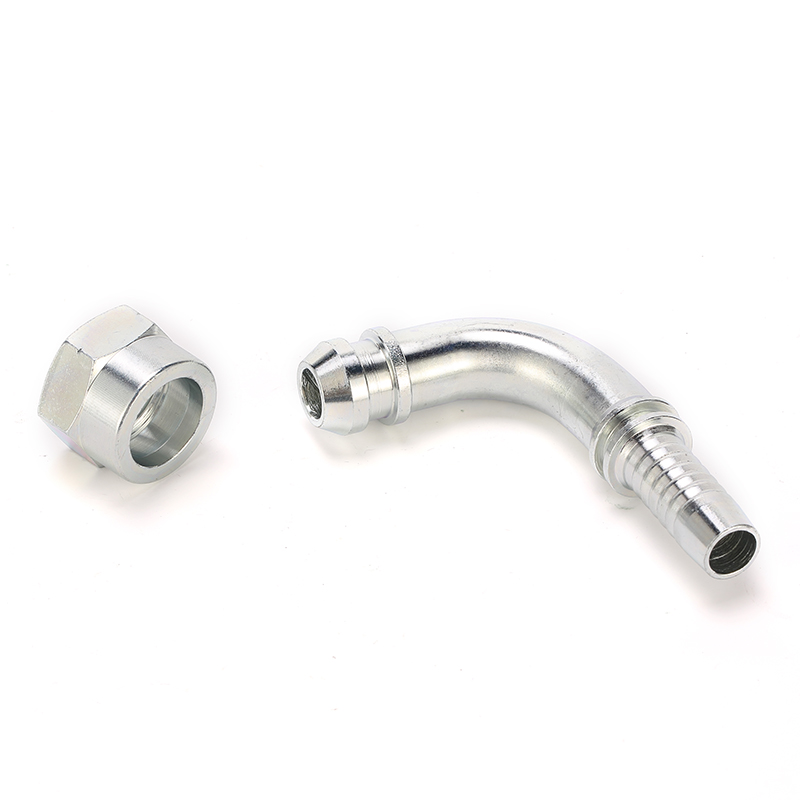

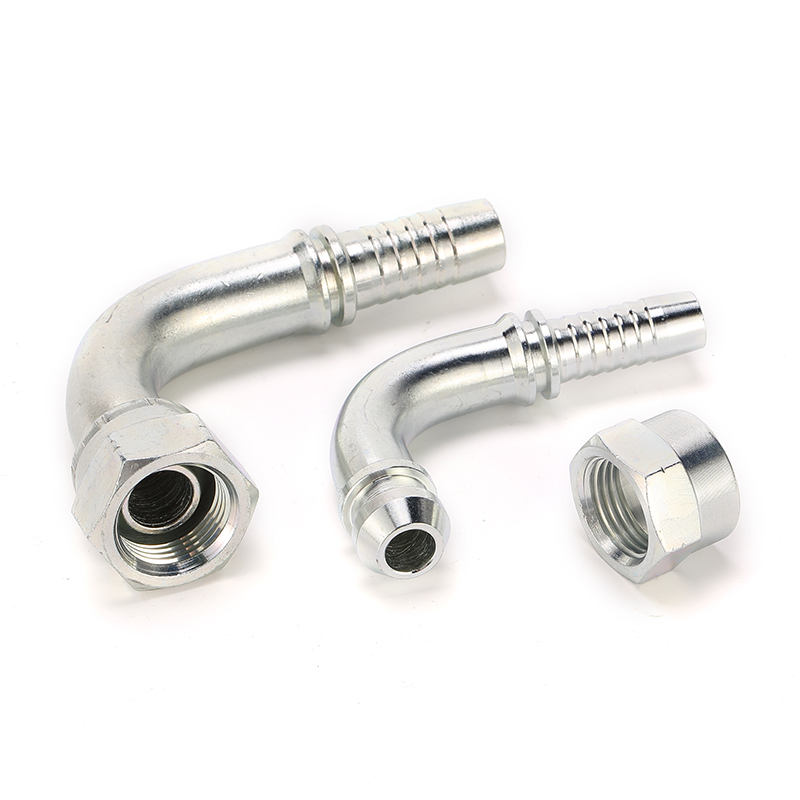

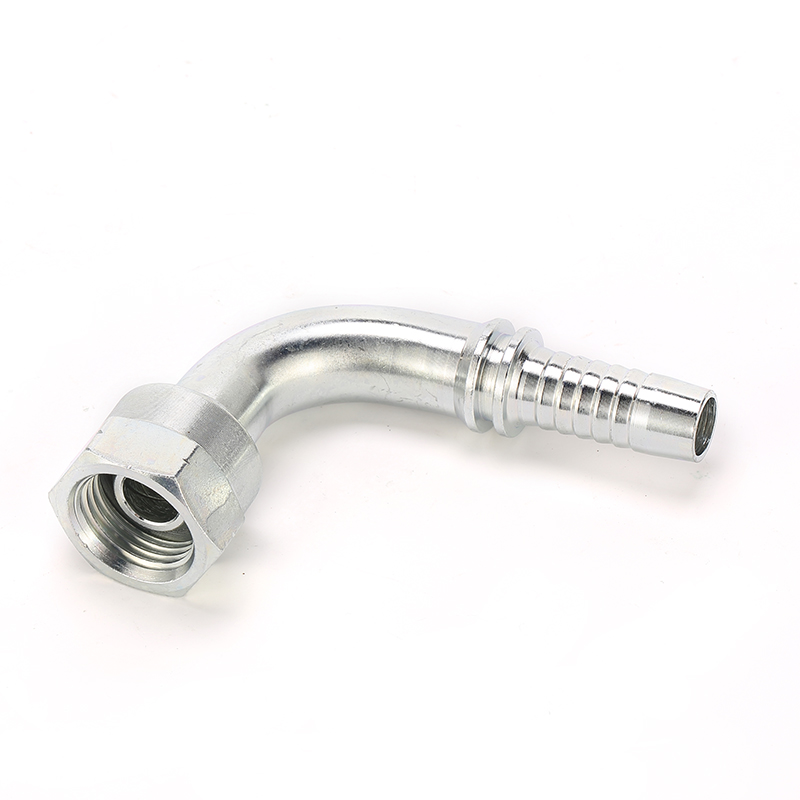

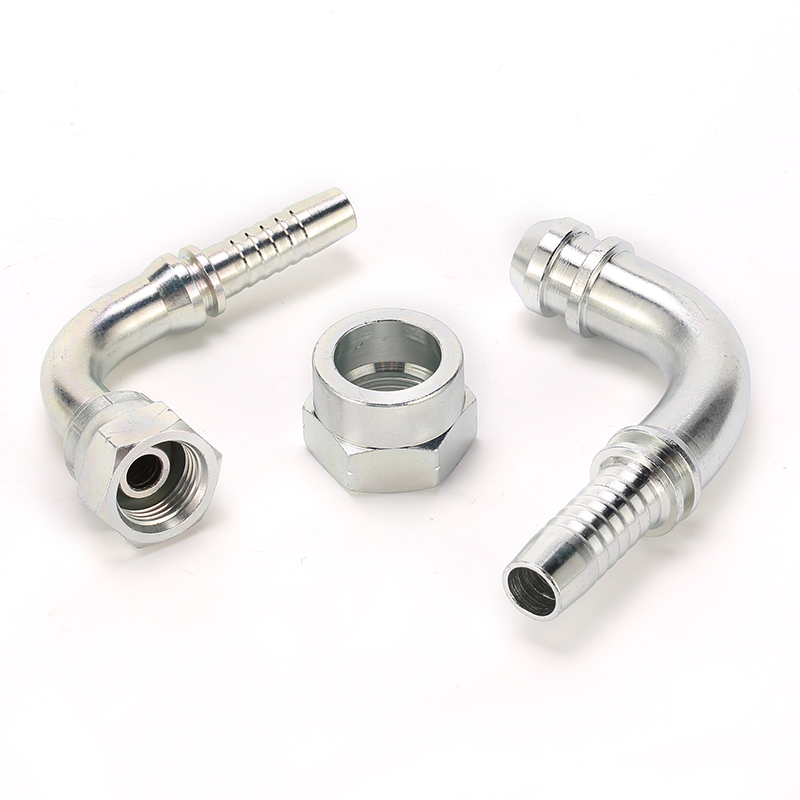

22691 90 Elbow BSP Female 60° Cone Hose Fittings

Description:

The 22691-BSP hydraulic hose fitting is a female fitting that features a 60-degree cone seat and a 90-degree elbow, making it suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a collection of technical standards that define a specific type of thread.

"*" indicates required fields

Our BSP fittings feature high-quality stainless steel construction that can withstand strong working conditions. British Fittings are manufactured using British threads such as British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT). Topol Power directly supplies a wide range of stainless steel BSP fittings.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS

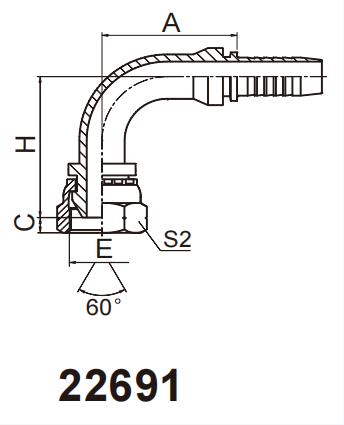

PART NO.	THREAD E	DN	DASH	A	C	H	S2
22691-02-03	G1/8″X28	5	03	26.5	5.5	31.5	14
22691-02-04	G1/8″X28	6	04	30	5.5	34.5	14
22691-04-03	G1/4″X19	5	03	26.5	5.5	33.5	19
22691-04-04	G1/4″X19	6	04	30	5.5	36.5	19
22691-04-05	G1/4″X19	8	05	33	5.5	39.5	19
22691-04-06	G1/4″X19	10	06	30	5.5	36.5	19
22691-06-04	G3/8″X19	6	04	30	6.3	37.7	22
22691-06-05	G3/8″X19	8	05	33	6.3	40.7	22
22691-06-06	G3/8″X19	10	06	35.3	6.3	43	22
22691-08-06T	G1/2″X14	10	06	35.3	7	43.3	27
22691-08-08	G1/2″X14	12	08	41	7.5	51	27
22691-08-10	G1/2″X14	16	10	56.5	7.5	55.5	27
22691-10-08	G5/8″X14	12	08	41	9.5	51.5	30
22691-10-10	G5/8″X14	16	10	56	9.5	56	30
22691-12-08T	G3/4″X14	12	08	41	10.9	52.1	32
22691-12-10	G3/4″X14	16	10	56.5	10.9	56.6	32
22691-12-12	G3/4″X14	20	12	64.9	10.9	66.1	32
22691-16-12T	G1″X11	20	12	65.5	11.7	68.3	41
22691-16-14	G1″X11	22	14	71.2	11.7	69.3	41
22691-16-16	G1″X11	25	16	76.7	11.7	73.8	41
22691-20-16T	G1.1/4″X11	25	16	78	11	69.5	50
22691-20-20W	G1.1/4″X11	32	20	91.5	11	84.3	50
22691-24-24W	G1.1/2″X11	40	24	109.4	13	103	55
22691-32-32W	G2″X11	50	32	131.8	16	123.3	70
