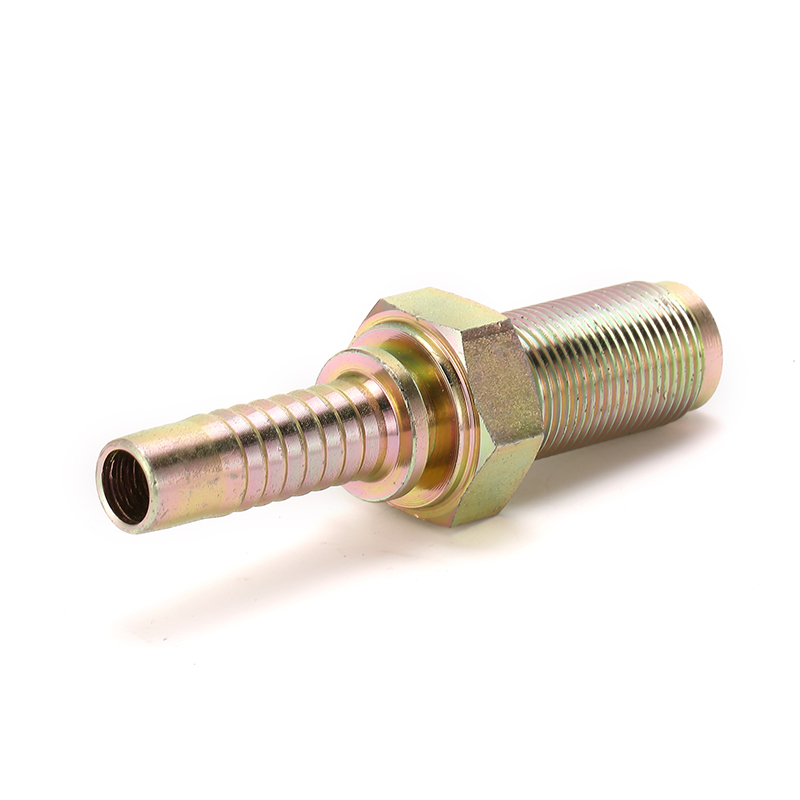

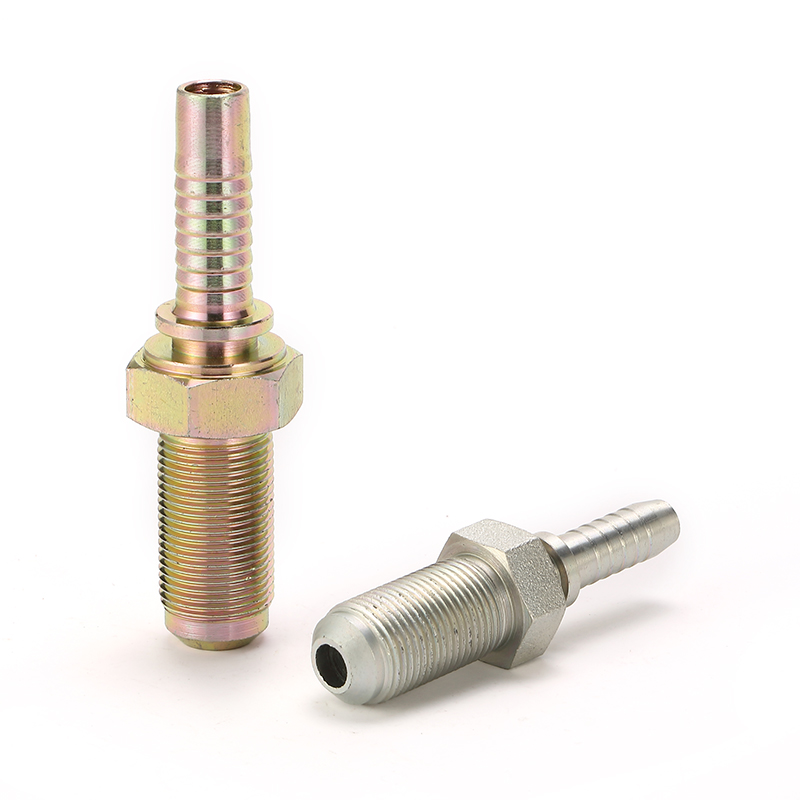

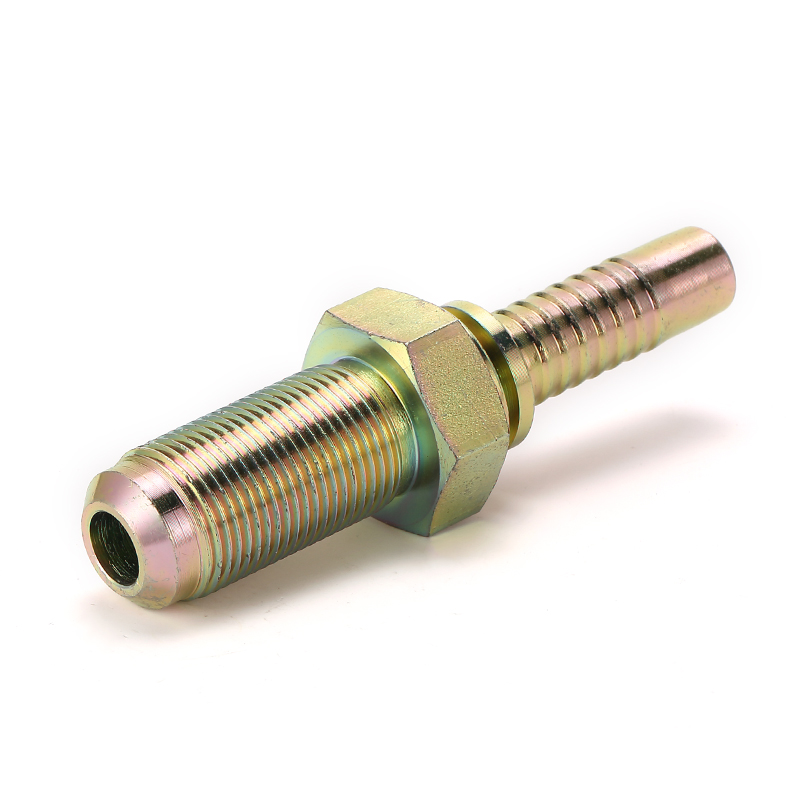

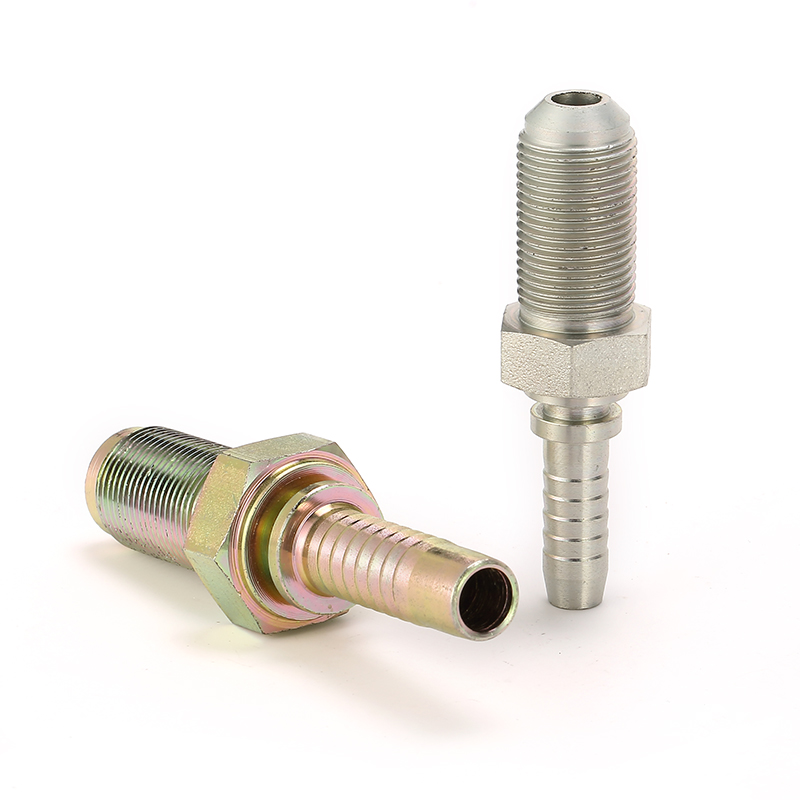

10811L Metric 90° Cone Straight Pipe Connection

Description:

The 10811L metric hose connector is a male metric hose fitting featuring a male 90-degree cone thread, designed to form a secure seal that prevents leakage. This 90-degree cone seat metric hose coupling is a dependable and commonly used coupling in both hydraulic and pneumatic systems.

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel

Description
Package& Shipping

Description

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

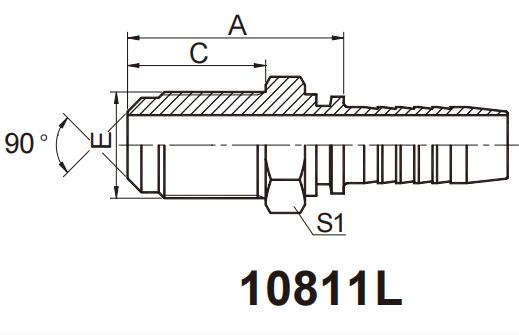

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
10811L-12-04	M12X1.5	6	04	46	34	17	17
10811L-12-04A	M12X1	6	04	44.5	32.5	17	17
10811L-14-04	M14X1.5	6	04	46	34	17	19
10811L-14-06	M14X1.5	10	06	46.5	34	17	19
10811L-16-04	M16X1.5	6	04	46.5	34	19	22
10811L-16-06	M16X1.5	10	06	46.5	34	22	22
10811L-20-06	M20X1.5	10	06	57	40	27	27
10811L-20-08	M20X1.5	12	08	57.5	40	27	27
10811L-22-08	M22X1.5	12	08	62.5	45	27	27

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

10811L Metric 90° Cone Straight Pipe Connection

Package:

Delivery Time:
