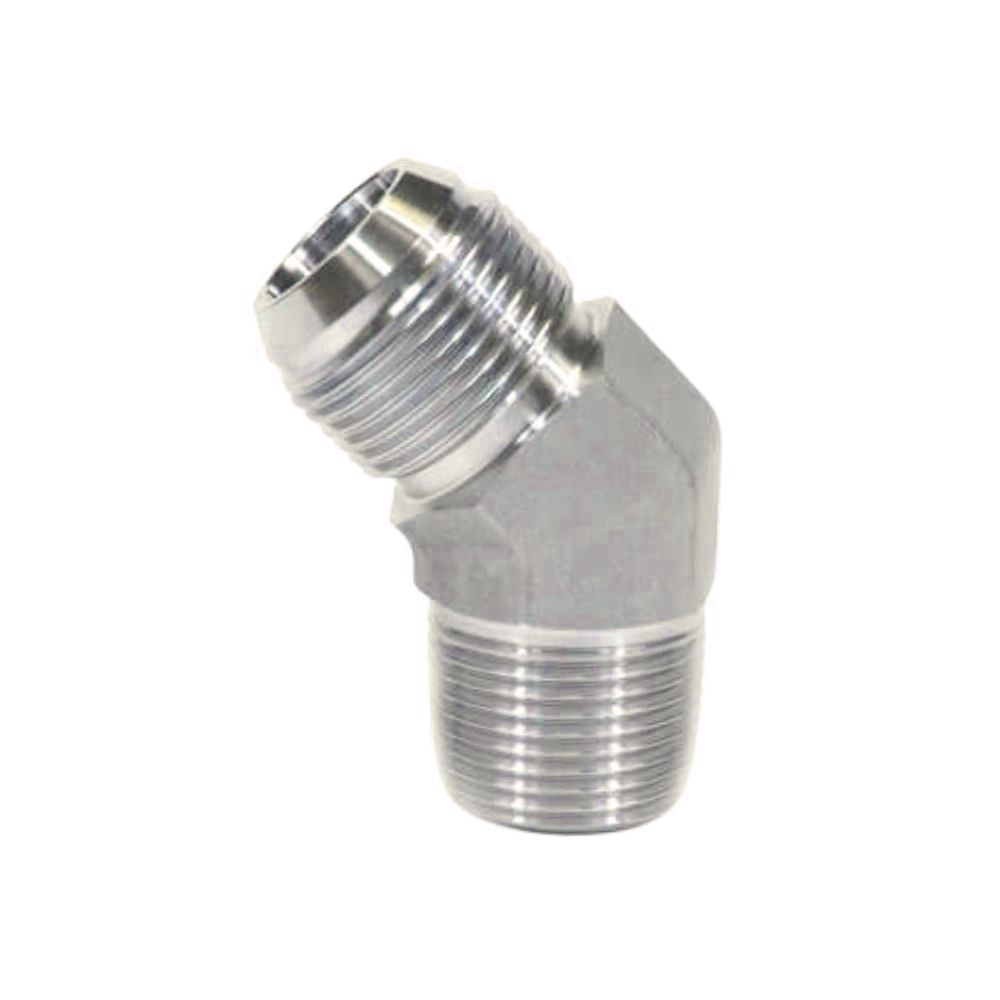

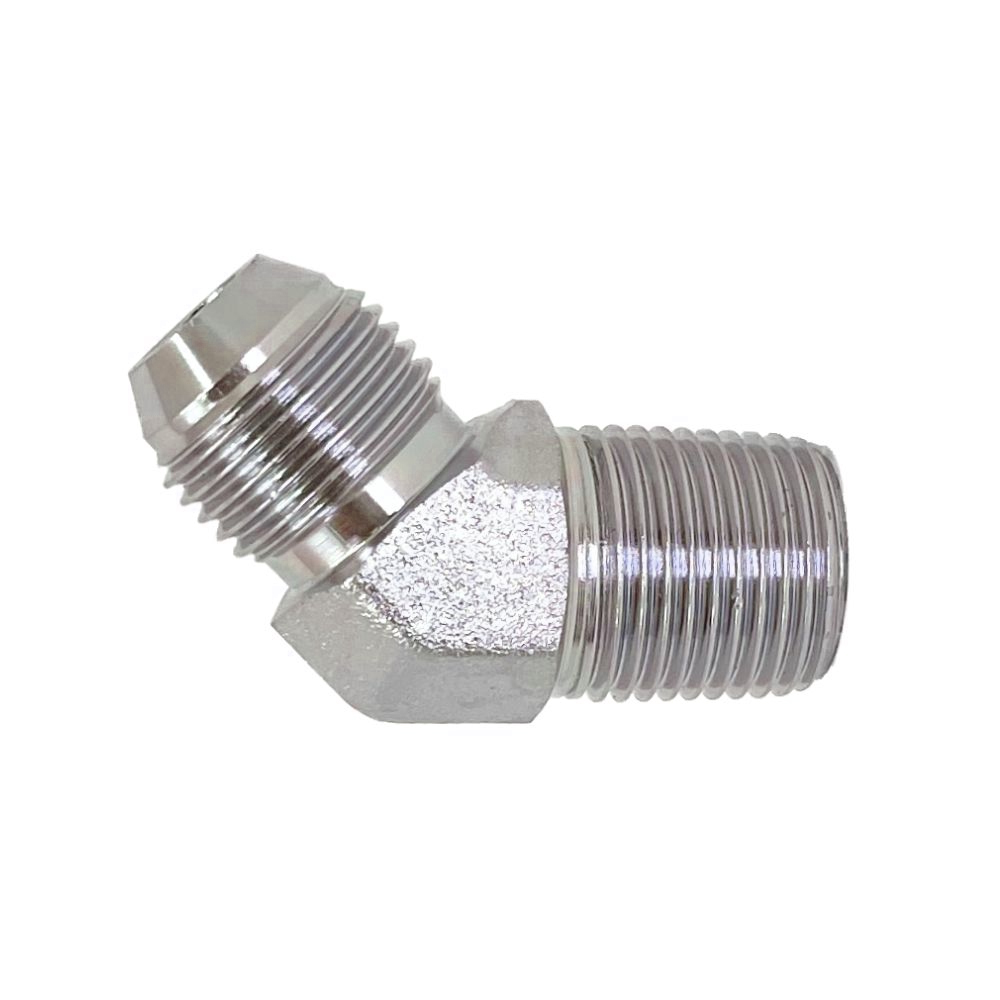

1ST4 45Degree Elbow JIS to BSPT Adapter

Description:

1ST4-sp 45-degree elbow JIS to BSPT adapter is a male pipe adapter that has a male 60-degree cone JIS thread and a male BSPT tapered thread.

Category: JIS Hydraulic Adapter Tags: Carbon Steel, JIS, 60° Cone, BSPT, 1ST4

Description
Package& Shipping

Description

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

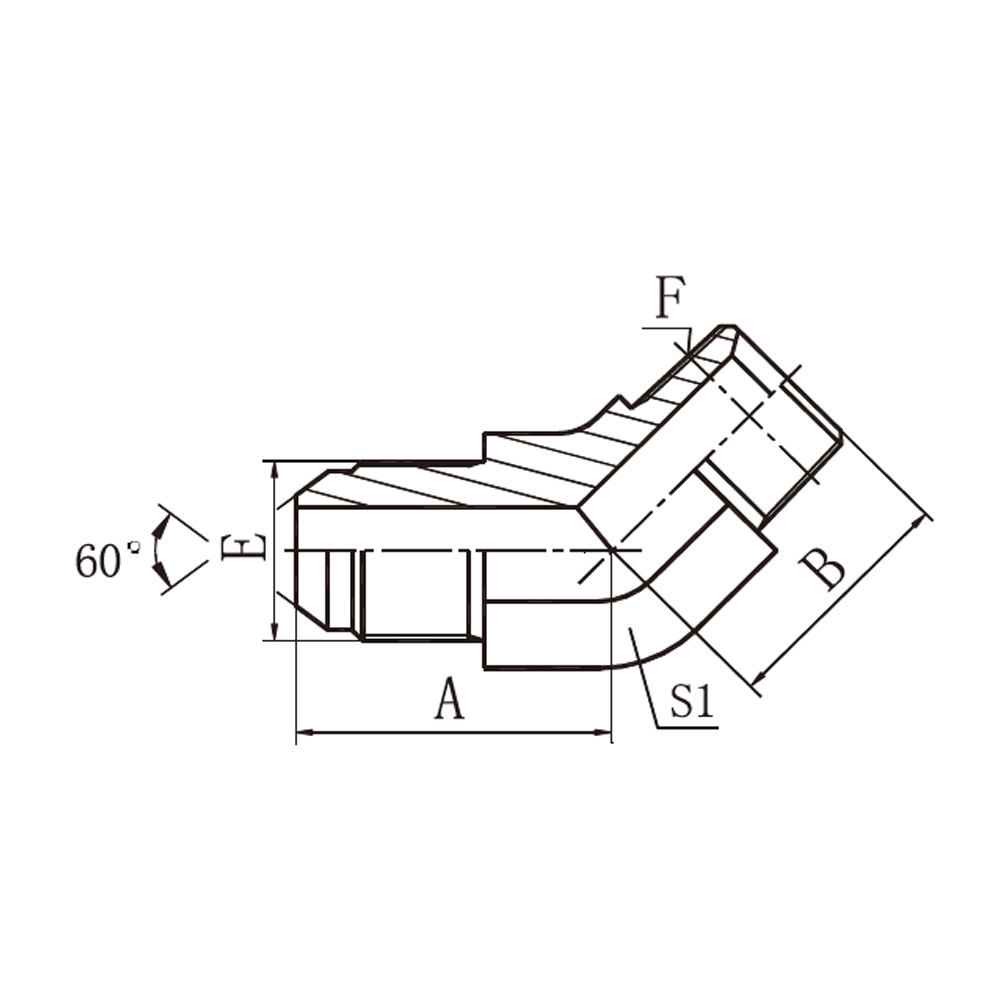

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1ST4-02SP	G1/8＂X28	R1/8＂X28	19	17	11
1ST4-04SP	G1/4＂X19	R1/4＂X19	22	19	14
1ST4-06SP	G3/8＂X19	R3/8＂X19	25	22	16
1ST4-08SP	G1/2＂X14	R1/2＂X14	28	26	22
1ST4-12SP	G3/4＂X14	R3/4＂X14	32	30	27
1ST4-16SP	G1＂X11	R1＂X11	36	34	33
1ST4-20SP	G1.1/4＂X11	R1.1/4＂X11	42	40	41
1ST4-24SP	G1.1/2＂X11	R1.1/2＂X11	43	41	48
1ST4-32SP	G2＂X11	R2＂X11	54	50	63

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

1ST4 45Degree Elbow JIS to BSPT Adapter

Package:

Delivery Time:
