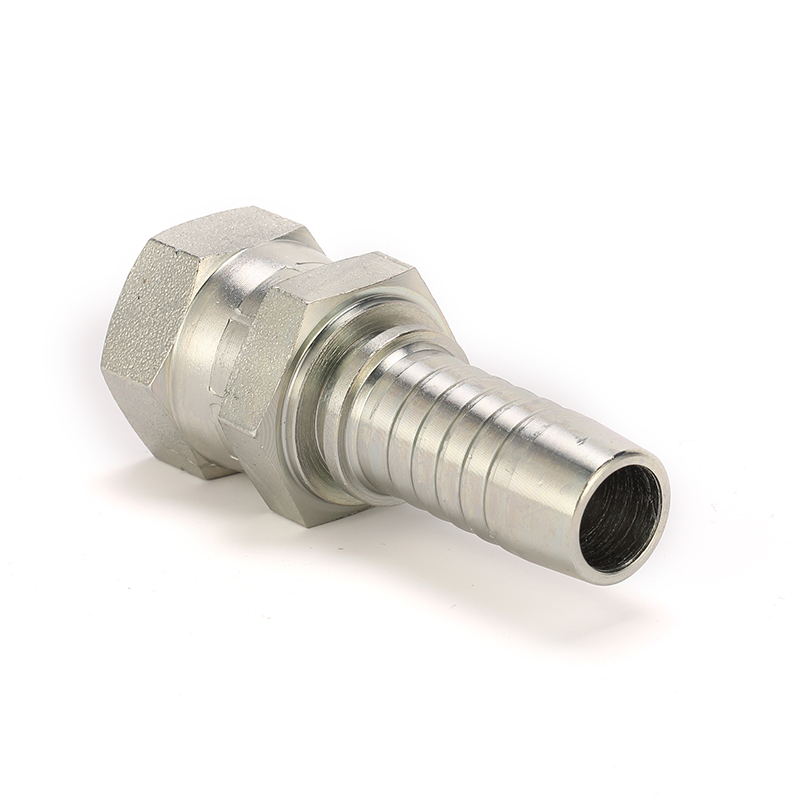

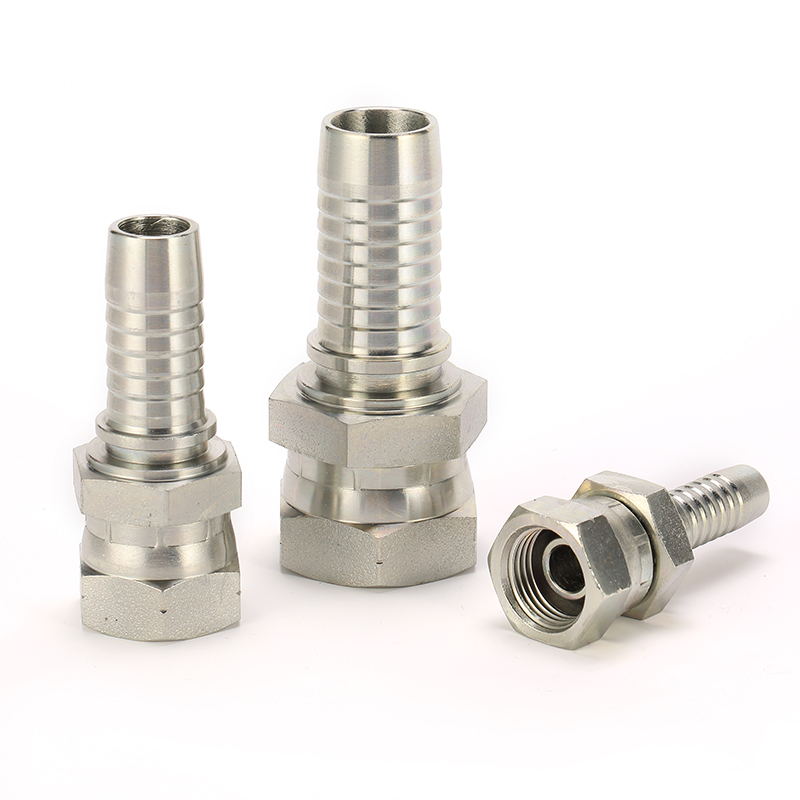

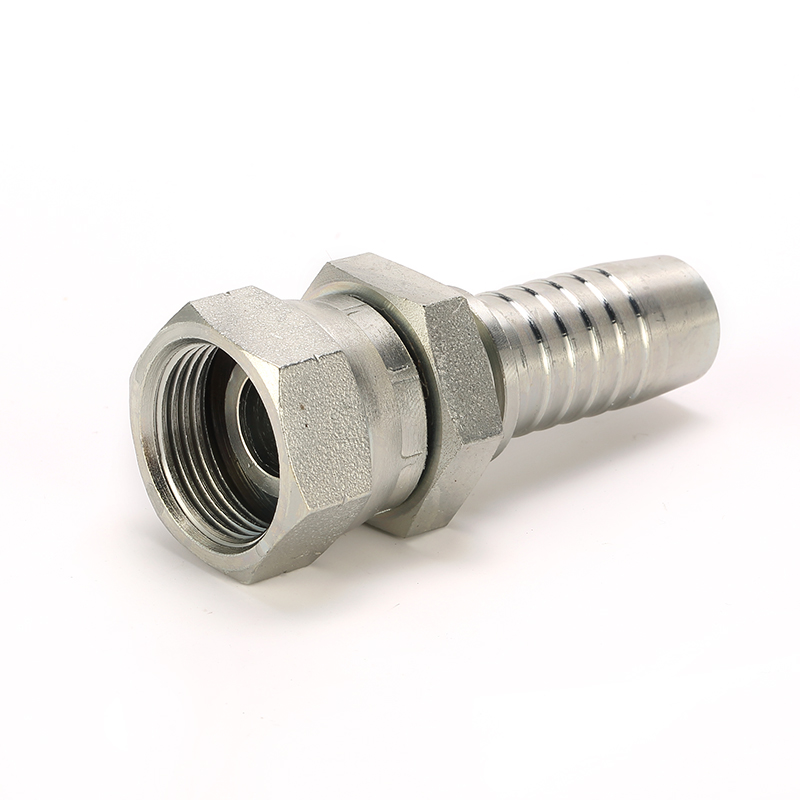

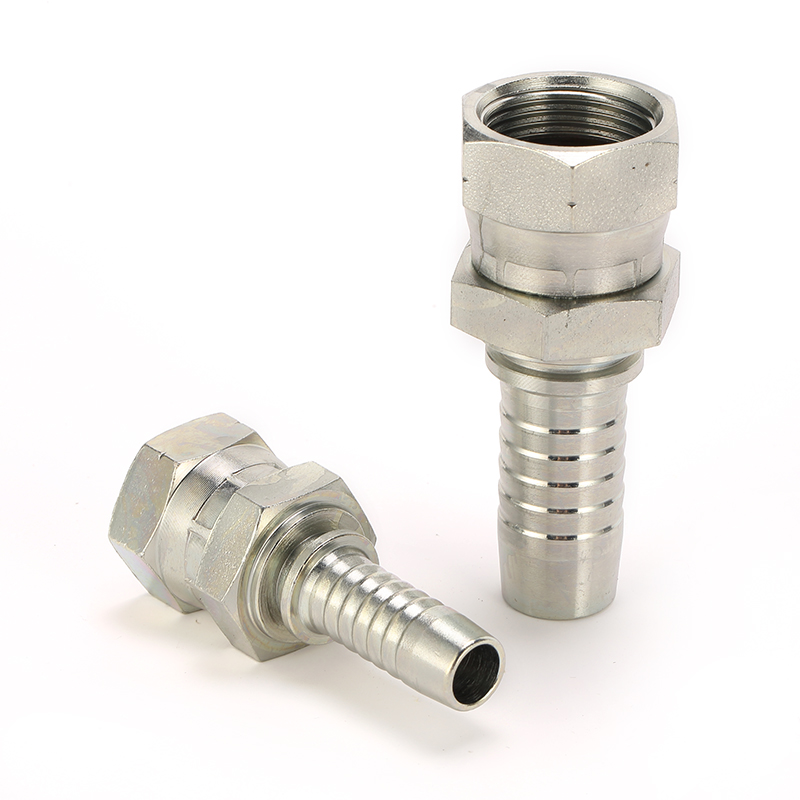

22611D BSP Female 60° Cone Double Hex Hose Fittings

Description:

The 22611D-BSP hydraulic hose fitting is a female fitting designed with a 60-degree cone seat double hex, suitable for use in various hydraulic fluid systems. BSP which stands for British Standard Pipe, refers to a collection of technical standards that define a specific type of thread.

INQUIRE NOW

"*" indicates required fields

Category: BSP Hose Fittings Tags: BSP, british pipe fittings, Female, Carbon Steel
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

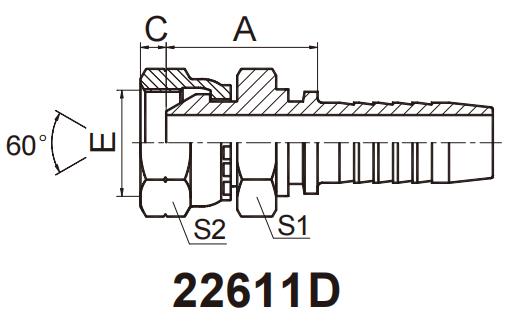

PART NO. THREAD  E HOSEBORE DIMENSIONS
DN DASH A C S1 S2
22611D-04-04 G1/4″X19 6 04 23.5 5.5 19 19
22611D-06-06 G3/8″X19 10 06 26.5 6.3 22 22
22611D-08-08 G1/2″X14 12 08 31 7.5 27 27
22611D-10-08 G5/8″X14 12 08 32 9.5 30 30
22611D-12-08 G3/4″X14 12 08 33 10.9 32 32
22611D-12-12 G3/4″X14 20 12 34 10.9 32 32
22611D-16-16 G1″X11 25 16 35.5 11.7 41 41
22611D-20-20W G1.1/4″X11 32 20 43.5 11 50 50
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
