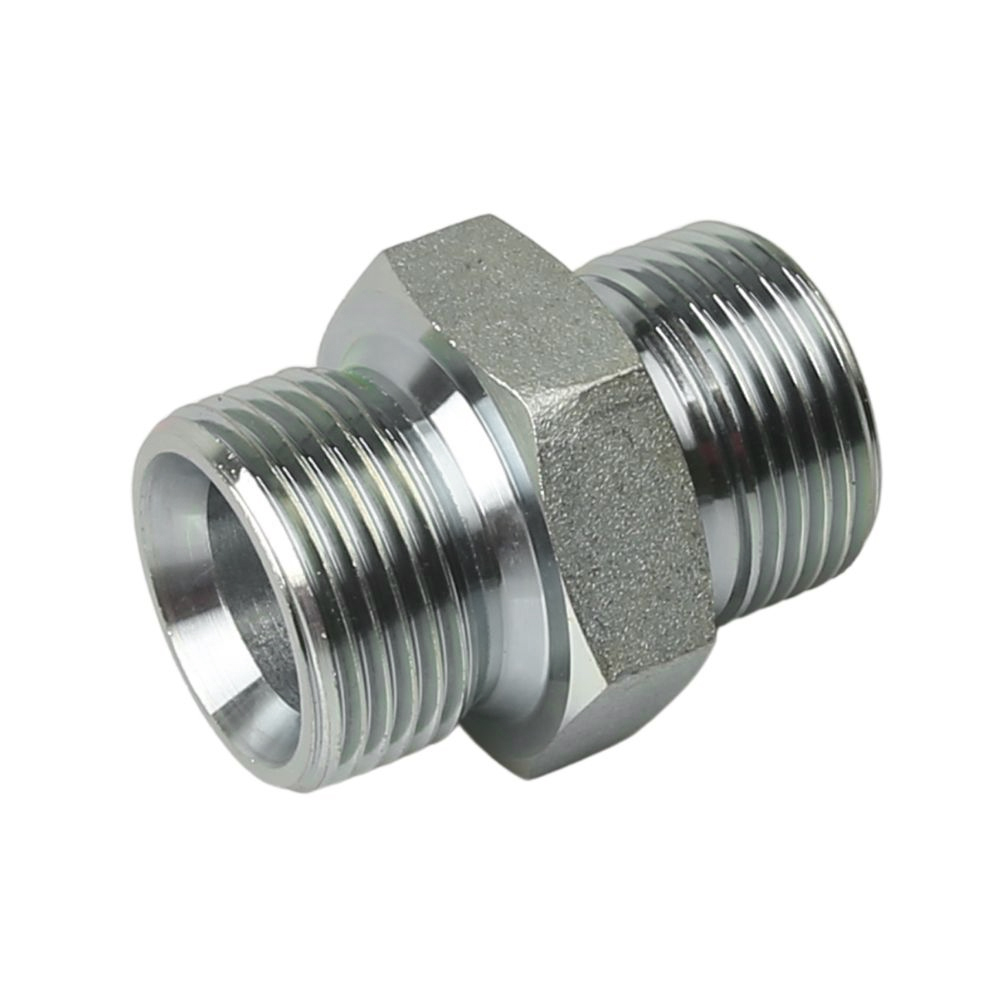

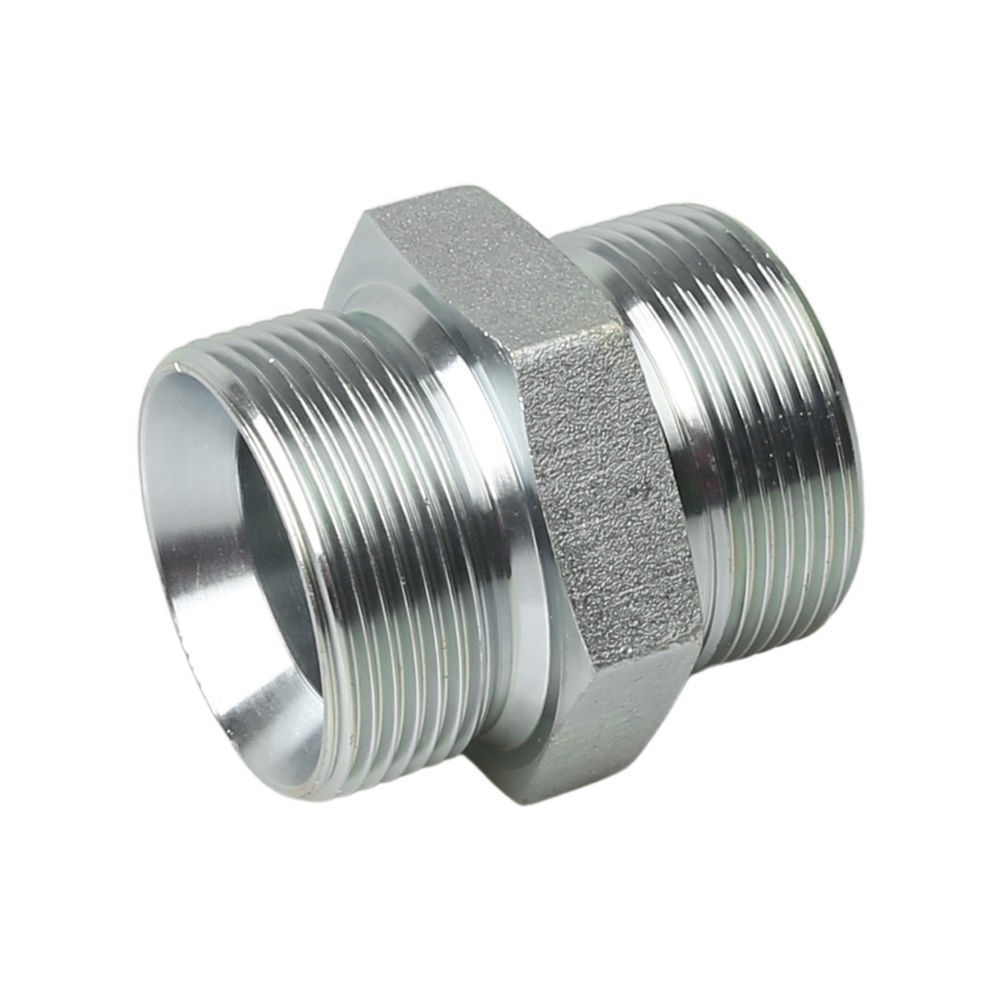

1B BSP Male Straight Hydraulic Fittings

Description:

1B BSP male hydraulic fittings are straight double-use male thread connectors, with two 60-degree cone seat BSP threads.

"*" indicates required fields

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PAPT NO.	THREAD		DIMENSIONS

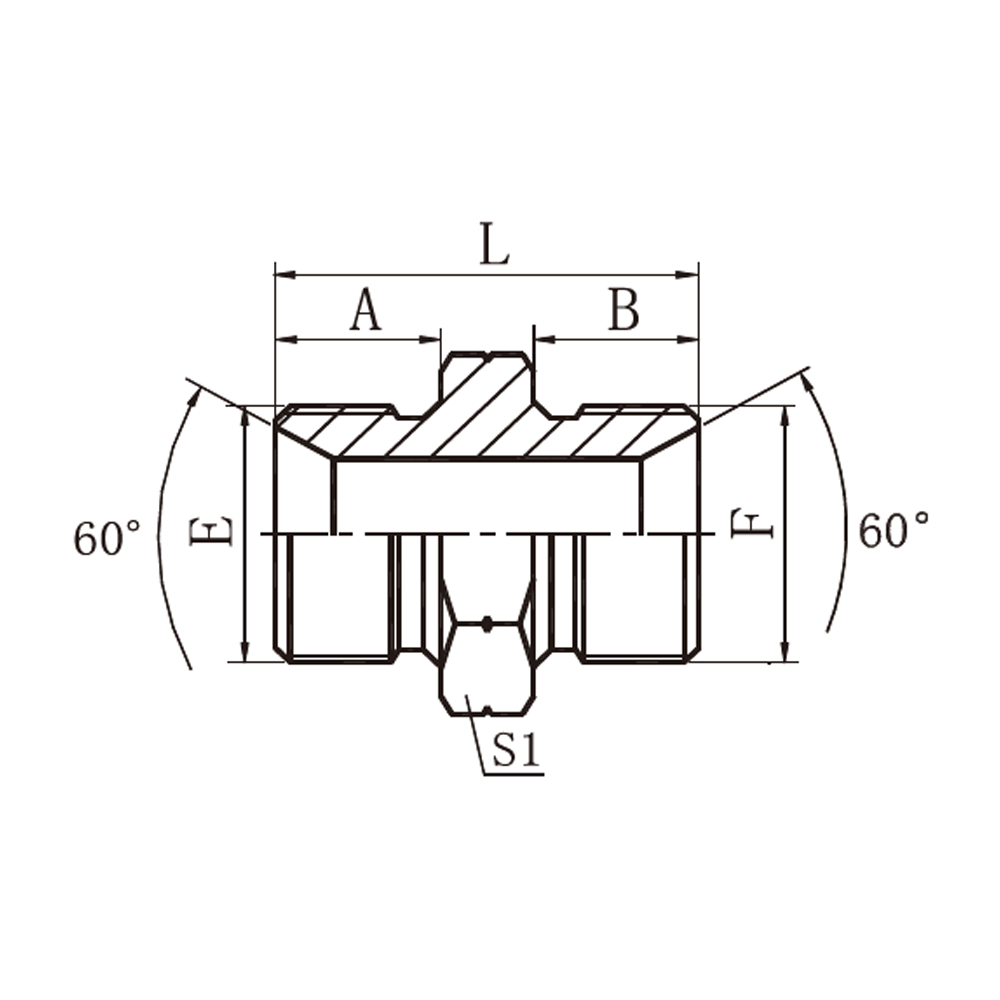

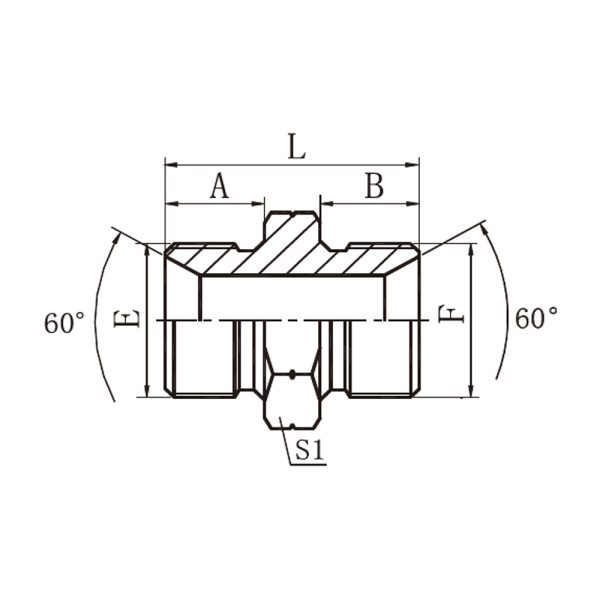

PAPT NO.	E	F	A	B	L	S1
1B-02	G1/8＂X28	G1/8＂X28	10	10	26	14
1B-02-04	G1/8＂X28	G1/4＂X19	10	12	28	19
1B-04	G1/4＂X19	G1/4＂X19	12	12	30	19
1B-04-06	G1/4＂X19	G3/8＂X19	12	13.5	33.5	22
1B-04-08	G1/4＂X19	G1/2＂X14	12	16	38	27
1B-06	G3/8＂X19	G3/8＂X19	13.5	13.5	35	22
1B-06-08	G3/8＂X19	G1/2＂X14	13.5	16	39.5	27
1B-08	G1/2＂X14	G1/2＂X14	16	16	42	27
1B-08-10	G1/2＂X14	G5/8＂X14	16	17.5	43.5	30
1B-10	G5/8＂X14	G5/8＂X14	17.5	17.5	45	30
1B-10-12	G5/8＂X14	G3/4＂X14	17.5	18.5	47	32
1B-12	G3/4＂X14	G3/4＂X14	18.5	18.5	48	32
1B-12-16	G3/4＂X14	G1＂X11	18.5	20.5	52.5	41
1B-12-20	G3/4＂X14	G1.1/4＂X11	18.5	20.5	53.5	50
1B-16	G1＂X11	G1＂X11	20.5	20.5	55.5	41
1B-16-20	G1＂X11	G1.1/4＂X11	20.5	20.5	58	50
1B-16-24	G1＂X11	G1.1/2＂X11	20.5	23	60.5	55
1B-20	G1.1/4＂X11	G1.1/4＂X11	20.5	20.5	58	50
1B-20-24	G1.1/4＂X11	G1.1/2＂X11	20.5	23	60.5	55
1B-24	G1.1/2＂X11	G1.1/2＂X11	23	23	63	55
1B-24-32	G1.1/2＂X11	G2＂X11	23	25.5	66.5	70
1B-32	G2＂X11	G2＂X11	25.5	25.5	69	70
