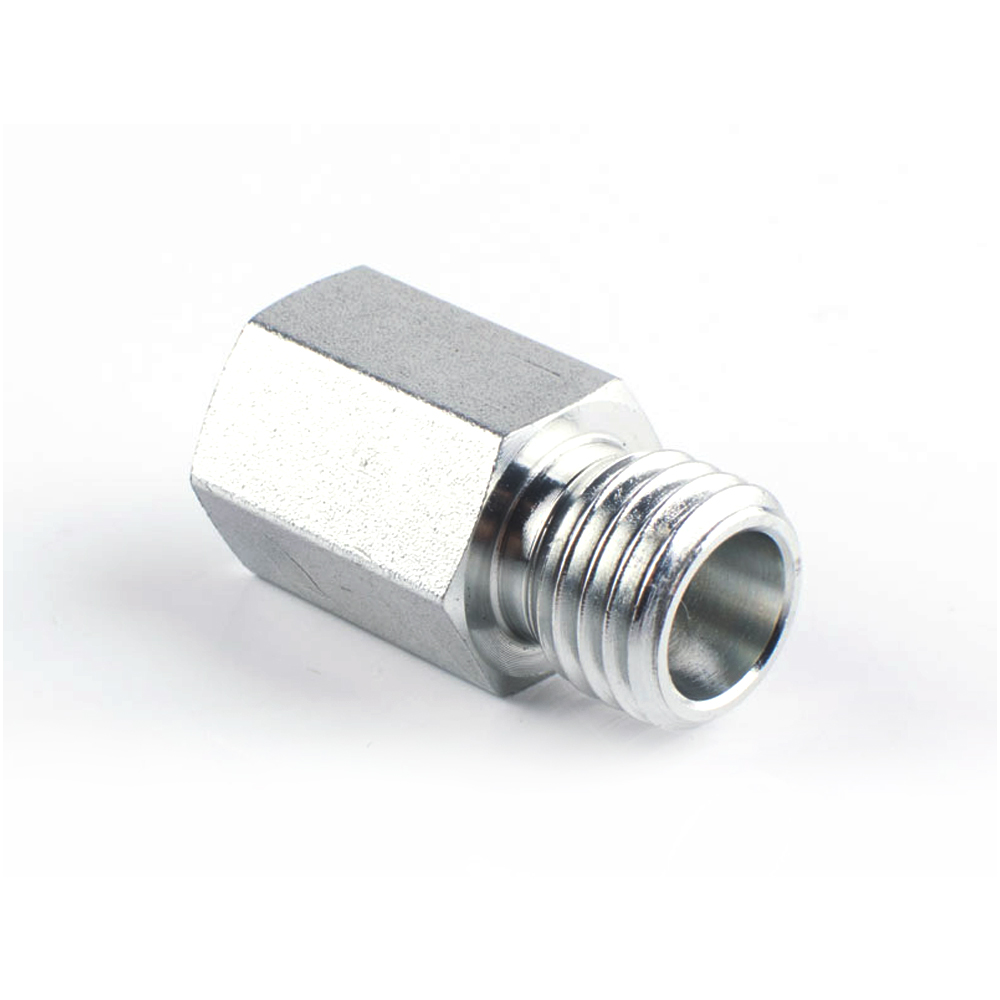

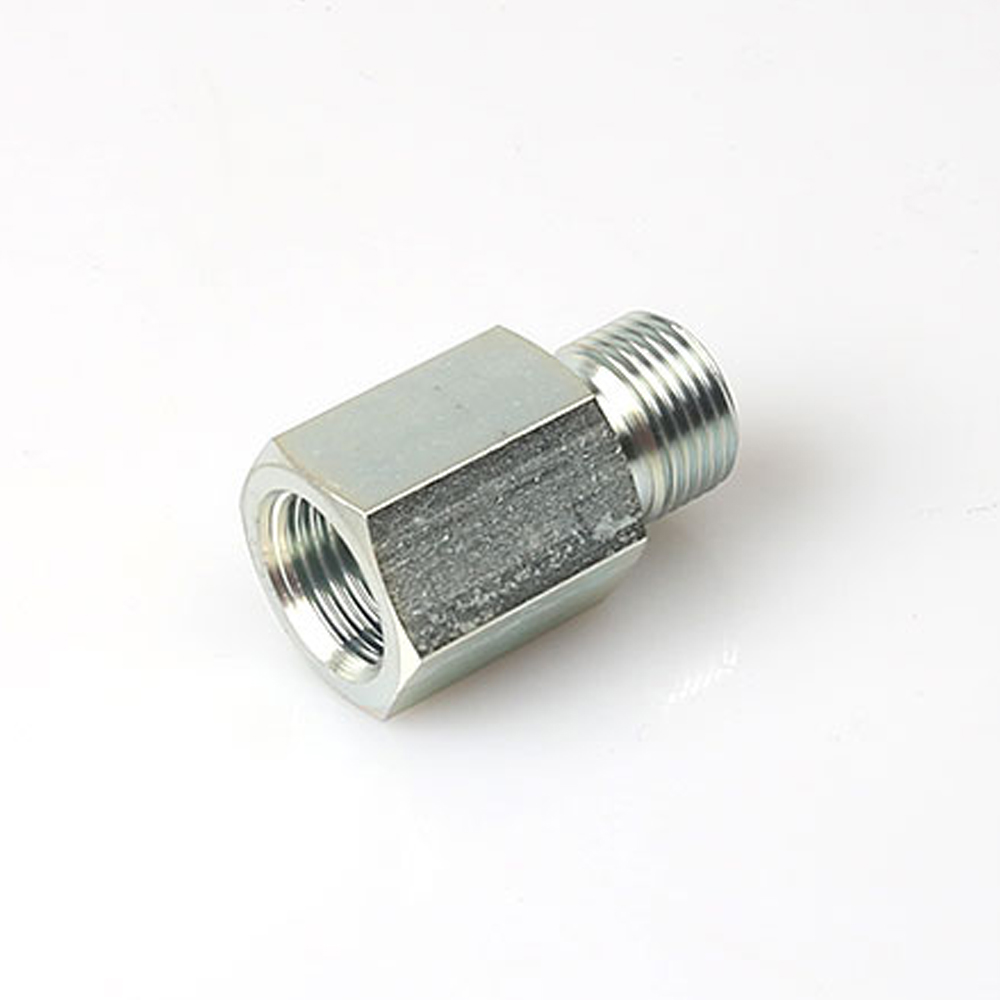

5CB Metric Male BSP Female Adapter

Description:

5CB metric to BSP adapter is a female adapter that has a male 24-degree cone metric thread, and a 60-degree cone BSP thread.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

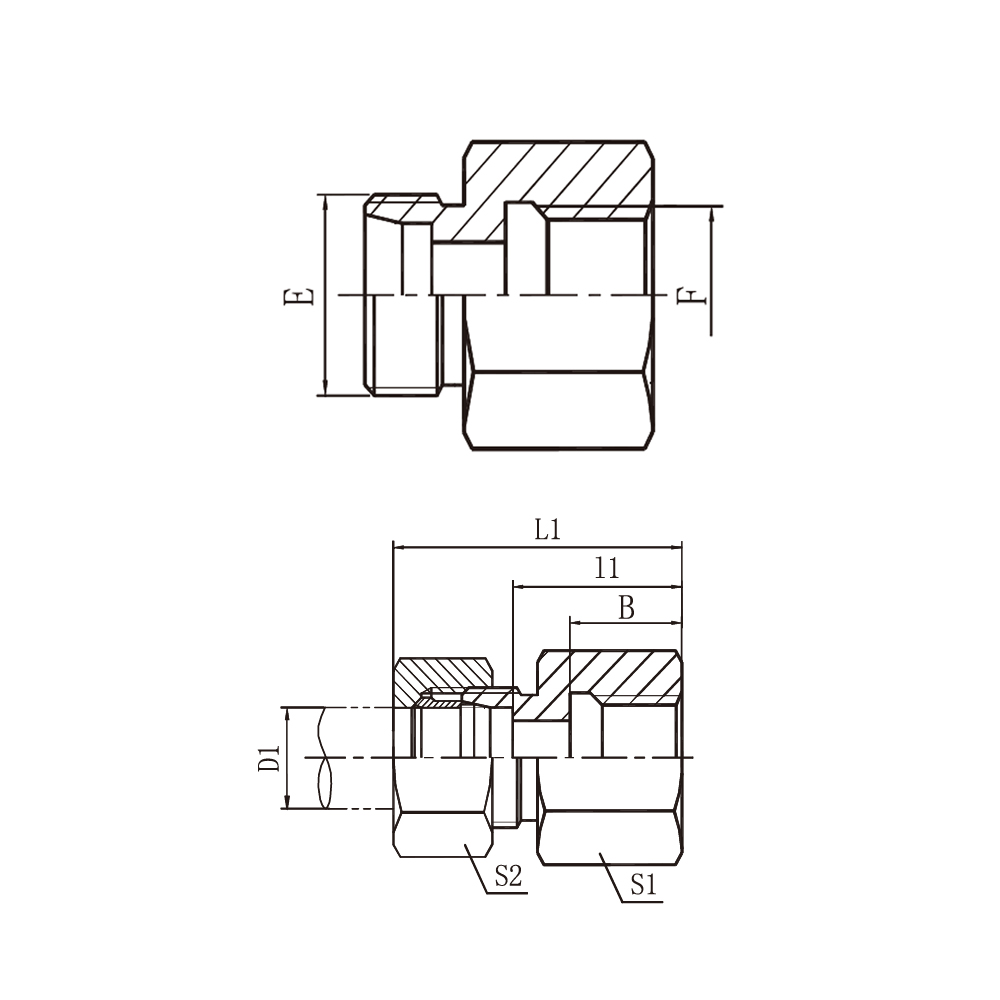

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D2	B	I1	L1	S1	S2	MPa
5CB-12-02	M12X1.5	G1/8″X28	6	14	20	27	14	14	31.5 L series
5CB-12-04	M12X1.5	G1/4″X19	6	16	23	30	19	14
5CB-14-04	M14X1.5	G1/4″X19	8	17	24	31	19	17
5CB-14-06	M14X1.5	G3/8″X19	8	17	25	32	22	17
5CB-14-08	M14X1.5	G1/2″X14	8	20	29	36	27	17
5CB-16-04	M16X1.5	G1/4″X19	10	17	25	32	19	19
5CB-16-06	M16X1.5	G3/8″X19	10	17	26	33	22	19
5CB-16-08	M16X1.5	G1/2″X14	10	20	30	37	27	19
5CB-18-04	M18X1.5	G1/4″X19	12	17	24	31	19	22
5CB-18-06	M18X1.5	G3/8″X19	12	17	26	33	22	22
5CB-18-08	M18X1.5	G1/2″X14	12	20	30	37	27	22
5CB-22-06	M22X1.5	G3/8″X19	15	17	26	33	24	27
5CB-22-08	M22X1.5	G1/2″X14	15	20	31	38	27	27
5CB-26-08	M26X1.5	G1/2″X14	18	20	30.5	38	27	32
5CB-30-12	M30X2	G3/4″X14	22	22	35.5	43	36	36	16 L series
5CB-36-16	M36X2	G1″X11	28	24.5	38	45.5	41	41
5CB-45-20	M45X2	G1.1/4″X11	35	26.5	41	51.5	50	50
5CB-52-24	M52X2	G1.1/2″X11	42	28.5	42.5	53.5	55	60
5DB-14-04	M14X1.5	G1/4″X19	6	17	26	33	19	17	63 S series
5DB-16-04	M16X1.5	G1/4″X19	8	17	26	33	19	19
5DB-18-06	M18X1.5	G3/8″X19	10	17	26.5	34	22	22
5DB-20-06	M20X1.5	G3/8″X19	12	17	27.5	35	24	24
5DB-20-08	M20X1.5	G1/2″X14	12	20	30.5	38	27	24
5DB-22-08	M22X1.5	G1/2″X14	14	20	32	40	27	27
5DB-24-08	M24X1.5	G1/2″X14	16	20	31.5	40	27	30	40 S series
5DB-30-12	M30X2	G3/4″X14	20	22	34.5	45	36	36
5DB-36-16	M36X2	G1″X11	25	24.5	37.5	49.5	41	46
5DB-42-20	M42X2	G1.1/4″X11	30	26.5	42	55.5	50	50
5DB-52-24	M52X2	G1.1/2″X11	38	28.5	43.5	59.5	55	60	31.5 S series
