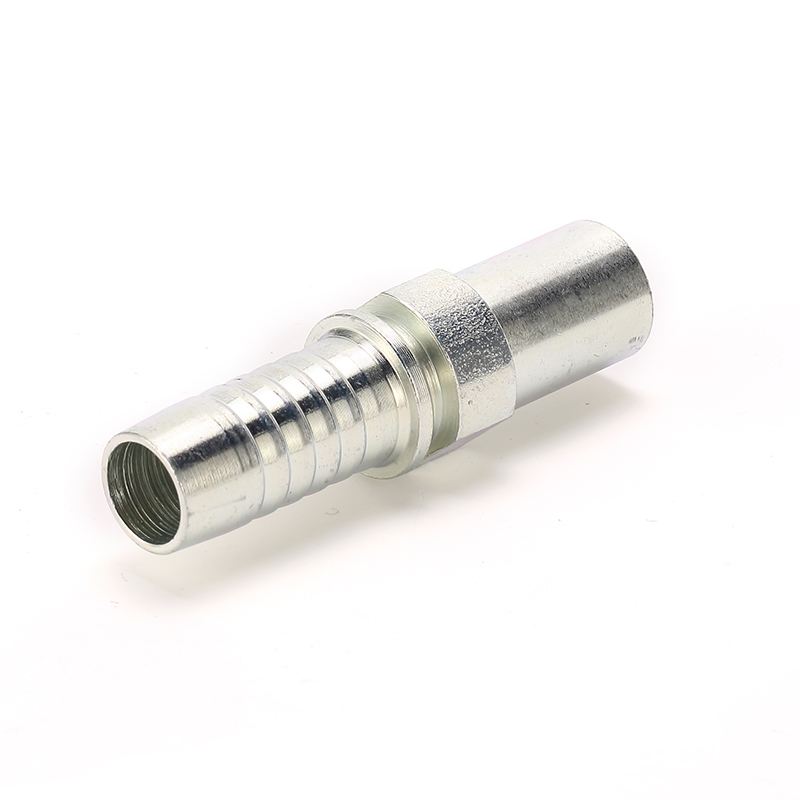

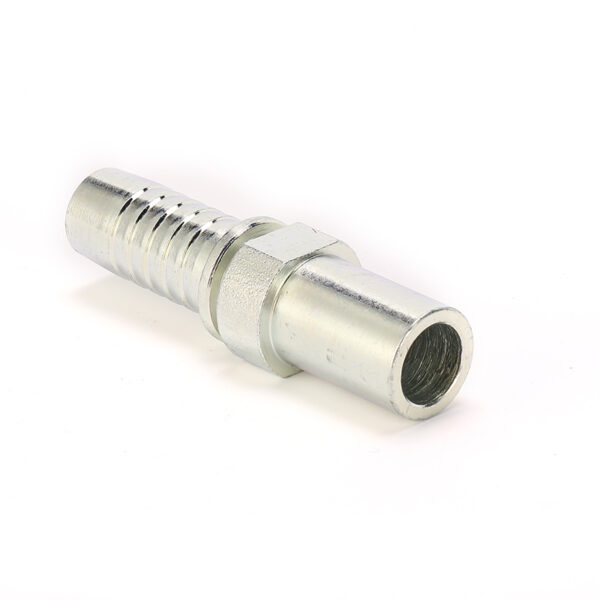

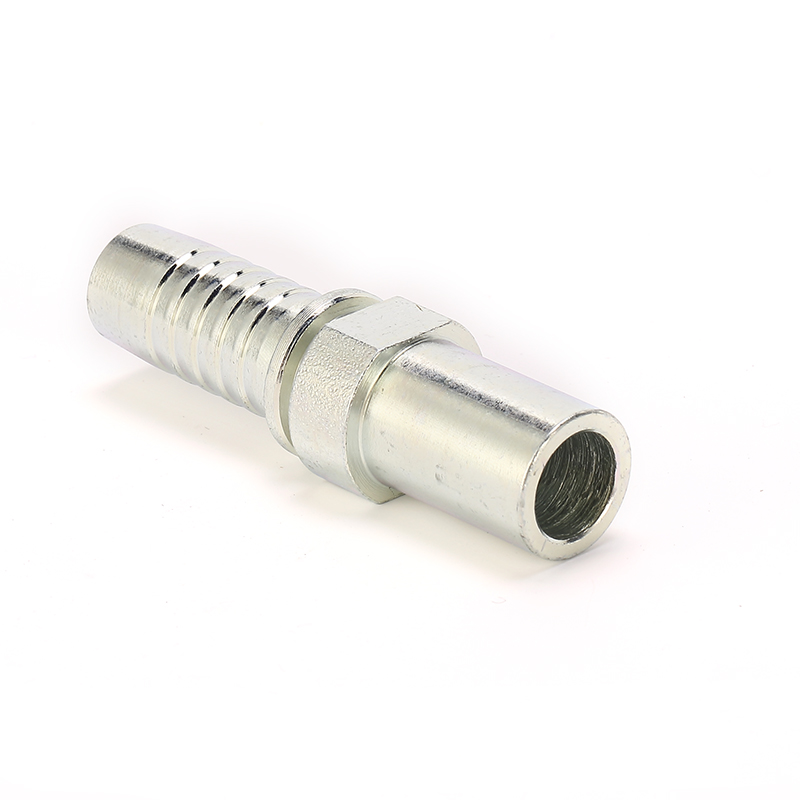

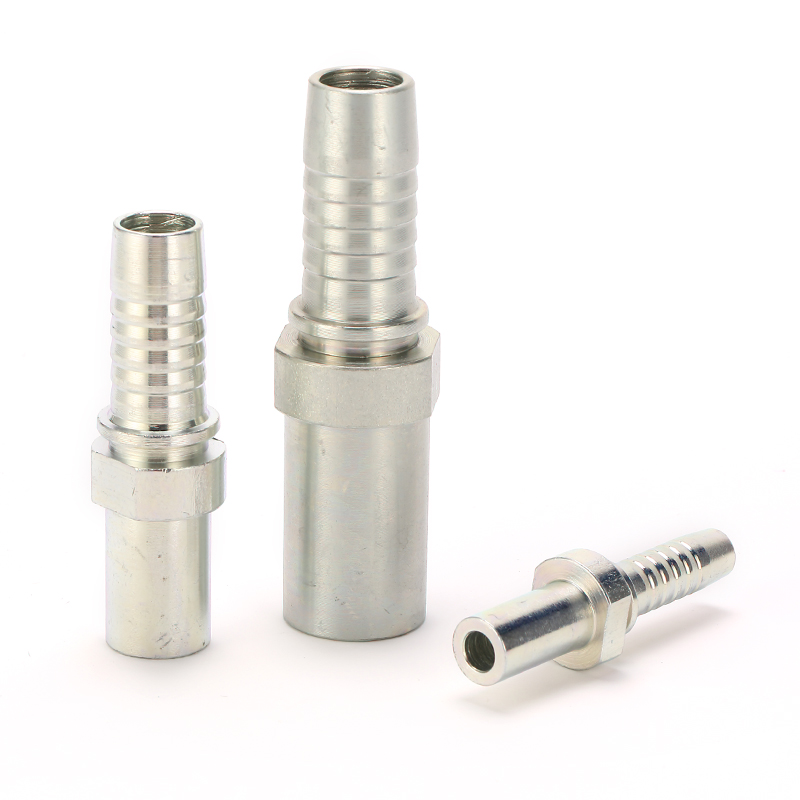

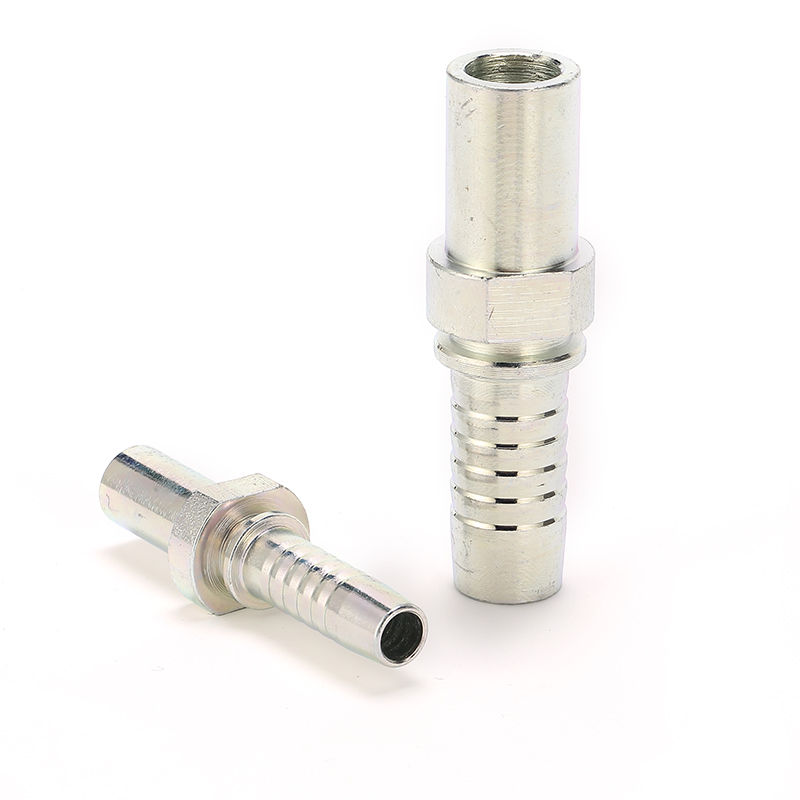

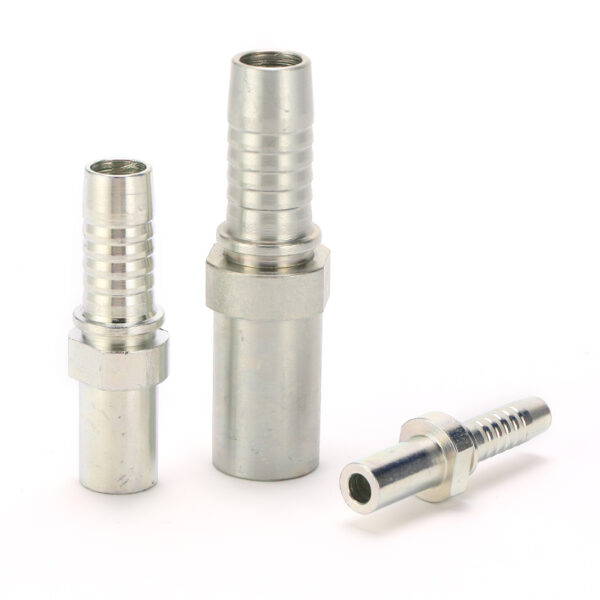

50011 Metric Straight Standpipe Fittings

Description:

The 50011 metric standpipe fitting is a straight fitting that has a metric thread on one end and a smooth hose tail on the other. The smooth hose tail is intended for use with a hose that matches its corresponding inside diameter.

"*" indicates required fields

Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

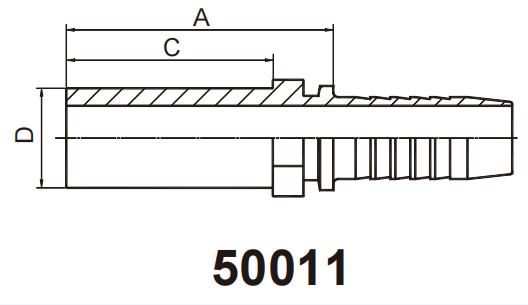

PART NO.	TUBEO.D	HOSEBORE		DIMENSIONS		NOTE
PART NO.	TUBEO.D	DN	DASH	A	C	NOTE
50011-06-03	6	5	03	28.5	22	LIGHT TYPE
50011-06-04	6	6	04	29	22
50011-10-05	10	8	05	31	23
50011-10-06	10	10	06	32	23
50011-12-06	12	10	06	33.5	23
50011-12-08	12	12	08	33	23
50011-15-06	15	10	06	35.5	25
50011-15-08	15	12	08	35.5	25
50011-18-08	18	12	08	36.5	26
50011-18-10	18	16	10	41	26
50011-22-10	22	16	10	44	28
50011-22-12	22	20	12	44	28
50011-22-16	22	25	16	46	28
50011-28-16	28	25	16	47	30
50011-35-20	35	32	20	56	36
50011-42-24	42	40	24	62	40
50011-08-04	8	6	04	31	24	HEAVY TYPE
50011-08-05	8	8	05	33	24
50011-08-06	8	10	06	33	24
50011-10-04	10	6	04	35	26
50011-12-04	12	6	04	34.5	26
50011-12-05	12	8	05	35.5	26
50011-14-06	14	10	06	39.5	29
50011-14-08	14	12	08	40	29
50011-14-12	14	20	12	45.5	29
50011-16-08	16	12	08	41	30
50011-16-10	16	16	10	45.5	30
50011-20-10	20	16	10	52.5	36
50011-20-12	20	20	12	52.5	36
50011-25-12	25	20	12	56	40
50011-25-16	25	25	16	57	40
50011-30-16	30	25	16	63	44
50011-30-20	30	32	20	64	44
50011-38-16	38	25	16	69	50
50011-38-20	38	32	20	70	50

Click to enlarge

Category: Metric Hose Fittings Tags: Metric hose fitting, Female, Carbon Steel

Description
Package& Shipping

Description

PART NO.	TUBEO.D	HOSEBORE		DIMENSIONS		NOTE
PART NO.	TUBEO.D	DN	DASH	A	C	NOTE
50011-06-03	6	5	03	28.5	22	LIGHT TYPE
50011-06-04	6	6	04	29	22
50011-10-05	10	8	05	31	23
50011-10-06	10	10	06	32	23
50011-12-06	12	10	06	33.5	23
50011-12-08	12	12	08	33	23
50011-15-06	15	10	06	35.5	25
50011-15-08	15	12	08	35.5	25
50011-18-08	18	12	08	36.5	26
50011-18-10	18	16	10	41	26
50011-22-10	22	16	10	44	28
50011-22-12	22	20	12	44	28
50011-22-16	22	25	16	46	28
50011-28-16	28	25	16	47	30
50011-35-20	35	32	20	56	36
50011-42-24	42	40	24	62	40
50011-08-04	8	6	04	31	24	HEAVY TYPE
50011-08-05	8	8	05	33	24
50011-08-06	8	10	06	33	24
50011-10-04	10	6	04	35	26
50011-12-04	12	6	04	34.5	26
50011-12-05	12	8	05	35.5	26
50011-14-06	14	10	06	39.5	29
50011-14-08	14	12	08	40	29
50011-14-12	14	20	12	45.5	29
50011-16-08	16	12	08	41	30
50011-16-10	16	16	10	45.5	30
50011-20-10	20	16	10	52.5	36
50011-20-12	20	20	12	52.5	36
50011-25-12	25	20	12	56	40
50011-25-16	25	25	16	57	40
50011-30-16	30	25	16	63	44
50011-30-20	30	32	20	64	44
50011-38-16	38	25	16	69	50
50011-38-20	38	32	20	70	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

50011 Metric Straight Standpipe Fittings

Package:

Delivery Time:
