Home Hydraulic Hose Fittings Metric Hose Fittings 20411-T Metric Female 24°Cone O-Ring L.T. Fittings
10511 Metric Male 24° Cone Seat H.T. Fittings
Back to products
20441-T 45 Elbow Metric Female 24°Cone O-Ring L.T. Fittings
Click to enlarge

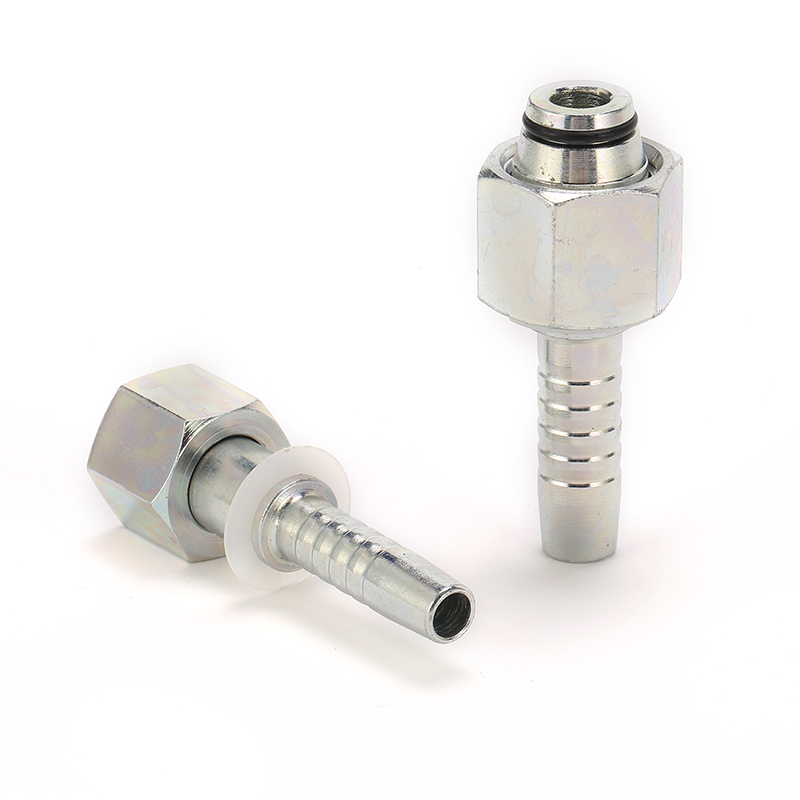

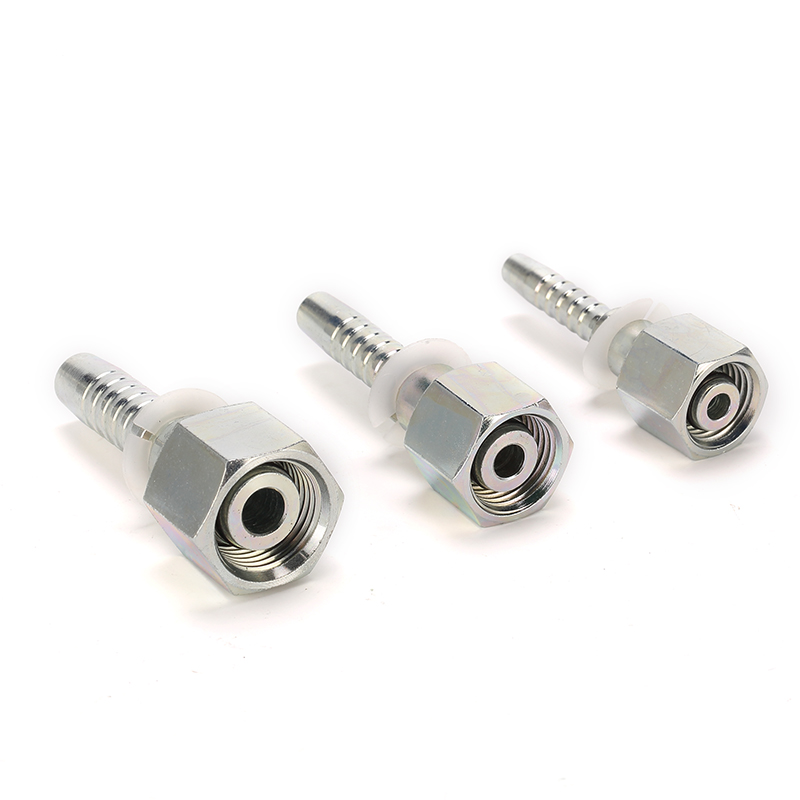

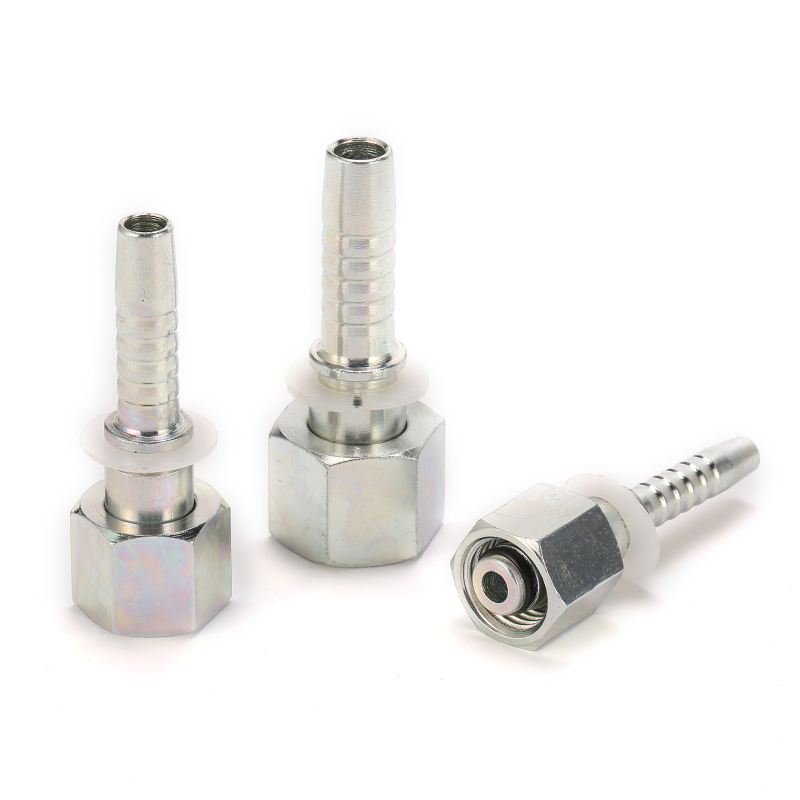

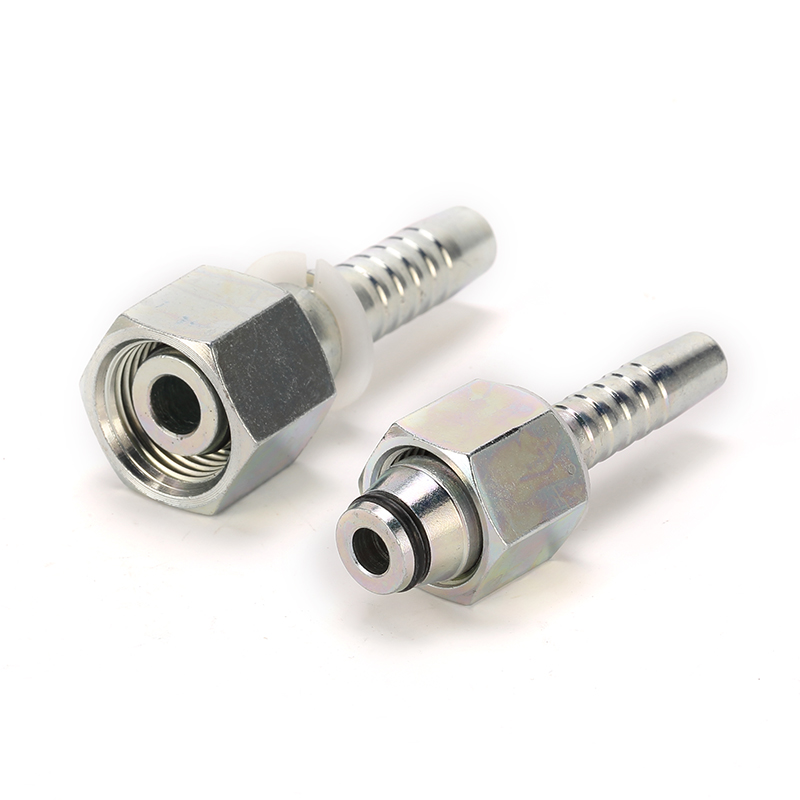

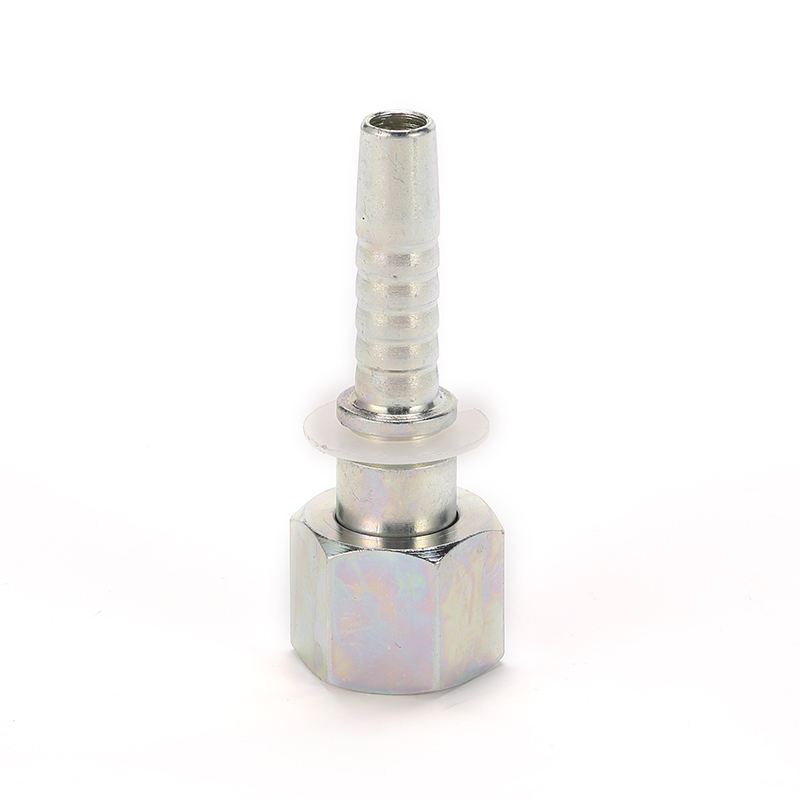

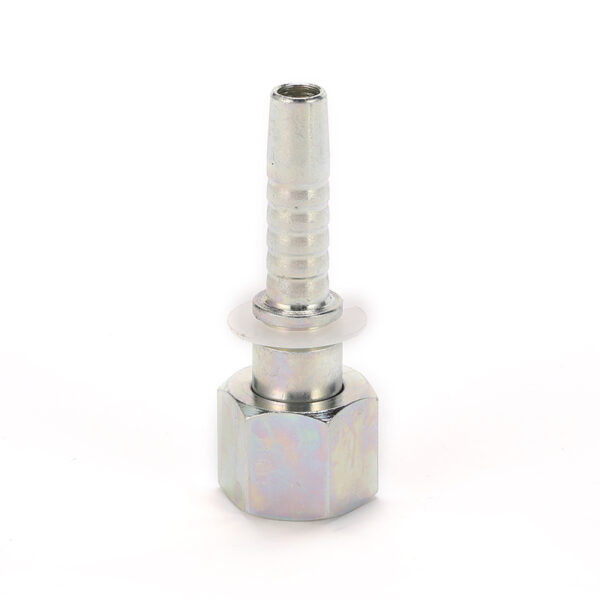

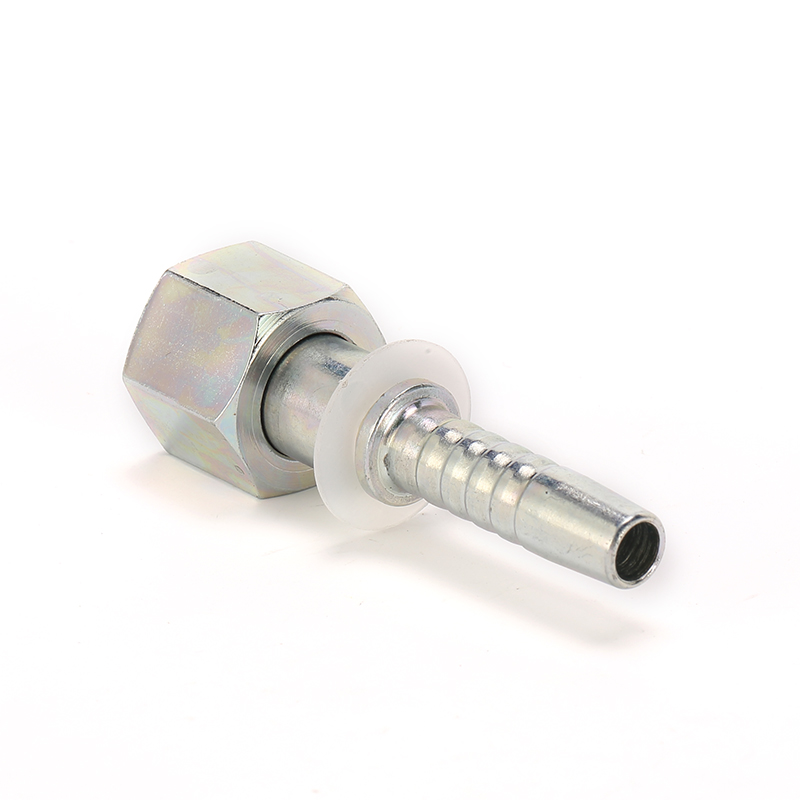

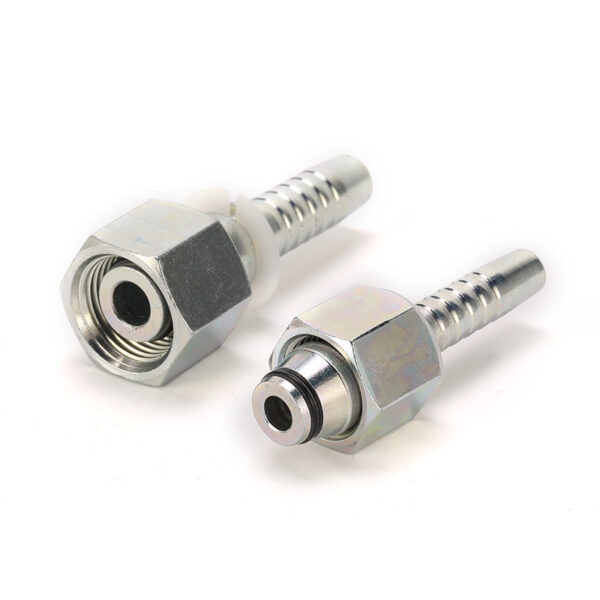

20411-T Metric Female 24°Cone O-Ring L.T. Fittings

Description:

The 20411 female 24-degree cone light hydraulic hose fitting features a female metric thread and an O-ring seal, providing a robust connection between hoses and tubes. These 20411 fittings are widely utilized in medium to high-pressure hydraulic fluid systems.

INQUIRE NOW

"*" indicates required fields

Category: Metric Hose Fittings Tags: Carbon Steel, hydraulic, Metric hose fitting, Female
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

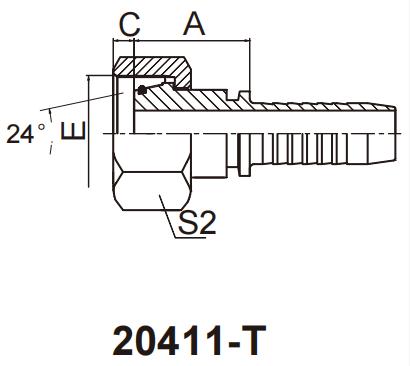

PART NO. THREAD  E HOSEBORE TUBEO.D ORING DIMENSIONS
DN DASH A C S2
20411-12-04 M12X1.5 6 04 6 4X1.5 26 1 17
20411-12-04W M12X1.5 6 04 6 4X1.5 22.5 1.4 17
20411-14-04 M14X1.5 6 04 8 6X1.5 27.5 2 19
20411-14-04W M14X1.5 6 04 8 6X1.5 22.5 1.6 17
20411-14-06 M14X1.5 10 06 8 6X1.5 27.5 2 19
20411-14-06W M14X1.5 10 06 8 6X1.5 23 1.6 17
20411-16-04 M16X1.5 6 04 10 7.5X1.5 28 2 22
20411-16-04T M16X1.5 6 04 10 7.5X1.5 20.5 2 19
20411-16-05 M16X1.5 8 05 10 7.5X1.5 28 2 22
20411-16-05W M16X1.5 8 05 10 7.5X1.5 22 2 19
20411-16-06 M16X1.5 10 06 10 7.5X1.5 28 2 22
20411-16-06W M16X1.5 10 06 10 7.5X1.5 23.5 2 19
20411-18-05T M18X1.5 8 05 12 9.5X1.5 27.5 1.8 22
20411-18-06 M18X1.5 10 06 12 9.5X1.5 29 2.5 24
20411-18-06T M18X1.5 10 06 12 9.5X1.5 27.5 1.5 22
20411-22-05T M22X1.5 8 05 15 12.0X2.0 29.5 2.1 27
20411-22-06 M22X1.5 10 06 15 12.0X2.0 31.5 2.5 27
20411-22-06T M22X1.5 10 06 15 12.0X2.0 29 2.5 27
20411-22-08 M22X1.5 12 08 15 12.0X2.0 32 2.5 27
20411-22-08T M22X1.5 12 08 15 12.0X2.0 29 2.5 27
20411-26-10 M26X1.5 16 10 18 15.0X2.0 35 2.5 32
20411-26-10T M26X1.5 16 10 18 15.0X2.0 30 2.1 32
20411-26-12 M26X1.5 20 12 18 15.0X2.0 35 2.5 32
20411-26-12W M26X1.5 20 12 18 15.0X2.0 28.5 2.1 32
20411-27-10 M27X1.5 16 10 18 15.0X2.0 35 2.5 32
20411-27-12 M27X1.5 20 12 18 15.0X2.0 35 2.5 32
20411-30-10T M30X2 16 10 22 20.0X2.0 35 4 36
20411-30-12 M30X2 20 12 22 20.0X2.0 38 4 36
20411-30-12T M30X2 20 12 22 20.0X2.0 34 4 36
20411-36-12T M36X2 20 12 28 26.0X2.0 35 4 41
20411-36-14T M36X2 22 14 28 26.0X2.0 36 4 41
20411-36-16 M36X2 25 16 28 26.0X2.0 39.5 4 41
20411-36-20 M36X2 32 20 28 26.0X2.0 40 4 41
20411-45-16T M45X2 25 16 35 32.0X2.5 41 5 55
20411-45-20T M45X2 32 20 35 32.0X2.5 42 5 55
20411-52-20T M52X2 32 20 42 38.0X2.5 44 5.5 60
20411-52-24T M52X2 40 24 42 38.0X2.5 44 5.5 60
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
