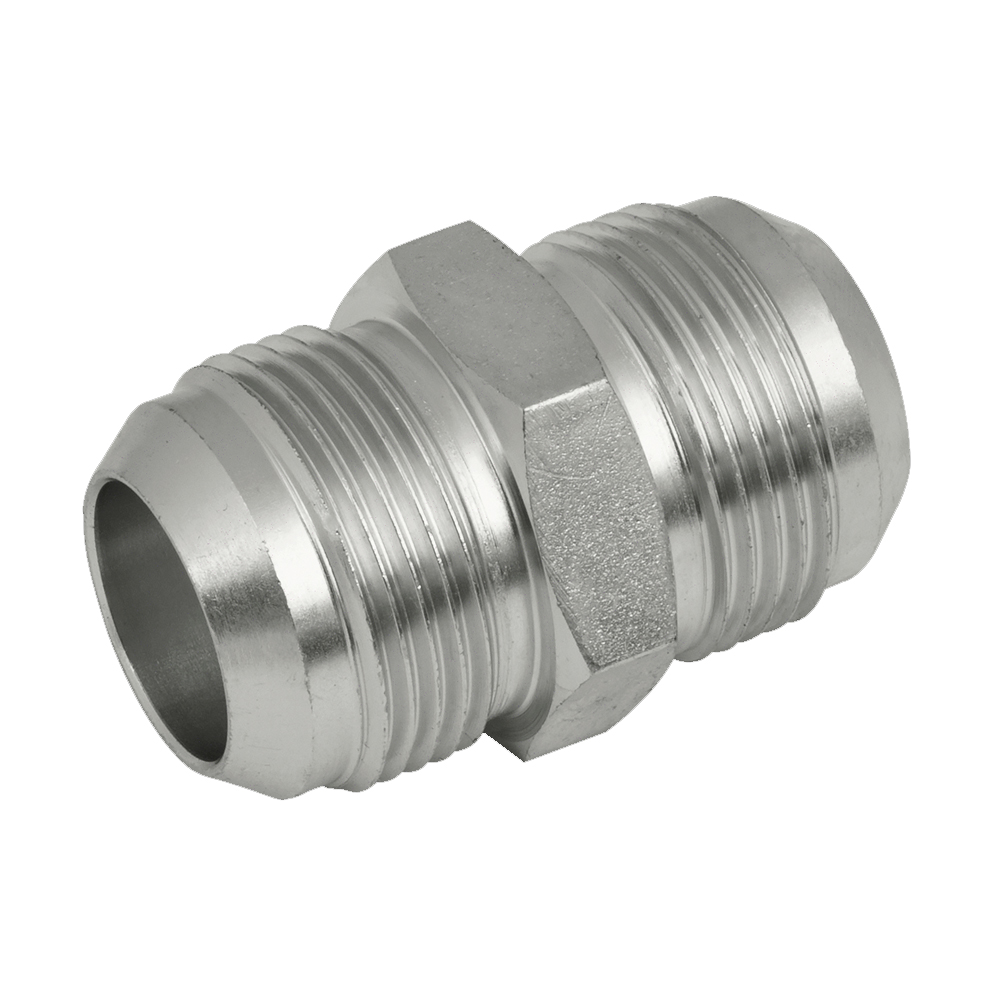

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

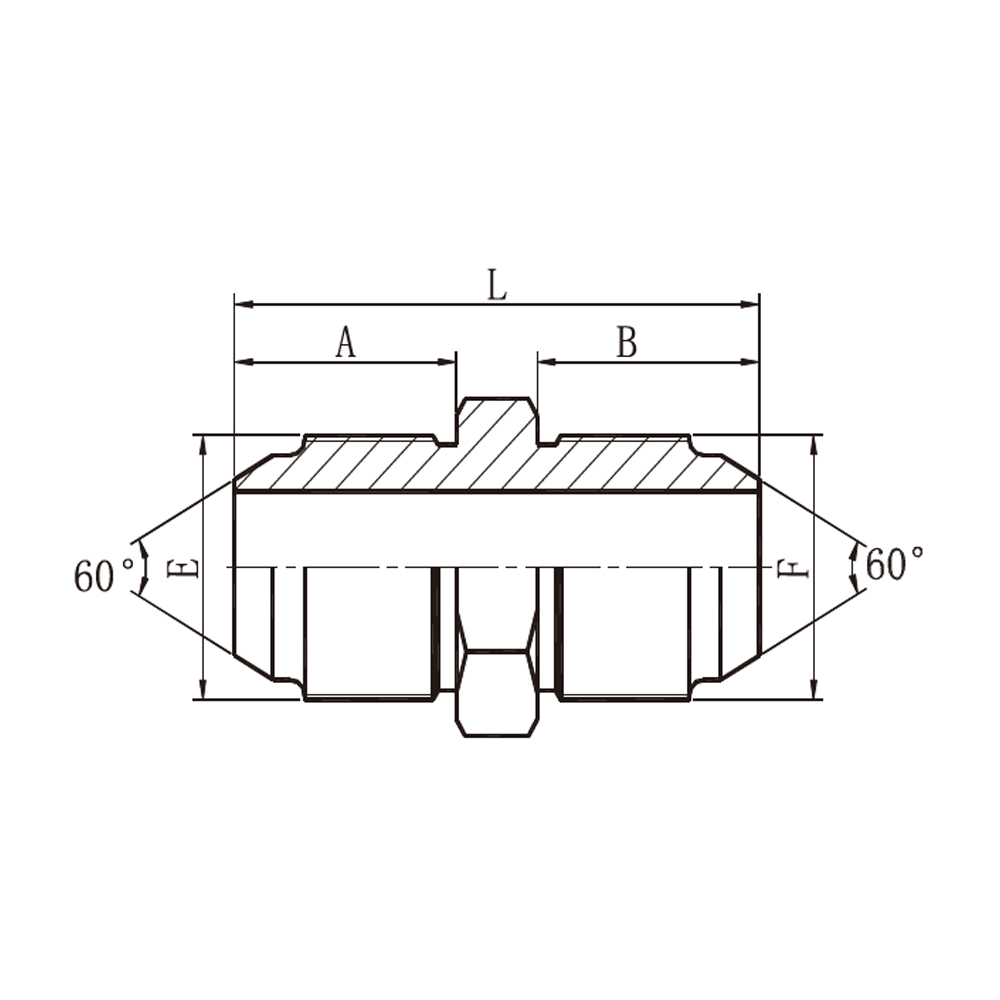

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | L | S1 | |
| 1K-14 | M14X1.5 | M14X1.5 | 17 | 17 | 40 | 17 |
| 1K-16 | M16X1.5 | M16X1.5 | 18 | 18 | 42 | 17 |
| 1K-18 | M18X1.5 | M18X1.5 | 18 | 18 | 42 | 19 |
| 1K-20 | M20X1.5 | M20X1.5 | 20 | 20 | 48 | 22 |
| 1K-22 | M22X1.5 | M22X1.5 | 20 | 20 | 48 | 24 |
| 1K-24 | M24X1.5 | M24X1.5 | 21.5 | 21.5 | 53 | 27 |
| 1K-30 | M30X1.5 | M30X1.5 | 26 | 26 | 63 | 32 |
| 1K-33 | M33X1.5 | M33X1.5 | 30 | 30 | 71 | 36 |
| 1K-36 | M36X1.5 | M36X1.5 | 33 | 33 | 79 | 41 |
